Product Description
Product Overview

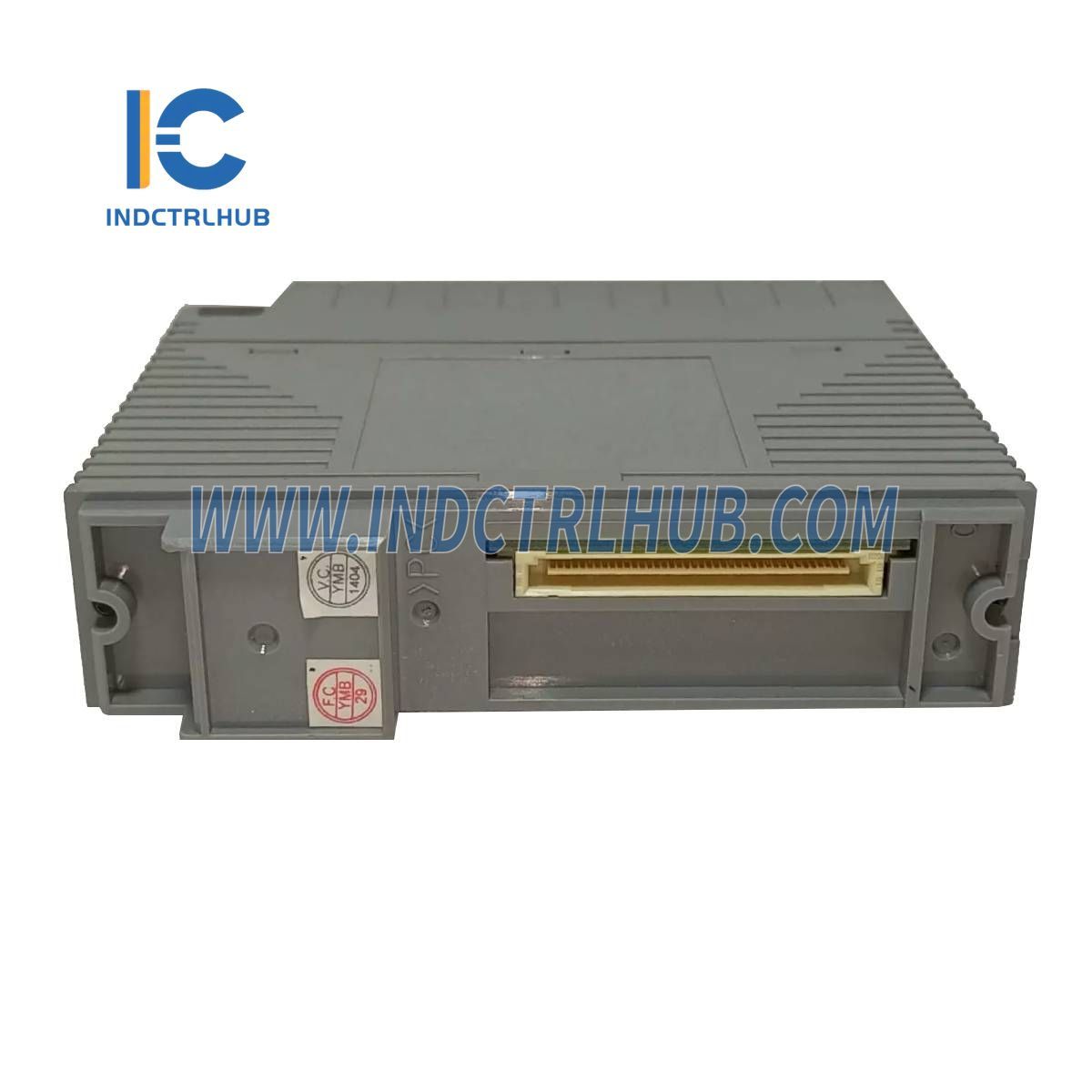

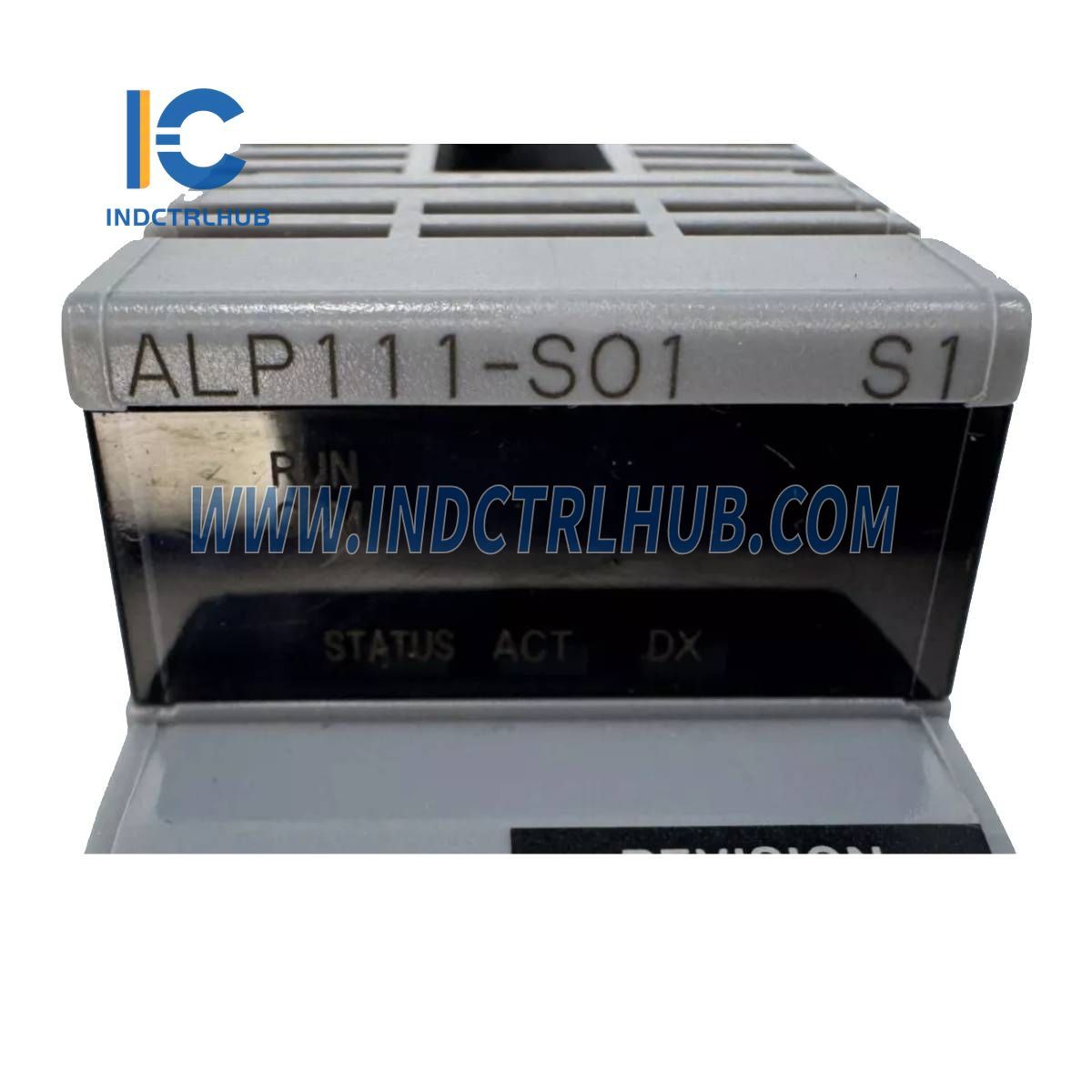

The Yokogawa ALP111-S01 is a PROFIBUS-DP Communication Module designed to enable reliable communication within industrial automation systems. This module acts as an interface for PROFIBUS-DP networks, supporting high-speed data exchange with slave devices. It is engineered for robust performance and easy integration into various control setups.
Technical Information
| Item | Specifications |
|---|---|
| Model | ALP111 |
| Interface | PROFIBUS-DP |
| Connection method | EIA-RS-485-compliant |
| Signal isolation | Isolated |
| Transmission speed | 9600 bps to 12 Mbps |
| Transmission route | Shielded |
| Maximum transmission distance | 1.2 km per segment (at the communication speed of 9600 bps) |
| No. of communication port | One port (*1) |
| Communication port | D-sub 9 pin (female) (*2) |
| Maintenance port | D-sub 9 pin (male), Interface: RS-232C |
| Maximum current consumption | 0.7 A |
| Weight | 0.3 kg |

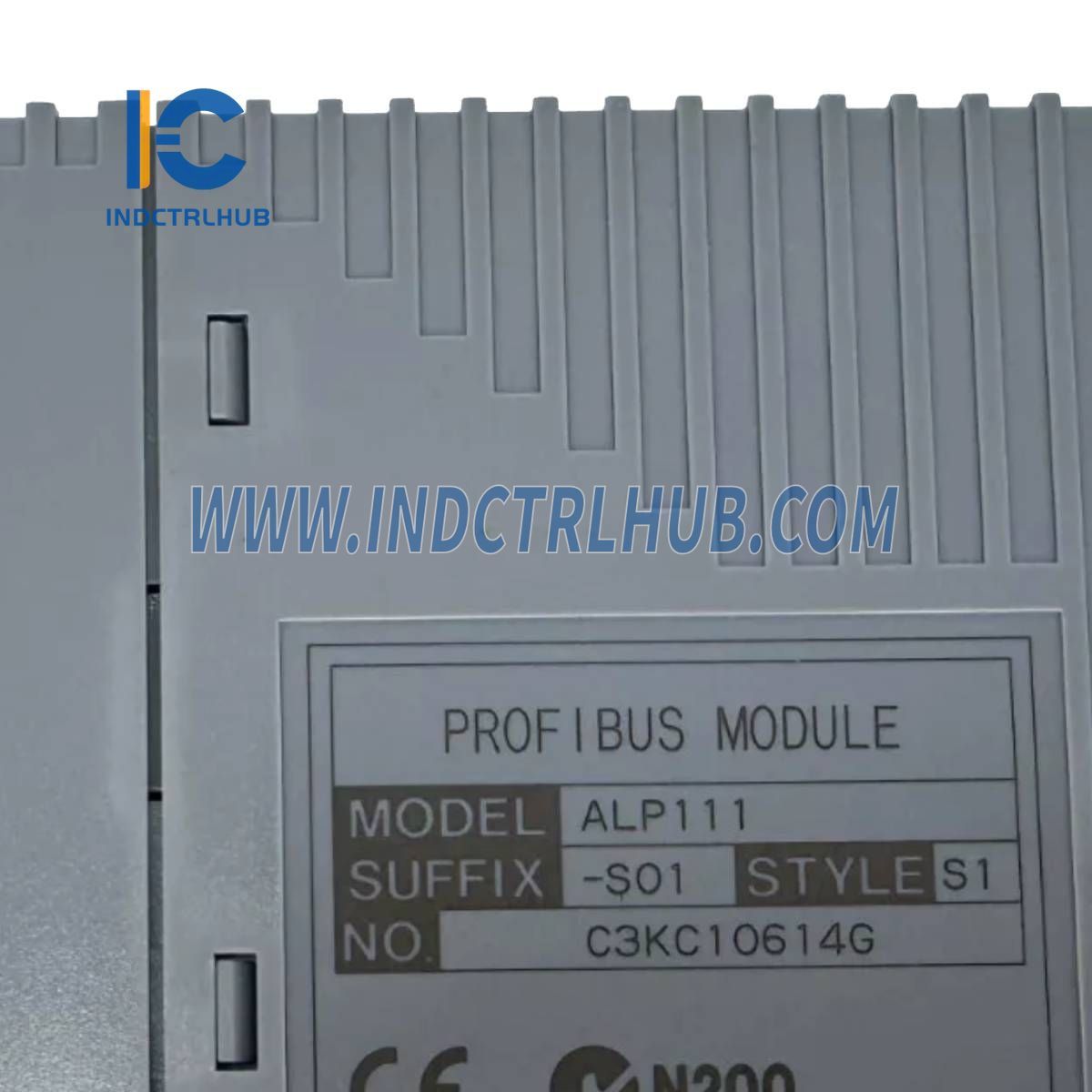

Model and Suffix Codes
- Model: ALP111 PROFIBUS-DP Communication Module
- Suffix Codes:
- -S: Standard type
- 0: Always 0
- 0: Basic type
- 1: With ISA Standard G3 option
Additional Notes
- (*1) Indicates the module is equipped with a single communication port, with no additional details provided.
- (*2) Refers to the D-sub 9 pin (female) communication port specification, consistent with PROFIBUS-DP standards.
