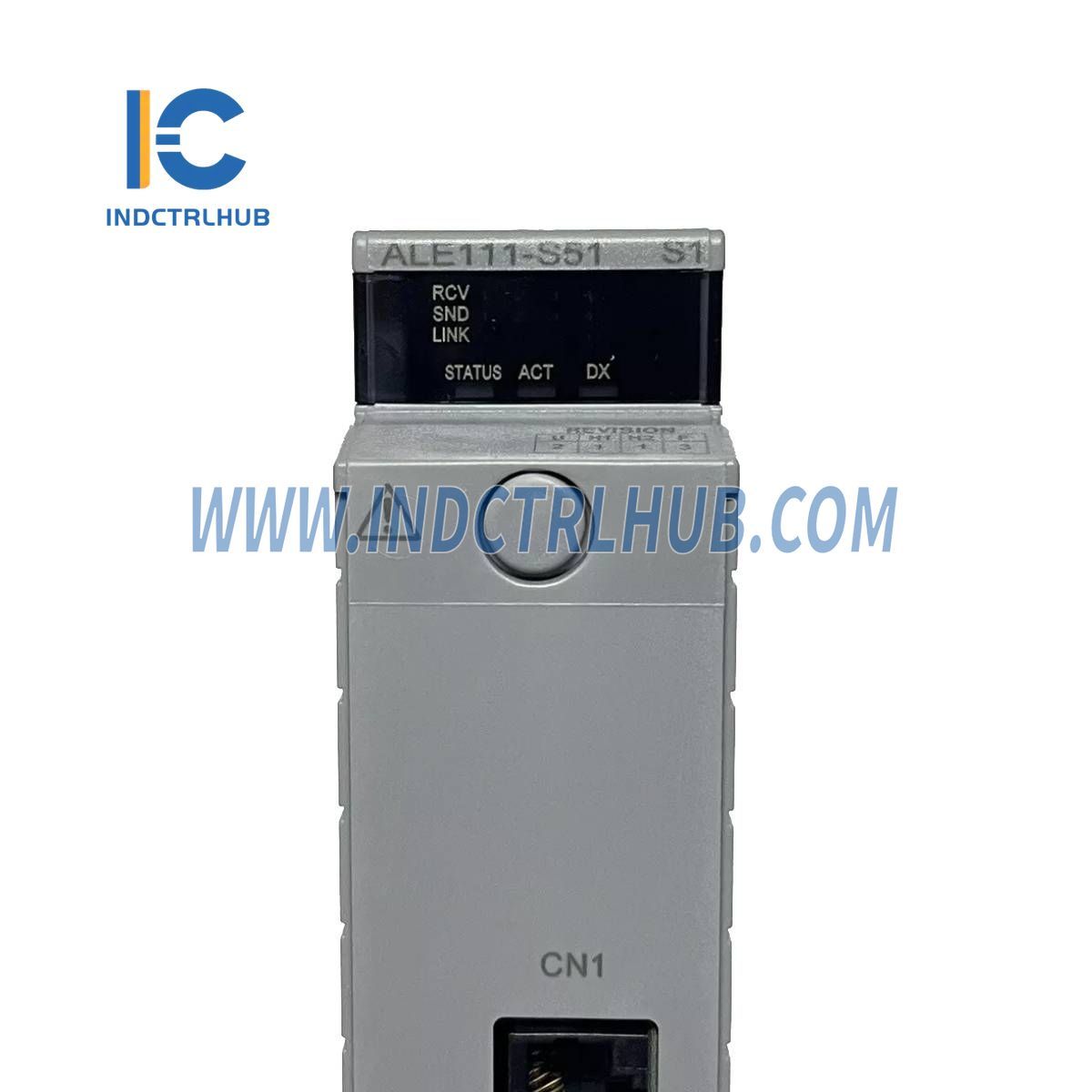

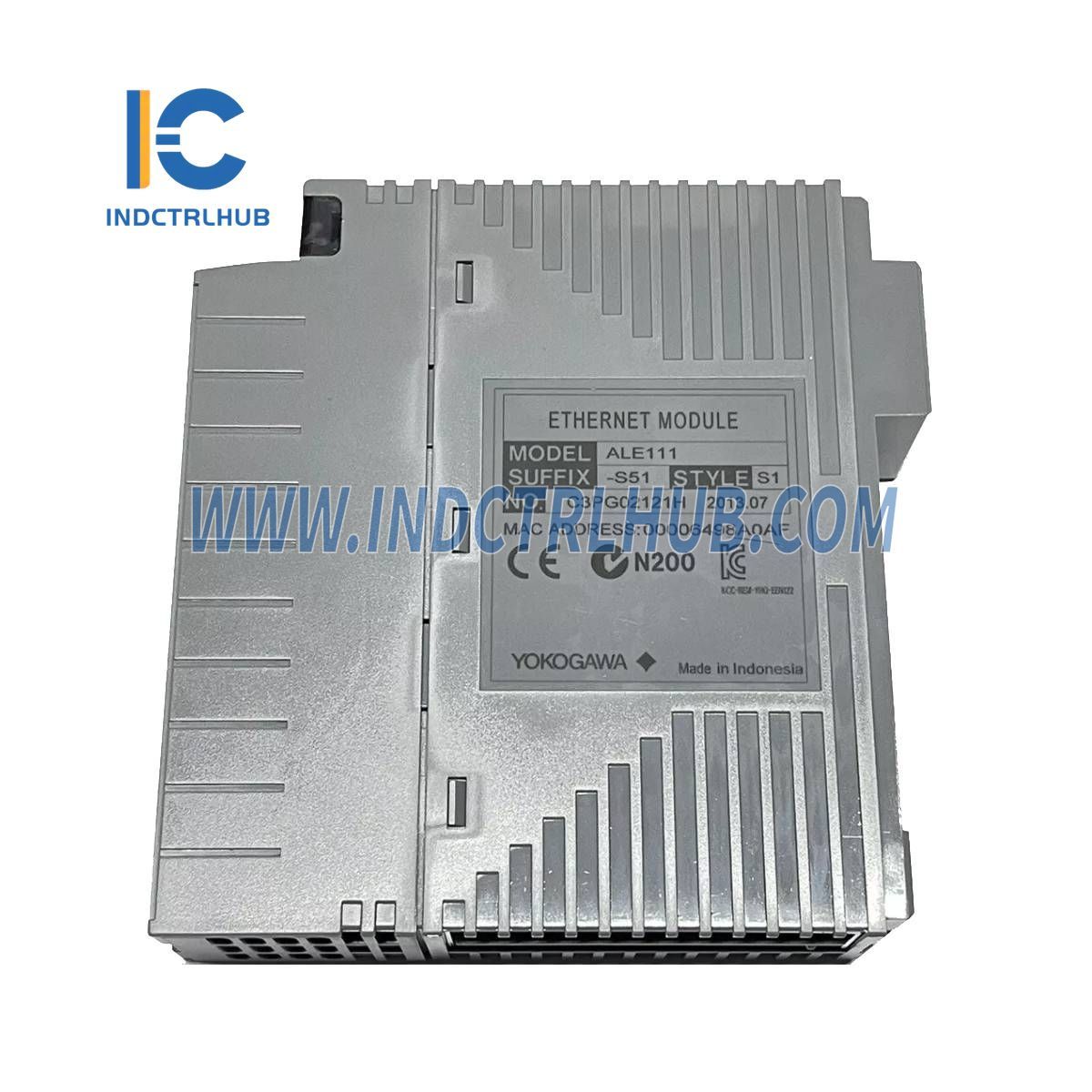

Product Description
Product Information
| Manufacturer |
Yokogawa |
| Model/Part Number |
ALE111-S51-S1 |
| Description |
Ethernet Communication Module for FIO (Field Input/Output) |
General Description
The ALE111 Ethernet Communication Module is used by a field control station (FCS) to enable Ethernet communication with subsystems such as FA-M3. It can be mounted on several Yokogawa units including field control units (AFV30, AFV40, AFV10, and AFF50), ESB bus node units (ANB10), optical ESB bus node units (ANB11), and ER bus node units (ANR10).
Hardware Specifications
| Item |
Specification |
| Physical Layer Interface |
IEEE802.3 10BASE-T |
| Connection Method |
Point-to-point |
| Connector |
RJ-45 |
| Transmission Method |
Half-duplex |
| Transmission Speed |
10 Mbps |
| Transmission Route |
100-ohm twisted-pair cable (unshielded) |
| Transmission Distance |
1 segment, up to 100 meters |
| Installation Method |
Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40 |
| Number of Ports |
1 port |
| Media Access Control |
CSMA/CD |
| Communication Functions |
FA-M3, Modbus, MELSEC, YFGW, DARWIN/DAQSTATION, PLC-5/SLC500 |
| Current Consumption |
0.5 A |
| Weight |
0.3 kg |
Model and Suffix Codes
| Model |
ALE111 Ethernet Communication Module |
| Suffix Codes |
- S: Standard Type |
|
- 5: With no explosion protection |
|
- E: With explosion protection |
|
- 0: Basic Type |
|
- 1: With ISA Standard G3 option |
