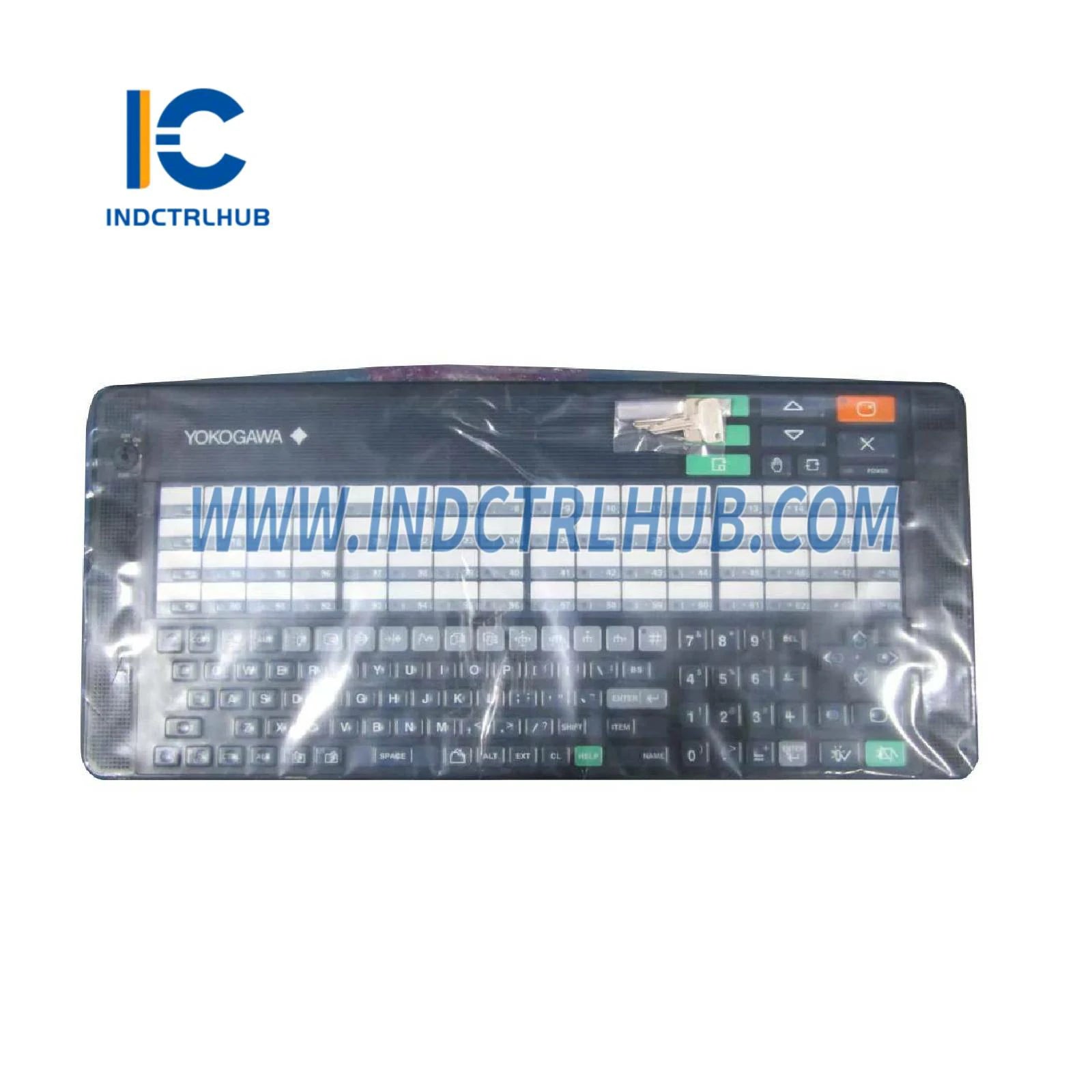

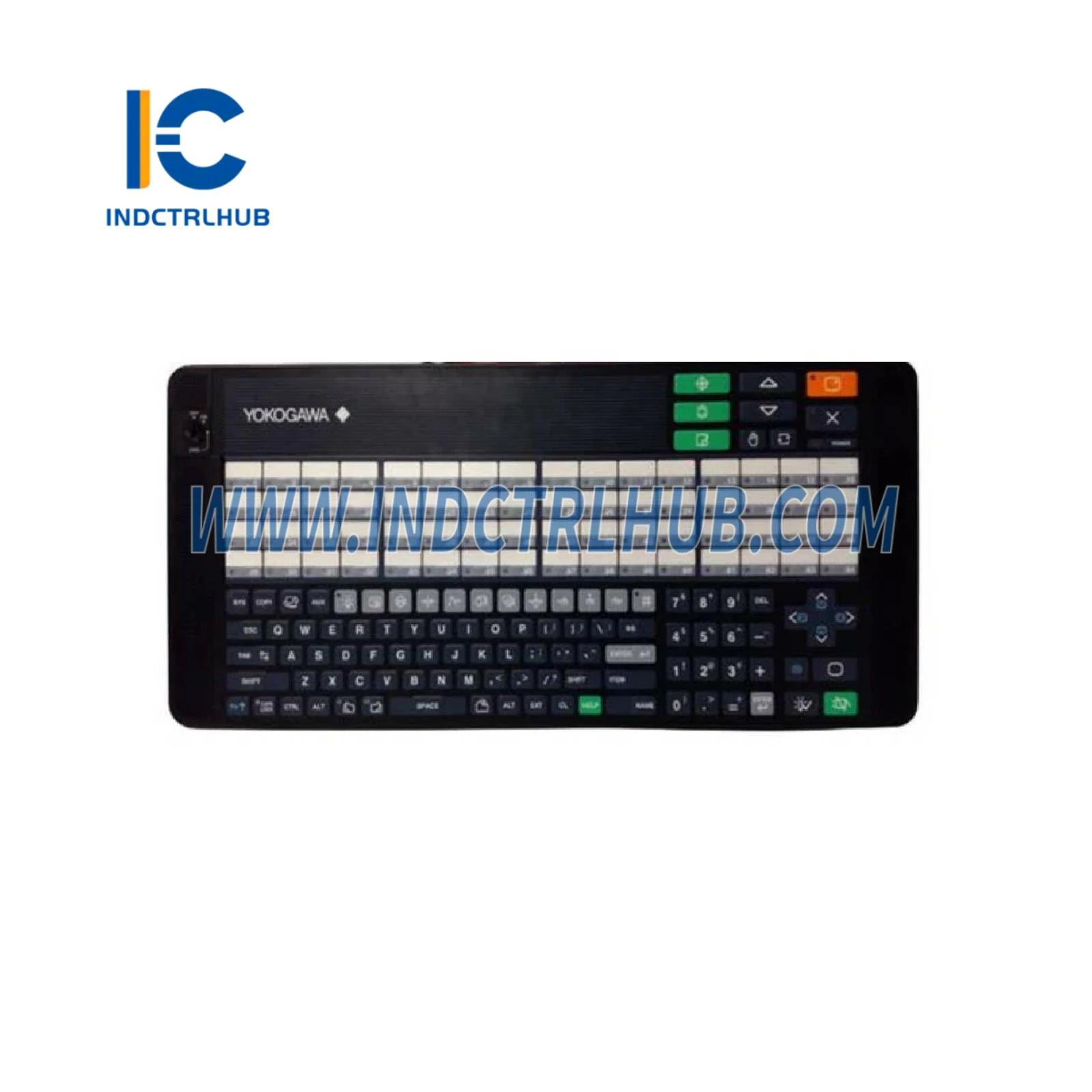

Yokogawa AIP831-101/EIM Operation Keyboard | 8-Loop Simultaneous Control
Yokogawa AIP831-101/EIM Operation Keyboard | 8-Loop Simultaneous Control
Manufacturer: Yokogawa
Product No.: AIP831-101/EIM
Condition:1000 in stock
Product Type: Operation Keyboard for Eight-loop Simultaneous Operation
Product Origin: 8917817065731
Payment: T/T, Western Union
Weight: 2500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Yokogawa AIP831-101/EIM Operation Keyboard Overview
The Yokogawa AIP831-101/EIM Operation Keyboard delivers advanced multi-loop control capabilities for industrial automation systems, enabling operators to simultaneously manage eight independent control loops from a single ergonomic interface. Designed for CENTUM VP and CENTUM CS 3000 distributed control systems, this operation keyboard streamlines complex process control tasks in refineries, chemical plants, and power generation facilities.
Technical Specifications
- Model Number: AIP831-101/EIM
- Control Capacity: Eight-loop simultaneous operation
- Interface Type: Enhanced Integrated Module (EIM) architecture
- Display Integration: Compatible with HIS (Human Interface Station) workstations
- Key Layout: Dedicated function keys for setpoint adjustment, mode switching, and alarm acknowledgment
- Communication Protocol: V-net/IP high-speed control network
- Operating Temperature: 0°C to +50°C (32°F to 122°F)
- Power Supply: 24V DC via HIS backplane
- Dimensions: 420mm (W) × 180mm (D) × 45mm (H)
- Weight: 2.5 kg
- MTBF: >100,000 hours under normal operating conditions
Key Features & Operational Benefits
Multi-Loop Simultaneous Control: The AIP831-101/EIM enables operators to adjust setpoints, switch control modes, and acknowledge alarms across eight different control loops without navigating between screens, reducing response time during critical process upsets by up to 60%.
Tactile Feedback Design: Mechanical keys with positive tactile response provide reliable operation in high-vibration environments and allow operators to execute commands without visual confirmation, maintaining focus on process graphics during emergency scenarios.
Integrated Alarm Management: Dedicated alarm acknowledgment keys with LED indicators allow rapid response to process deviations, supporting ISA-18.2 alarm management best practices and reducing operator cognitive load during abnormal situations.
Hot-Swappable Architecture: The EIM interface supports online replacement without system shutdown, enabling maintenance activities during continuous operations and maximizing plant availability in 24/7 production environments.
Industrial Applications
Refinery Process Control: Manages critical distillation column parameters including reflux ratios, bottom temperatures, and overhead pressures across multiple towers, enabling operators to optimize product yields while maintaining safety margins.
Chemical Batch Processing: Controls sequential batch operations including reactor temperature profiles, reagent addition rates, and pressure ramp sequences, ensuring consistent product quality and recipe compliance.
Power Plant Operations: Coordinates boiler combustion control loops including fuel flow, air-fuel ratio, steam temperature, and drum level, optimizing thermal efficiency while preventing tube failures and emissions excursions.
Pharmaceutical Manufacturing: Provides precise control over fermentation parameters, crystallization temperatures, and drying conditions in GMP-regulated environments where manual intervention speed directly impacts batch success rates.
System Integration & Compatibility
The AIP831-101/EIM operation keyboard integrates seamlessly with Yokogawa CENTUM VP R6.x and CENTUM CS 3000 R3.x platforms through standard HIS module slots. It communicates via V-net/IP protocol at 100 Mbps, ensuring deterministic response times below 100 milliseconds for all control actions.
For complete operator interface solutions, combine this keyboard with Yokogawa CP451-50 Processor Module for distributed control processing, Yokogawa SCP451-53 Processor Module for safety-critical applications, and Yokogawa PW482-50 S2 Power Supply Module for reliable 24V DC power distribution to HIS components.
Ergonomic Design & Operator Efficiency
The keyboard's angled key layout reduces wrist strain during extended operating shifts, while color-coded function groups minimize training time for new operators. Backlit keys maintain visibility in low-light control room conditions, and the spill-resistant membrane protects internal electronics from accidental liquid exposure.
Compliance & Certifications
CE marked | UL/cUL listed | IEC 61131-2 compliant | NEMA 4X enclosure rating available | RoHS compliant | Designed per ISA-101 HMI standards
