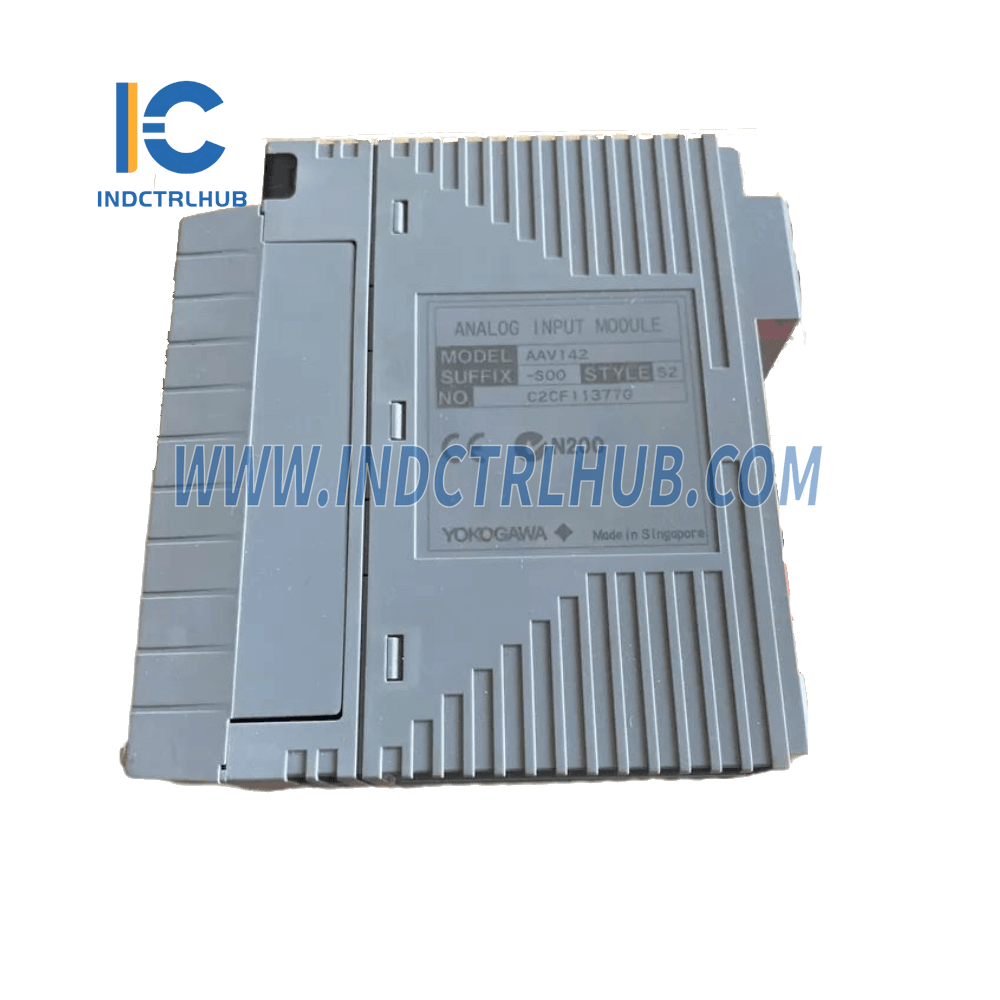

Yokogawa AAV142 S00 Analog Input Module

Yokogawa AAV142 S00 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAV142 S00

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Model/Part Number: AAV142 S00 - Analog Input Module

Product Description

The AAV142 S00 is an Analog Input Module manufactured by Yokogawa. It provides 16 input channels for non-isolated analog signals, mainly supporting 4-20 mA DC and 1-5 V DC inputs from 2-wire or 4-wire transmitters. This module is ideal for applications requiring accurate and reliable analog signal processing, and it can be used in a dual-redundant configuration to ensure continuous operation.

Key Specifications

Attribute Value
Model AAV142 S00
Number of Input Channels 16 channels, non-isolated
Input Signal 4 to 20 mA DC, 1 to 5 V DC, -10 to +10 V DC
Voltage Input 1 to 5 V DC (common mode voltage ±1 V or less)
Current Input 4 to 20 mA DC
Allowable Input Current/Voltage 27 mA (current), ±7.5 V (voltage), ±13 V (voltage)
Withstanding Voltage
Input Resistance (Power ON) 400 Ω (at 20 mA) to 1000 Ω (at 4 mA)
Input Resistance (Power OFF) 500 kΩ or larger
Accuracy Voltage input: ±4 mV, Current input: ±16 μA
Data Update Period 10 ms
Step Response Time 100 ms
Transmitter Power Supply 14.8 V or higher (at 20 mA), 26.4 V or less (at 0 mA)
Drift due to Ambient Temperature ±16 μA/10 °C (for current), ±4 mV/10 °C (for voltage)
Maximum Current Consumption 310 mA (5 V DC), 450 mA (24 V DC)
Weight 0.2 kg
External Connection Pressure clamp terminal, KS cable, MIL connector cable
HART Communication Available (at current input)

I/O Types and Capacities

Attribute Input Type Output Type
Voltage Input 1 to 5 V DC (allowable common mode voltage ±1 V or less)
Current Input 4 to 20 mA DC
Allowable Load Resistance Voltage input: 1 MΩ or larger
Allowable Load Resistance (Current Input) Current input: 290 Ω (at 20 mA) to 450 Ω (at 4 mA)

Suffix and Option Codes

Suffix Codes Description
-S Standard type
5 Without explosion protection
E With explosion protection
0 Basic type
3 With ISA Standard G3 option and temperature (-20 to 70 °C) option
Option Codes Description
/K4A00 KS Cable Interface Adapter [Model: ATK4A-00]
/A4S00 Pressure Clamp Terminal Block for Analog [Model: ATA4S-00]
/A4S10 Pressure Clamp Terminal Block for Analog (surge absorber) [Model: ATA4S-10]
/A4D00 Dual Pressure Clamp Terminal Block for Analog [Model: ATA4D-00]
/A4D10 Dual Pressure Clamp Terminal Block for Analog (surge absorber) [Model: ATA4D-10]
/CCC01 Connector Cover for MIL Cable [Model: ACCC01]

Applications and Usage

  • The AAV142 S00 Analog Input Module is suitable for applications in process control systems, especially where analog signal acquisition is required for temperature, pressure, flow, or other variables in industries such as oil & gas, chemical processing, and power generation.
  • Its dual-redundant configuration ensures reliability and fault tolerance, making it a good choice for mission-critical applications where downtime is not acceptable.
  • The module supports both current and voltage inputs, providing flexibility for integration with various types of transmitters.
