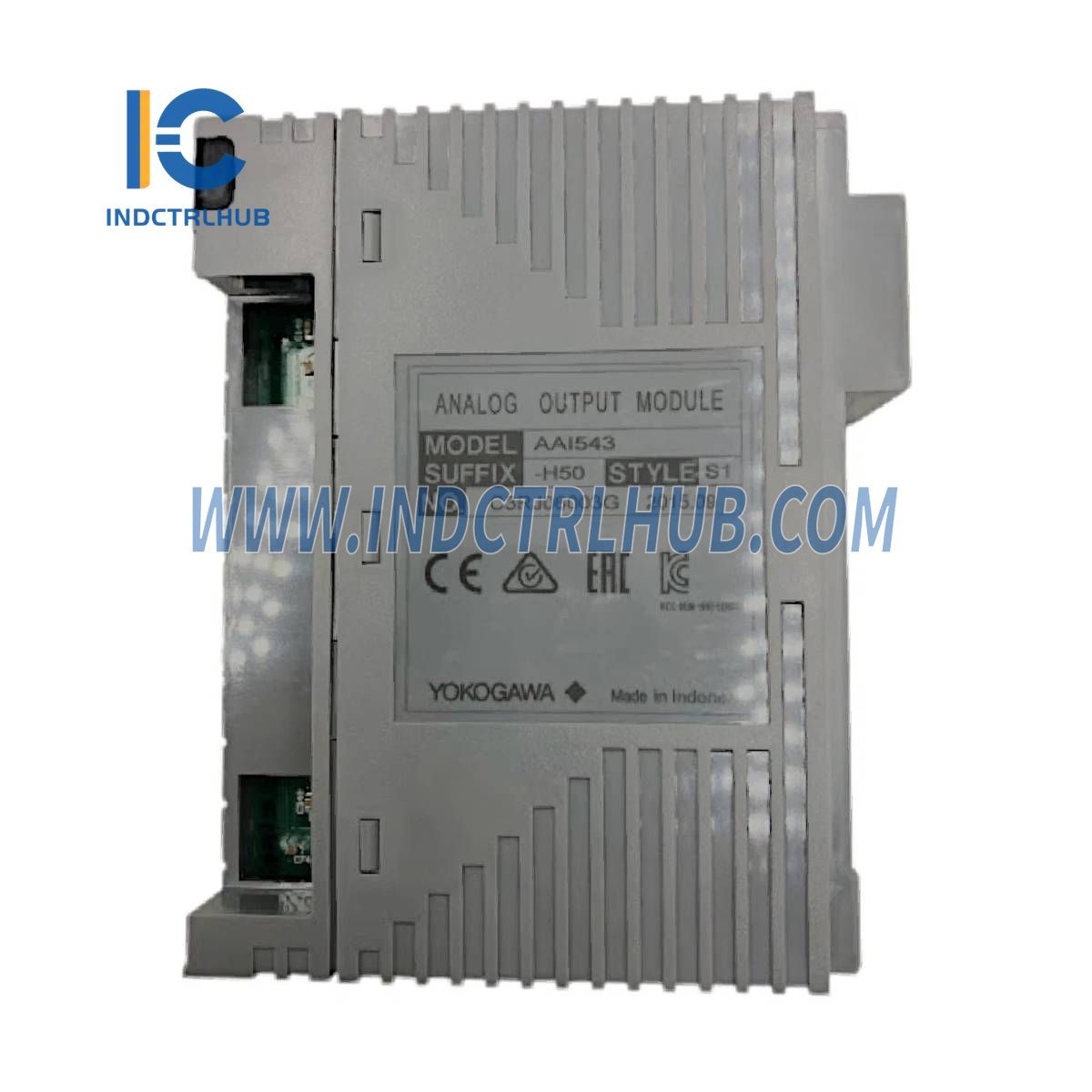

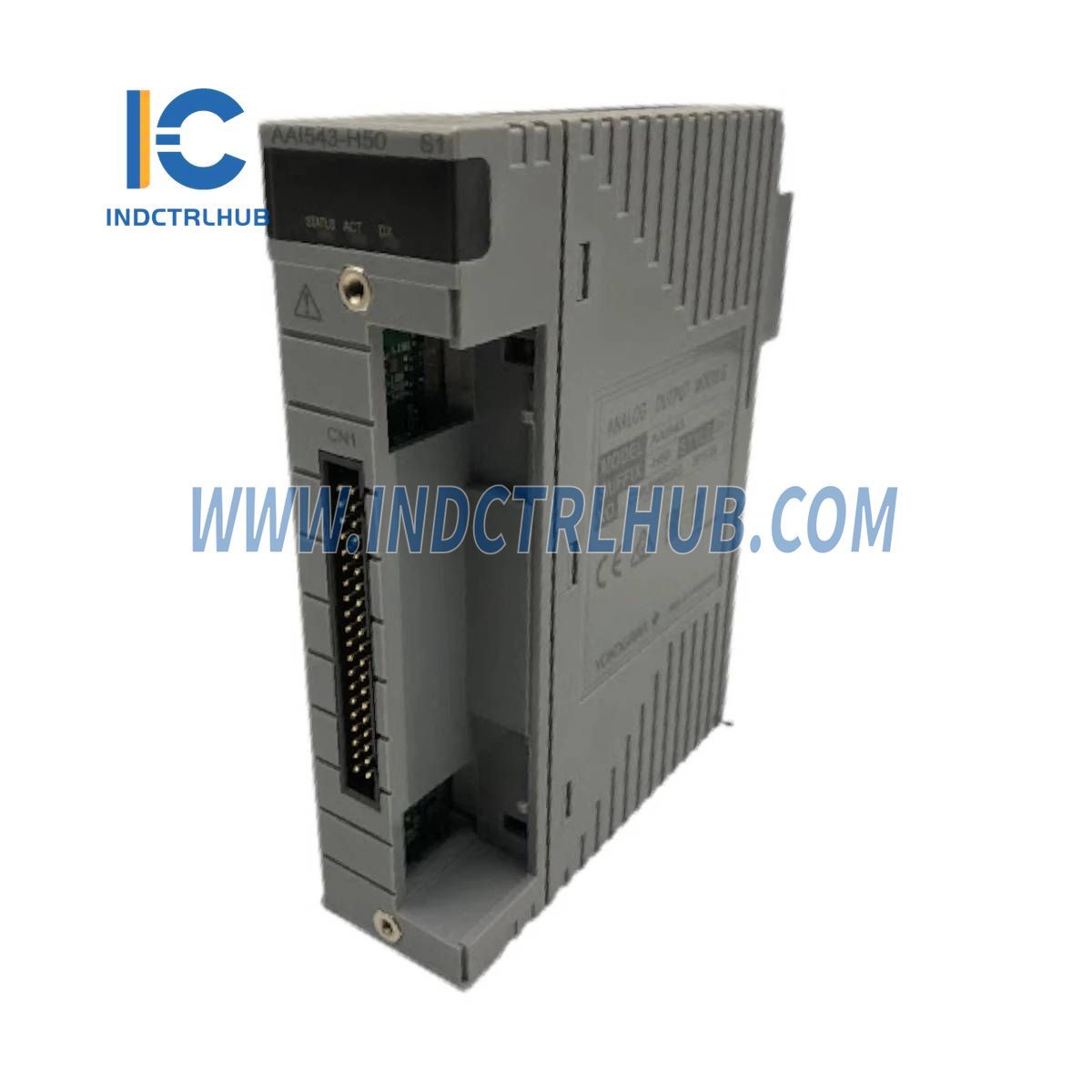

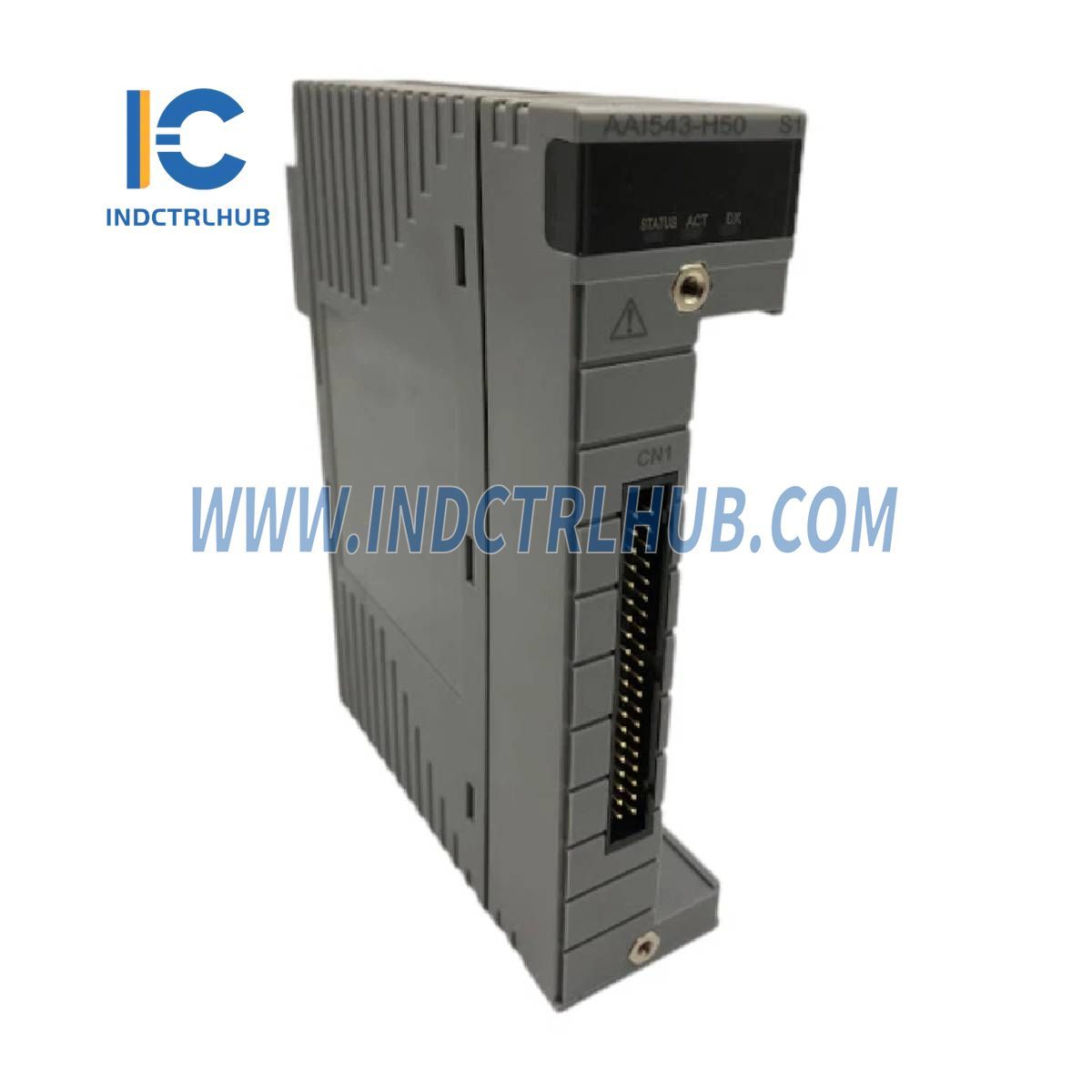

Yokogawa AAI543-H50 S1 Analog Output Module
Yokogawa AAI543-H50 S1 Analog Output Module
Manufacturer: Yokogawa
Product No.: AAI543-H50 S1
Condition:1000 in stock
Product Type: Analog Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI543-H50 S1 |
|
Description |
Analog Output Module (4_20 mA, 16-channel, Isolated, HART Communication) |
_
_
__ Description Summary
The_AAI543-H50 S1_is a 16-channel isolated analog output module designed to deliver 4_20 mA signals. It features_HART digital communication_and supports_standard switch-over response_in_redundant configurations. Ideal for high-reliability control systems requiring consistent analog output with system redundancy and diagnostics.
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Number of Output Channels |
16 isolated channels |
|
Output Signal |
4 to 20 mA |
|
Redundancy Support |
Standard switch-over response in redundant configuration |
|
Withstanding Voltage |
1500 V AC (1 min) between output and system |
|
Allowable Load Resistance |
0 to 750 _ |
|
Circuit-Open Detection |
Less than 0.65 mA |
|
Accuracy |
±48 µA |
|
Data Update Period |
10 ms |
|
Temperature Drift |
±16 µA per 10 °C |
|
Max Current Consumption |
230 mA (5 V DC), 540 mA (24 V DC) |
|
Weight |
Approx. 0.4 kg |
|
External Communication |
Pressure clamp terminal, MIL connector cable, KS1 cable |
|
HART Communication |
Available (enabled by _-H_ suffix) |
_
_
__ Model and Suffix Code Breakdown
|
Model |
AAI543__ Analog Output Module (4 to 20 mA, 16-channel, Isolated) |
|---|---|
|
-H |
With HART digital communication |
|
5 |
Standard switch-over response (no explosion protection) |
|
0 |
Basic type |
|
S1 |
Custom/internal use code variant |
_
_
__ Optional Accessories
|
Option Code |
Description |
|---|---|
|
/K4A00 |
KS Cable Interface Adapter for AEA4D Terminal Board [Model: ATK4A-00] |
|
/A4S00 |
Pressure Clamp Terminal Block [Model: ATA4S-00] |
|
/A4S10 |
Pressure Clamp Terminal Block with Surge Absorber [Model: ATA4S-10] |
|
/A4D00 |
Dual Pressure Clamp Terminal Block [Model: ATA4D-00] |
|
/A4D10 |
Dual Pressure Clamp Terminal Block with Surge Absorber [Model: ATA4D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [Model: ACCC01] |
_
