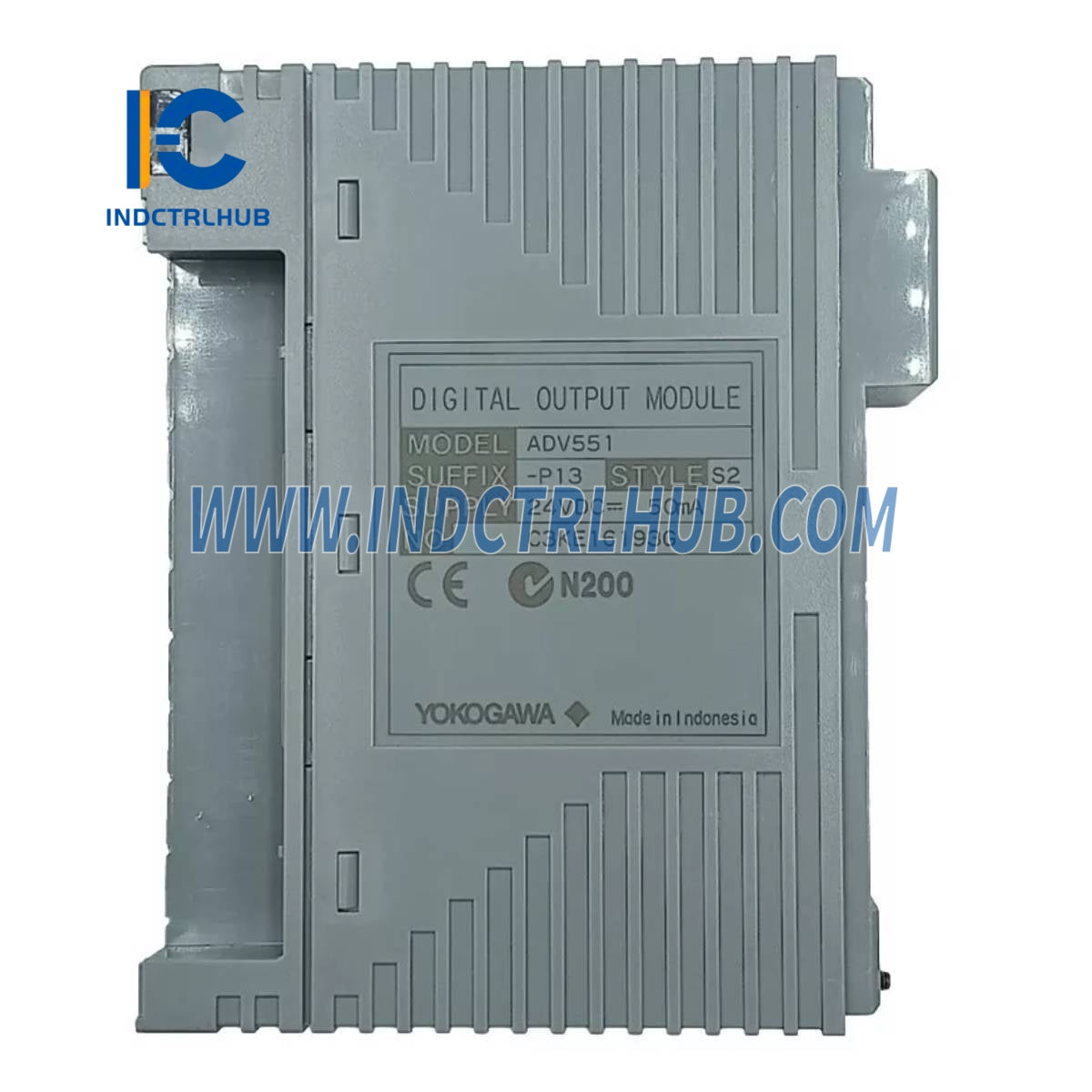

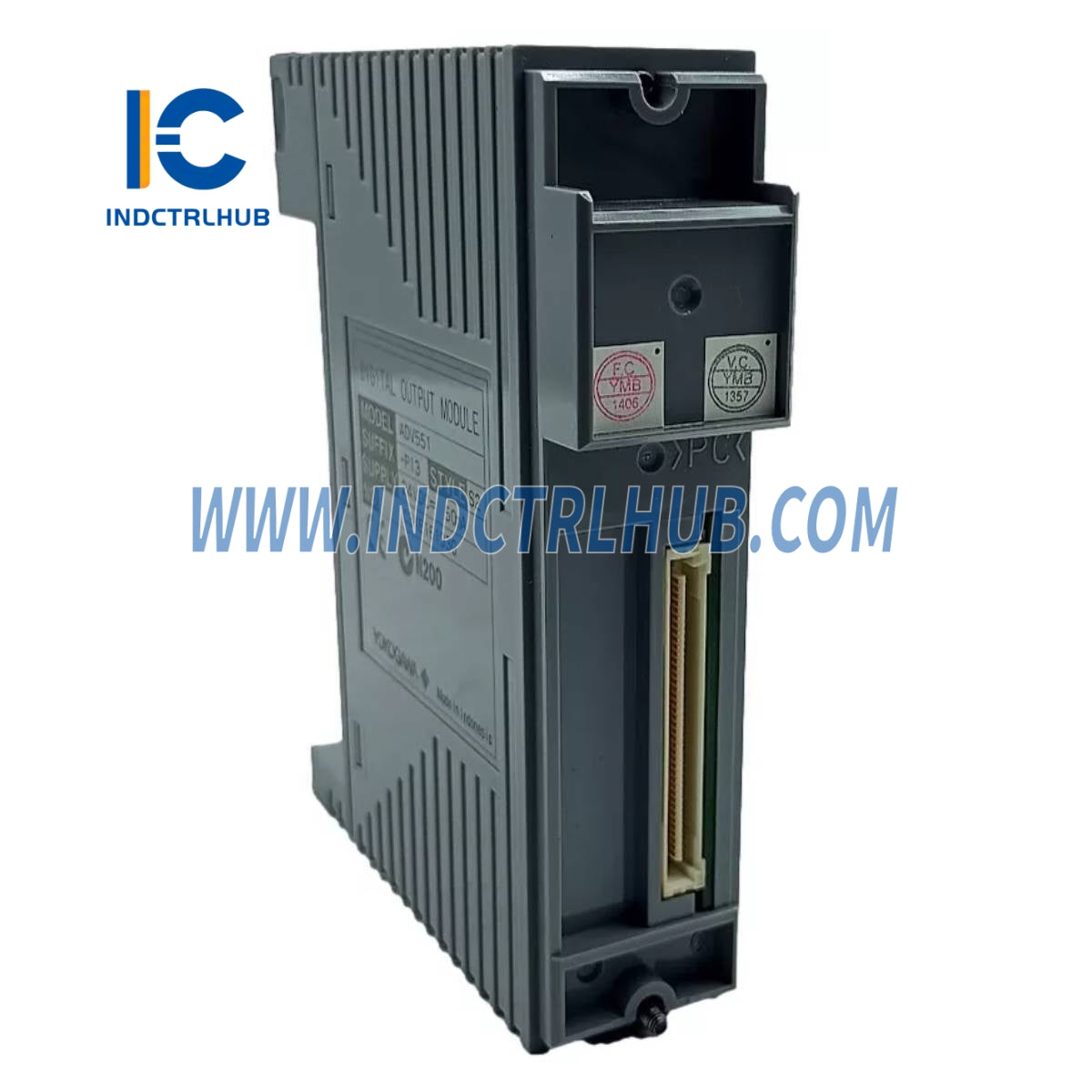

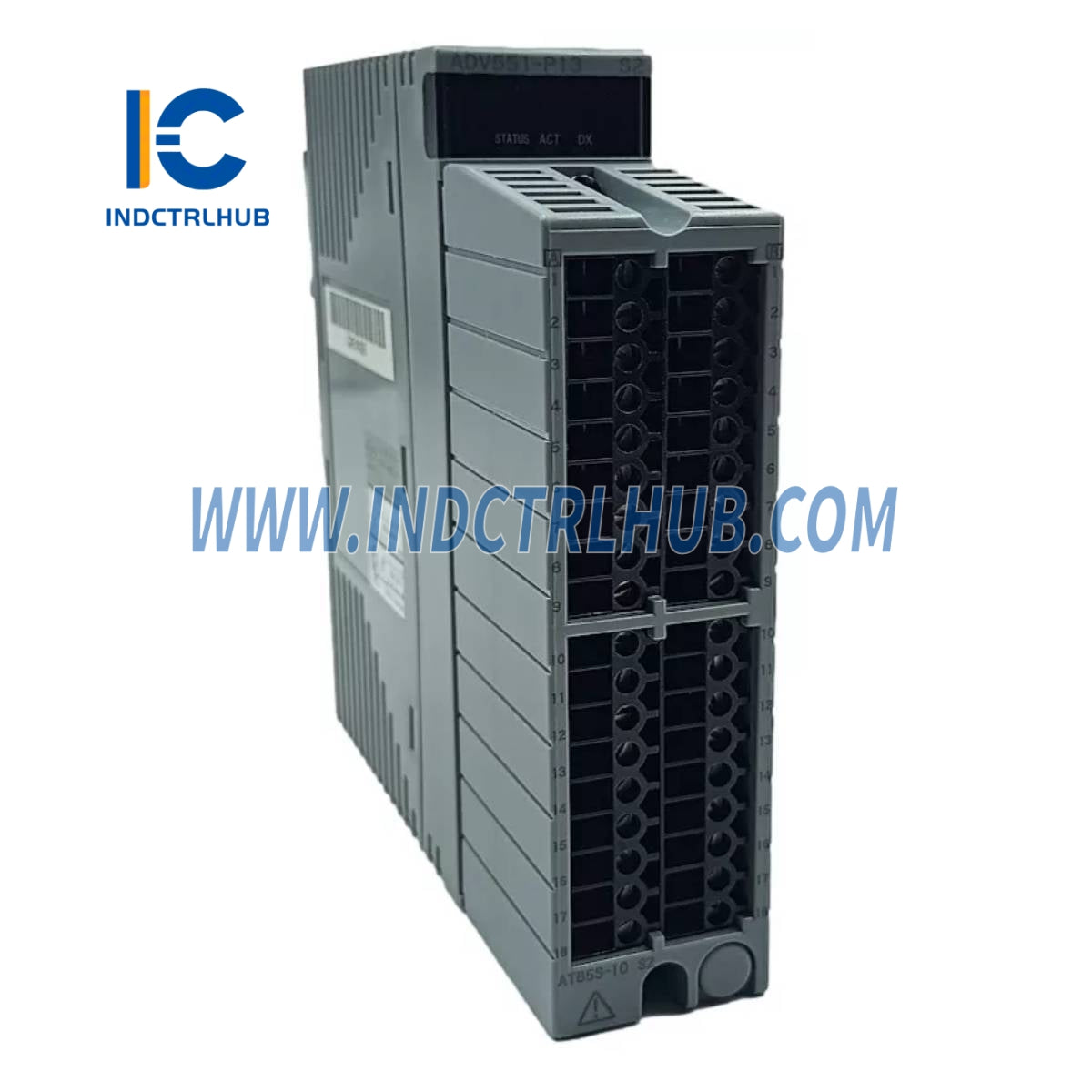

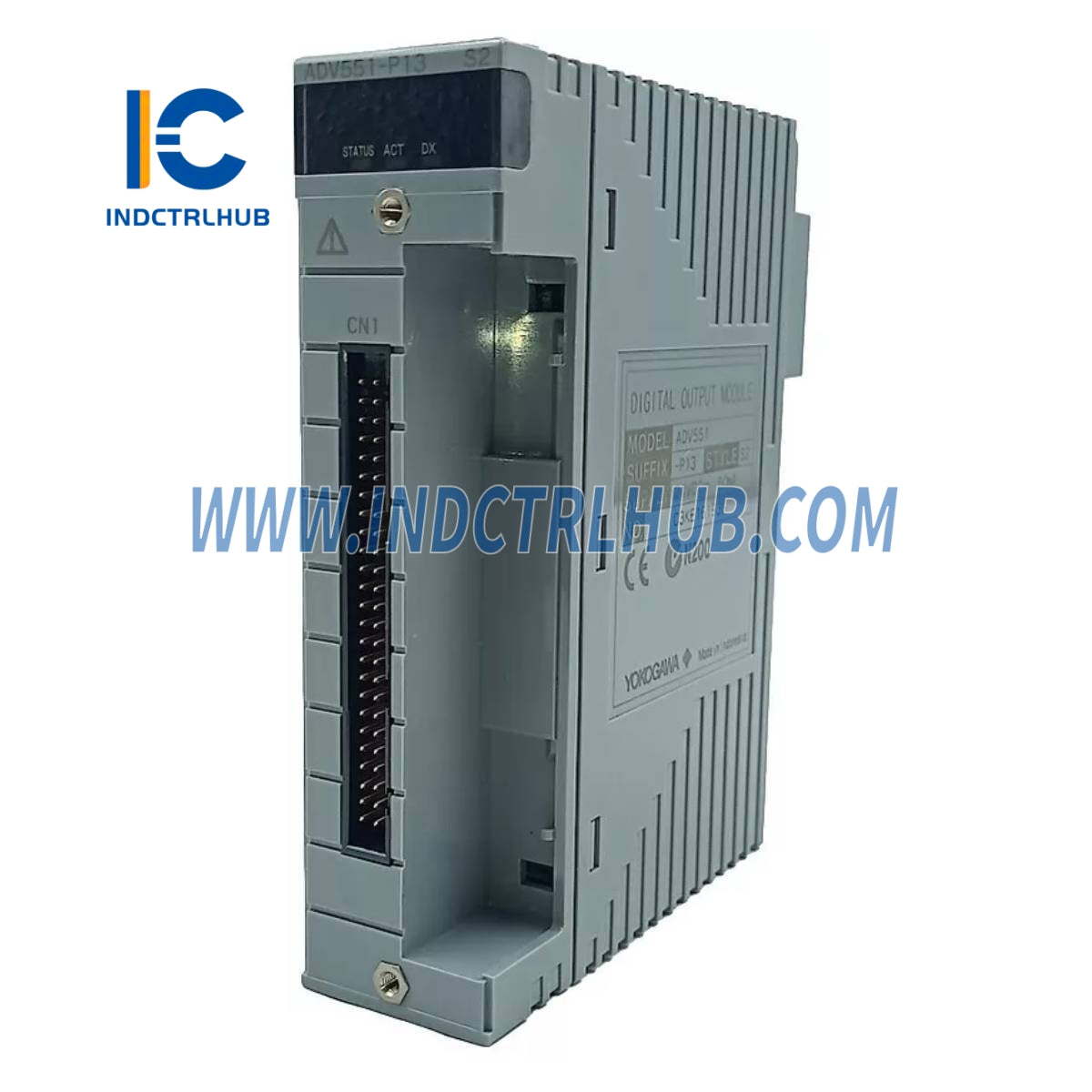

Yokogawa ADV551-P13 S2 32-Channel Digital Output Module
Yokogawa ADV551-P13 S2 32-Channel Digital Output Module
Manufacturer: Yokogawa
Product No.: ADV551-P13 S2
Condition:1000 in stock
Product Type: 32-Channel Digital Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ADV551-P13 S2 |
|
Description |
32-Channel Digital Output Module, 24 VDC, Isolated, with pulse/time-proportional output, no status display, G3 option, -20 to 70°C, SIL2 compatible |
_
_
__ Specifications
|
Item |
Specification |
|---|---|
|
Number of Output Channels |
32 |
|
Rated Applied Voltage |
24 V DC |
|
External Power Supply Rating |
24 V DC, 50 mA |
|
External Power Supply Voltage Range |
20.4 to 26.4 V DC |
|
Output Format |
Current sink |
|
Output ON Voltage (Max) |
2 V DC |
|
Leak Current (Output OFF) |
Max. 0.1 mA |
|
Maximum Load Current |
100 mA per channel (up to 26.4 V) |
|
Withstanding Voltage |
- Output to system: 2 kV AC for 1 min- Between commons: 500 V AC (per 16 channels) |
|
Output Response Time |
_ 3 ms (status output), _ 10 ms (mixed output) |
|
Pulse Width Output |
8 ms to 7200 s (one-shot function) |
|
Pulse Width Resolution |
8 ms (±1 ms ON/OFF delay) |
|
Time-Proportioning Output |
Supported |
|
Status Output Function |
Not included (per suffix code) |
|
Maximum Current Consumption |
700 mA (5 V DC), 60 mA (external 24 V DC) |
|
Weight |
Approx. 0.20 kg |
|
External Connection |
Pressure clamp terminal, KS cable (AKB331), MIL connector |
_
_
__ Suffix Code Breakdown (ADV551-P13 S2)
|
Code |
Meaning |
|---|---|
|
-P |
With pulse width and time-proportioning output functions |
|
1 |
Without status display |
|
3 |
With ISA Standard G3 option and wide temperature range (-20 to 70°C) |
|
S2 |
SIL2-compliant version for safety instrumented systems |
