Product Description
š¹ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI143-S50/K4A00 |
|
Description |
Analog Input Module (4ā20 mA, 16-channel, Isolated, with KS Cable Interface Adapter) |
Ā
Ā
š¹ Description

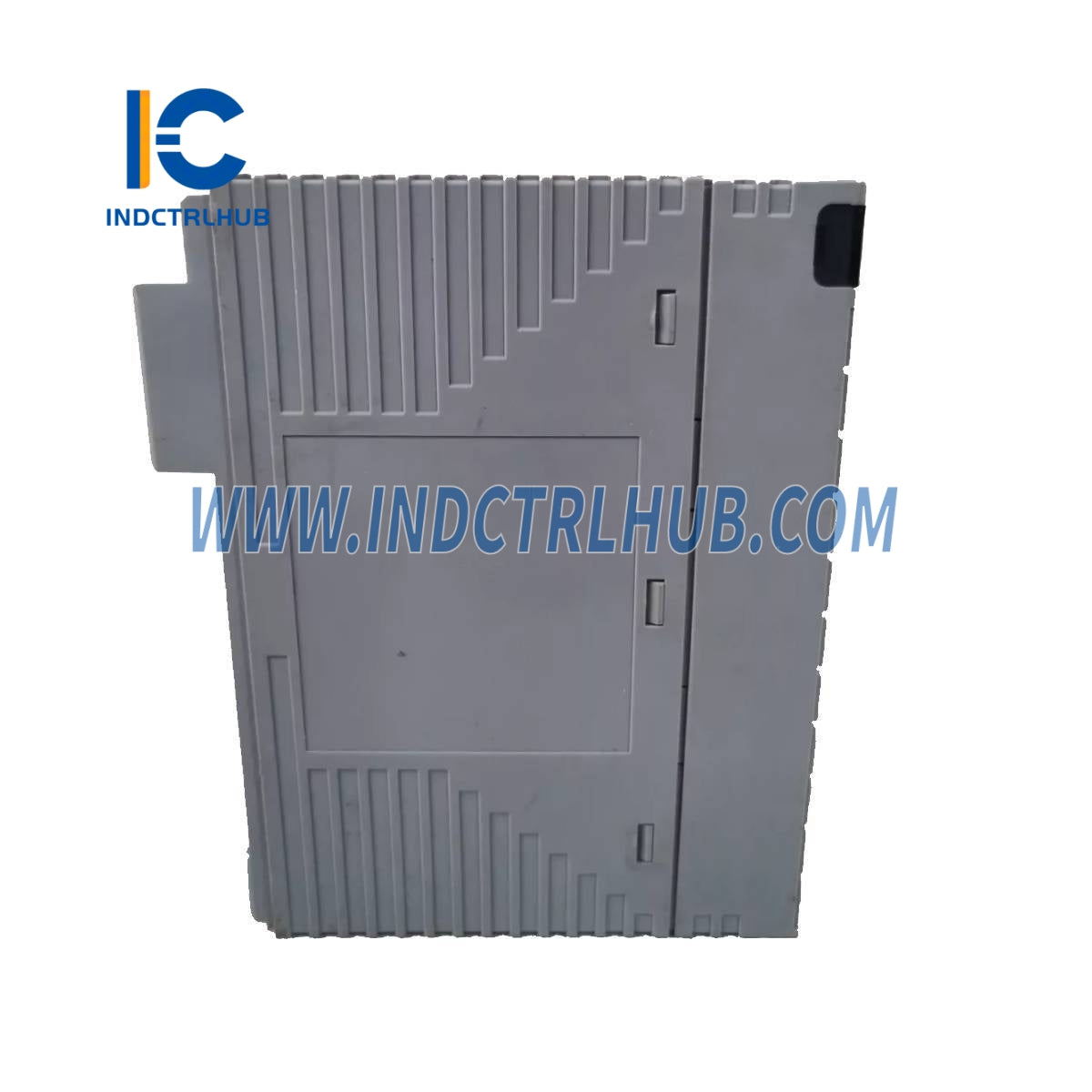

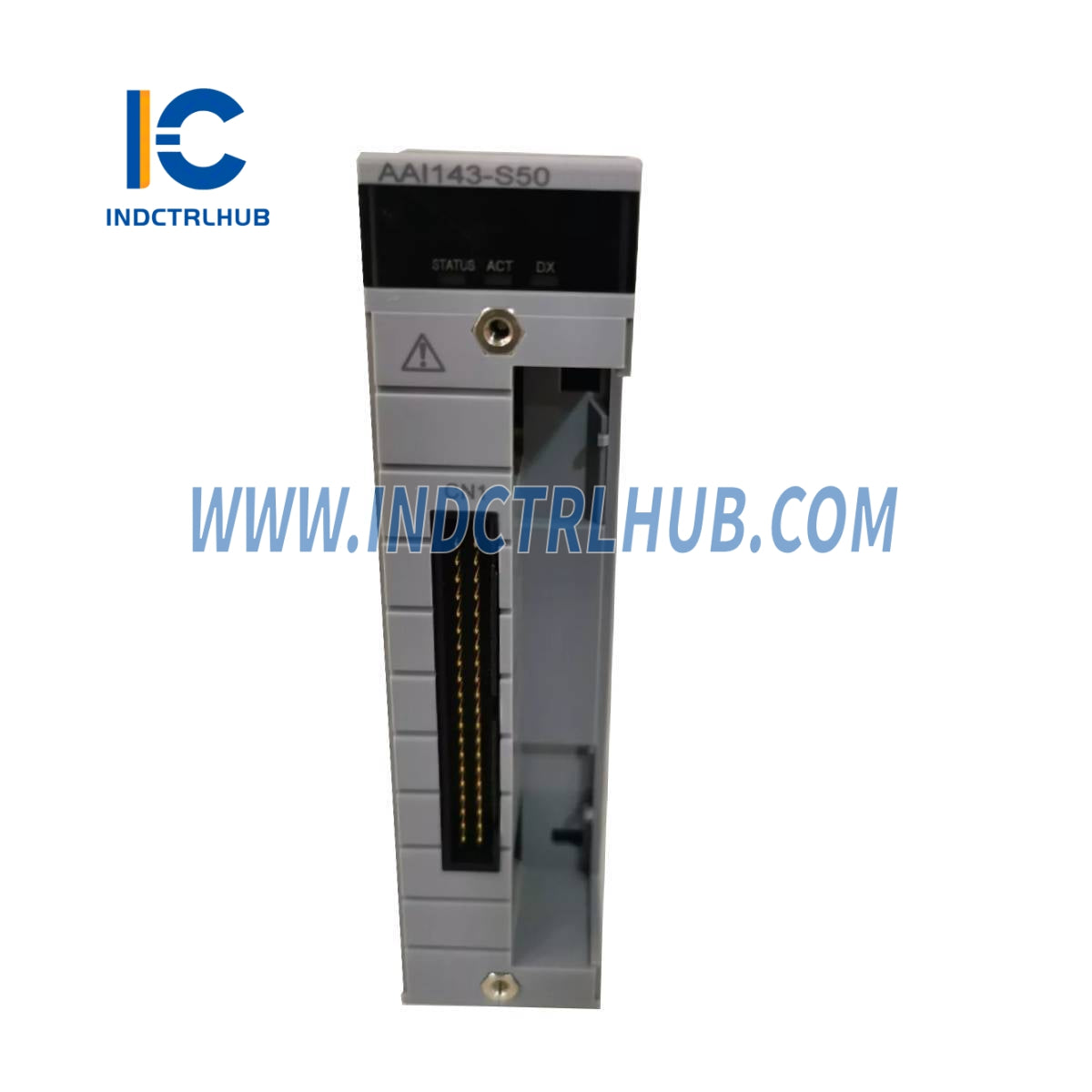

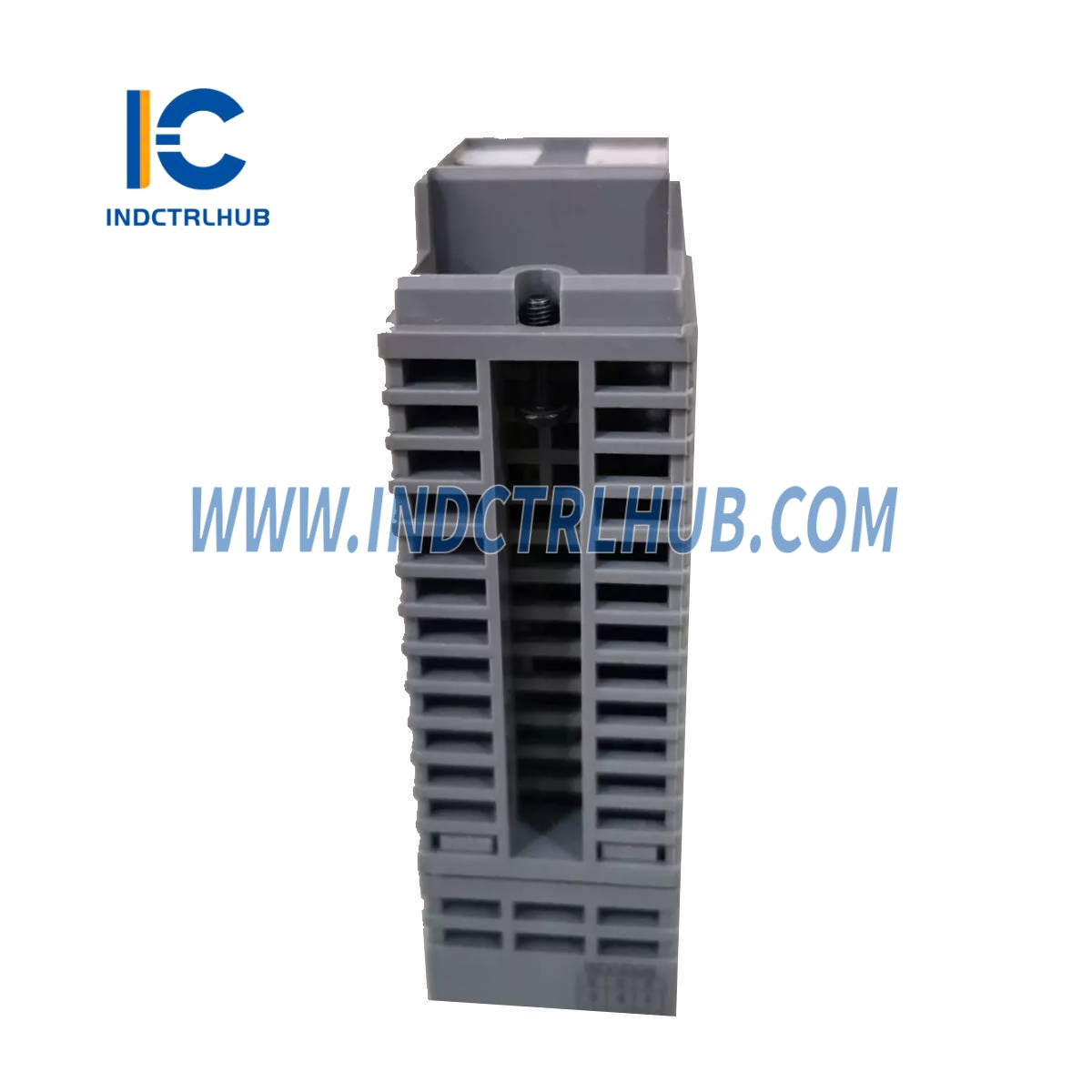

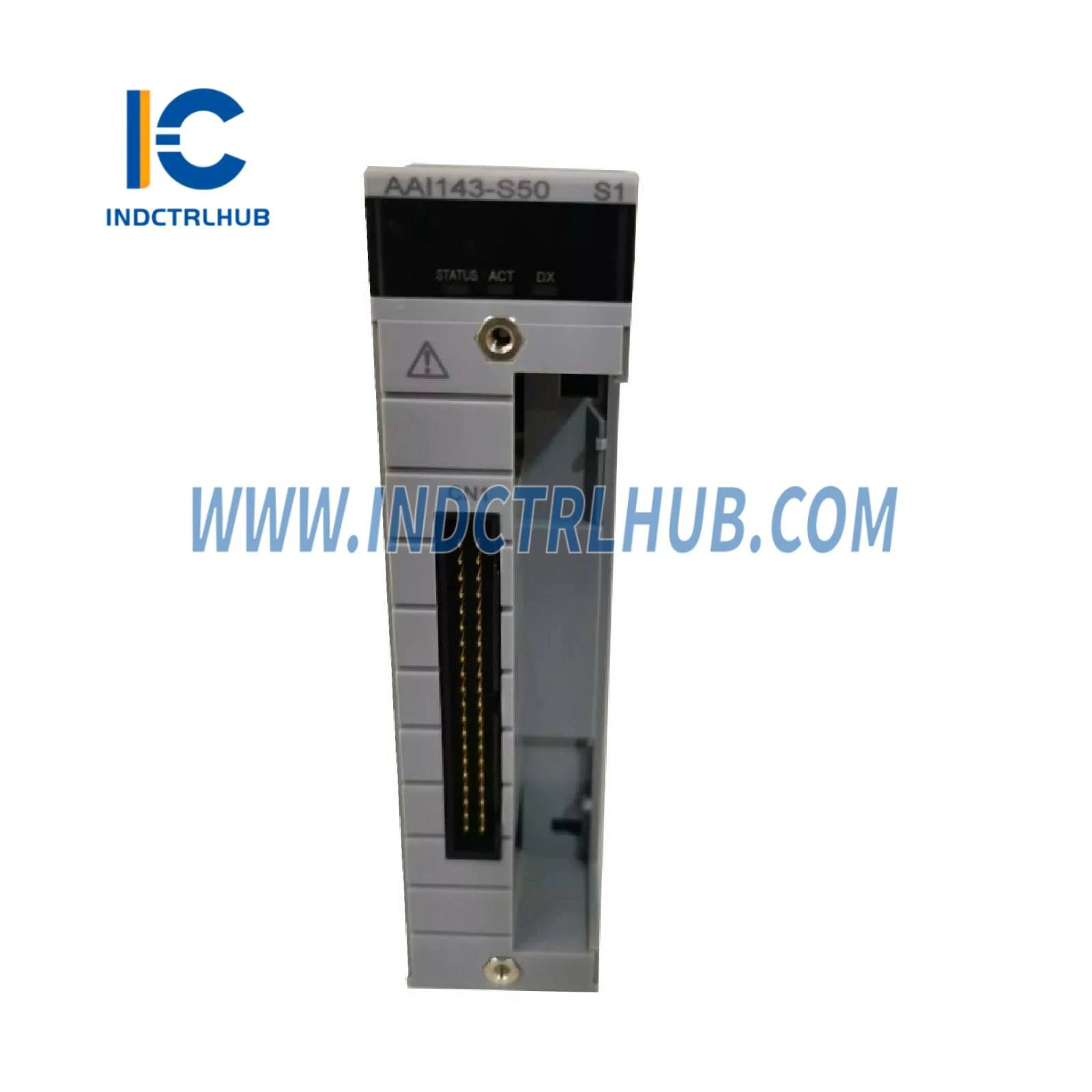

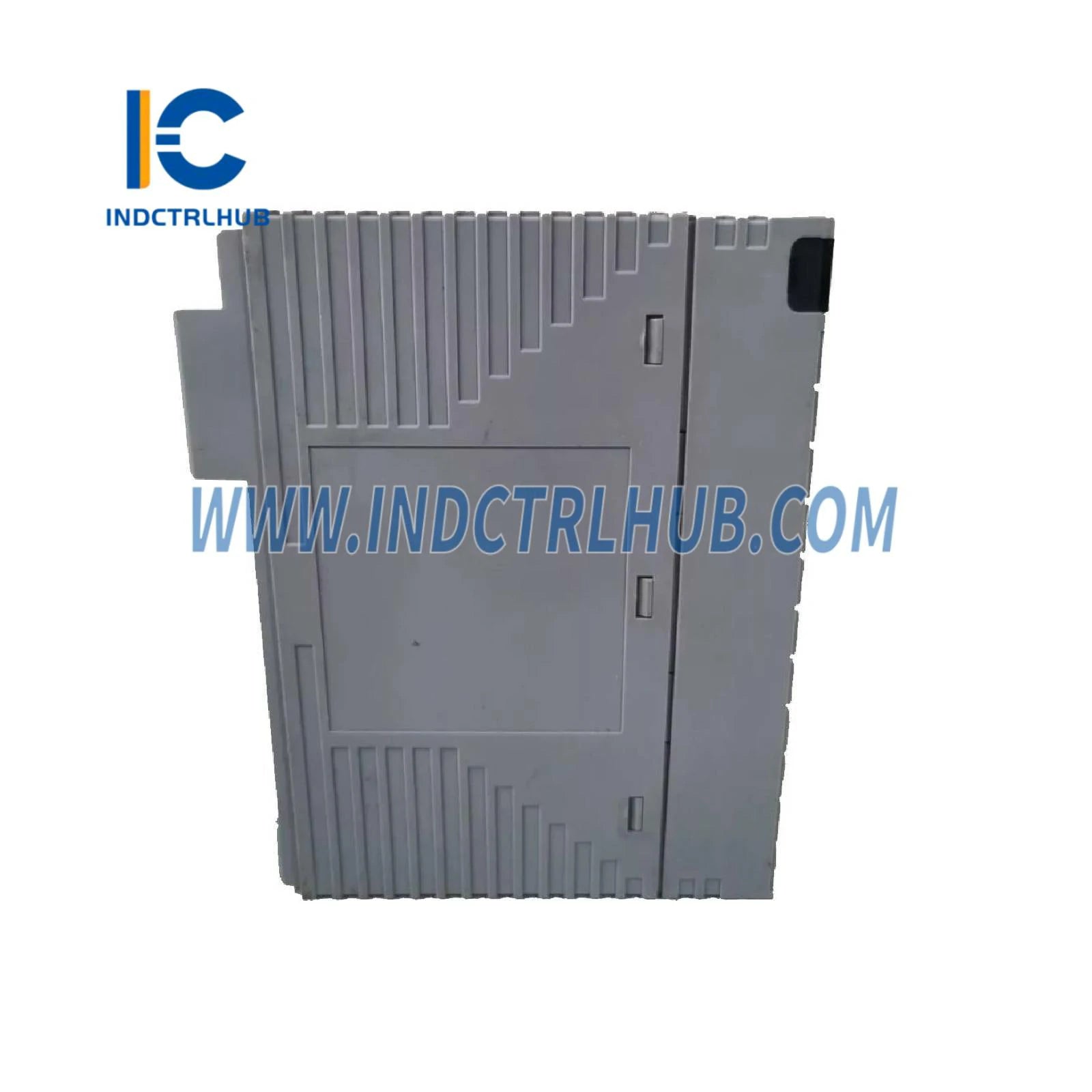

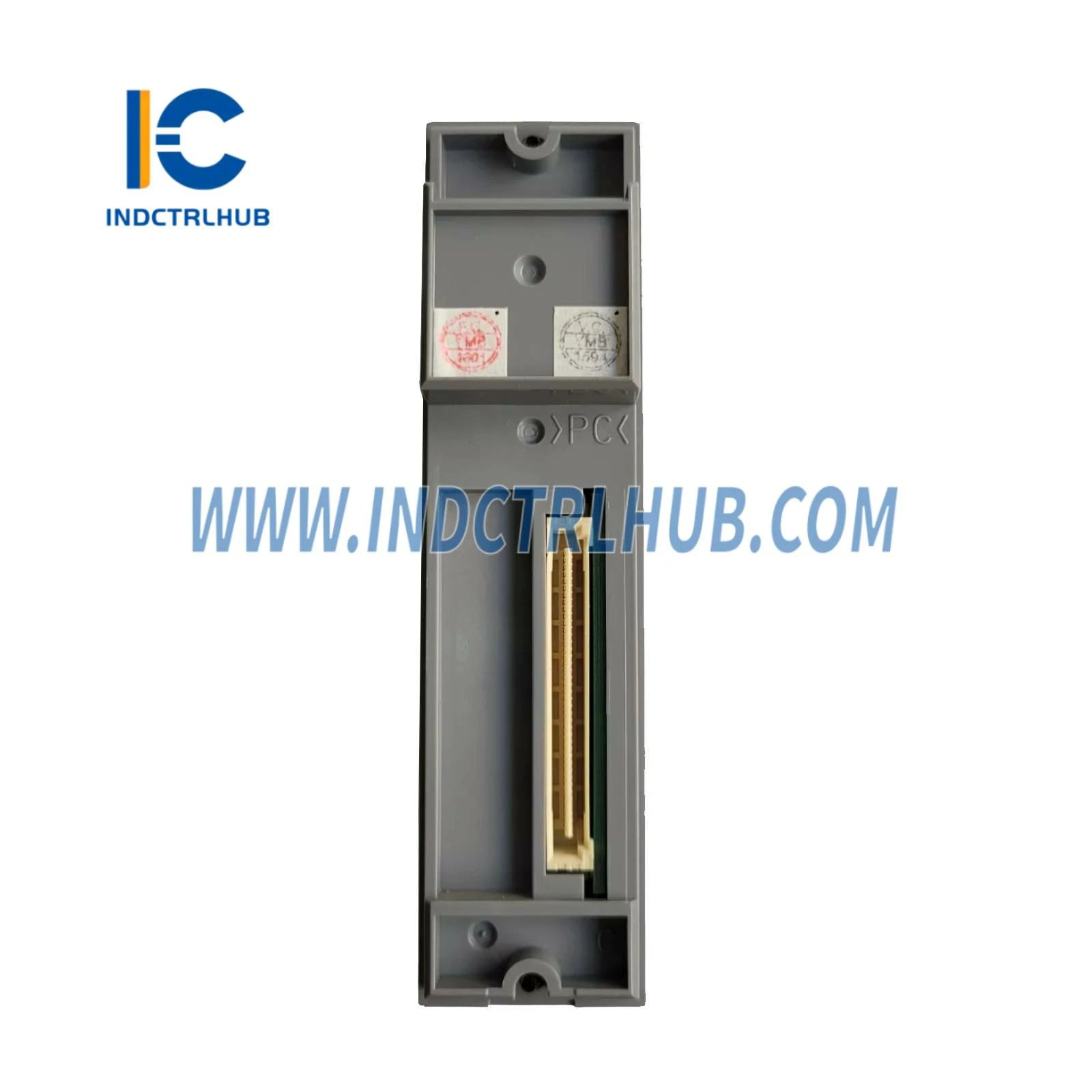

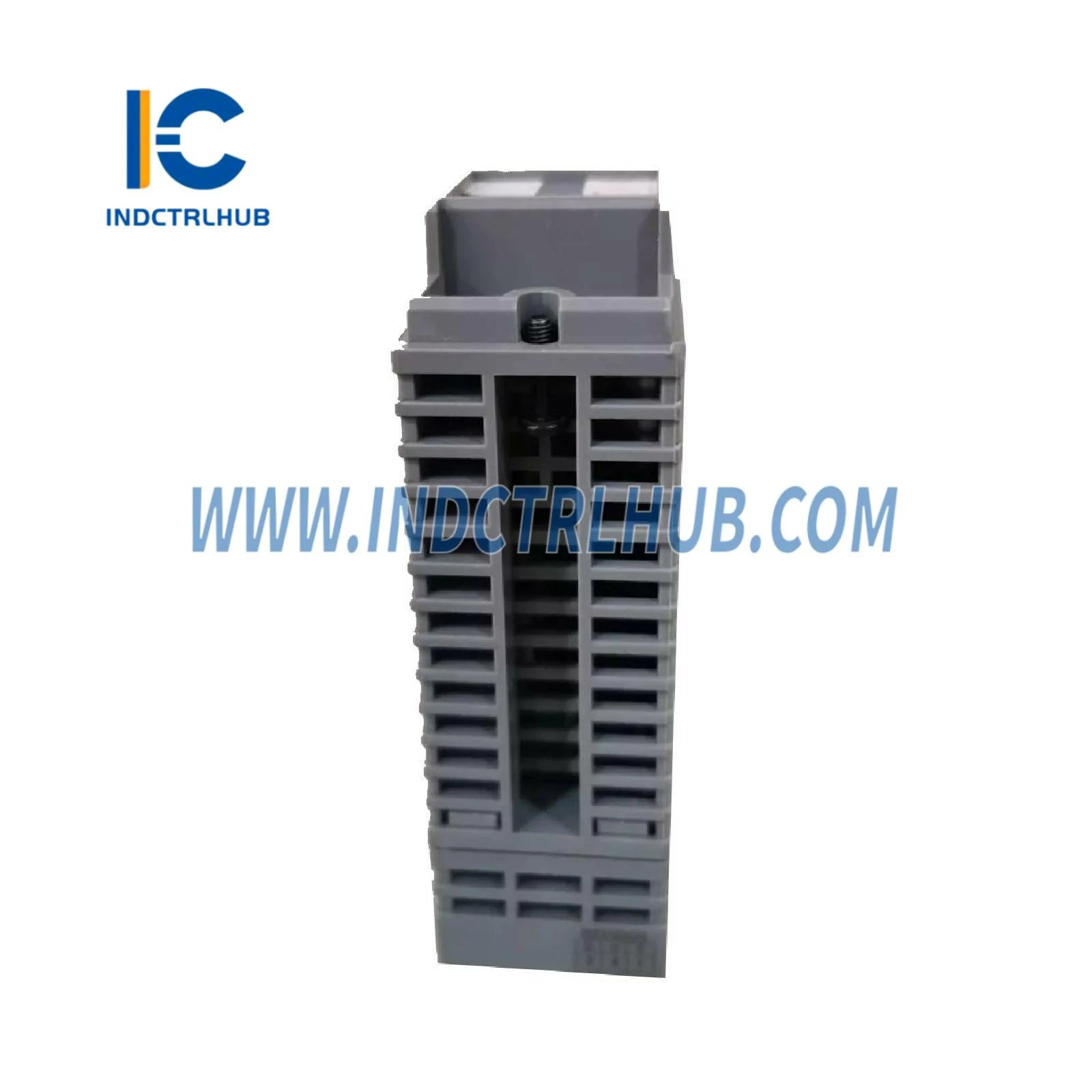

TheĀ AAI143-S50/K4A00Ā is a 16-channelĀ isolated current input moduleĀ designed for receivingĀ 4 to 20 mA analog signalsĀ in process automation systems. It supportsĀ dual-redundant configurationĀ and is ideal for high-reliability applications. This model is equipped with theĀ KS Cable Interface AdapterĀ (model ATK4A-00), which enables connection to AEA4D Terminal Boards.
Ā
Ā
š¹ Specifications
|
Item |
Specification |
|---|---|
|
Model |
AAI143 |
|
Number of Input Channels |
16 (isolated) |
|
Input Signal |
4 to 20 mA |
|
Allowable Input Current |
24 mA |
|
Withstanding Voltage |
1500 V AC (between input and system for 1 minute) |
|
Input Resistance |
270 ā¦ (at 20 mA) to 350 ā¦ (at 4 mA), Power ONā„ 500 kā¦, Power OFF |
|
Accuracy |
Ā±16 ĀµA |
|
Drift (Temperature Change) |
Ā±16 ĀµA per 10Ā°C |
|
Data Update Period |
10 ms |
|
Transmitter Power Supply |
ā„ 19.0 V at 20 mAā¤ 25.5 V at 0 mA (Output current limit: 25 mA) |
|
2-wire/4-wire Transmitter |
Configurable per channel via setting pin |
|
Max Current Consumption |
230 mA (5 V DC), 540 mA (24 V DC) |
|
External Communication |
Pressure clamp terminal, MIL connector cable, or KS1 dedicated cable |
|
HART Communication |
Available (with suffixĀ -H) |
|
Weight |
0.3 kg |
Ā
Ā
š¹ Suffix & Option Codes
|
Type |
Code |
Description |
|---|---|---|
|
Suffix Code |
-S |
Standard type |
|
-5 |
No explosion protection |
|
|
-0 |
Basic type |
|
|
Option Code |
/K4A00 |
With KS Cable Interface Adapter (Model: ATK4A-00) for AEA4D Terminal Board |
