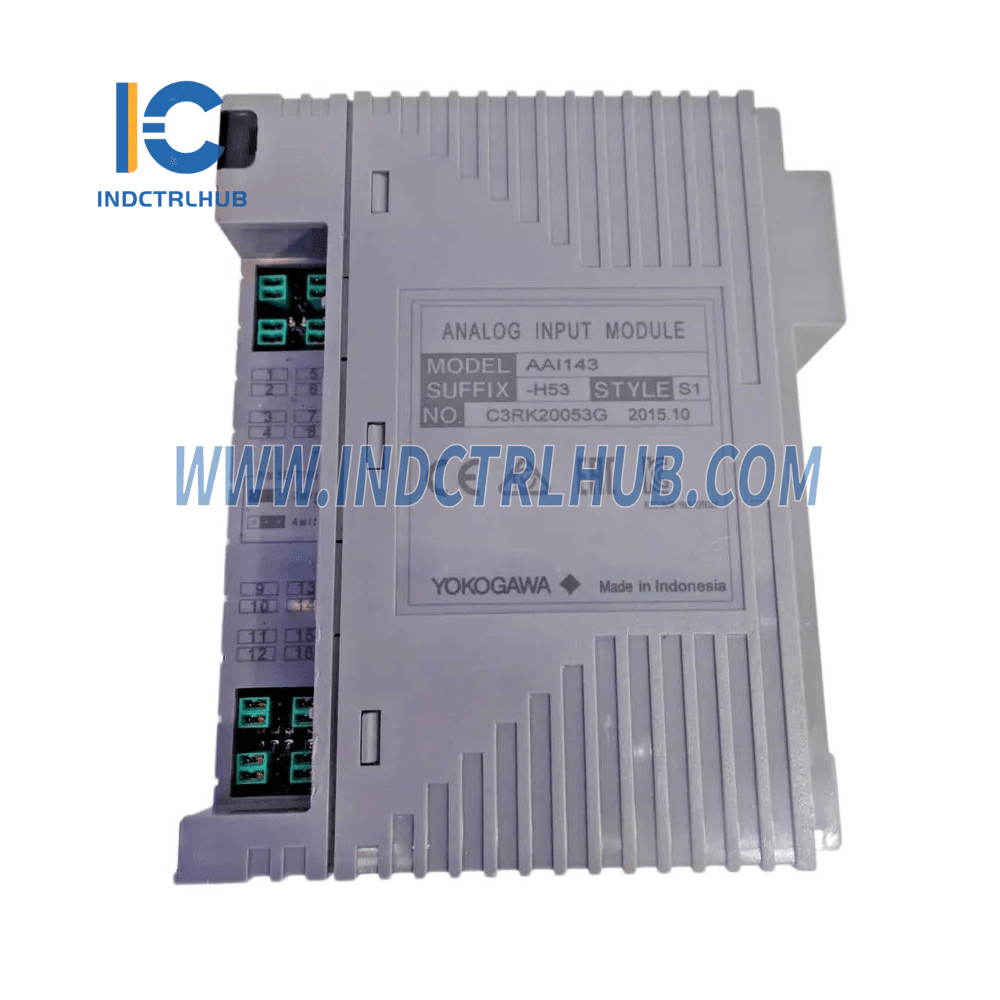

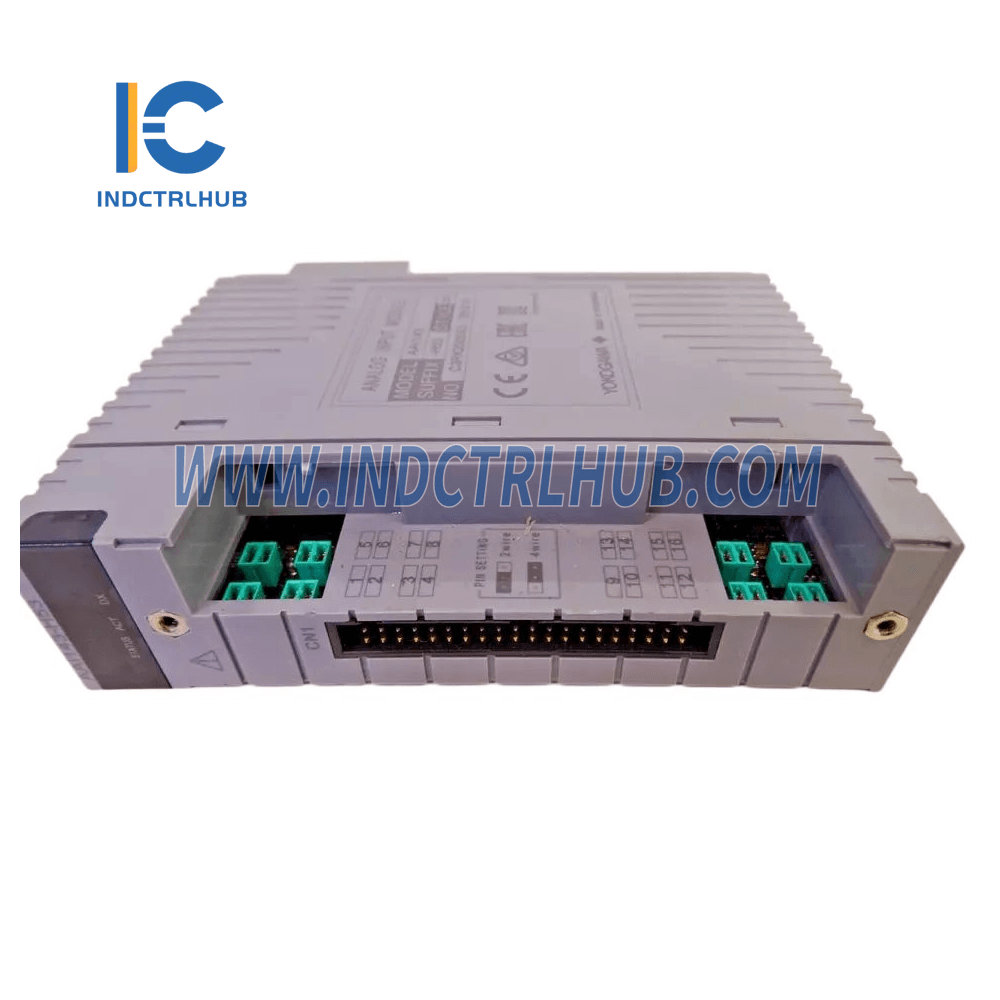

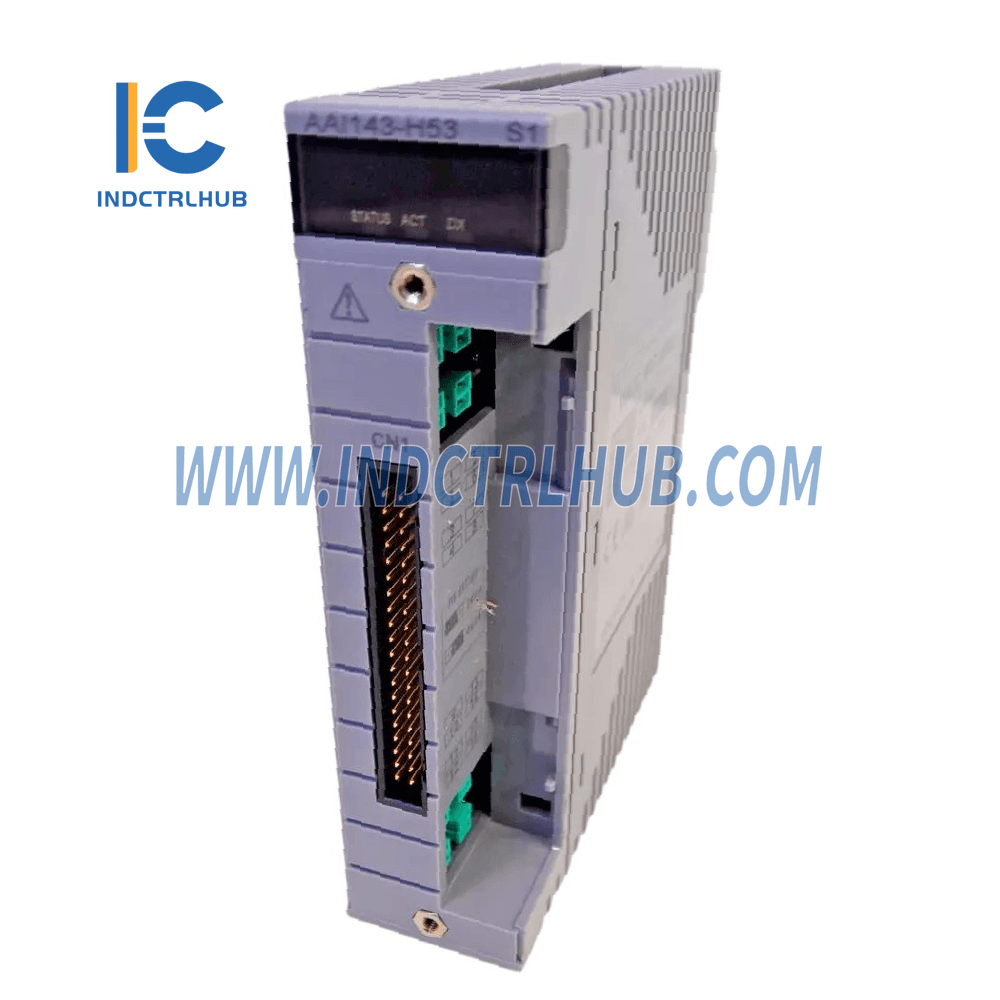

Yokogawa AAI143-H53/K4A00 Analog Input Module

Yokogawa AAI143-H53/K4A00 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAI143-H53/K4A00

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 390g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

  • The Yokogawa AAI143-H53/K4A00 Analog Input Module is a robust component designed for Yokogawa’s industrial control systems, such as CENTUM VP or ProSafe-RS, to process 4 to 20 mA signals from field devices like transmitters. Featuring 16 isolated input channels with HART communication, this module supports dual-redundant configurations for enhanced reliability. With a rated accuracy of ±16 µA, a 40 ms data update frequency, and a transmitter power supply ranging from 16.15 V to 26.4 V, it is optimized for precise analog input handling. Equipped with a KS Cable Interface Adapter for connecting to an AEA4D Terminal Board, it weighs approximately 0.34 kg (or 0.39 kg with a signal cable interface adapter) and includes ISA Standard G3 compliance for operation in temperatures from -20 to 70°C, making it ideal for industrial automation applications.

Technical Information

Parameter Specifications
Manufacturer Yokogawa
Model/Part Number AAI143-H53/K4A00
Description Analog Input Module
Model AAI143 (listed as SAI143 in specs; assumed AAI143 per prompt)
Number of Input Channels 16 channels, module isolation
Rated Input Range 4 to 20 mA
Permissible Input Range 0 to 25 mA
Input Impedance During Power-ON 250 Ω + Current value voltage drop in the input protection circuit inside the module
Input Impedance During Power-OFF 500 kΩ minimum
Rated Accuracy SAI143-H: ±16 µA (Input range 0.05 to 23 mA)
Data Update Frequency 40 ms
Temperature Drift ±16 µA/10°C
Transmitter Power Supply 16.15 V minimum (at 20 mA)
26.4 V maximum (at 0 mA)
(Output current limit: 25 mA)
2/4-Wire Setting Individual channel setting, changed by setting pins
Withstand Voltage 1.5 kV AC between input signal and system for 1 minute
Maximum Current Consumption 5 V system: 320 mA
24 V system: 550 mA
Weight Approx. 0.34 kg (0.75 lb) (for pressure clamp terminal block or MIL cable)
Approx. 0.39 kg (0.86 lb) (with signal cable interface adapter)
External Connection Pressure clamp terminal, MIL cable, dedicated signal cable
Support PRM Available (SAI143-H)
Transmitter Power Supply ON/OFF Function Available in 2-wire setting, for all 16 channels simultaneously

Specific Configuration

    • Model/Part Number: AAI143-H53/K4A00
    • Configuration Details:
      • Suffix Codes: -H (With HART communication), 5 (For pressure clamp terminal block or MIL cable with no explosion protection), 3 (With ISA Standard G3 and temperature -20 to 70°C)
      • Option Code: /K4A00 (With KS Cable Interface Adapter for connecting AEA4D Terminal Board [Model: ATK4A-00])
