Product Description
General Information
- Manufacturer: ABB
- Model/Part Number: V18345 1010221001

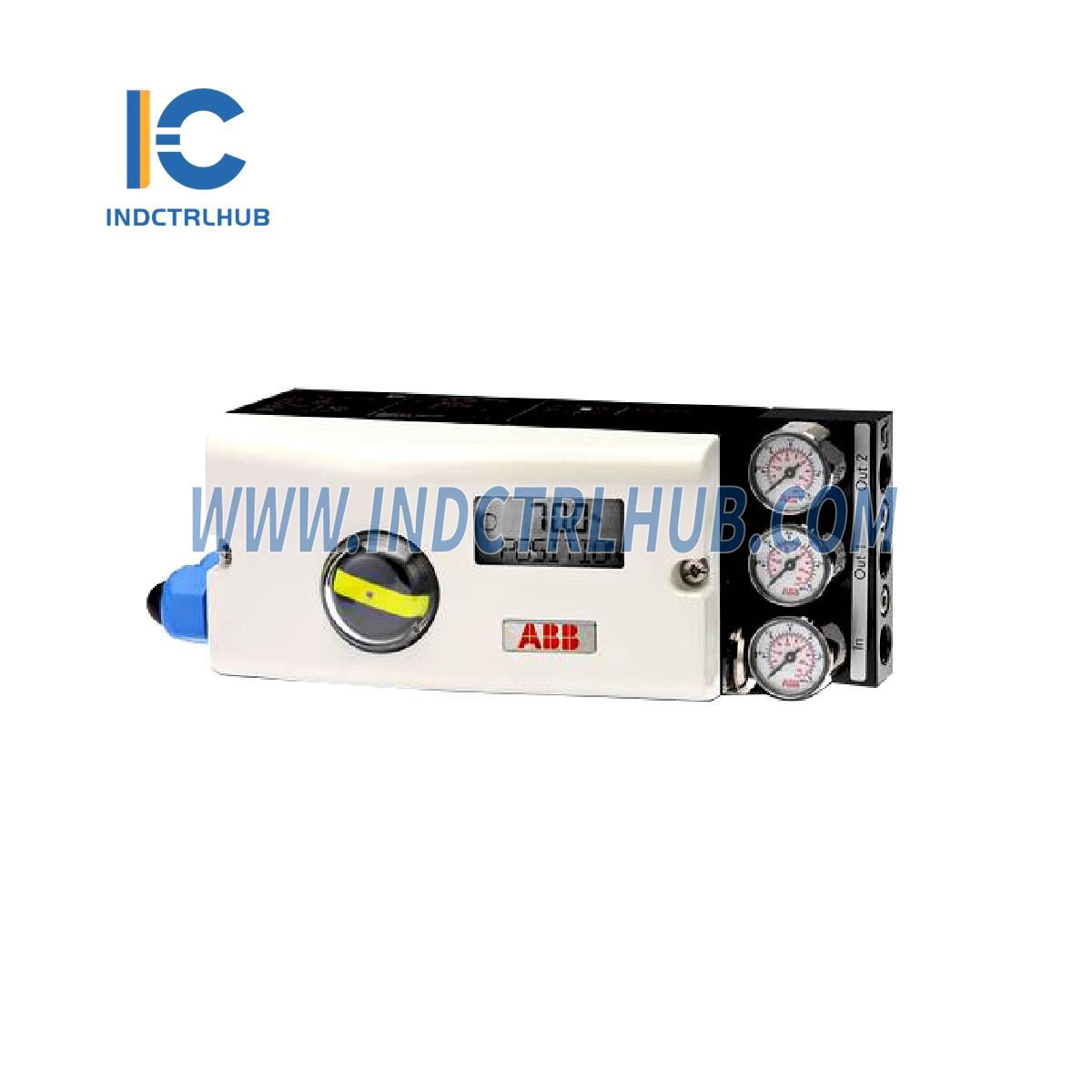

- Description: The ABB V18345 1010221001 is a TZIDC Electro-Pneumatic Positioner from ABB's intelligent positioner series. It is designed for precise control of pneumatic rotary and linear actuators in industrial automation systems. The positioner supports a 4-20 mA input signal, offers single-acting operation with fail-safe functionality, and includes a 4-20 mA two-wire feedback loop for position monitoring. It is typically used in applications requiring accurate valve positioning, such as in chemical processing, oil and gas, and power generation industries.
Technical Specifications
| Specification | Details |
|---|---|
| Type | TZIDC Electro-Pneumatic Positioner |
| Operation | Single-acting, fail-safe |
| Input Signal | 4-20 mA |
| Feedback | 4-20 mA two-wire analog position feedback |
| Connections | Electrical: 1/2-14 NPT; Pneumatic: 1/4-18 NPT |
| Enclosure | IP65 (NEMA 4X), aluminum housing |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Weight | Approximately 1.7 kg |
| Application | Precise control of pneumatic actuators in industrial automation |
