Product Description

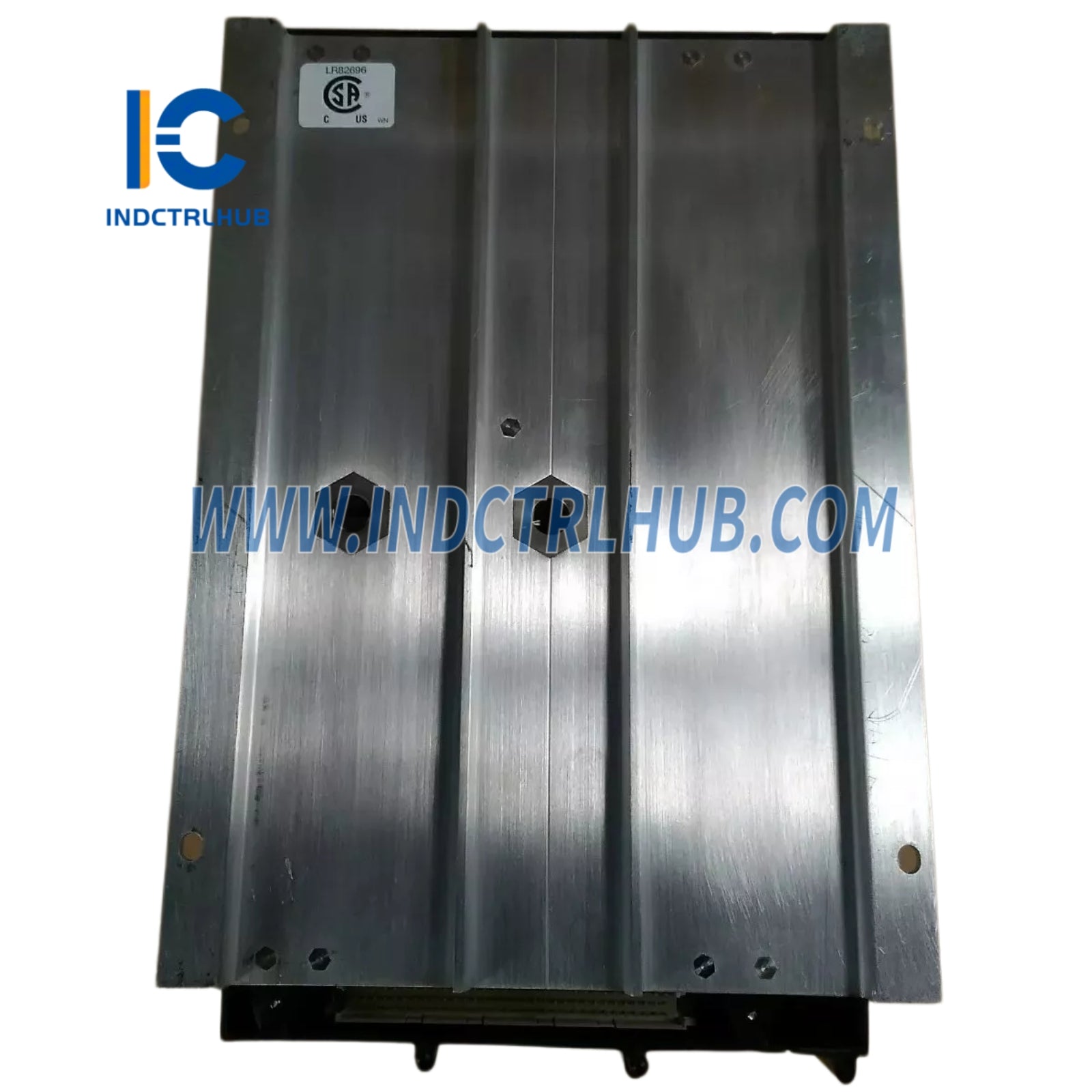

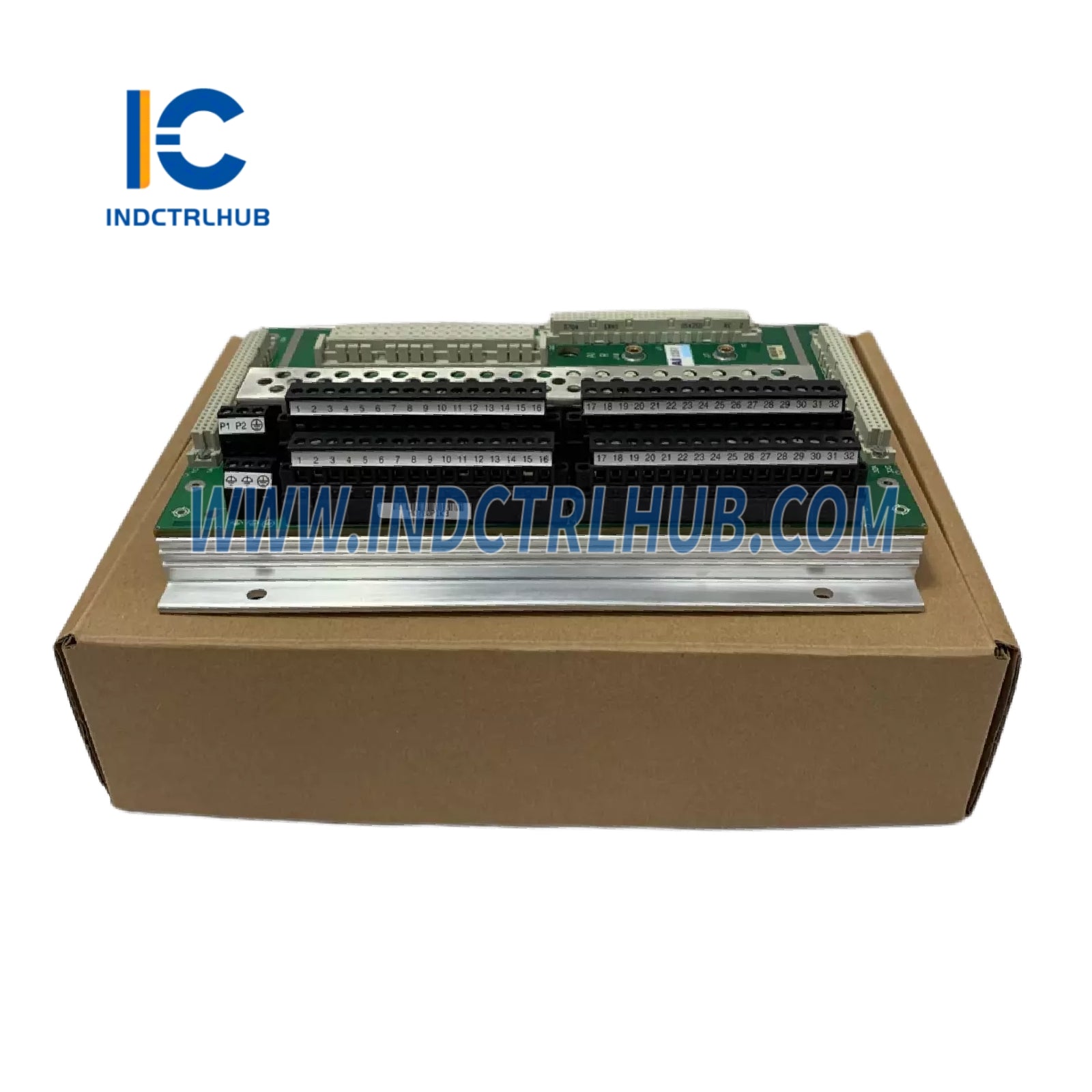

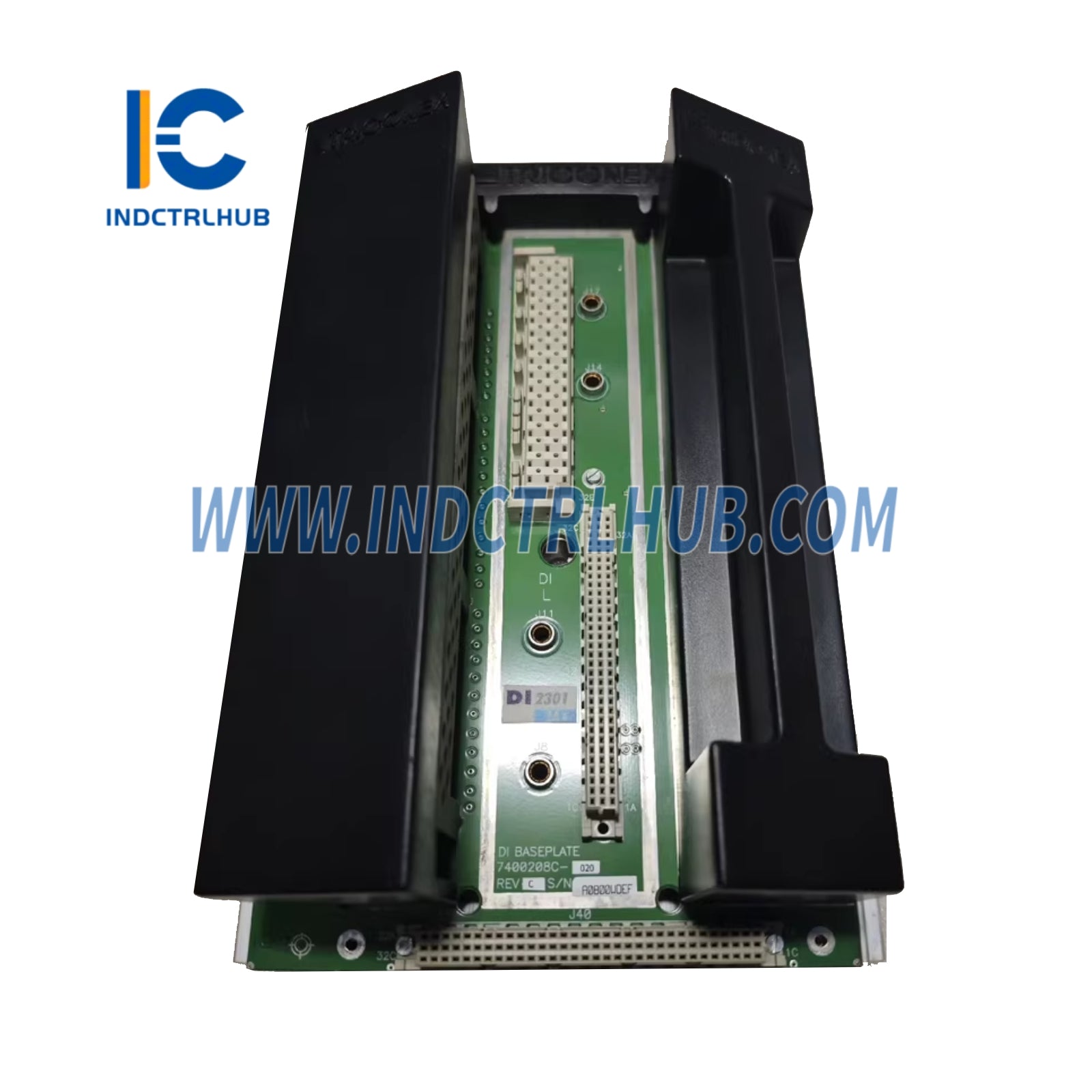

Triconex 7400208C-020 DI2301 Digital Input Baseplate
- Manufacturer: Triconex
- Model/Part Number: 7400208C-020
- Description: DI2301 Digital Input Baseplate
Overview
- The Triconex 7400208C-020 DI2301 Digital Input Baseplate connects digital input modules to Triconex safety instrumented systems (SIS). It supports applications with low point counts and distributed I/O, ensuring reliable signal processing in safety-critical environments such as emergency shutdown, fire and gas detection, and process control.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 7400208C-020 DI2301 |
| Series | Triconex Other Modules |
| Type | Digital Input Baseplate |
| Description | Connects digital input modules to SIS |
| Weight | 2.0 kg |
| Components | I/O Baseplate, I/O Interconnect Assembly, Slot Cover, Terminal Cover |
| Voltage | 24 VDC |
| Operating Temperature | -20°C to +60°C |
| Part Numbers | 3000673-020 (I/O Baseplate), 2921 (I/O Interconnect Assembly), 2900 (Slot Cover), 2901 (Terminal Cover) |
Additional Information
- Functionality: The baseplate supports three isolated channels, each processing digital inputs independently and transmitting data to the associated main processor. It ensures fault-tolerant operation in safety-critical systems.
- Environmental Durability: The baseplate uses robust materials to ensure reliable operation in harsh industrial environments.
- Integration: The baseplate integrates seamlessly with Triconex SIS, supporting flexible configurations for safety-critical applications.
