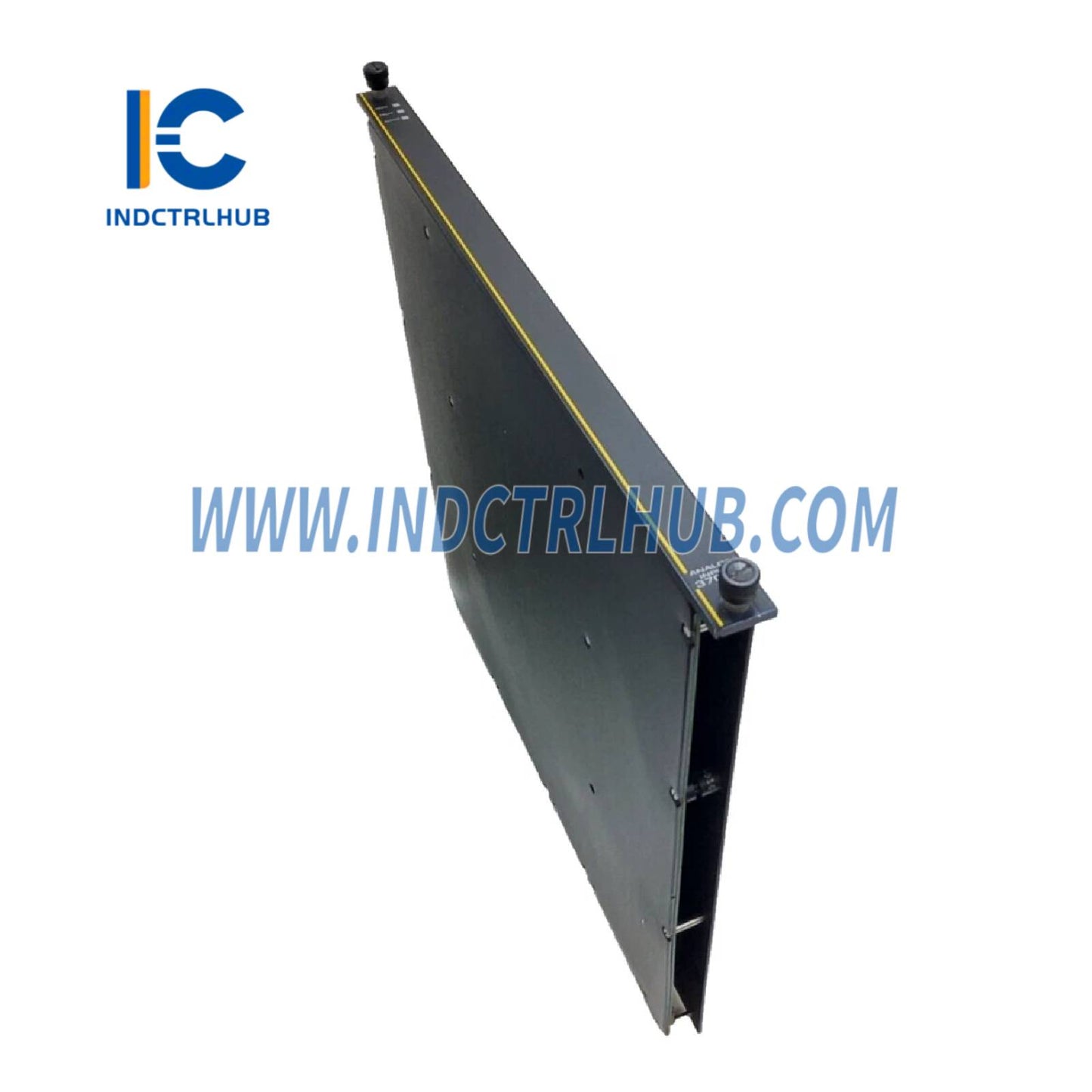

Triconex 3706A TMR Analog Input Module

Triconex 3706A TMR Analog Input Module - High-Integrity Safety Control

The Triconex 3706A is a Triple Modular Redundant (TMR) analog input module engineered for mission-critical safety instrumented systems. Featuring 32 differential input channels, this module delivers exceptional signal accuracy and fault tolerance for Triconex Trident platforms in process industries.

Technical Specifications

• Input Channels: 32 differential analog inputs
• Input Range: 0-5V DC, 1-5V DC, 4-20mA configurable
• Resolution: 16-bit A/D conversion
• Accuracy: ±0.1% of full scale
• TMR Architecture: Triple redundant processing for fault detection
• Safety Rating: SIL 3 certified per IEC 61508
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Power Consumption: 7.5W typical
• Isolation: 1500V RMS channel-to-backplane

Application Scenarios

The 3706A excels in demanding industrial environments requiring continuous process monitoring:

• Oil & Gas: Emergency shutdown systems (ESD), fire and gas detection, burner management
• Chemical Processing: Reactor temperature monitoring, pressure transmitter interfacing, batch control
• Power Generation: Turbine control, boiler safety systems, emissions monitoring
• Pharmaceutical: Clean room environmental control, critical process parameter tracking

Solution Benefits

Implementing the Triconex 3706A provides measurable operational advantages. The TMR voting logic automatically identifies and isolates faulty channels without process interruption, achieving 99.99% uptime in certified installations. Differential input design rejects common-mode noise up to 120dB, ensuring reliable signal acquisition in electrically harsh environments. Hot-swappable architecture enables maintenance without system shutdown, reducing mean time to repair (MTTR) by 75% compared to non-redundant systems.

Frequently Asked Questions

Q: Is the 3706A compatible with legacy Tricon systems?
A: The 3706A is designed for Triconex Trident platforms. For Tricon compatibility, verify chassis backplane revision or contact our technical team for migration guidance.

Q: What termination panels are required?
A: Use Triconex 9761-210 or 9771-2XX termination panels for proper field wiring. Each panel accommodates 16 channels (two panels per 3706A module).

Q: Can I mix voltage and current inputs on the same module?
A: Yes, each channel is independently configurable via TriStation software for voltage (0-5V, 1-5V) or current (4-20mA) operation with appropriate termination resistors.

Q: What diagnostic capabilities are included?
A: Built-in diagnostics monitor wire break, out-of-range signals, A/D converter health, and voter discrepancies with real-time alarm reporting to TriStation.

Warranty & Support

Every Triconex 3706A module includes a comprehensive 12-month warranty covering manufacturing defects and component failures. Our global support network provides 24/7 technical assistance, firmware updates, and rapid replacement services to minimize downtime.

Related Products

Expand your Triconex safety system with these compatible modules:

• Triconex 3704E Analog Input Module - 16-channel enhanced analog input with advanced diagnostics
• Triconex 3700E Analog Input Module - Standard 32-channel analog input for general applications
• Triconex 3720 Analog Input Module - High-density 40-channel analog input solution
