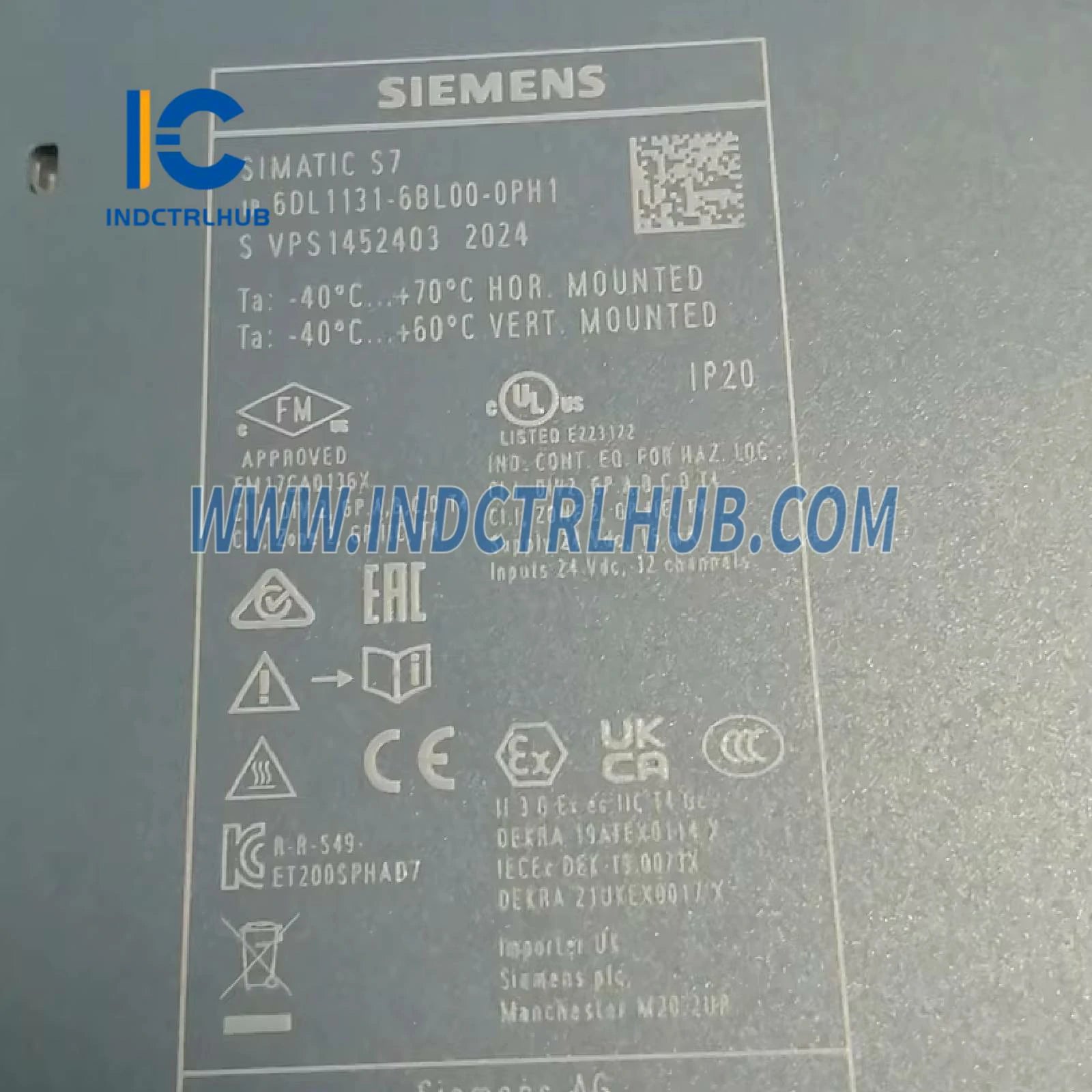

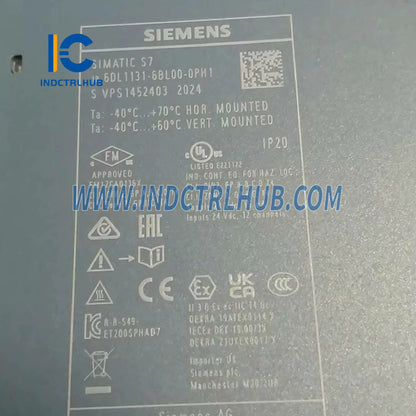

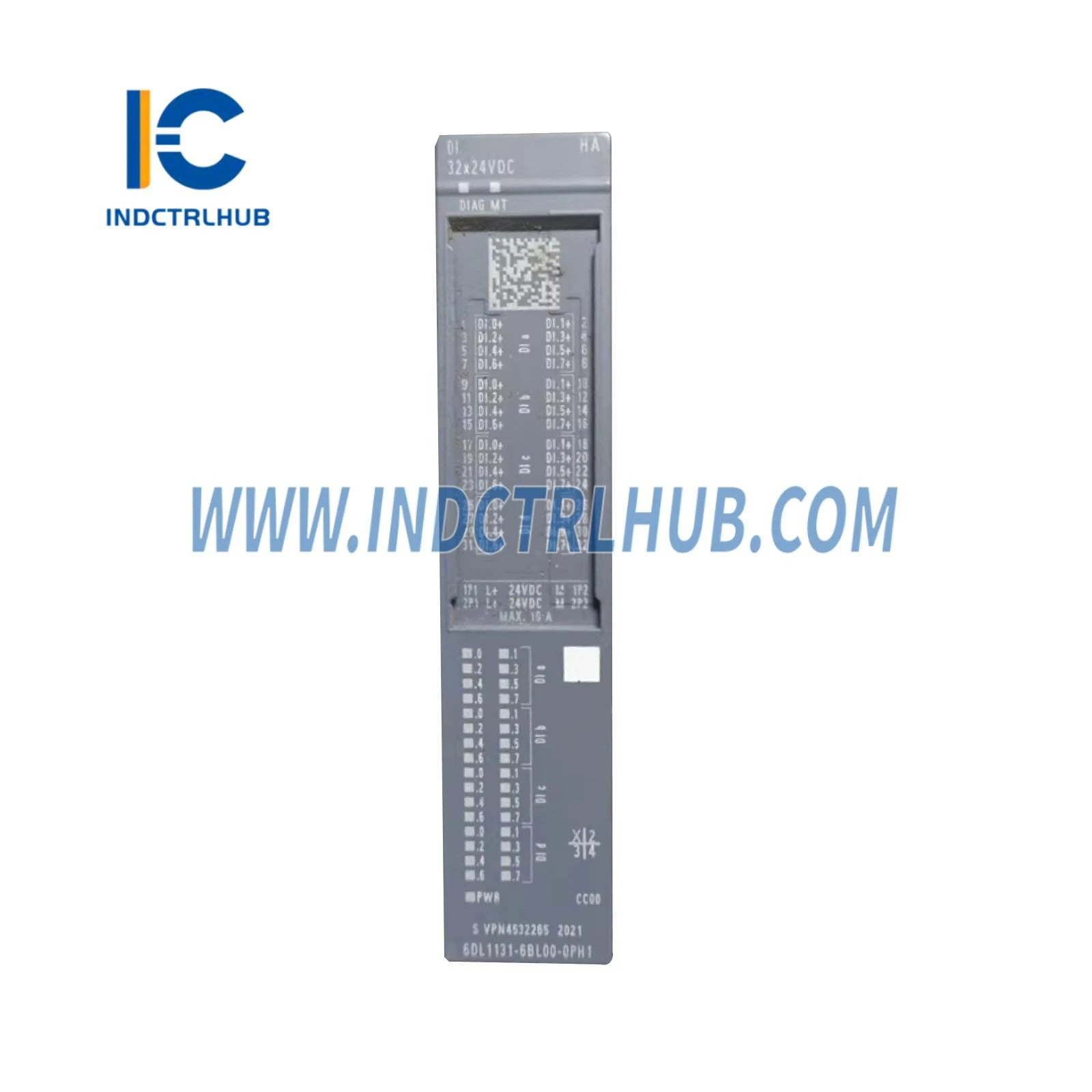

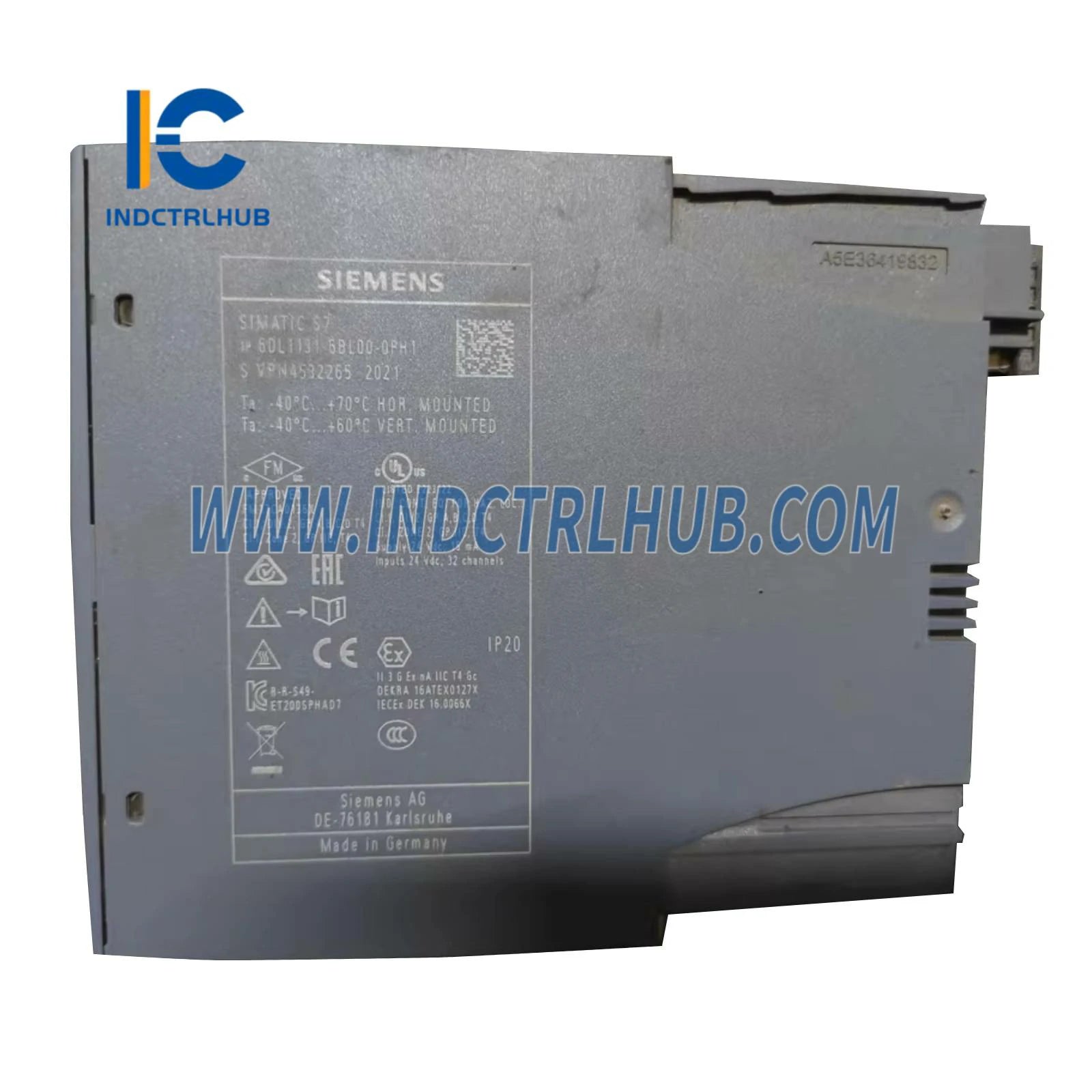

Siemens 6DL1131-6BL00-0PH1 Digital Input Module 32x24VDC
Siemens 6DL1131-6BL00-0PH1 Digital Input Module 32x24VDC
Manufacturer: Siemens
Product No.: 6DL1131-6BL00-0PH1
Condition:1000 in stock
Product Type: Digital Input Module
Product Origin: 4025515247890
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Siemens 6DL1131-6BL00-0PH1 Digital Input Module for High-Availability Systems
The Siemens 6DL1131-6BL00-0PH1 is an advanced digital input module designed for SIMATIC ET 200SP HA distributed I/O systems, delivering exceptional reliability in mission-critical automation environments. This 32-channel module operates at 24VDC and provides comprehensive diagnostic capabilities for industrial process control and manufacturing applications.
Technical Specifications
- Model Number: 6DL1131-6BL00-0PH1
- Input Channels: 32 digital inputs
- Voltage Rating: 24VDC
- System Compatibility: SIMATIC ET 200SP HA
- Terminal Type: H1/P0 compatible
- Diagnostic Function: Integrated channel diagnostics
- Operating Temperature: 0°C to +60°C
- Protection Rating: IP20
- Dimensions: Compact modular design
- Weight: 0.3 kg
Key Applications
This digital input module excels in high-availability automation scenarios where system uptime is paramount. Deploy the 6DL1131-6BL00-0PH1 in power generation facilities for turbine monitoring, process industries for critical sensor integration, pharmaceutical manufacturing for clean room automation, and water treatment plants for continuous process supervision. The module's redundant architecture ensures uninterrupted signal acquisition even during maintenance operations.
Engineering Solutions
The 6DL1131-6BL00-0PH1 integrates seamlessly with SIMATIC S7-1500R/H redundant controllers, enabling fault-tolerant system architectures. Its hot-swap capability allows module replacement without system shutdown, while advanced diagnostics provide real-time channel status monitoring through TIA Portal. The H1/P0 terminal compatibility simplifies wiring and reduces installation time by up to 40% compared to traditional terminal blocks.
Common Technical Questions
Q: Can this module operate in redundant configurations?
A: Yes, the 6DL1131-6BL00-0PH1 is specifically designed for ET 200SP HA systems with full redundancy support, ensuring continuous operation during controller or network failures.
Q: What diagnostic information is available?
A: The module provides per-channel diagnostics including wire break detection, short circuit monitoring, and voltage level status, accessible via PROFINET communication.
Q: Is the module compatible with standard ET 200SP systems?
A: While optimized for HA systems, the module can function in standard ET 200SP configurations, though redundancy features require HA-capable controllers.
Q: What is the maximum cable length for input signals?
A: Shielded cables up to 1000 meters are supported for 24VDC signals, with proper grounding and EMC considerations.
Warranty & Support
Every Siemens 6DL1131-6BL00-0PH1 module includes a comprehensive 12-month warranty covering manufacturing defects and material failures. Our technical support team provides configuration assistance, troubleshooting guidance, and integration consulting to ensure optimal system performance.
