Product Description

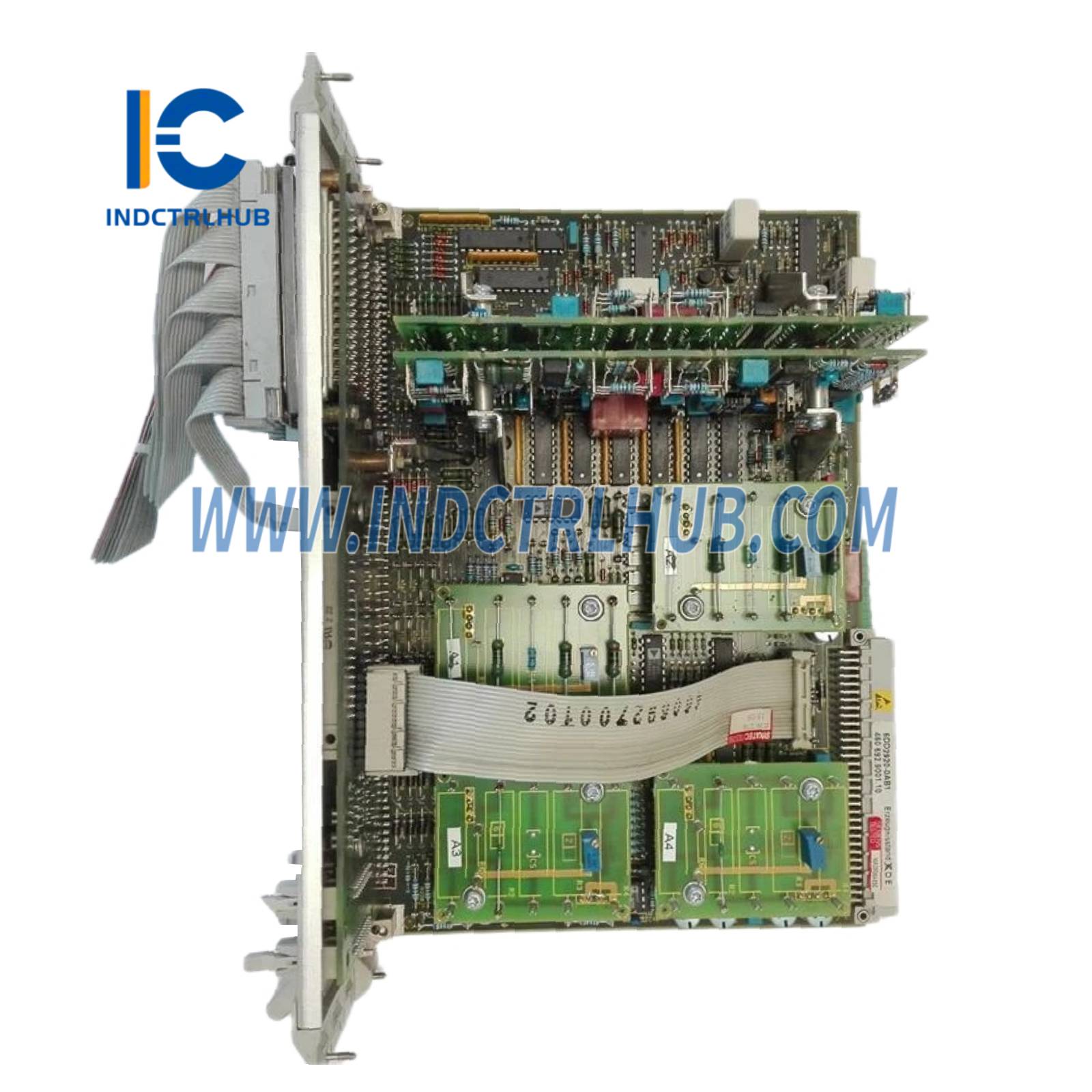

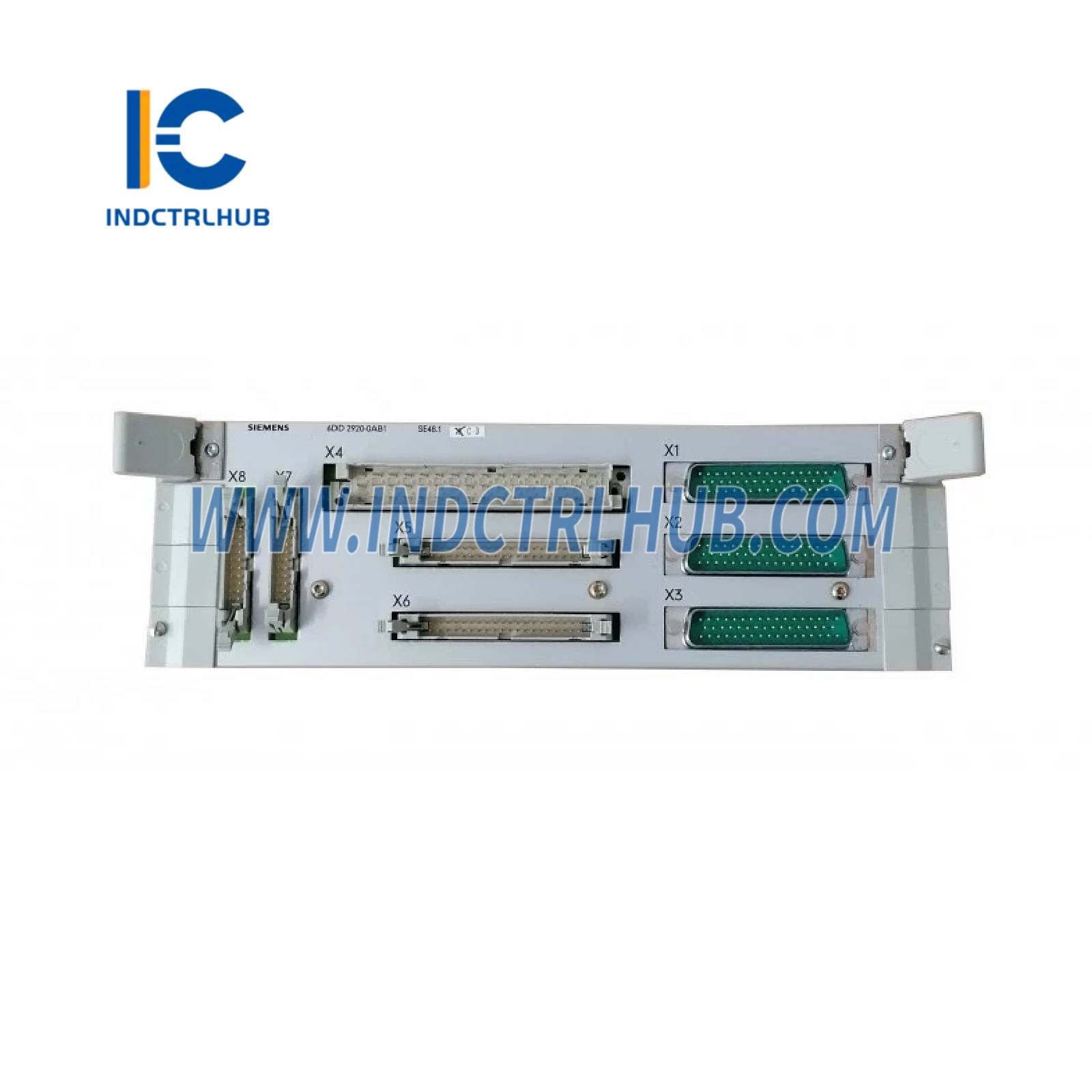

Siemens 6DD2920-0AB1 SIMADYN D Interface Module SE48.1
Product Overview
- The Siemens 6DD2920-0AB1 is an Interface Module SE48.1 designed for the SIMADYN D control system. This module serves as a communication interface for line-side converters, facilitating data exchange between SIMADYN D controllers and external devices or networks. It is used in industrial automation applications, such as manufacturing, process control, and drive systems, to ensure reliable and efficient system integration.
Technical Specifications
- The 6DD2920-0AB1 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DD2920-0AB1 |
| Manufacturer | Siemens |
| Description | SIMADYN D Interface Module SE48.1 for Line-Side Converter |
| Series | SIMADYN D |
| Function | Interface module for communication with line-side converters |
| Article Number | 460692900110 |
| Power Supply | 5 VDC (via SIMADYN D rack backplane) |
| Power Consumption | Approx. 5 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +55°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard SIMADYN D module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into SIMADYN D rack |
| Certifications | CE, UL |
Additional Details
- The 6DD2920-0AB1 includes the following additional information based on industry sources:
- Function: Provides a communication interface for line-side converters, enabling seamless data exchange between SIMADYN D systems and external devices; supports high-speed and reliable communication for precise control in drive and automation applications.
