Siemens 6DD1684-0FD0 SIMADYN D Ribbon Cable SC53 50-Pole

Siemens 6DD1684-0FD0 SIMADYN D Ribbon Cable SC53 50-Pole

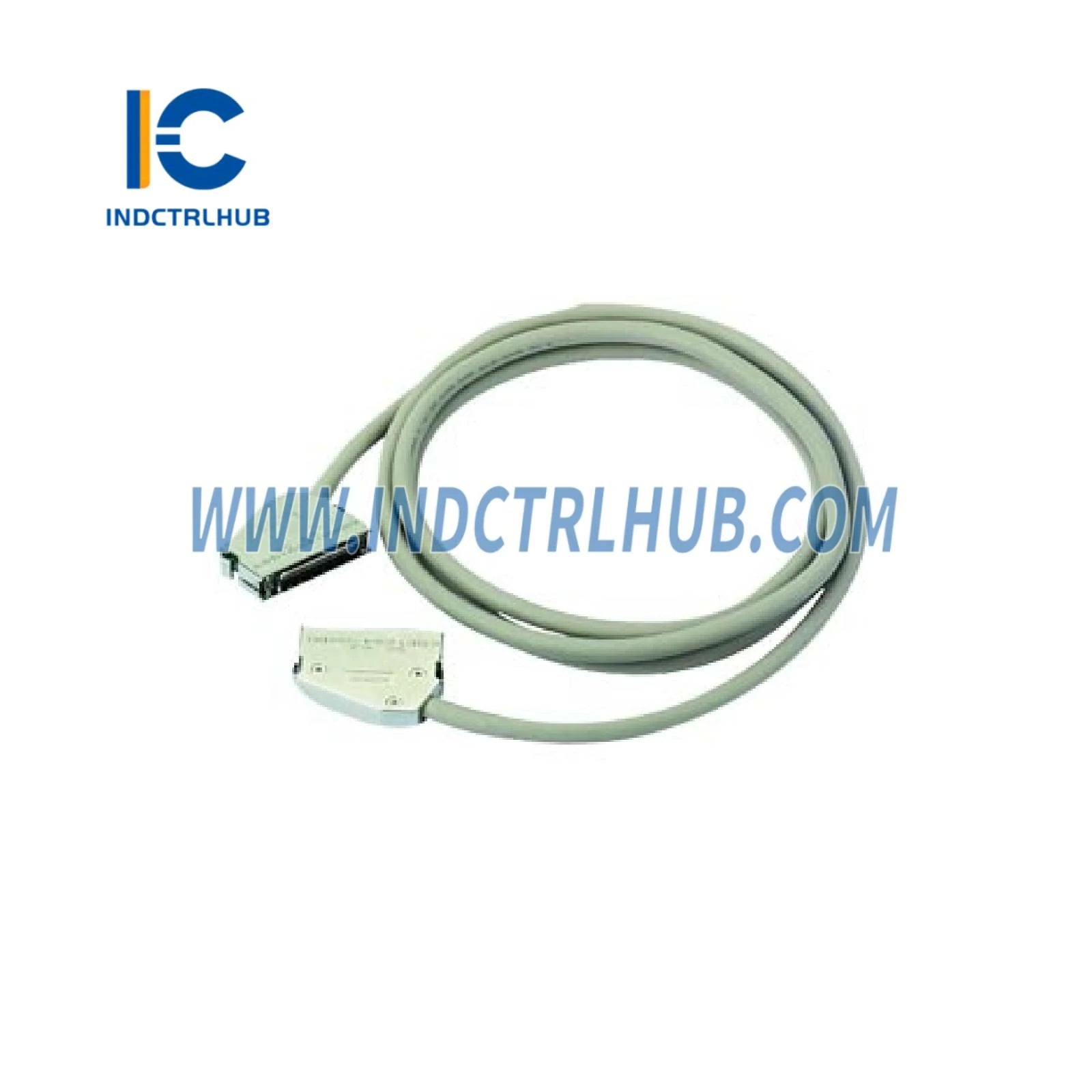

The Siemens 6DD1684-0FD0 represents a precision-engineered ribbon cable solution designed specifically for SIMADYN D control systems. This 50-pole SC53 cable delivers reliable signal transmission across industrial automation architectures, ensuring seamless module-to-module connectivity in demanding process control environments.

Technical Specifications

• Model Number: 6DD1684-0FD0
• Cable Type: Ribbon Cable SC53
• Pole Configuration: 50-pole (2x25 conductors)
• Cable Length: 2 meters
• Connector Type: 2x26-pole IDC connectors
• System Compatibility: SIMADYN D control platform
• Operating Temperature: -25°C to +70°C
• Insulation Material: High-grade PVC

Application Scenarios

This ribbon cable excels in connecting SIMADYN D modules within subrack configurations, particularly for linking communication modules, I/O modules, and processor units. Ideal applications include turbine control systems, drive automation, and process monitoring installations where space-efficient wiring and signal integrity are critical.

Engineering Solutions

The SC53 cable architecture eliminates point-to-point wiring complexity in multi-module SIMADYN D systems. Its flat ribbon design enables organized cable routing within control cabinets while maintaining proper EMI shielding. The standardized 50-pole configuration ensures compatibility across the entire SIMADYN D product family, simplifying system expansion and maintenance procedures.

Installation & Integration

Installation requires no special tools—simply align the IDC connectors with the corresponding module ports and apply firm, even pressure until fully seated. The 2-meter length accommodates standard subrack spacing while allowing flexibility for cabinet layout optimization. Always verify proper pin alignment before connection to prevent damage to sensitive control electronics.

Frequently Asked Questions

Q: Is this cable compatible with SIMATIC TDC systems?
A: While designed for SIMADYN D, certain SIMATIC TDC modules may accept SC53 cables. Verify connector compatibility in your system documentation before ordering.

Q: Can I extend the cable length by connecting multiple units?
A: No, ribbon cables should not be daisy-chained. For longer distances, order the appropriate cable length or use signal repeaters as specified in system design guidelines.

Q: What is the maximum data transmission rate?
A: The cable supports the full bandwidth requirements of SIMADYN D communication protocols, typically up to 12 Mbps depending on module specifications.

Q: Are replacement connectors available separately?
A: Siemens recommends replacing the entire cable assembly rather than individual connectors to maintain signal integrity and system reliability.

Quality & Warranty

Manufactured to Siemens' exacting quality standards, this cable undergoes rigorous testing for continuity, insulation resistance, and mechanical durability. Each unit is backed by a comprehensive 12-month warranty covering material defects and workmanship issues under normal operating conditions.

Related Products

Enhance your SIMADYN D system with these compatible components:

• Siemens 6DD1682-0CC0 SIMADYN D Subrack SR12.1 - 24V DC mounting chassis for module installation
• Siemens 6DD1683-0BC0 SIMADYN D Power Supply Unit - Reliable power distribution for control modules
• Siemens 6DD1660-0AK0 SIMADYN D Communication Module CS12 - High-speed data exchange interface
