Product Description

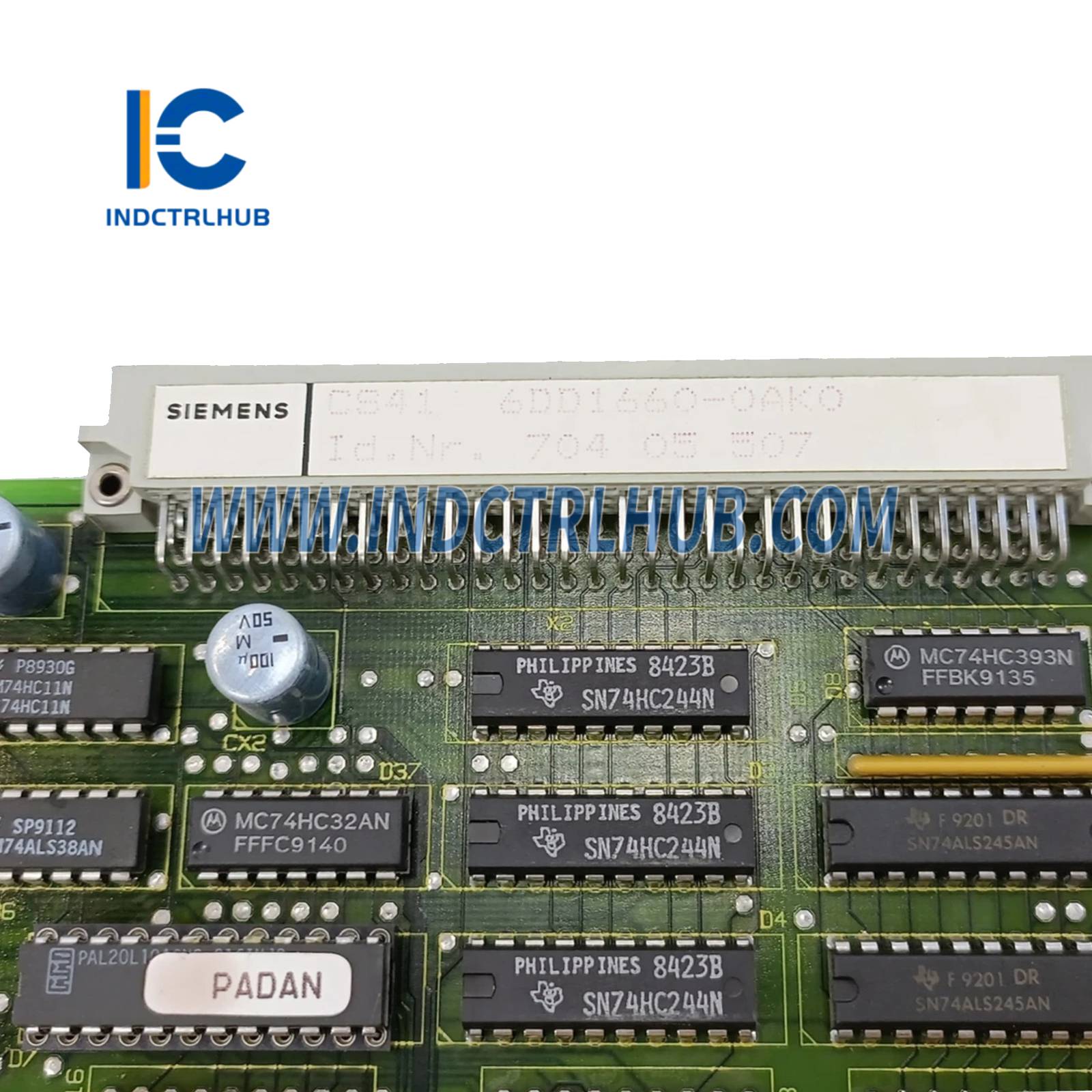

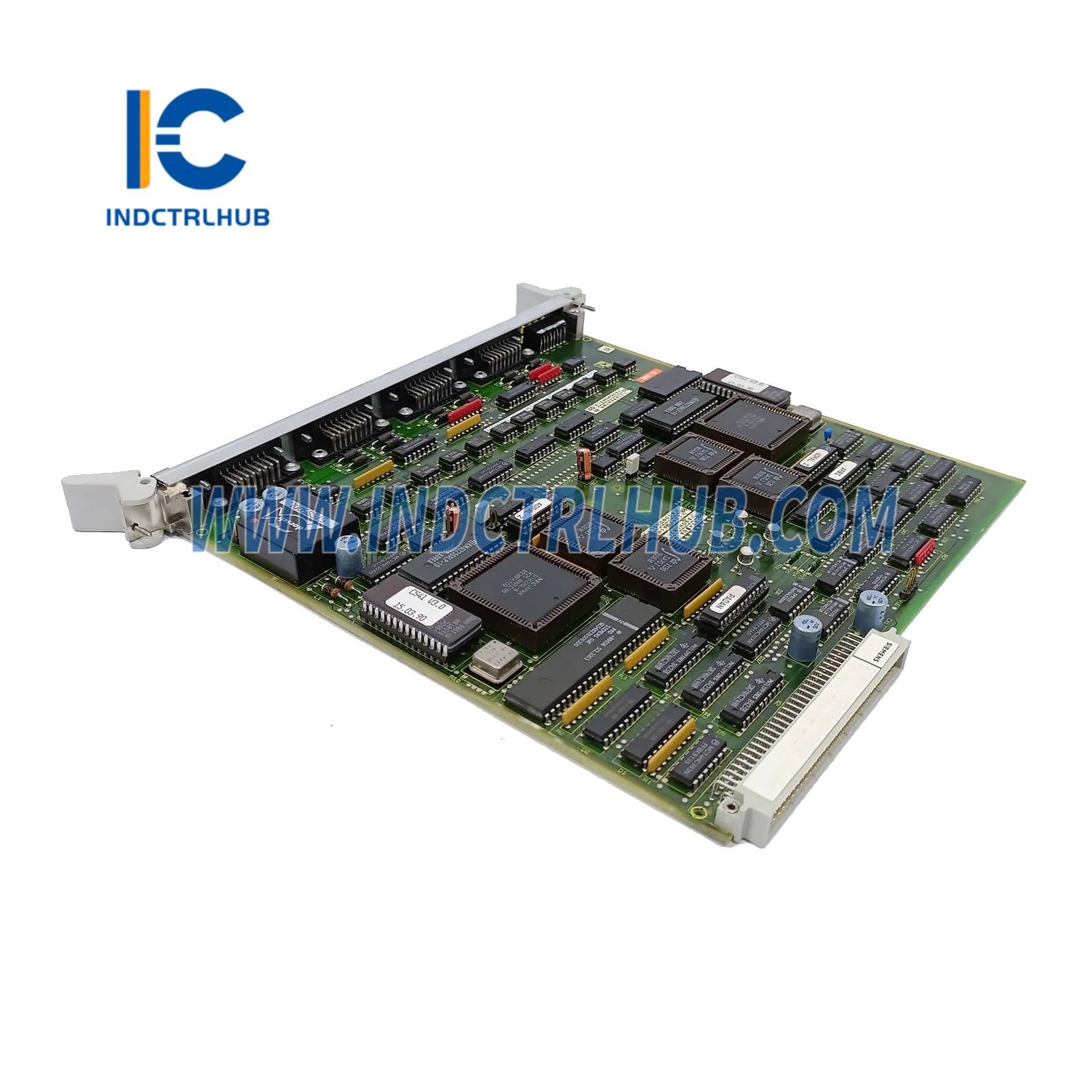

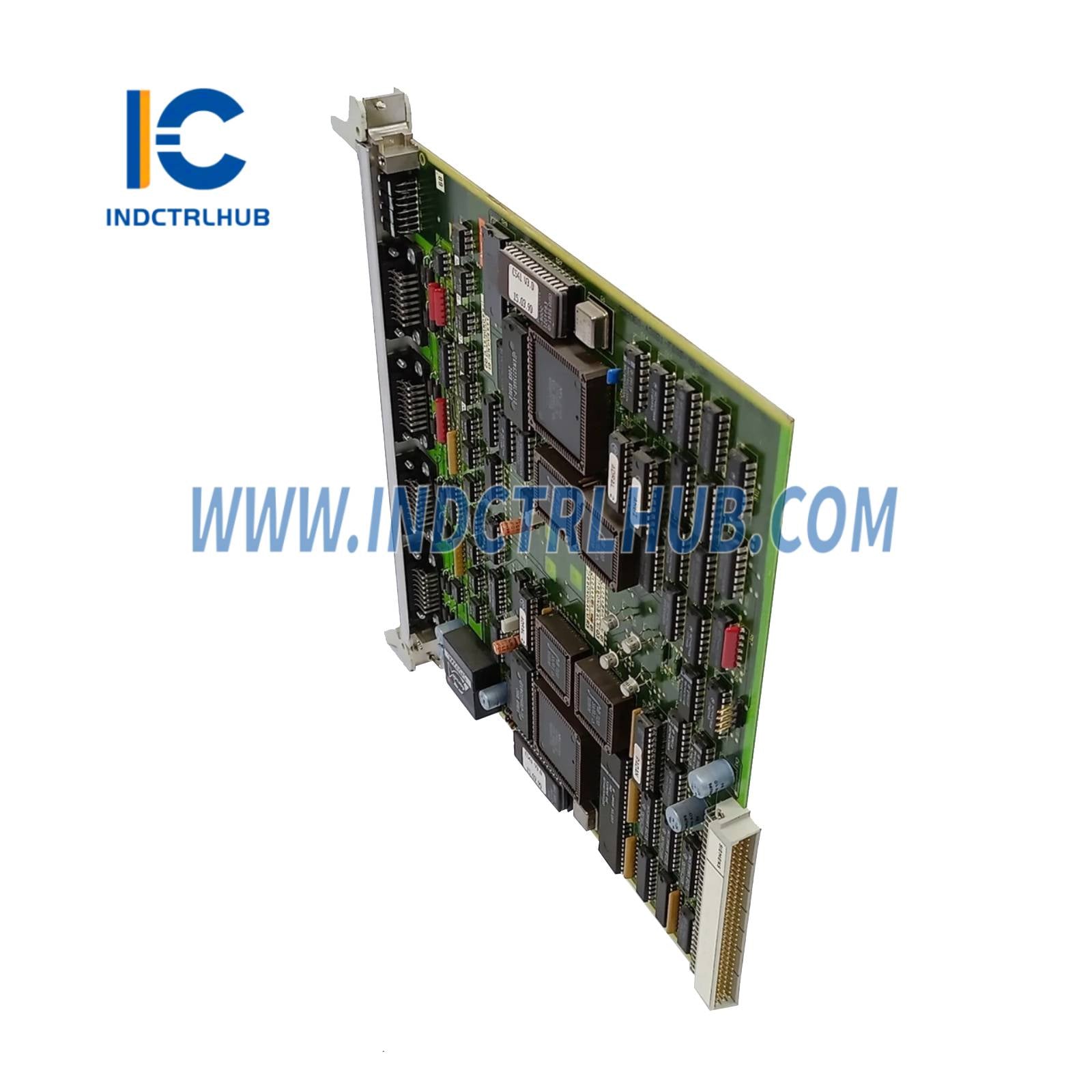

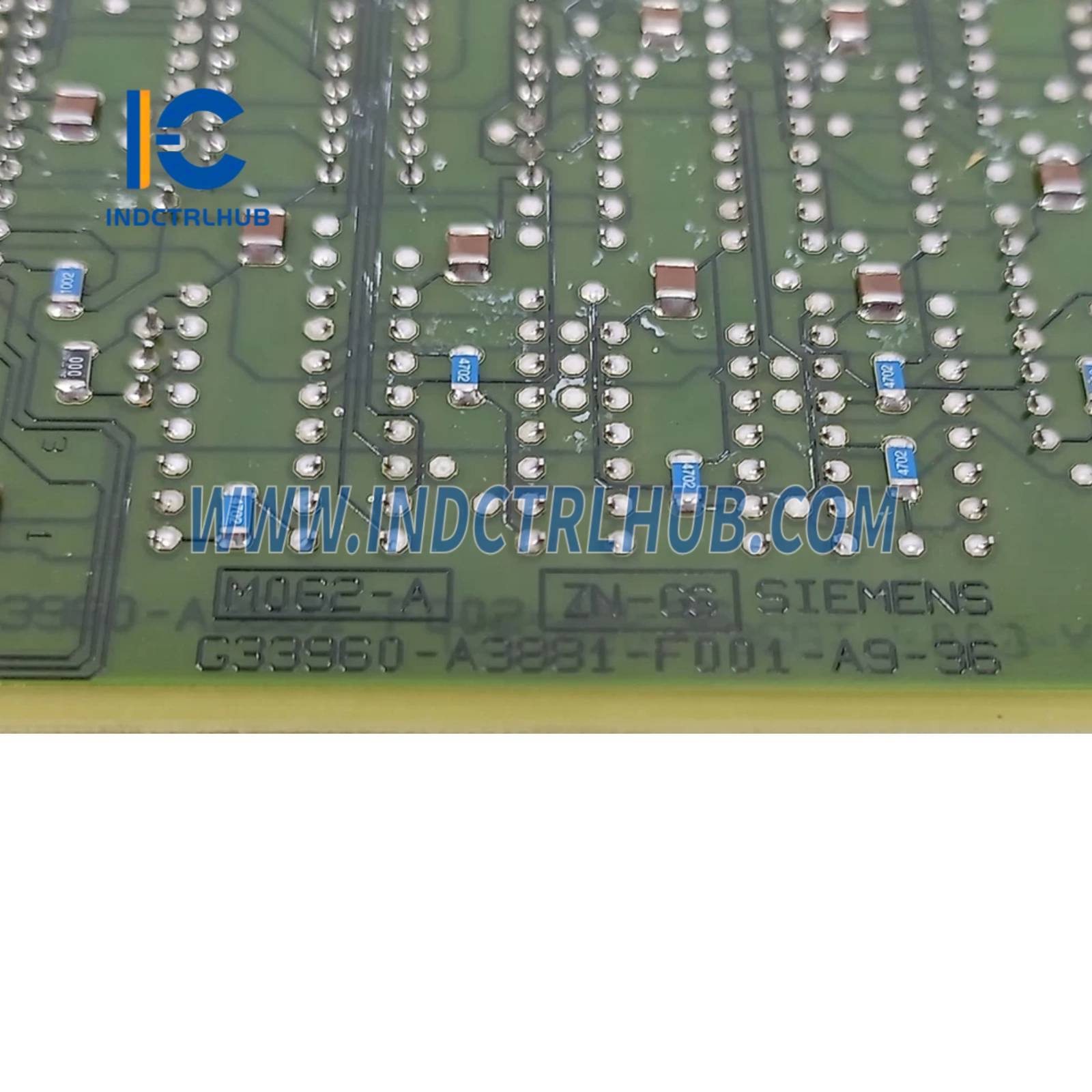

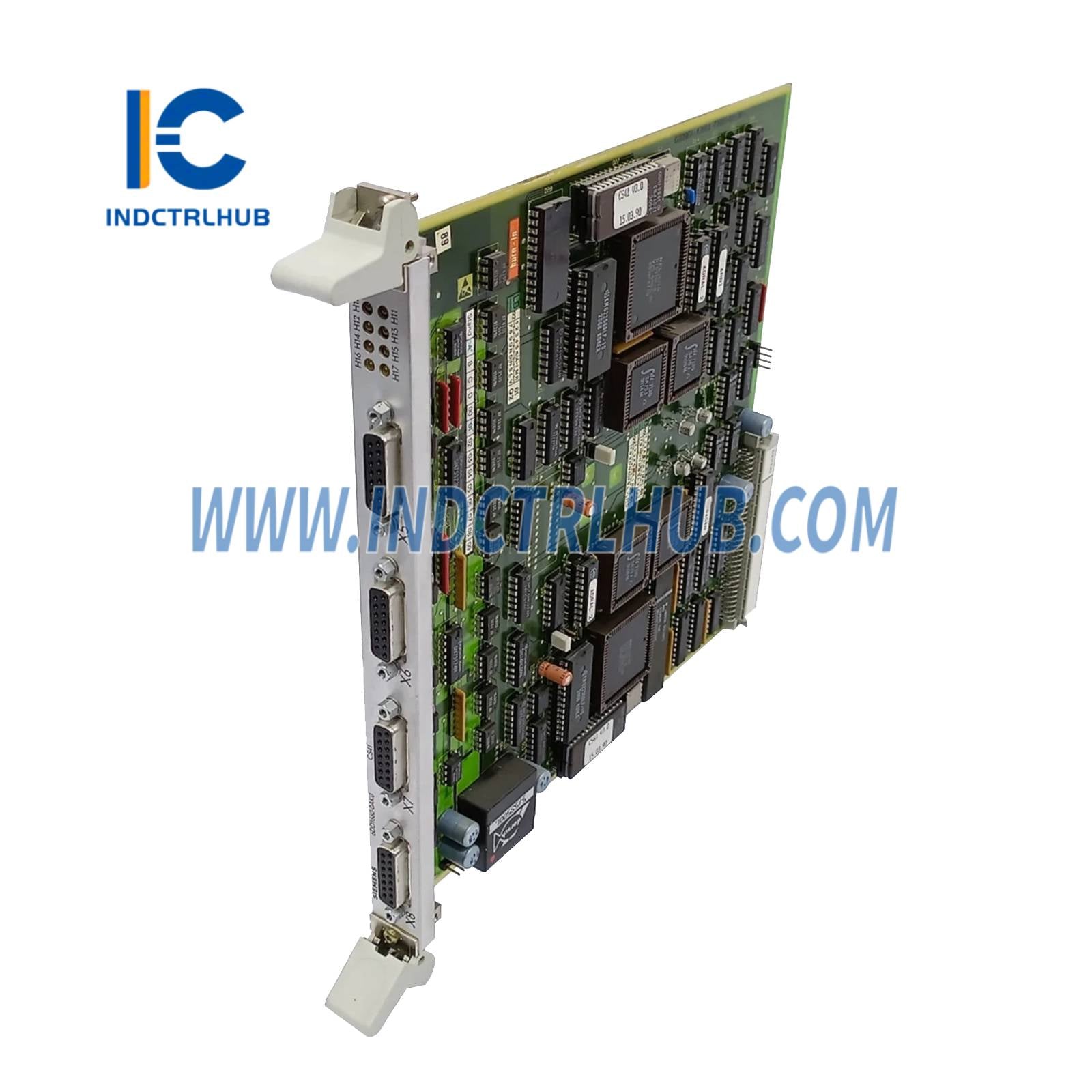

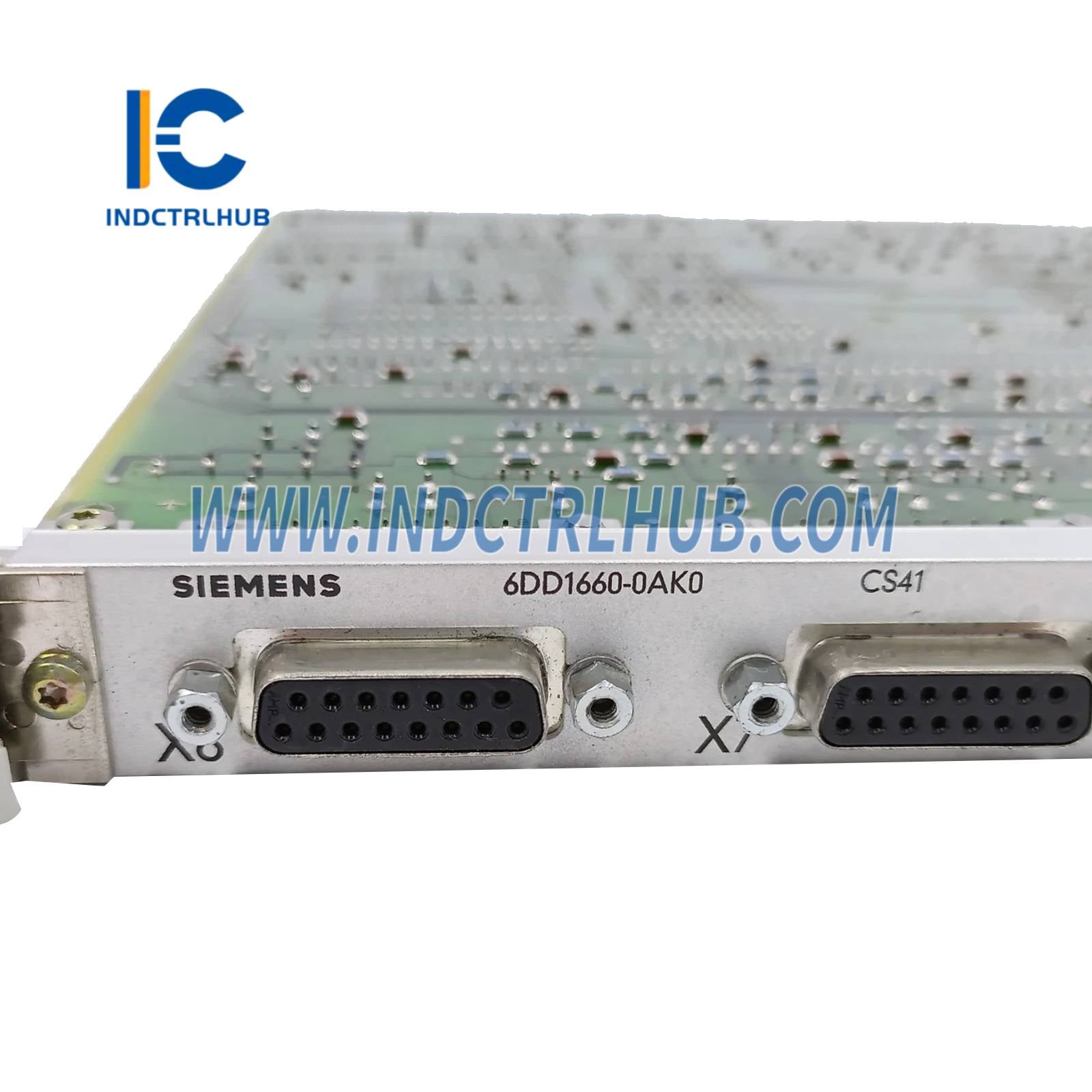

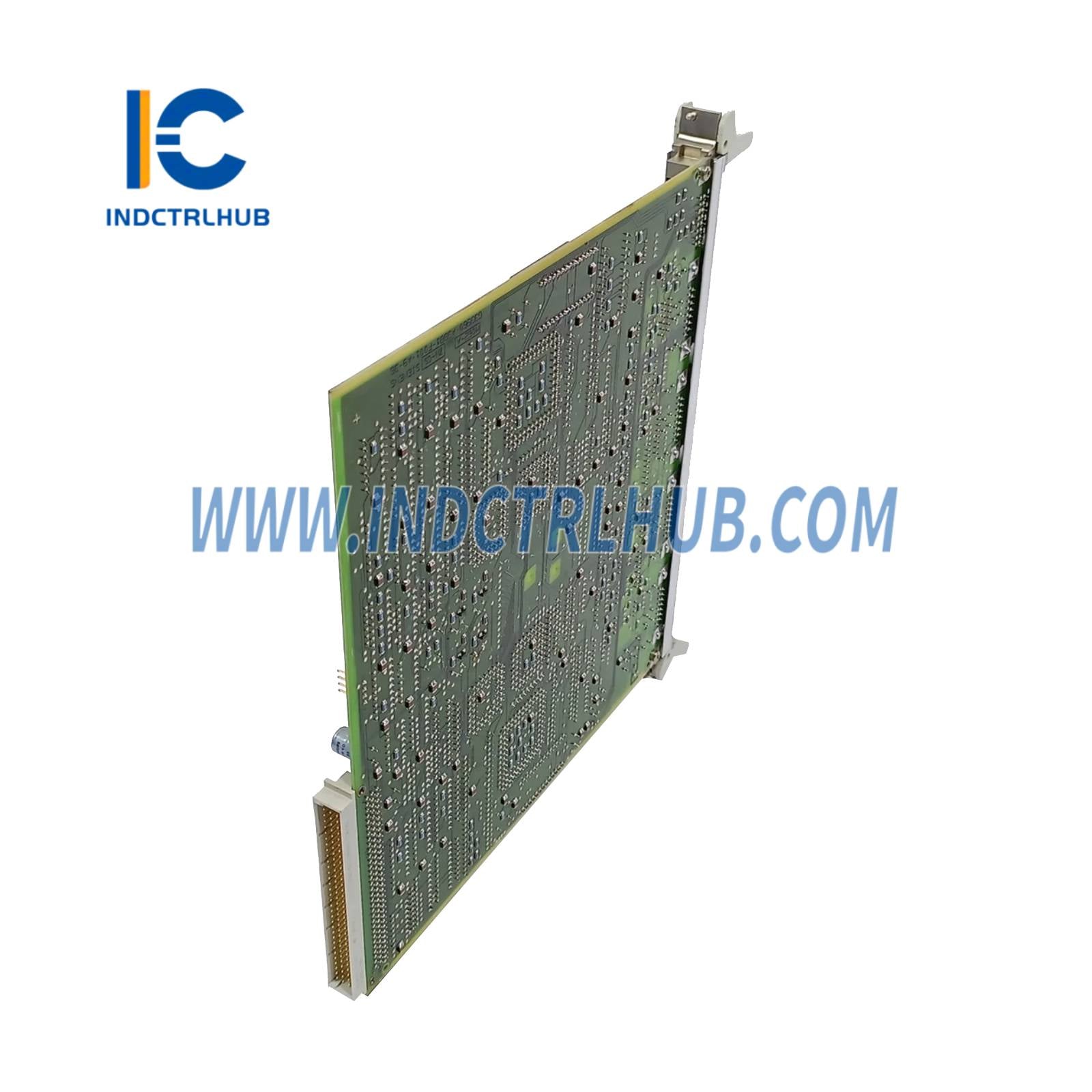

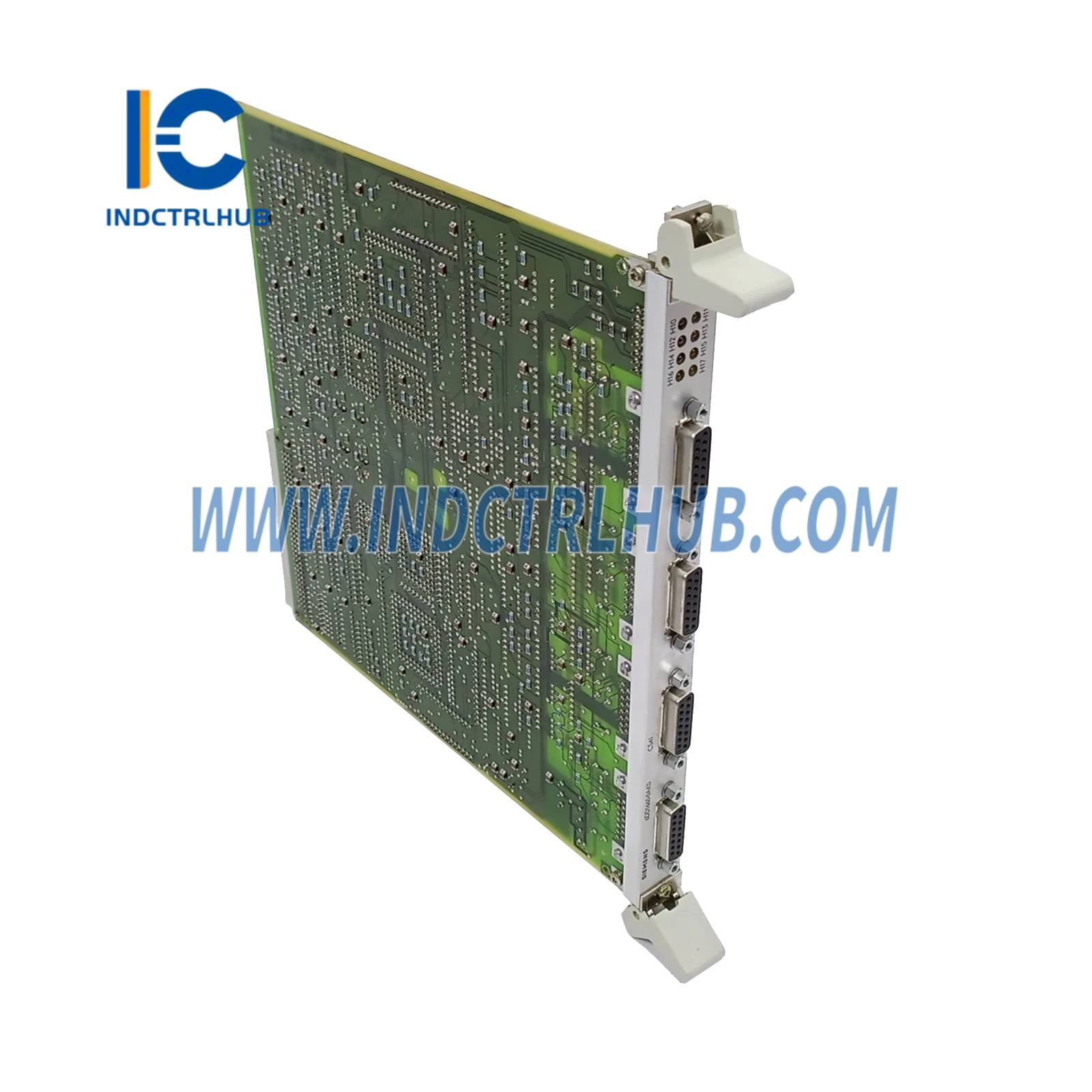

Siemens 6DD1660-0AK0 SIMADYN D Communication Module CS12
Product Overview
- The Siemens 6DD1660-0AK0 is a SIMADYN D Communication Module CS12 designed for the SIMADYN D control system. This module facilitates high-speed data transfer and reliable communication within industrial automation setups, particularly for connecting SIMADYN D systems to Siemens SIMOVERT P (6SE12) and SIMOREG K (6RA24) drives. It is used in applications such as manufacturing, process control, and drive systems, ensuring seamless integration and efficient operation.
Technical Specifications
- The 6DD1660-0AK0 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DD1660-0AK0 |
| Manufacturer | Siemens |
| Description | SIMADYN D Communication Module CS12 for SIMOVERT P 6SE12 and SIMOREG K 6RA24 |
| Series | SIMADYN D |
| Function | Serial interface for communication with SIMOVERT P and SIMOREG K drives |
| Communication Protocol | Siemens proprietary protocol for SIMADYN D |
| Interface | Serial communication interface |
| Power Supply | 5 VDC (via SIMADYN D rack backplane) |
| Power Consumption | Approx. 5 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +55°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard SIMADYN D module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into SIMADYN D rack |
| Certifications | CE, UL |
Additional Details
- The 6DD1660-0AK0 includes the following additional information based on industry sources:
- Function: Enables serial communication between SIMADYN D control systems and Siemens SIMOVERT P (6SE12) or SIMOREG K (6RA24) drives, supporting real-time data exchange for precise control of drive systems; acts as a bridge for integrating drive control into broader automation networks.
