Product Description
Product Overview

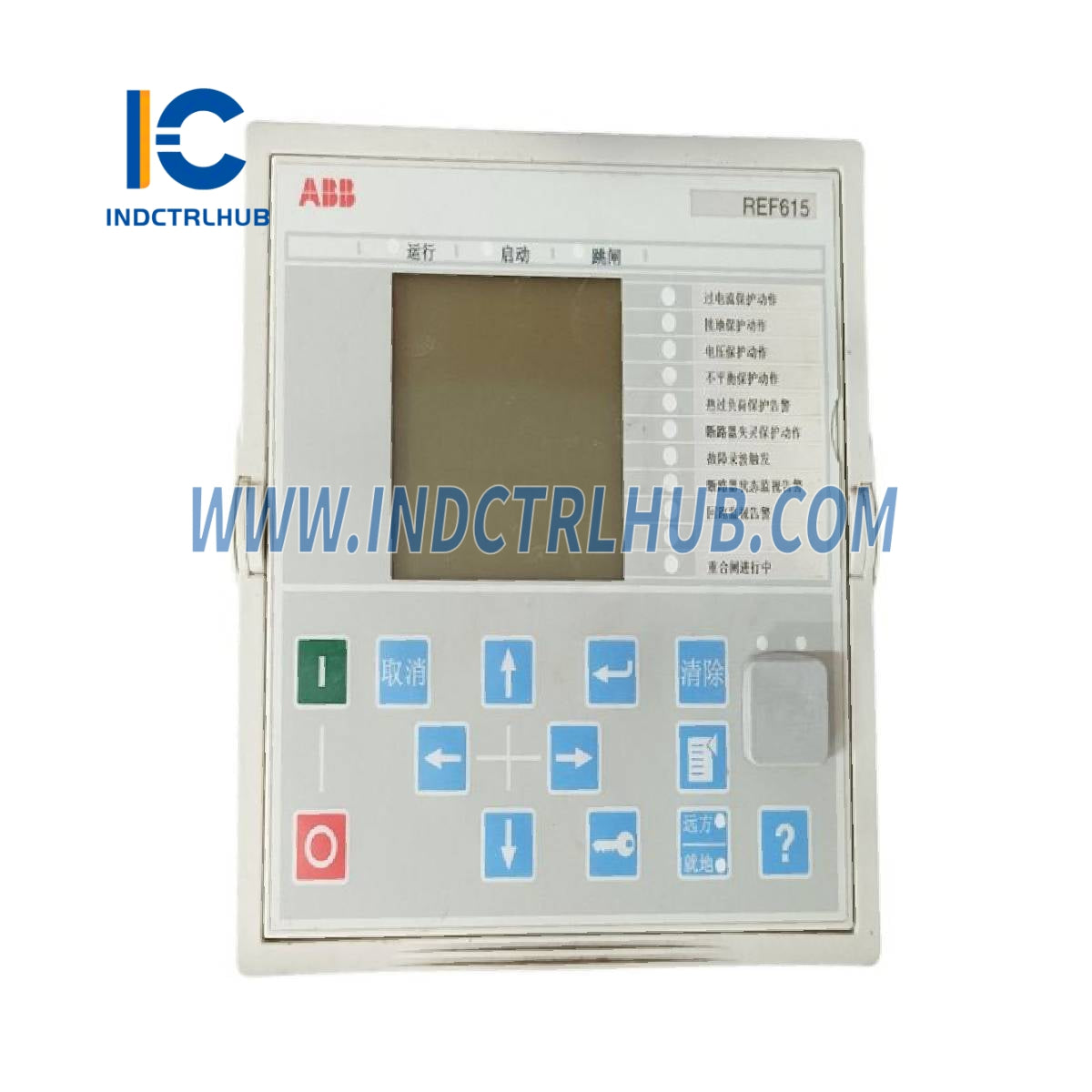

The ABB REF615C/D HCFCACABANB2BAN1XD is a Feeder Protection and Control Relay from the Relion® 615 series, designed for the protection, control, measurement, and supervision of utility and industrial power distribution systems. Manufactured by ABB, this Intelligent Electronic Device (IED) is tailored for overhead lines and cable feeders in radial, looped, or meshed networks, including those with distributed power generation. It offers a comprehensive set of protection functions, such as overcurrent, earth-fault, and voltage protection, along with advanced control and monitoring capabilities. The specific part number suffix (HCFCACABANB2BAN1XD) denotes a customized configuration, detailing hardware, software, and feature options.
Technical Specifications
The REF615C/D HCFCACABANB2BAN1XD has the following specifications based on standard characteristics for the REF615 series:
| Item | Specification |
|---|---|
| Model/Part Number | REF615C/D HCFCACABANB2BAN1XD |
| Manufacturer | ABB |
| Description | Feeder Protection and Control Relay |
| Series | Relion® 615 |
| Input Voltage (Power Supply) | 48-250 V DC or 100-240 V AC, 50/60 Hz |
| Current Inputs | 4 (3 phase + 1 residual, 1/5 A configurable) |
| Voltage Inputs | 3 (phase voltages, configurable) |
| Digital Inputs | 10 (based on “C” hardware variant) |
| Digital Outputs | 8 (based on “C” hardware variant) |
| Operating Temperature | -25°C to +55°C (-13°F to +131°F) |
| Weight | Approximately 4.1 kg (9 lbs, complete unit) |
Additional Details
The REF615C/D HCFCACABANB2BAN1XD includes the following additional information based on its standard use and configuration breakdown:
| Category | Details |
|---|---|
| Function | Feeder protection, control, measurement, and supervision |
| Mounting | Panel-mounted (flush or semi-flush) |
| Connectivity | IEC 61850, Modbus, DNP3, optional Ethernet |
| Features | Overcurrent protection, earth-fault protection, auto-reclosing, graphical HMI |
| Certifications | IEC 60255, CE, UL (depending on configuration) |
