HESG324063R100 | ABB 216DB61 Output Module
HESG324063R100 | ABB 216DB61 Output Module
Manufacturer: ABB
Product No.: HESG324063R100
Condition:1000 in stock
Product Type: Output Module
Product Origin: Switzerland
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview

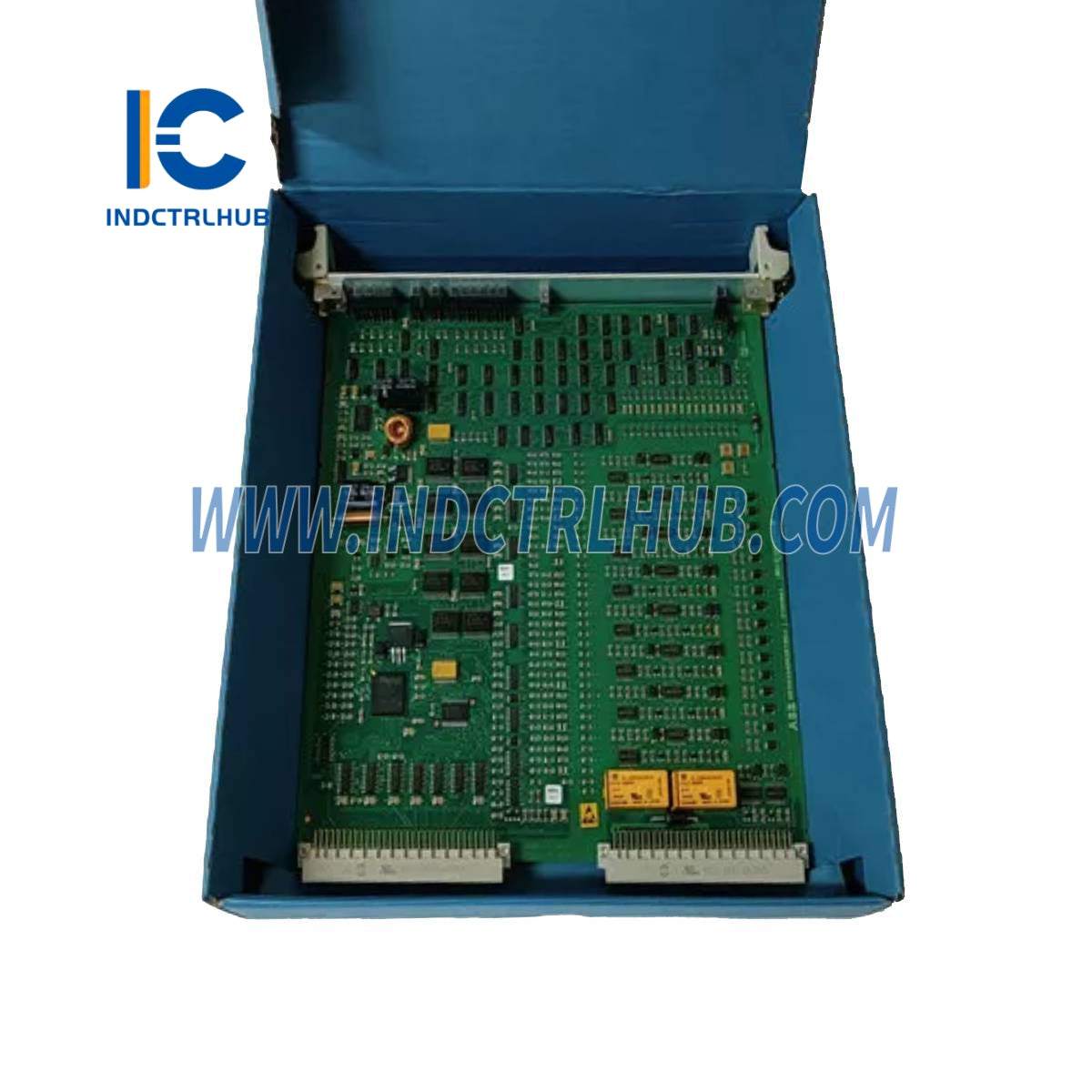

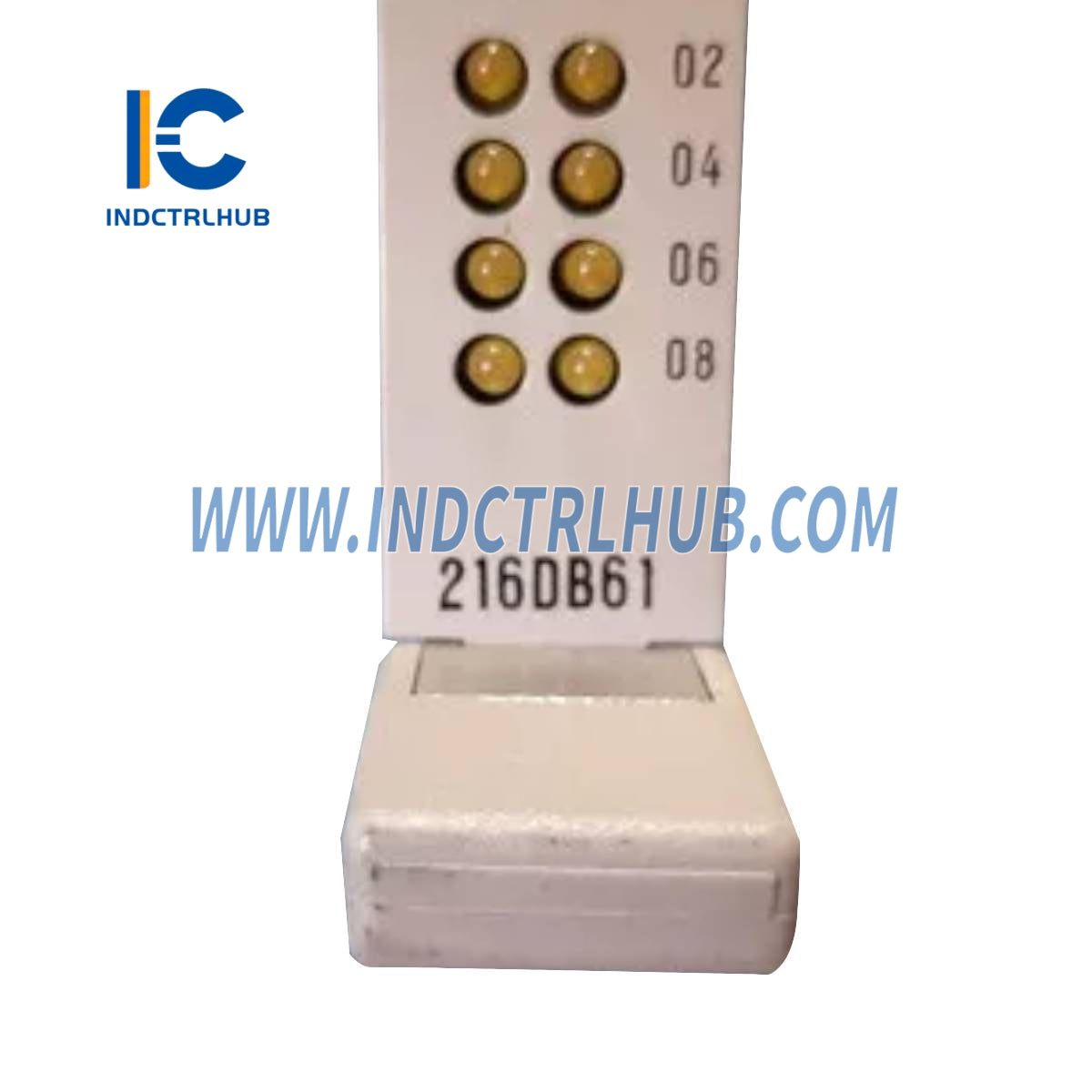

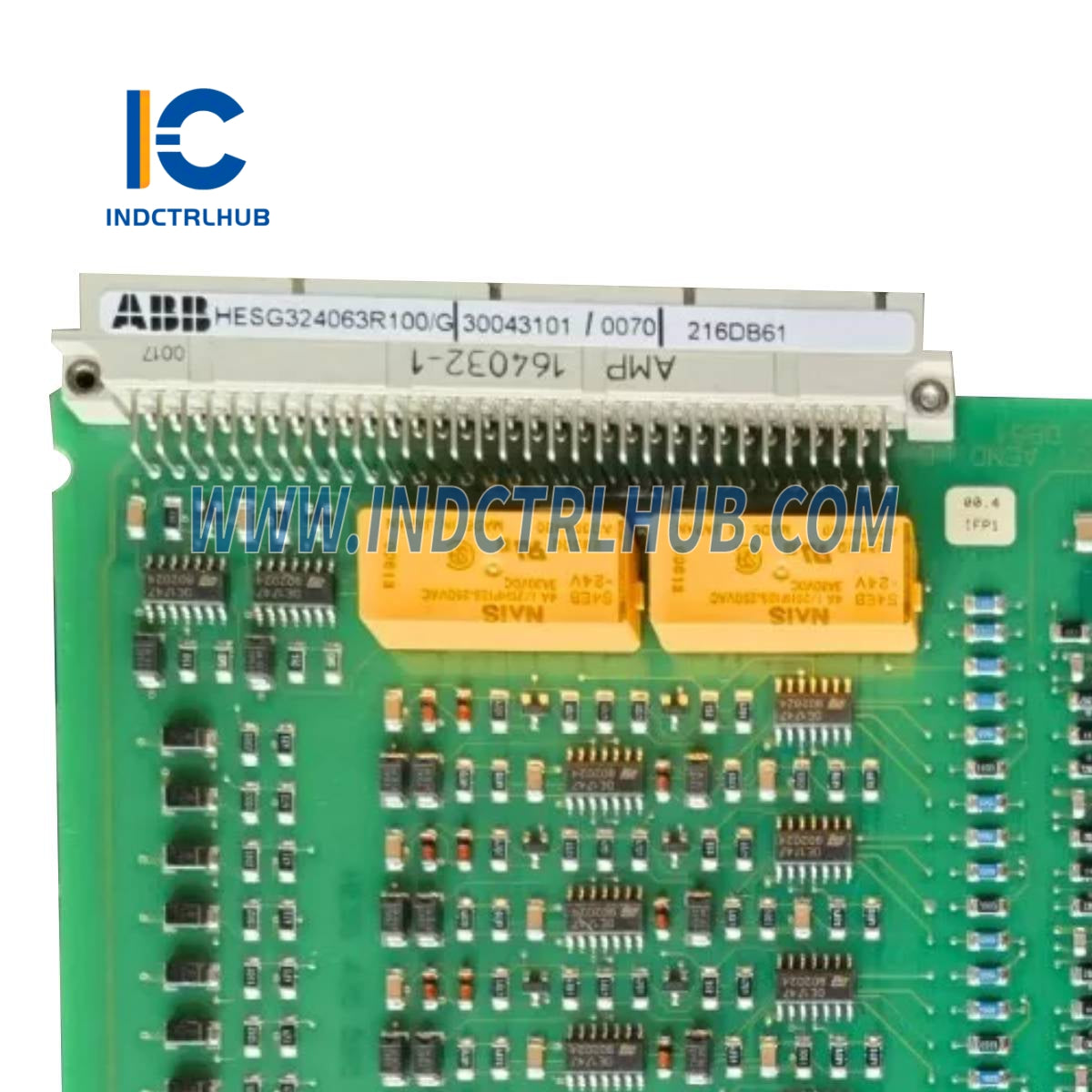

The ABB HESG324063R100 216DB61 is an Output Module designed for use in ABB__ industrial automation systems, likely part of the Advant OCS or Symphony Harmony series. Manufactured by ABB, this module serves as a tripping and binary output unit, providing reliable control of digital outputs for industrial applications such as power generation, oil & gas, and process automation. It is engineered to interface with field devices, offering robust performance in harsh environments. The part number __ESG324063R100_ is the catalog identifier, while _216DB61_ is the ABB type designation, indicating a specific configuration within this product family.
Technical Specifications
The HESG324063R100 216DB61 has the following specifications based on inferred characteristics from ABB__ Advant OCS output modules:
| Item | Specification |
|---|---|
| Model/Part Number | HESG324063R100 216DB61 |
| Manufacturer | ABB |
| Description | Output Module (Tripping and Binary Output Unit) |
| Series | Advant OCS or Symphony Harmony (assumed) |
| Output Type | Digital, relay or transistor-based |
| Number of Outputs | 16 (typical for similar modules) |
| Power Supply | 24 V DC (typical) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approximately 0.5 kg (1.1 lbs) |
Additional Details
The HESG324063R100 216DB61 includes the following additional information based on its standard use and inferred documentation:
| Category | Details |
|---|---|
| Function | Controls digital outputs for tripping and binary signals |
| Mounting | Plugs into ABB I/O rack or backplane |
| Connectivity | Terminal blocks for field wiring, bus connection to controller |
| Features | Fault diagnostics, high reliability, compact design |
| Certifications | Designed for industrial standards (e.g., CE) |
