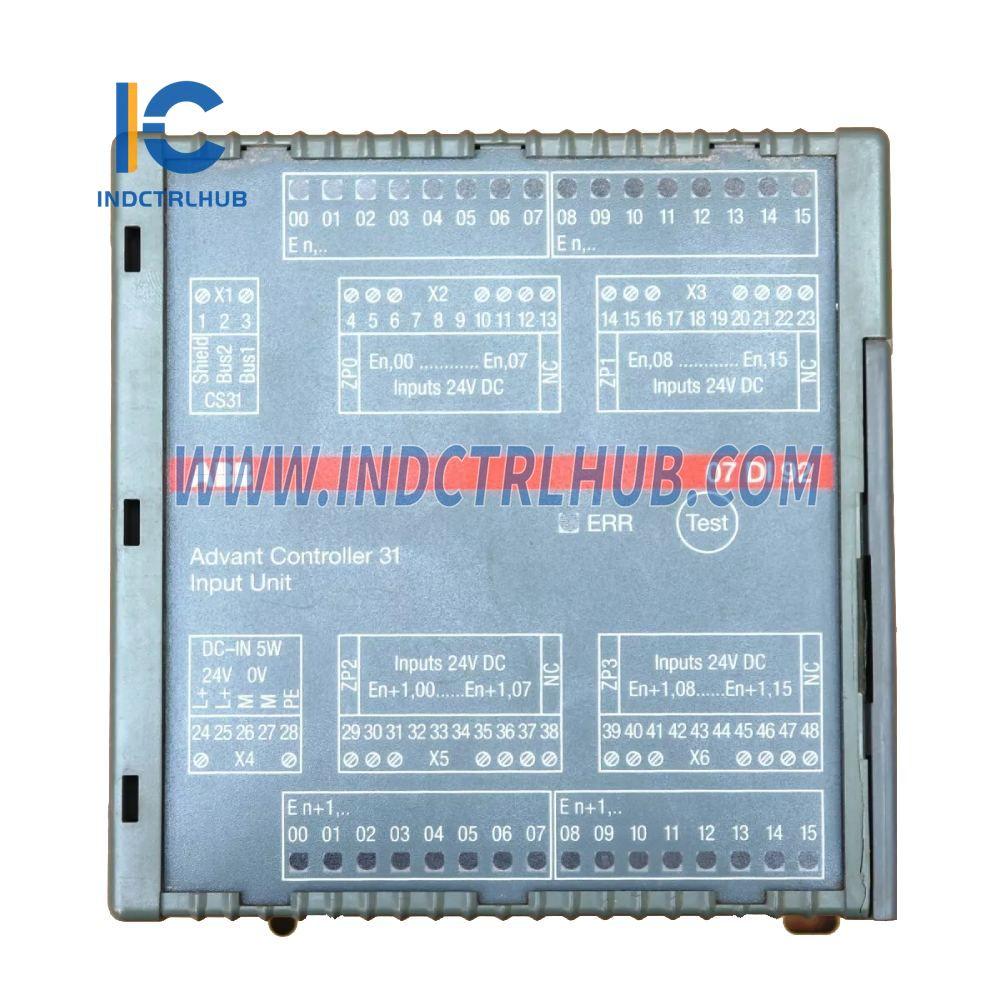

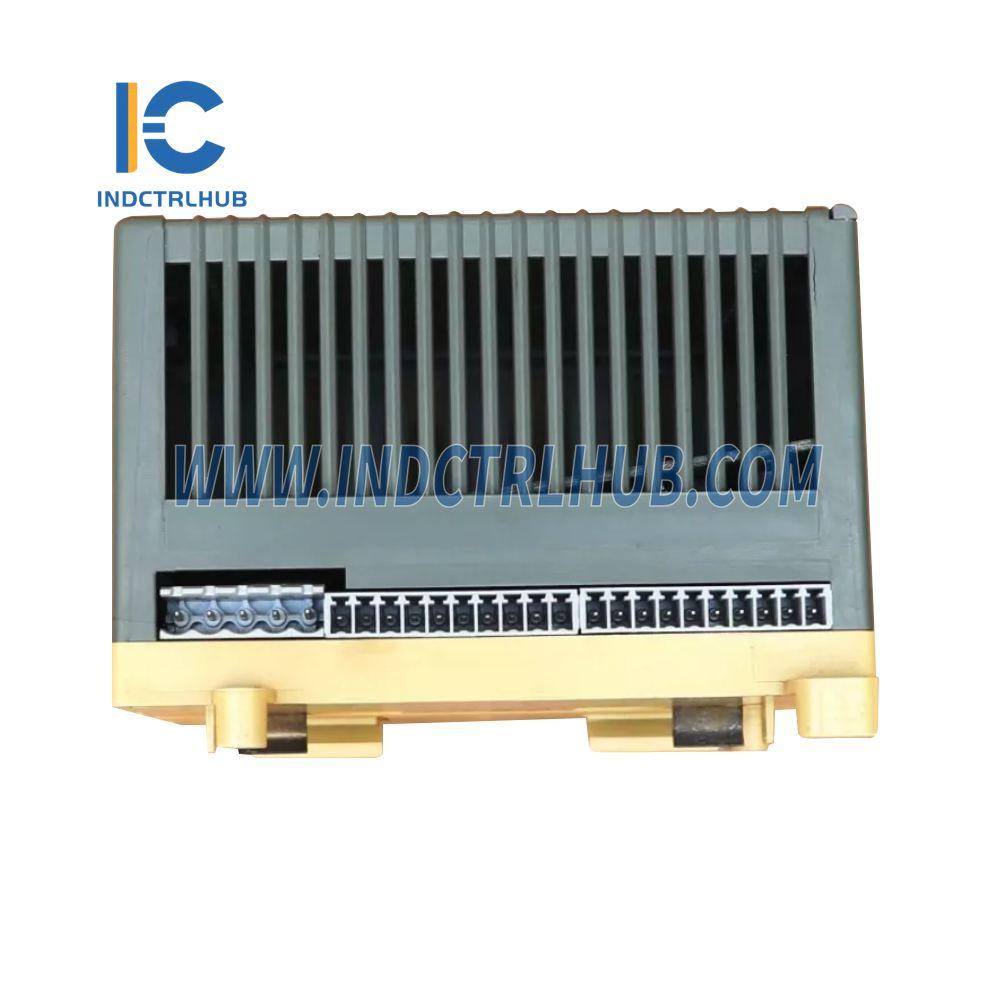

Product Description
General Information:

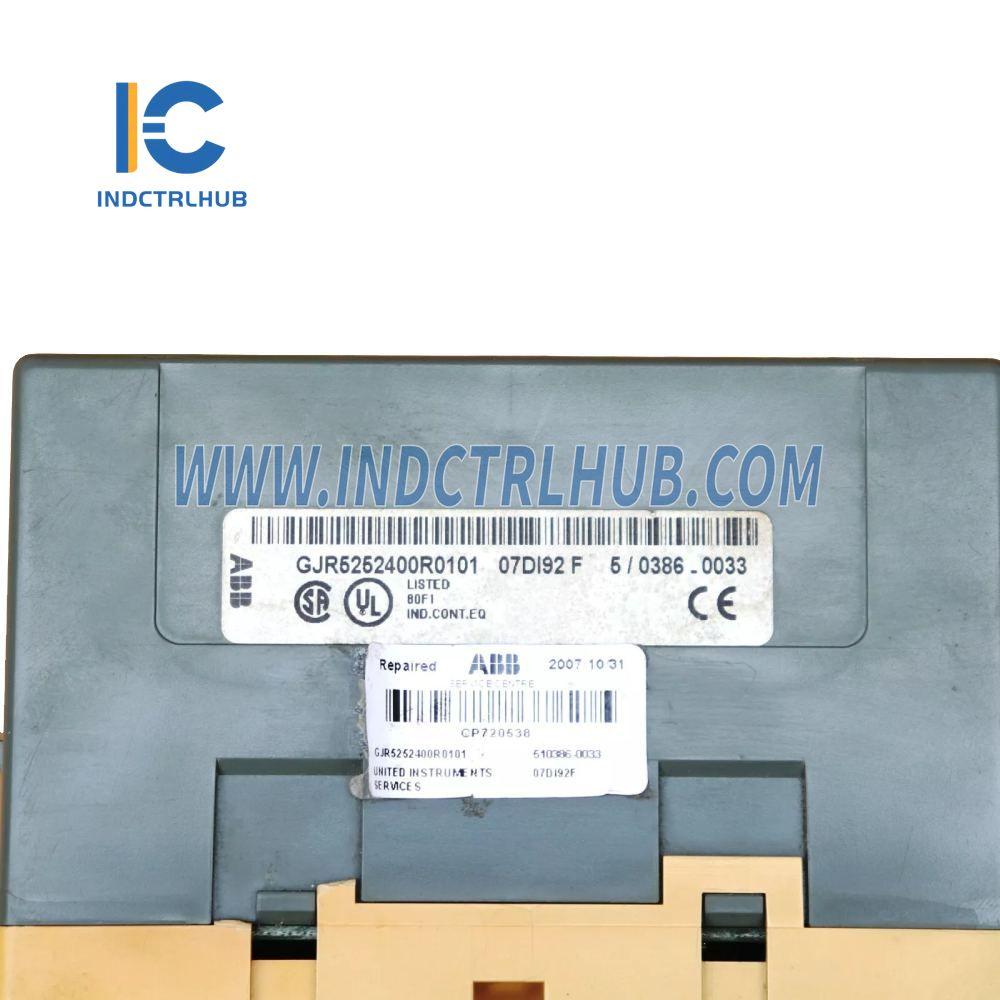

- Product ID: GJR5252400R0101
- ABB Type Designation: 07DI92
- EAN: 4013614267659
- Catalog Description: 07DI92:AC31, Digital I/O module 32DI
- Long Description: 07DI92:AC31, Digital I/O module 32DI 24VDC, DI:24VDC, 1-wire
Certifications & Compliance:
| Certificate Type | Certificate Number |
|---|---|
| ABS Certificate | 1SAA960000-0102 |
| CSA Certificate | 1SAA960000-1102 |
| DNV Certificate | 1SAA960000-0304 |
| CE Declaration | 1SAD938505-0047 |
| Degree of Protection | IP20 |
| LR Certificate | 1SAA960000-0502 |
| RINA Certificate | 1SAA960000-0802 |
| RMRS Certificate | 1SAA960000-0702 |
| RoHS Compliance | 1SAA960005-4401 |
| UL Certificate | 1SAA960000-1602 |
| Environmental Info | 1SAA960001-2401 |
Operational Specifications:
| Specification | Value |
|---|---|
| Operating Temperature | 0 … +55 °C |
| Storage Temperature | -25 … +75 °C |
| Maximum Operating Altitude Permissible | 2000 m |
| Primary Voltage | 24 V DC |
| Fieldbus Interface Type | CS31 Slave |
| Cable Cross-Section | 0.08 … 1.5 mm² |
| Number of Digital Inputs (DC 24V) | 32 |
| Number of Analog Configurable I/Os | 0 |
| Terminal Type | Screw Terminals, Pluggable |
| Serial Port Type | RS-485, CS31 |
Dimensions and Weight:
- Net Depth: 85 mm
- Net Height: 140 mm
- Net Width: 120 mm
- Net Weight: 0.59 kg
- Gross Weight: 0.59 kg
Additional Features:
- I/O Option: Bus module with Onboard I/O - 32DI
-
Mounting on DIN Rail:
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Supply Voltage: 24 V DC
- Instructions and Manuals: AC31 with AC1131 Part 2: hardware series 90
Stock and Shipping:
- Stocked At: Menden, Germany
- Minimum Order Quantity: 1 piece
Miscellaneous:
- UNSPSC: 32151705
- WEEE Category: 5 (Small Equipment)
- eClass: 27-24-22-04
- Selling Unit of Measure: piece
- Invoice Description: 07DI92:AC31, Digital I/O module 32DI
