Product Description
Product Details

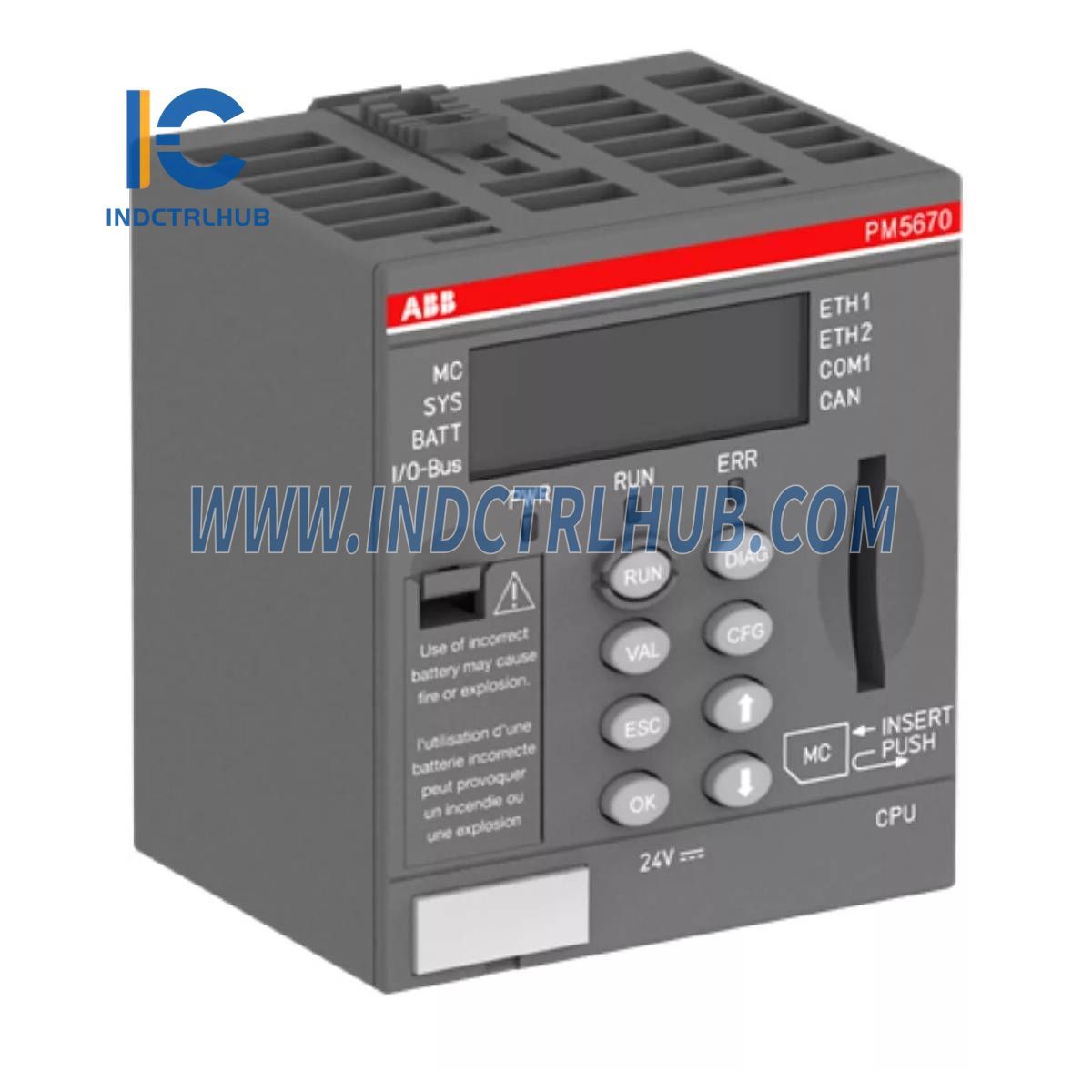

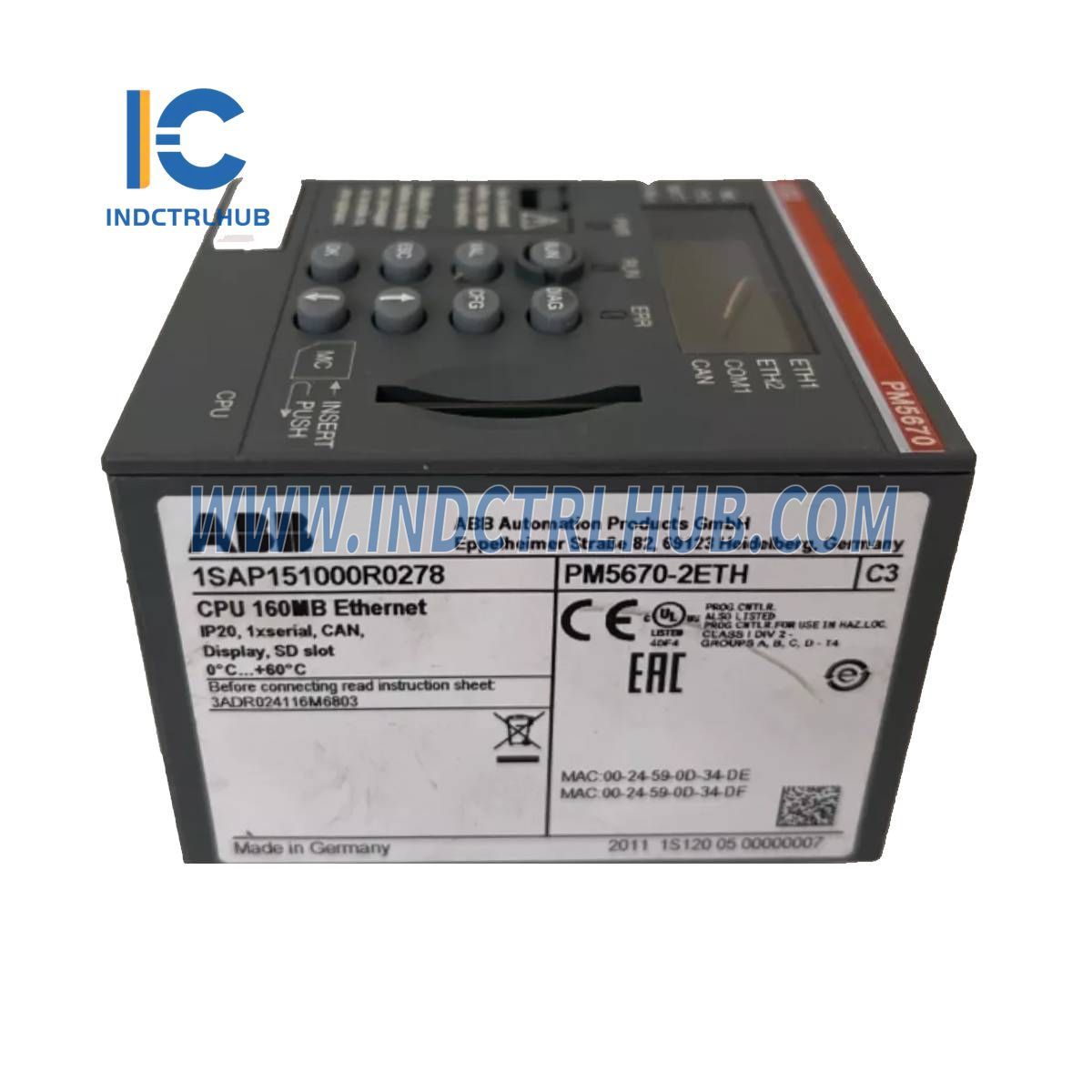

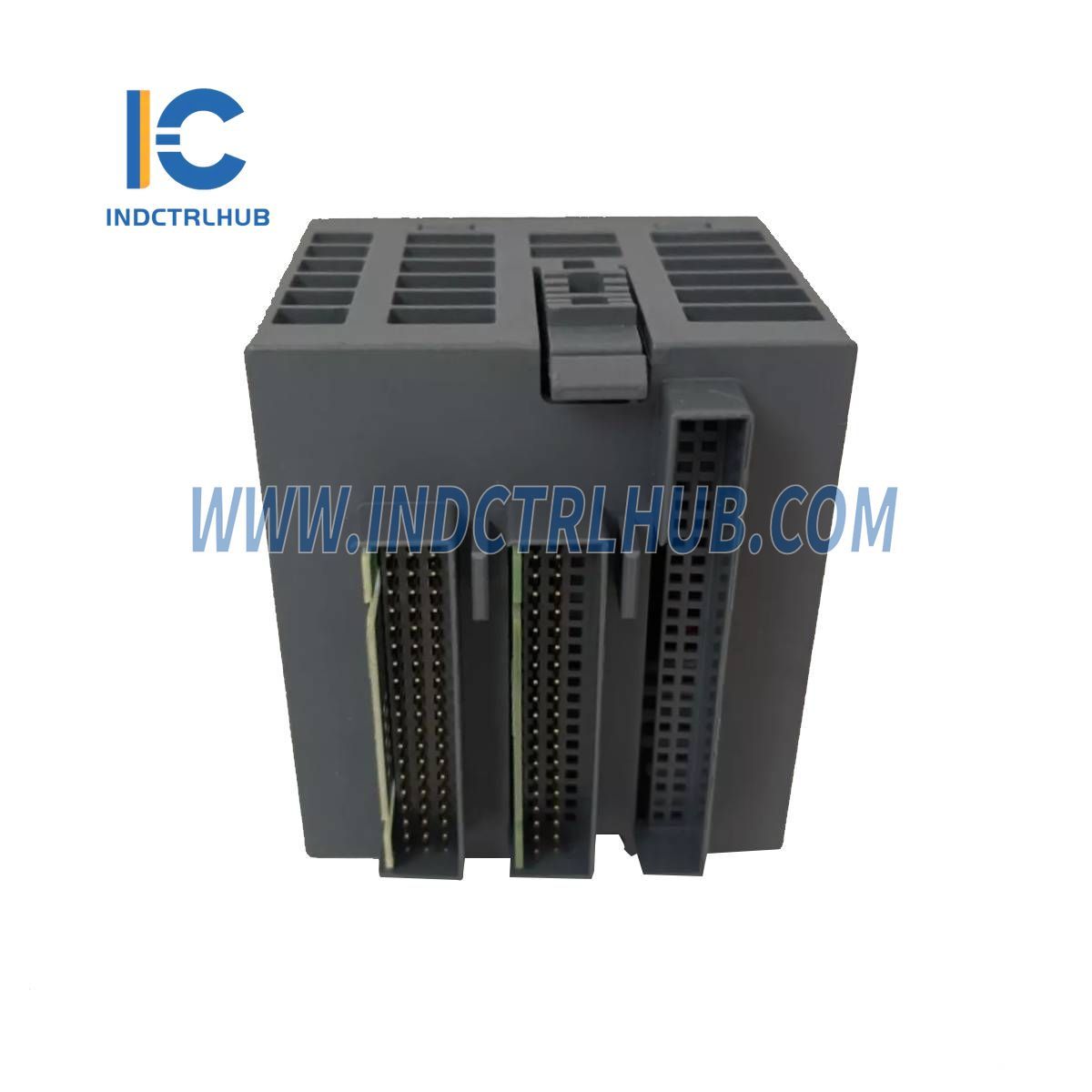

- Manufacturer: ABB
- Model/Part Number: PM5670-2ETH (1SAP151000R0278)
- Description: Processor Module
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | PM5670-2ETH |
| Product ID | 1SAP151000R0278 |
| ABB Type Designation | PM5670-2ETH |
| EAN | 4013614509032 |
| Catalog Description | Processor module. Memory 160MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display (PM5670-2ETH) |
| Long Description | PM5670-2ETH: AC500 Processor module. Memory 160MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display. |
Ordering Information
| Attribute | Details |
|---|---|
| CN8 | 85389091 |
| Invoice Description | Processor module. Memory 160MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display (PM5670-2ETH) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Attribute | Details |
|---|---|
| Product Net Weight | 0.133 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.152 kg |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Width | 71 mm |
| Package Level 1 Units | 1 carton |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | Memory 160MB. Interfaces: 2 Ethernet, RS232/485, CAN. Display |
| Number of Hardware Interfaces | Industrial Ethernet: 2, Other: 2 |
| Memory Size | 820500 kB |
| Memory Type (User Data) | RAM |
| Controller Processing Time | 0.000002 ms |
| Number of Digital Configurable I/Os | 0 |
| Degree of Protection | IP20 |
| Rated Voltage (Ur) | 24 V DC |
| Supply Voltage | 20.4 … 28.8 V DC |
Additional Information
| Attribute | Details |
|---|---|
| Product Main Type | PM5670 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| Attribute | Details |
|---|---|
| eClass | 27-24-22-07 |
| ETIM 8 | EC000236 - PLC CPU-module |
| ETIM 9 | EC000236 - PLC CPU-module |
| ETIM 10 | EC000236 - PLC CPU-module |
| UNSPSC | 32151705 |
Environmental Compliance
| Attribute | Details |
|---|---|
| SCIP | c44c25d9-60ee-4d4e-a14a-4c0dea485155 Germany (DE) |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Product Category
- Products → PLC Automation → Programmable Logic Controllers PLCs → AC500 → CPUs
