Product Description

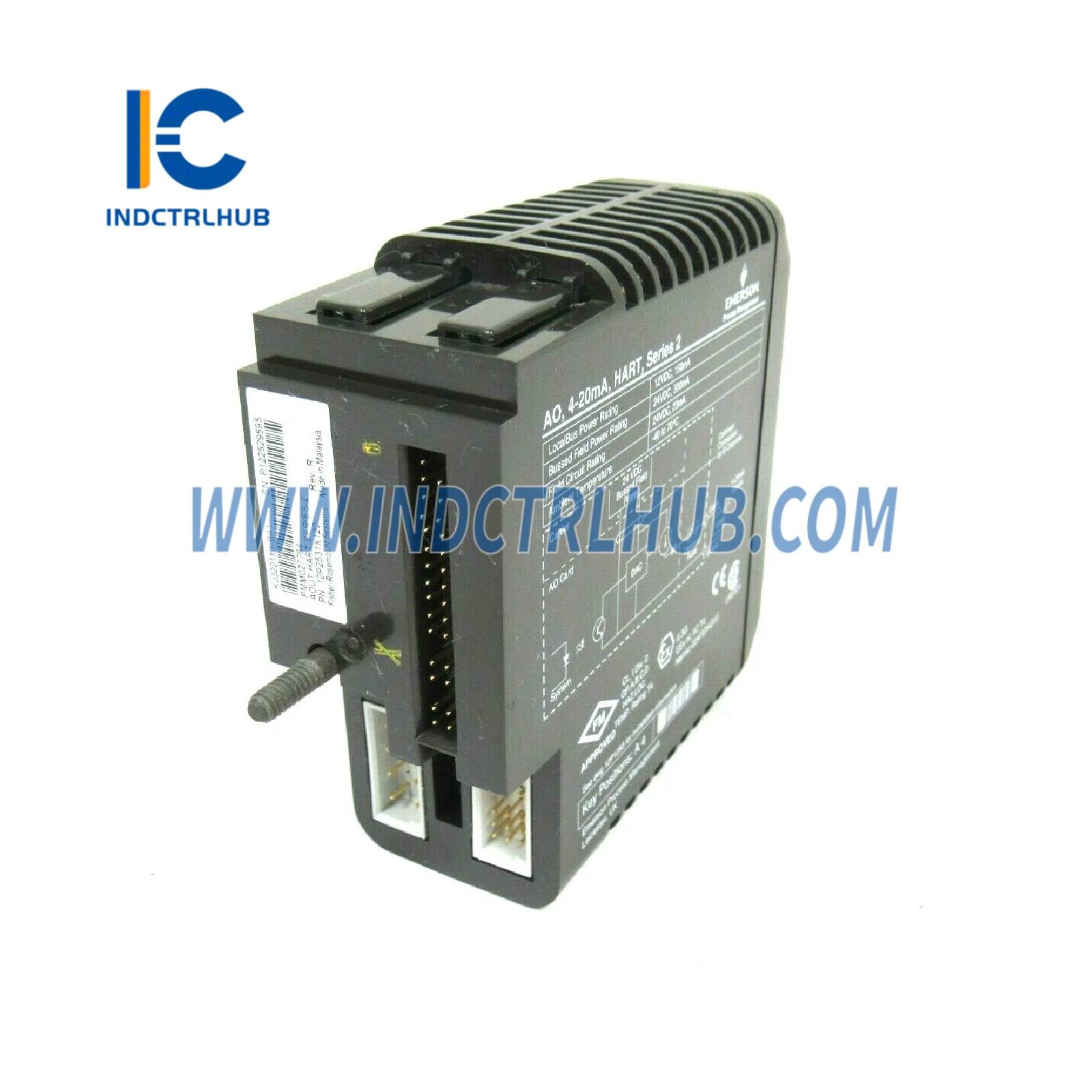

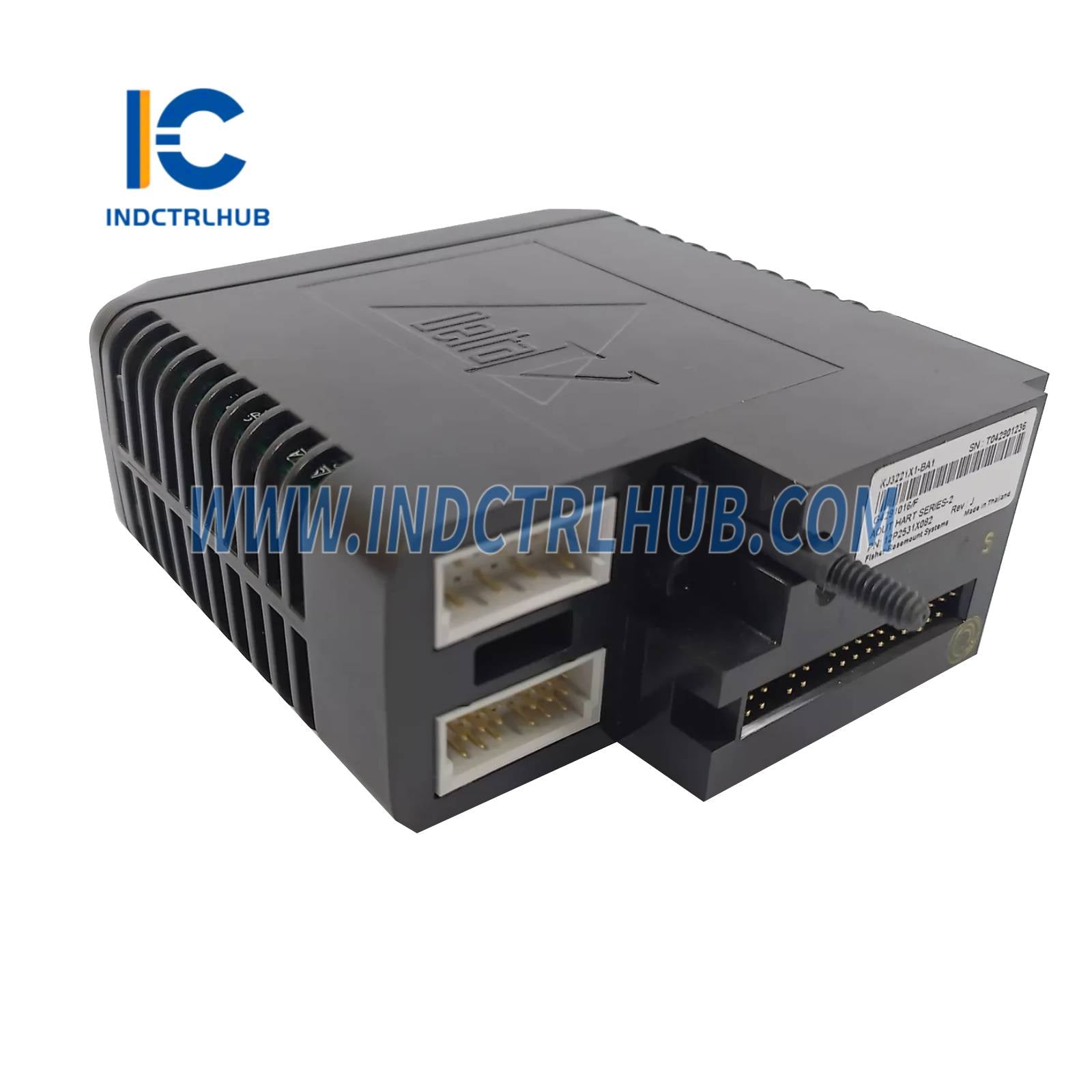

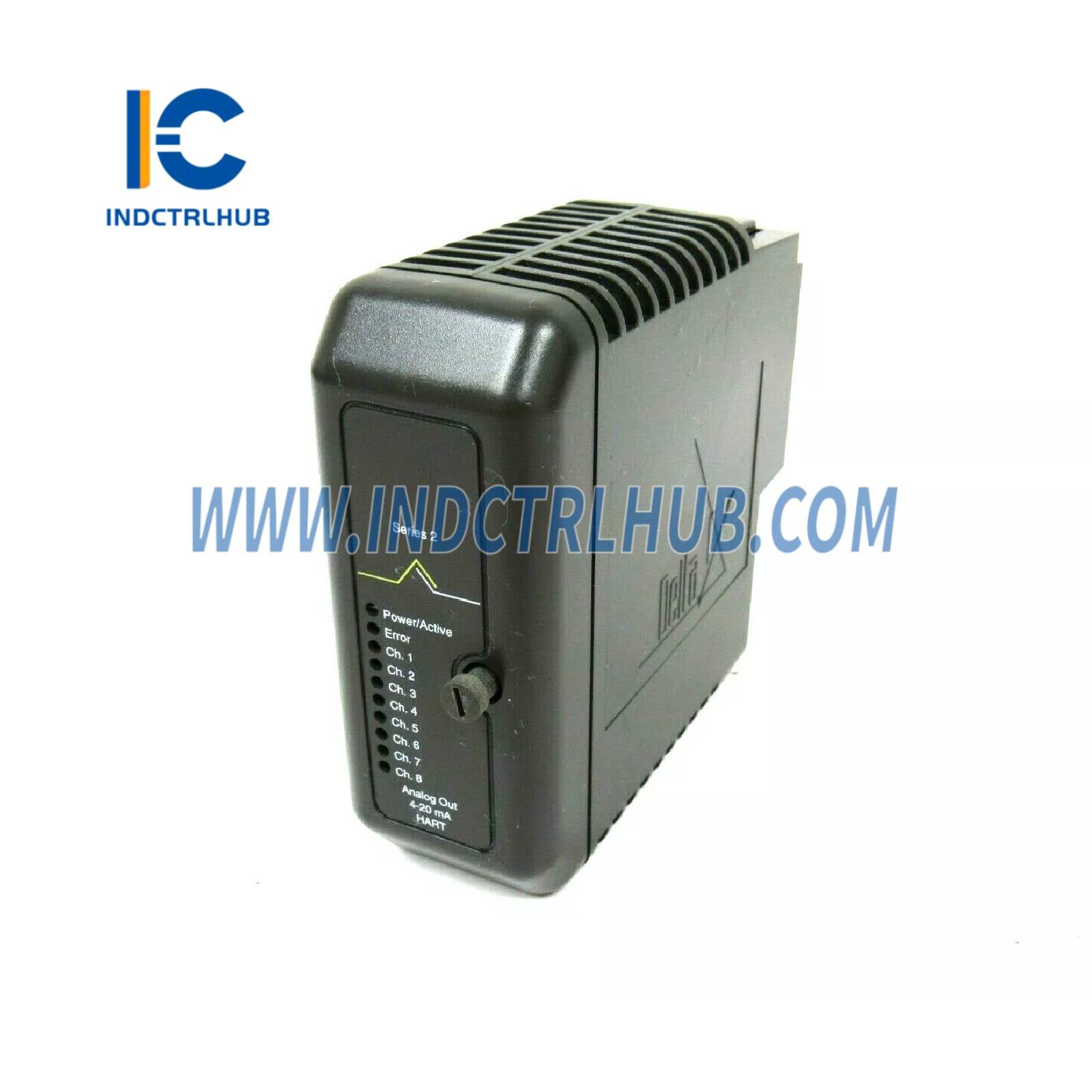

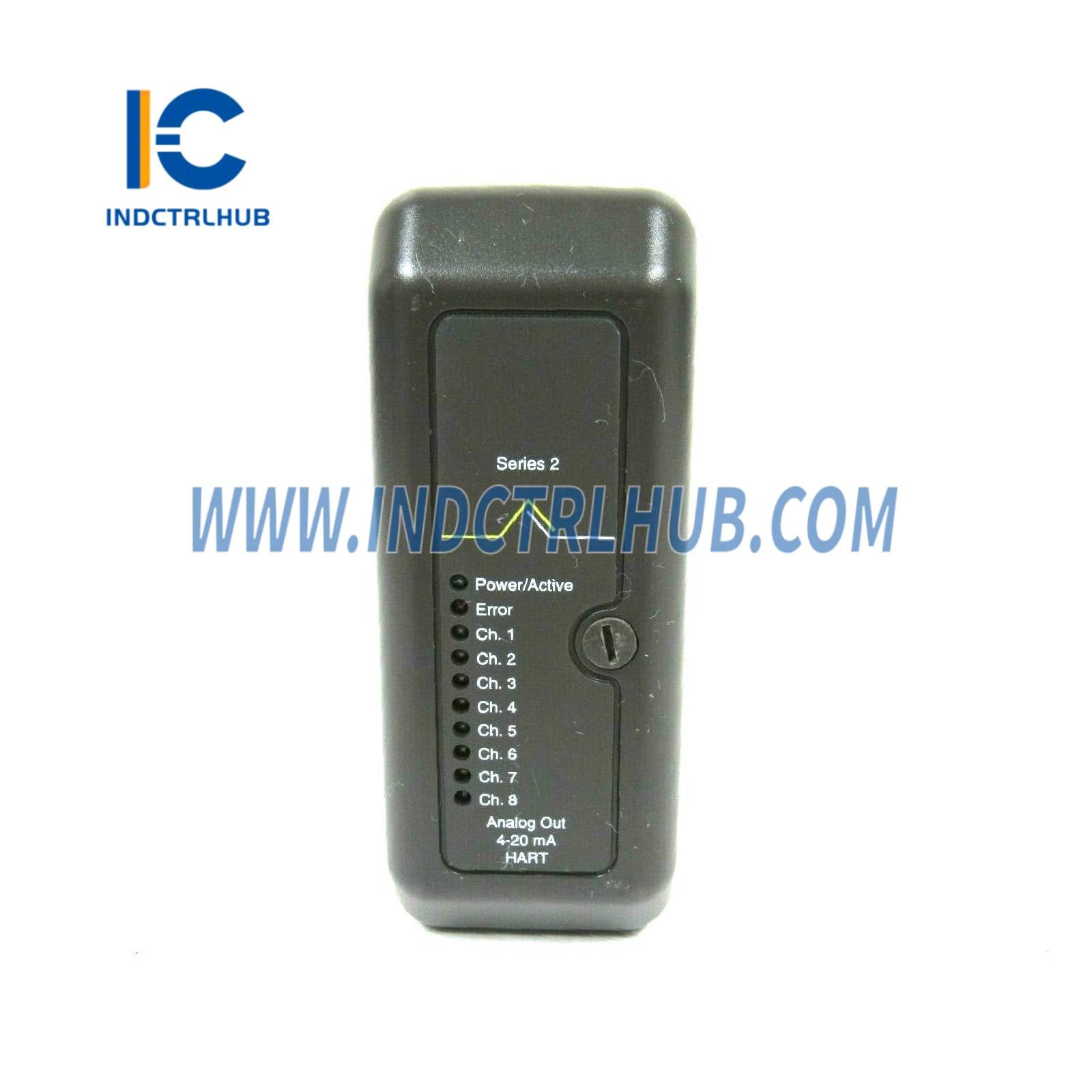

Emerson VE4035S2B1 DeltaV Redundant Analog Output Module
- Manufacturer: Emerson

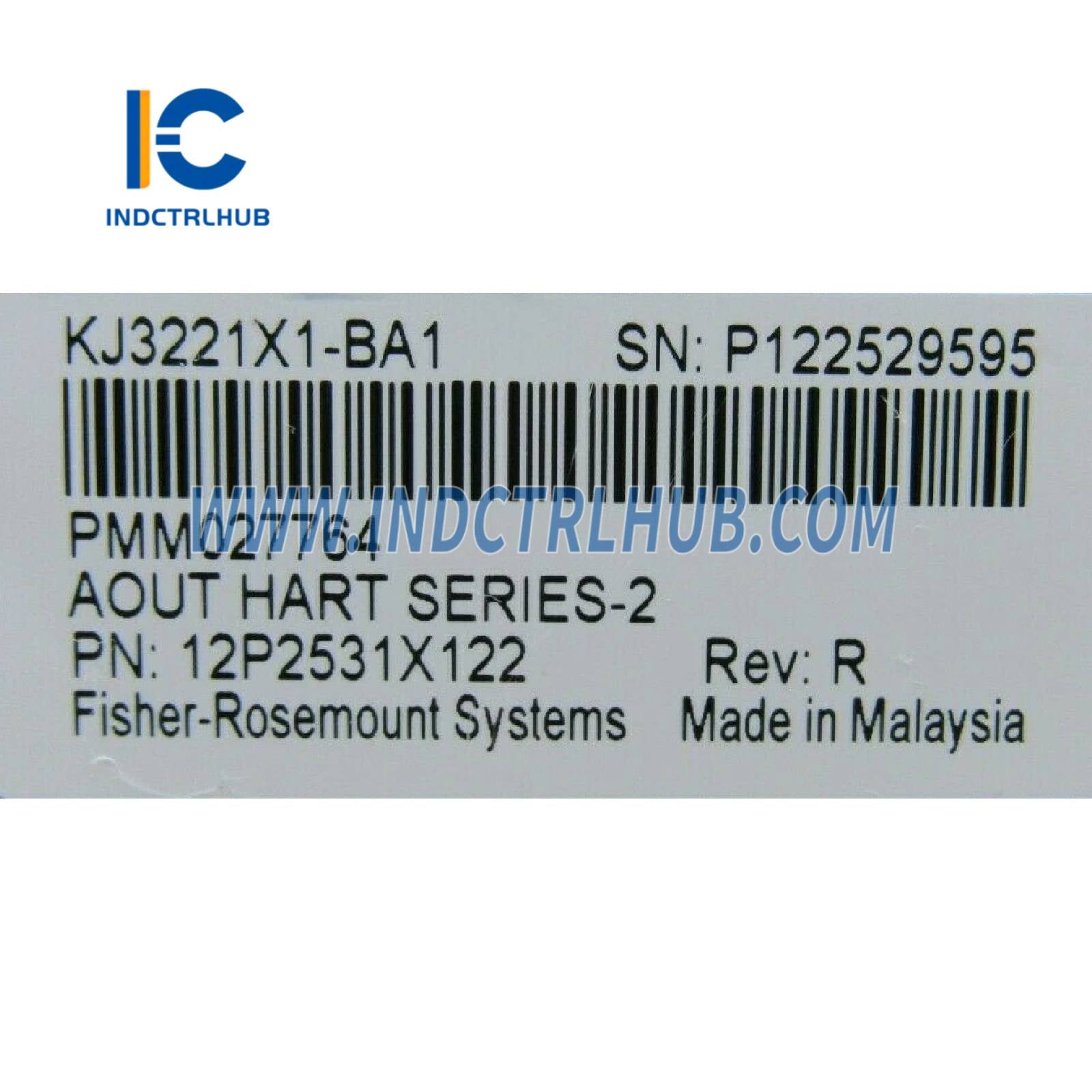

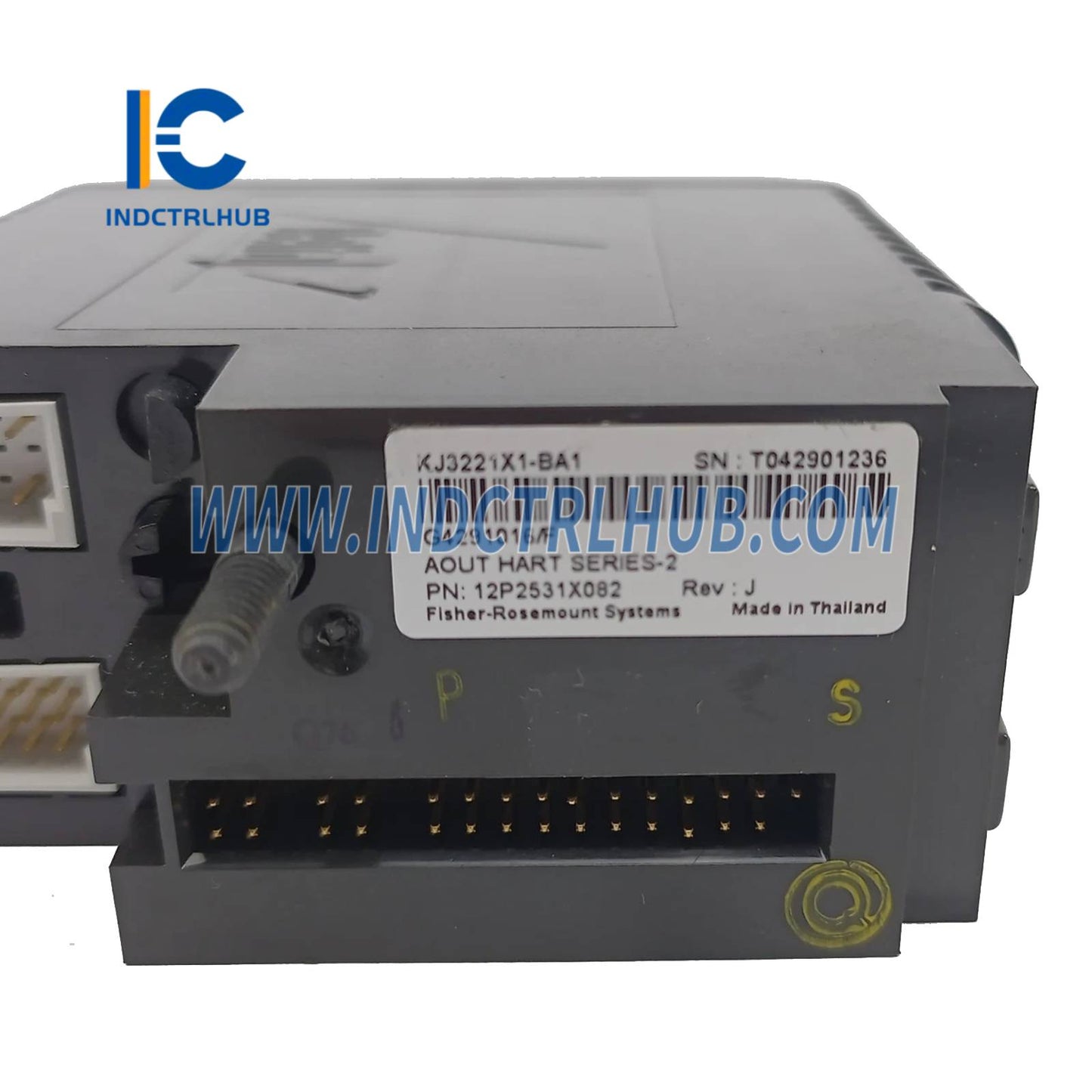

- Model/Part Number: VE4035S2B1 (KJ3221X1-BA1, 12P2531X)
- Description: Redundant Analog Output Module, 8-Channel, 4-20 mA, HART
Overview
- The Emerson VE4035S2B1 is a redundant analog output module for the DeltaV M-series Distributed Control System. It includes the KJ3221X1-BA1 analog output module, providing 8-channel, 4-20 mA output with HART communication. Designed for high-reliability applications, it controls field devices like valves and actuators in industries such as oil and gas, chemical, and power generation, with redundancy to ensure continuous operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | VE4035S2B1 (KJ3221X1-BA1) |
| Series | DeltaV M-series |
| Type | Redundant Analog Output Module, 8-Channel, 4-20 mA, HART |
| Channels | 8 analog output channels |
| Output Signal | 4-20 mA, HART protocol |

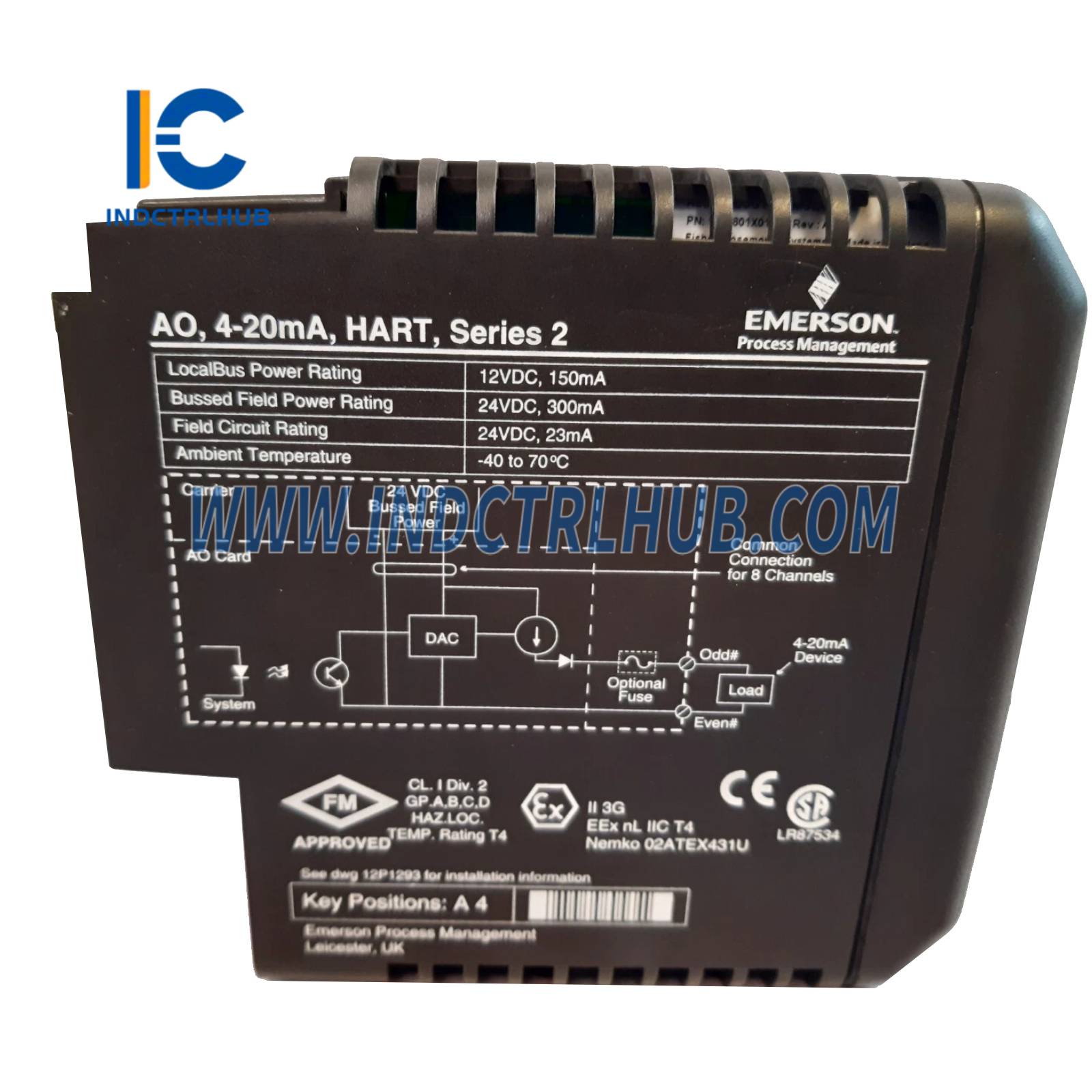

| LocalBus Power | 12 VDC at 300 mA |
| Field Circuit Power | 24 VDC at 600 mA |
| Weight | 0.4 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Airborne Contaminants | ISA-S71.04-1985 Class G3, conformal coating |
| Mounting | T-type DIN rail, on I/O carrier |
| Certifications | CE, CSA, FM, ATEX, IECEx, Marine Certifications (ABS, DNV) |
| System Compatibility | DeltaV v8.3 or later |
Additional Information
- Functionality: The VE4035S2B1 delivers eight 4-20 mA analog output channels with HART communication for precise control and diagnostics of field devices. Its redundant design ensures uninterrupted operation by switching to a backup module if the primary fails. The module supports hot-swappable installation, allowing maintenance without system downtime.
