Emerson VE4035S2B1 KJ3221X1-BA1+KJ3221X1-EA1 Redundant AO Module

Emerson VE4035S2B1 Redundant Analog Output Module Set for Mission-Critical DeltaV Applications

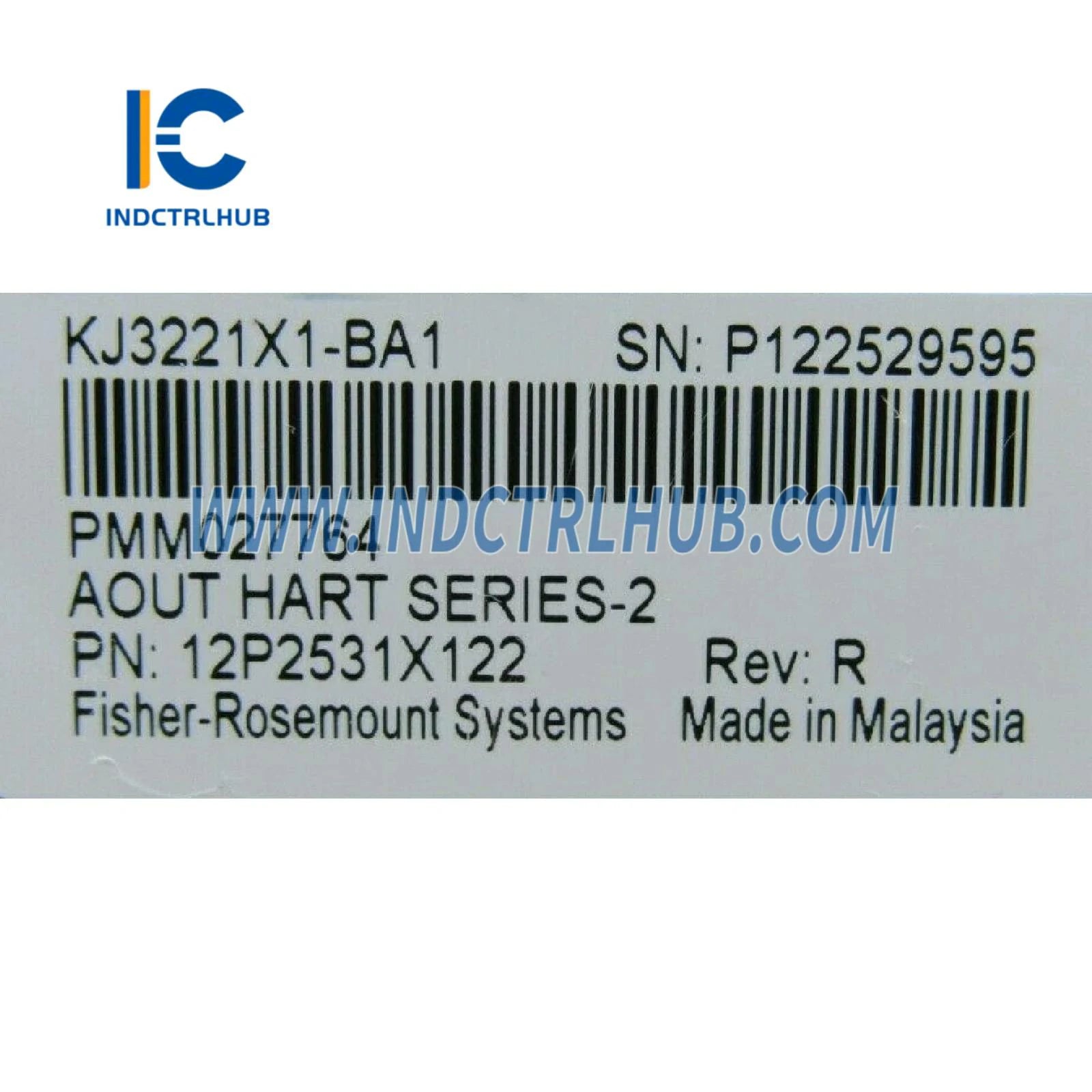

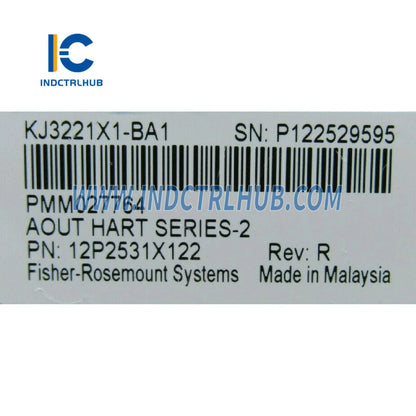

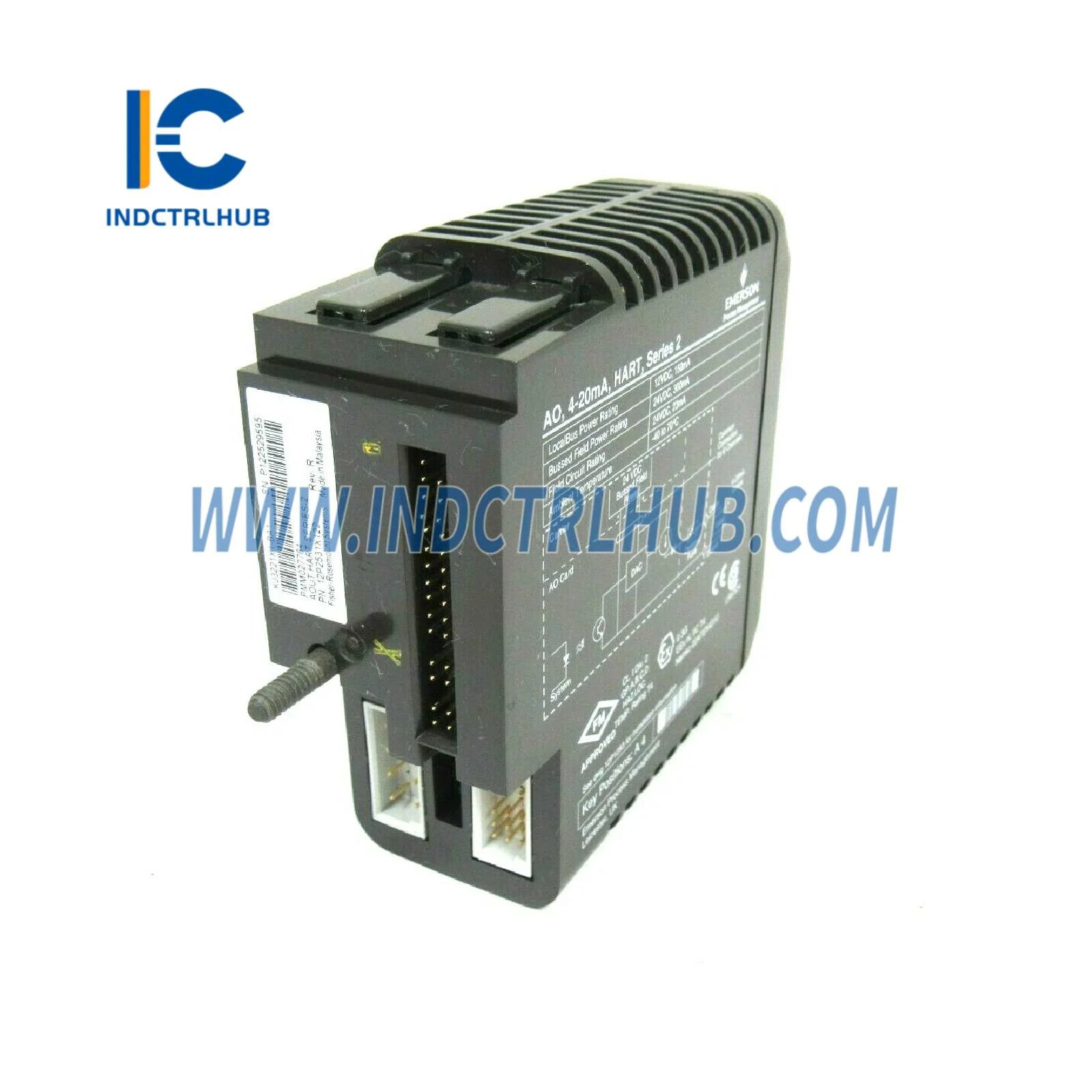

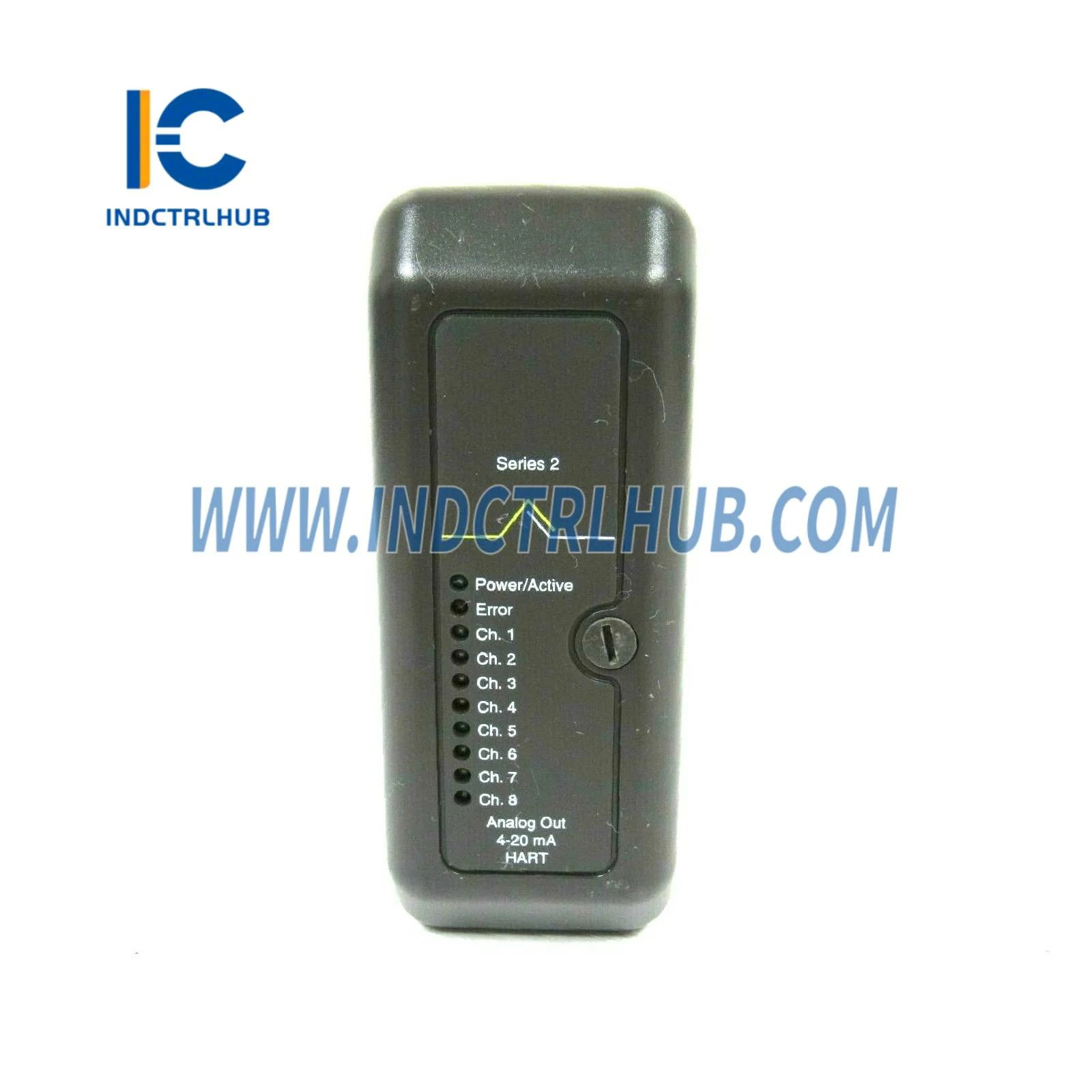

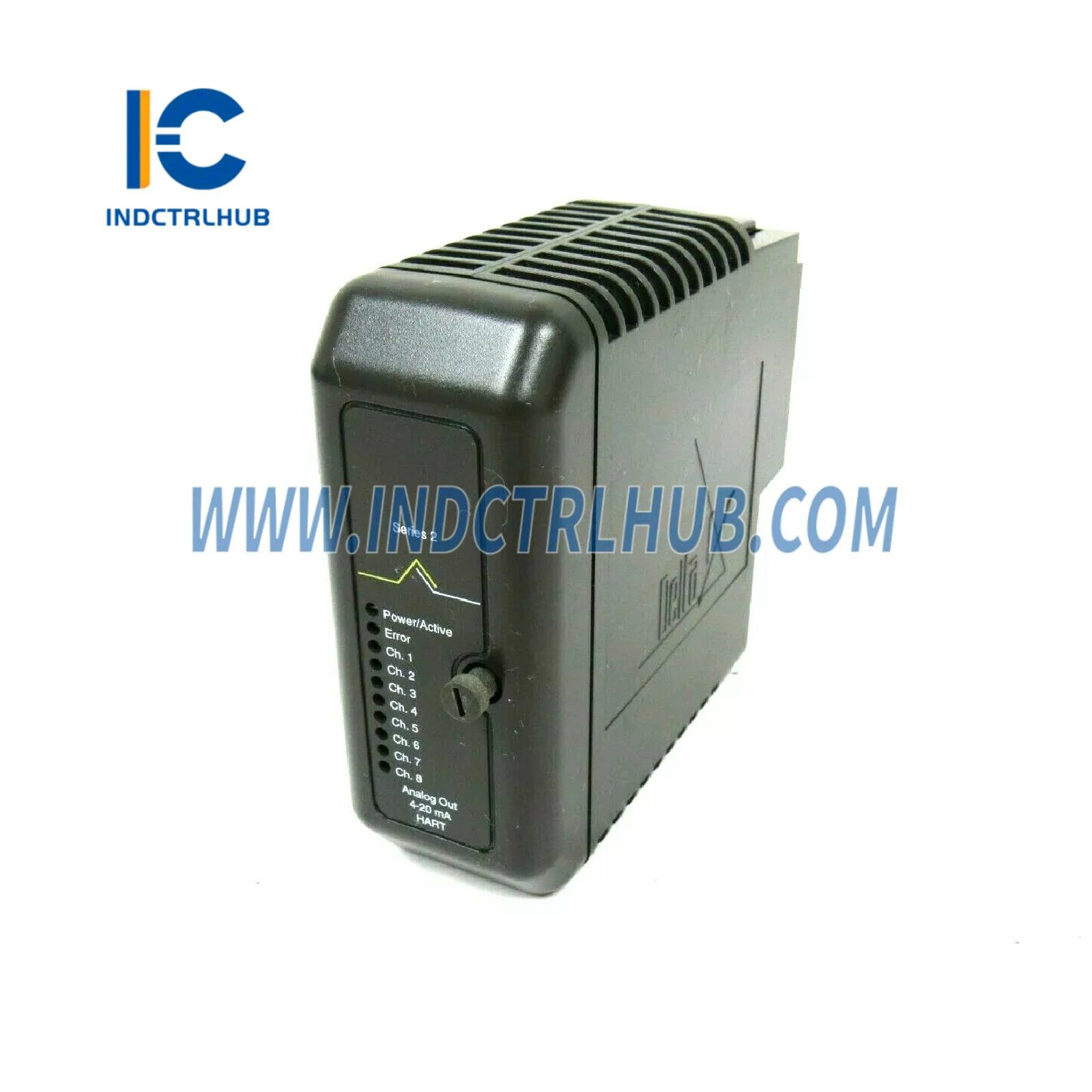

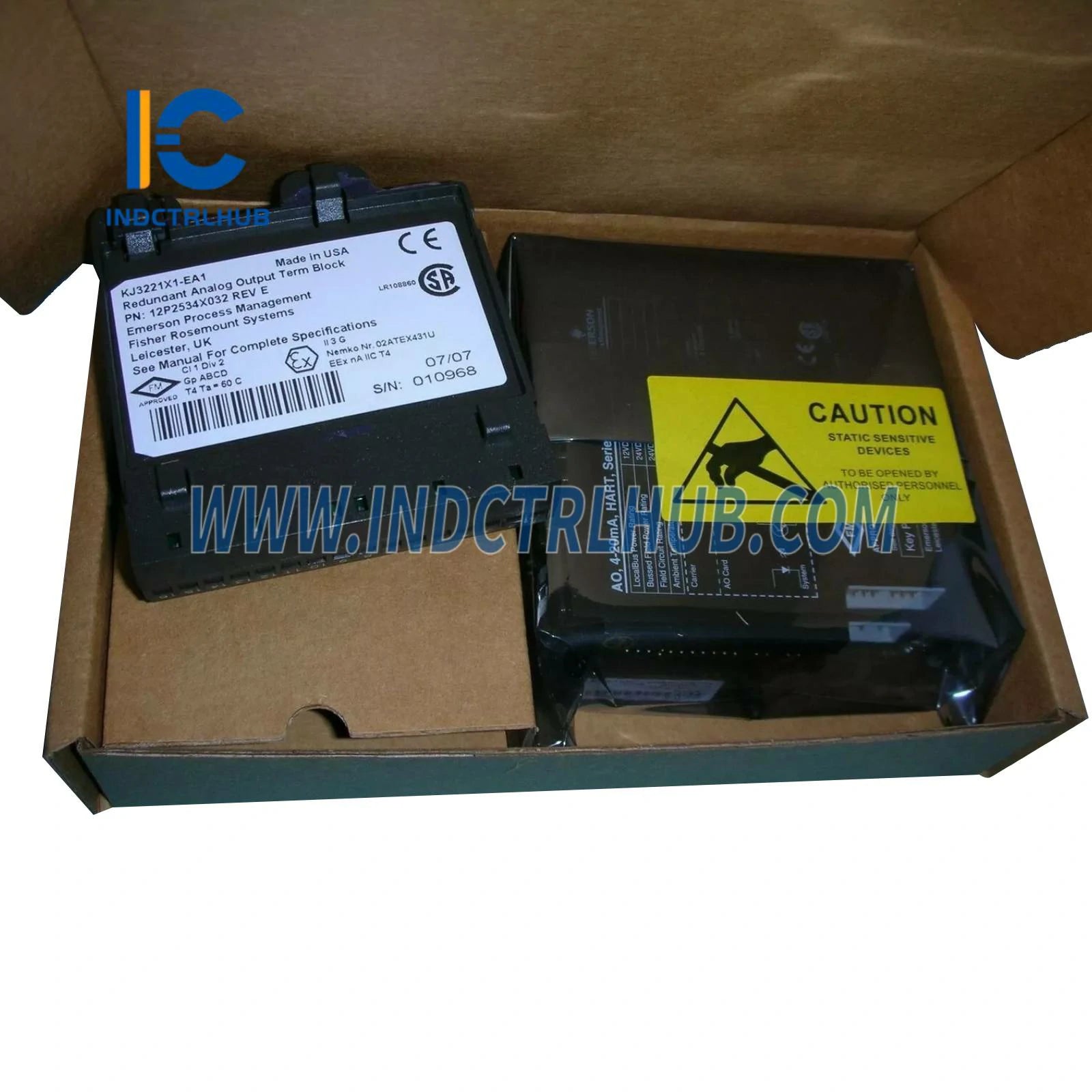

The Emerson VE4035S2B1 represents the pinnacle of fault-tolerant analog output technology for DeltaV distributed control systems. This complete redundant module set pairs the KJ3221X1-BA1 8-channel analog output card with the KJ3221X1-EA1 redundant terminal block, delivering uninterrupted 4-20mA signal transmission even during component failures. Engineered for SIL-rated safety systems, emergency shutdown sequences, and high-availability process control where downtime is not an option.

Core Technical Specifications

• Output Channels: 8 independent 4-20mA current loop outputs with full redundancy
• Redundancy Architecture: 1oo2 (one-out-of-two) configuration with automatic failover <50ms
• Signal Accuracy: ±0.1% of span across full operating range
• HART Communication: Dual HART channels per output for smart valve positioner diagnostics
• Load Resistance: 0-750Ω per channel at 24 VDC supply
• Update Rate: 100ms per channel with synchronized redundant outputs
• Isolation: 1500 VAC channel-to-bus, 250 VAC channel-to-channel
• Diagnostic Coverage: >95% with open-circuit, short-circuit, and out-of-range detection
• Power Consumption: 6W typical, 8W maximum per module
• Environmental Rating: -40°C to +70°C, 5-95% RH non-condensing
• Certifications: SIL 2/3 capable, ATEX/IECEx Zone 2, FM/CSA Class I Div 2

Mission-Critical Application Scenarios

Emergency Shutdown Systems (ESD): Deploy in SIL 2/3 safety instrumented systems controlling critical shutdown valves, blowdown systems, and isolation barriers in refineries, offshore platforms, and chemical plants. Redundant architecture ensures fail-safe valve positioning during process upsets or emergency conditions.

Turbine Control Systems: Regulate fuel gas control valves, steam admission valves, and guide vane actuators in gas turbines and steam turbines where loss of control signal could result in catastrophic equipment damage or unplanned shutdowns costing millions in lost production.

Compressor Anti-Surge Control: Provide redundant output signals to anti-surge valve positioners in centrifugal compressor trains, preventing surge events that can destroy impellers and bearings. Bumpless transfer during module switchover maintains precise valve positioning within ±0.5% setpoint.

Pharmaceutical Batch Processing: Control critical process parameters in FDA-regulated batch reactors, fermenters, and purification systems where signal loss could compromise product quality, batch integrity, or regulatory compliance. Full audit trail via HART diagnostics supports 21 CFR Part 11 validation.

Fault-Tolerant Design Advantages

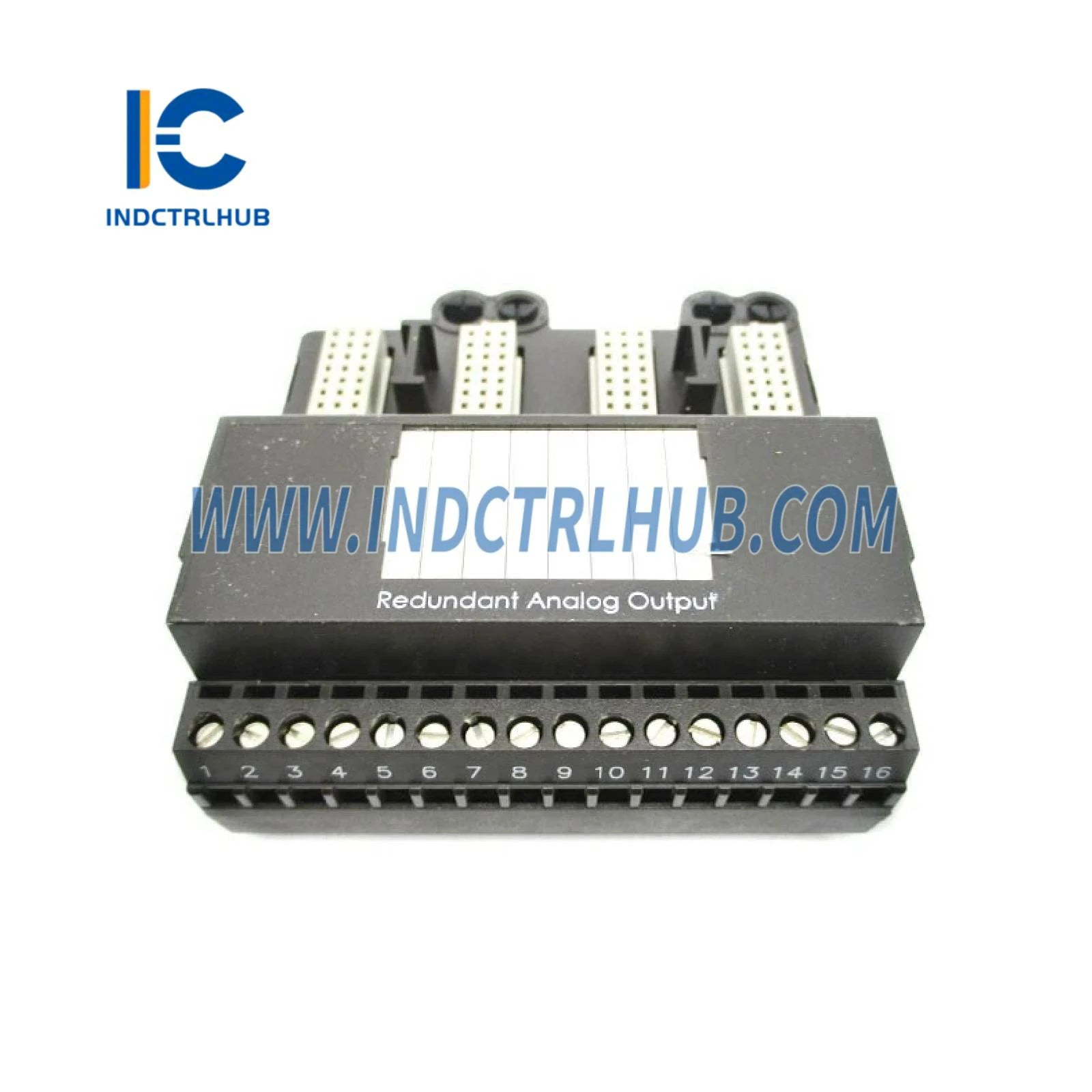

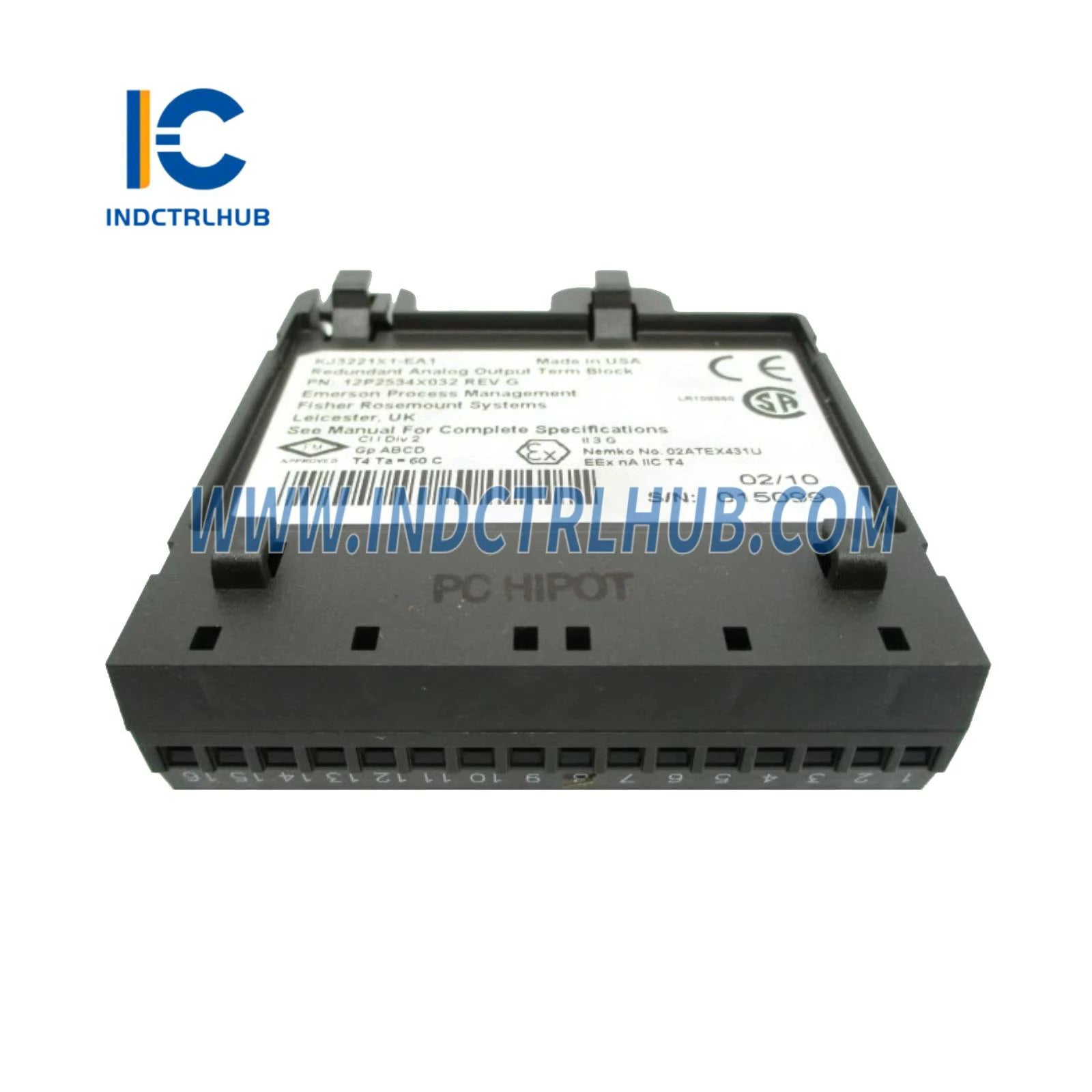

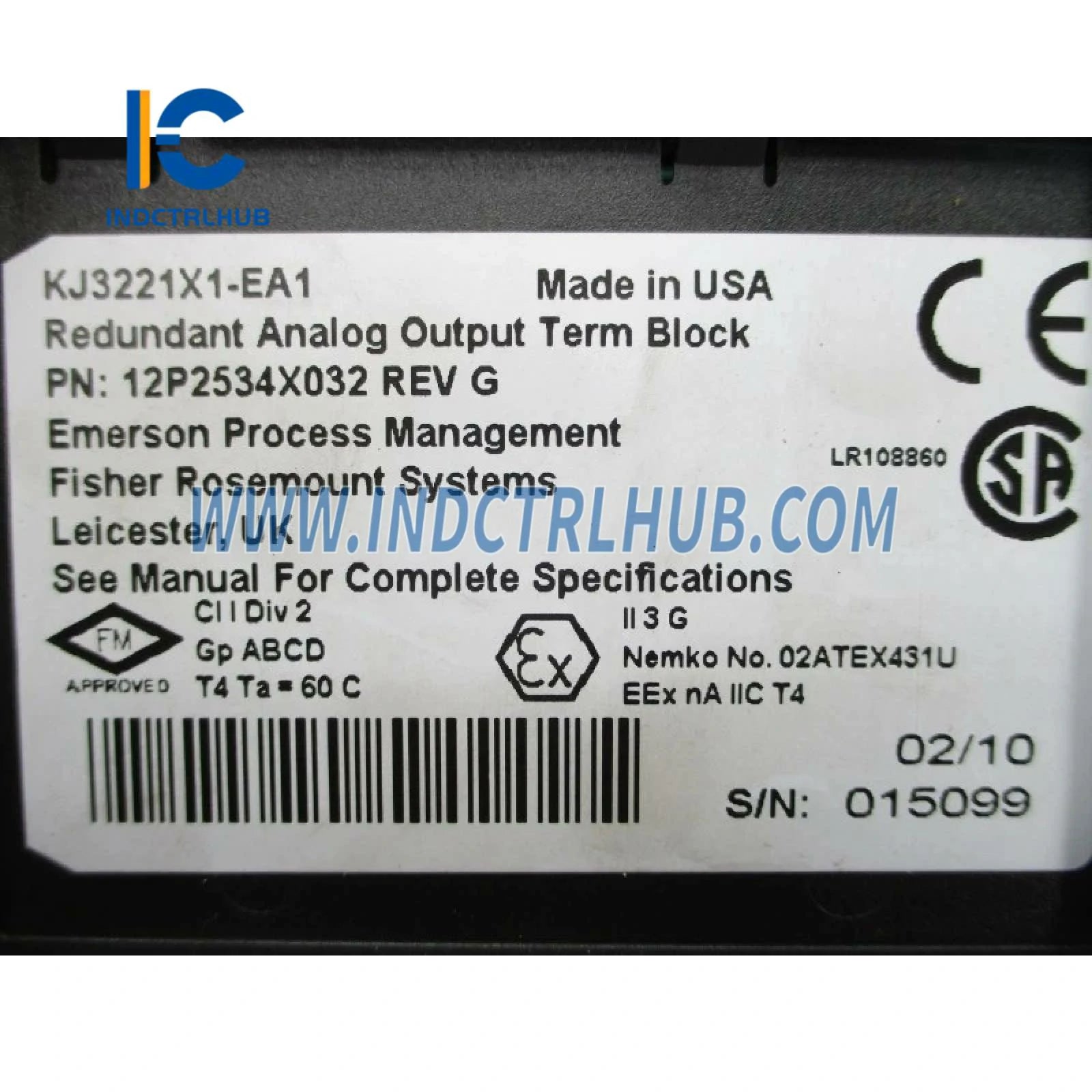

The VE4035S2B1 redundant architecture employs dual independent output circuits with continuous cross-monitoring and automatic failover logic. When the primary module detects a fault condition, the secondary module assumes control within 50 milliseconds—faster than most final control elements can respond—ensuring zero process disturbance. The KJ3221X1-EA1 terminal block features dual input connections with diode isolation, preventing backfeed and enabling hot-swappable module replacement without process interruption.

Advanced diagnostics monitor output current deviation, loop resistance, power supply voltage, and module health status. Predictive maintenance alerts flag degrading components before failure occurs, while HART communication provides real-time valve position feedback, travel limits, and actuator diagnostics directly to DeltaV AMS Suite.

Integration with DeltaV Ecosystem

Seamlessly integrates with DeltaV M-series and S-series controllers via redundant LocalBus architecture. Compatible with VE4070 isolators, KL4104X1 dual carriers, and KJ4110X1 IS barriers for hazardous area installations. Supports DeltaV versions 11.3 through 15.1 LTS with backward compatibility for brownfield upgrades. Configuration via DeltaV Explorer with automatic redundancy pairing and health monitoring dashboards.

Related DeltaV Redundant I/O Components

Quality Assurance & Lifecycle Support

Factory-calibrated and tested to IEC 61508 standards with full documentation package including calibration certificates, material traceability, and functional test reports. Backed by 18-month warranty covering manufacturing defects and performance specifications. Global technical support available for system integration, redundancy configuration, and troubleshooting assistance.
