Emerson VE4001S2T2B3 KJ3201X1-BA1+KJ4001X1-CE1 DI Module Set
Emerson VE4001S2T2B3 KJ3201X1-BA1+KJ4001X1-CE1 DI Module Set
Manufacturer: Emerson
Product No.: KJ3201X1-BA1+KJ4001X1-CE1
Condition:1000 in stock
Product Type: Discrete Input Module with Terminal Block
Product Origin: 6954789067901
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping

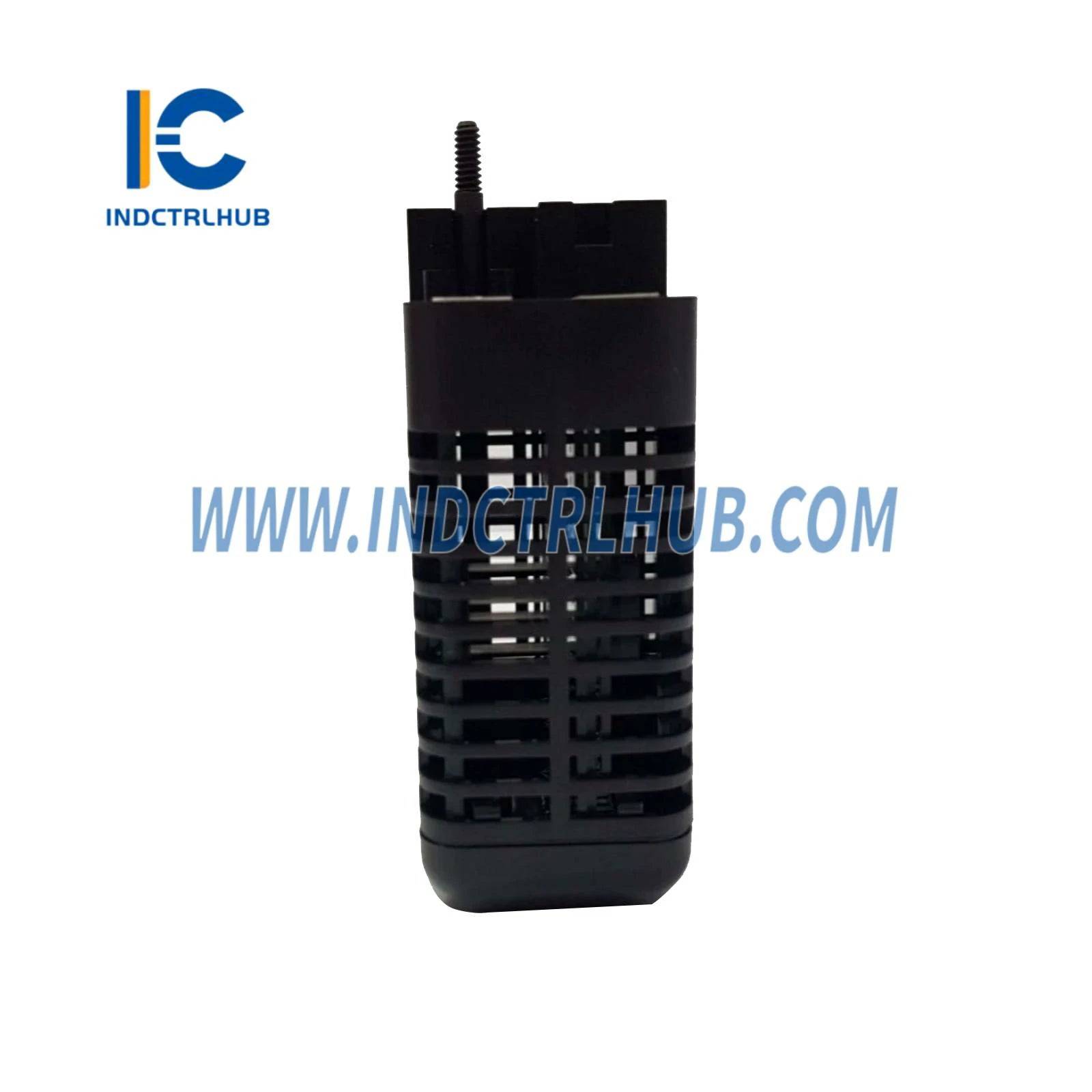

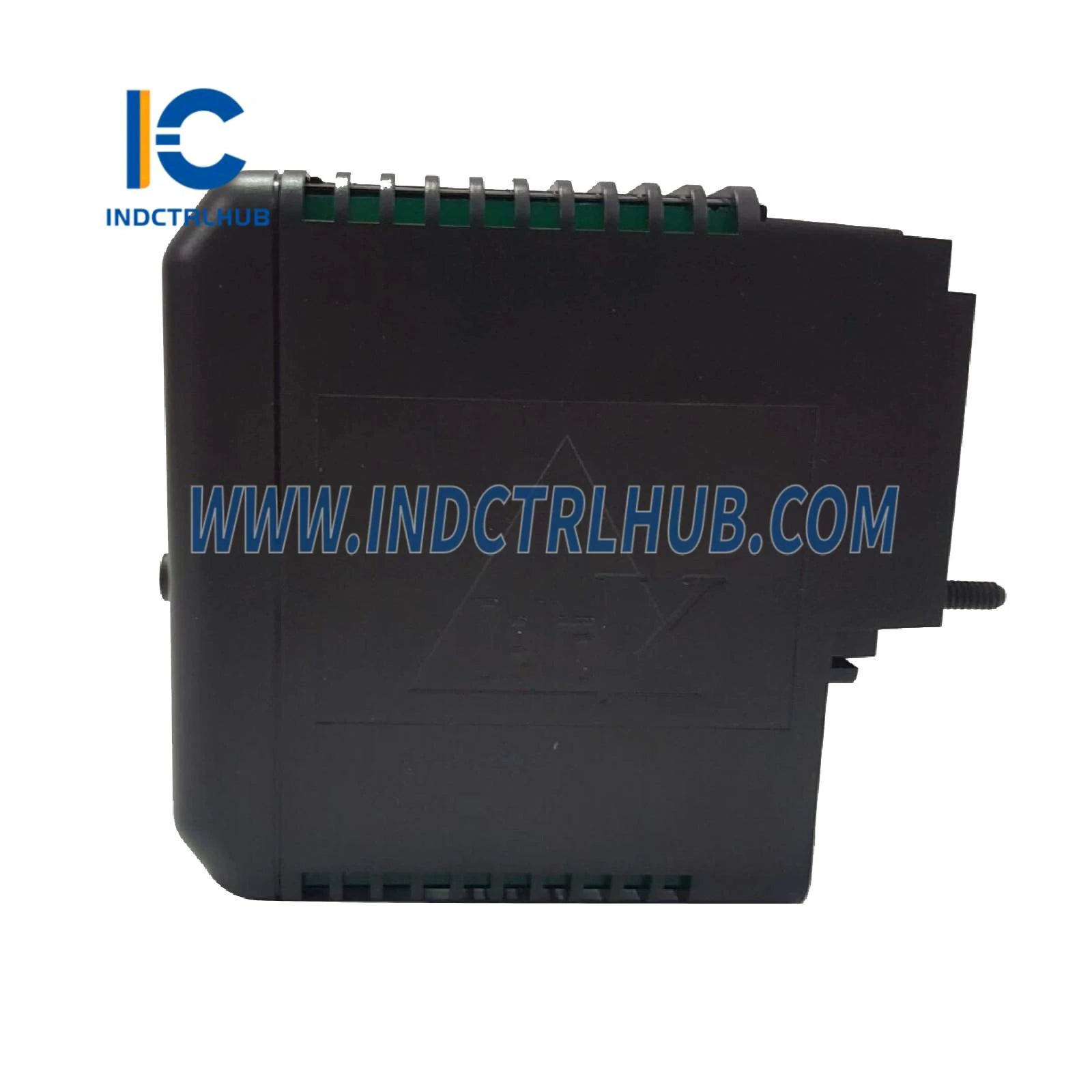

Emerson VE4001S2T2B3 KJ3201X1-BA1+KJ4001X1-CE1 Discrete Input Module Set
The Emerson VE4001S2T2B3 represents a complete discrete input solution combining the KJ3201X1-BA1 8-channel input card with the KJ4001X1-CE1 terminal block assembly. This integrated module set provides factory-matched components for acquiring 24 VDC dry contact signals from field devices including limit switches, proximity sensors, push buttons, and relay contacts in DeltaV M-series distributed control systems.
Understanding the Modular Component Architecture
DeltaV discrete input modules utilize a three-piece architecture: the I/O card containing signal conditioning electronics, the terminal block providing field wiring connections, and the carrier backplane supplying power and communication. This modular design enables flexible configuration, simplified maintenance, and rapid troubleshooting through component-level replacement.

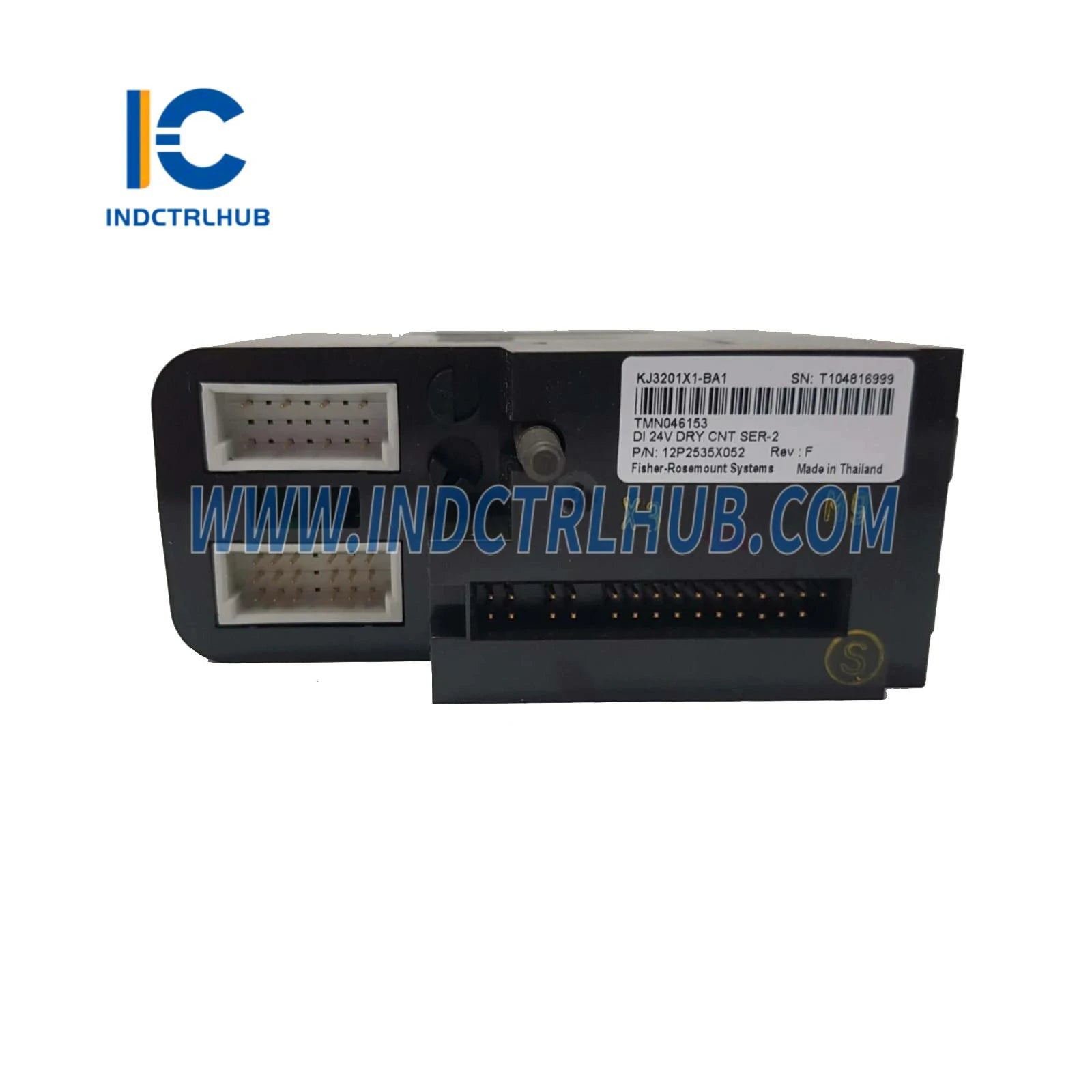

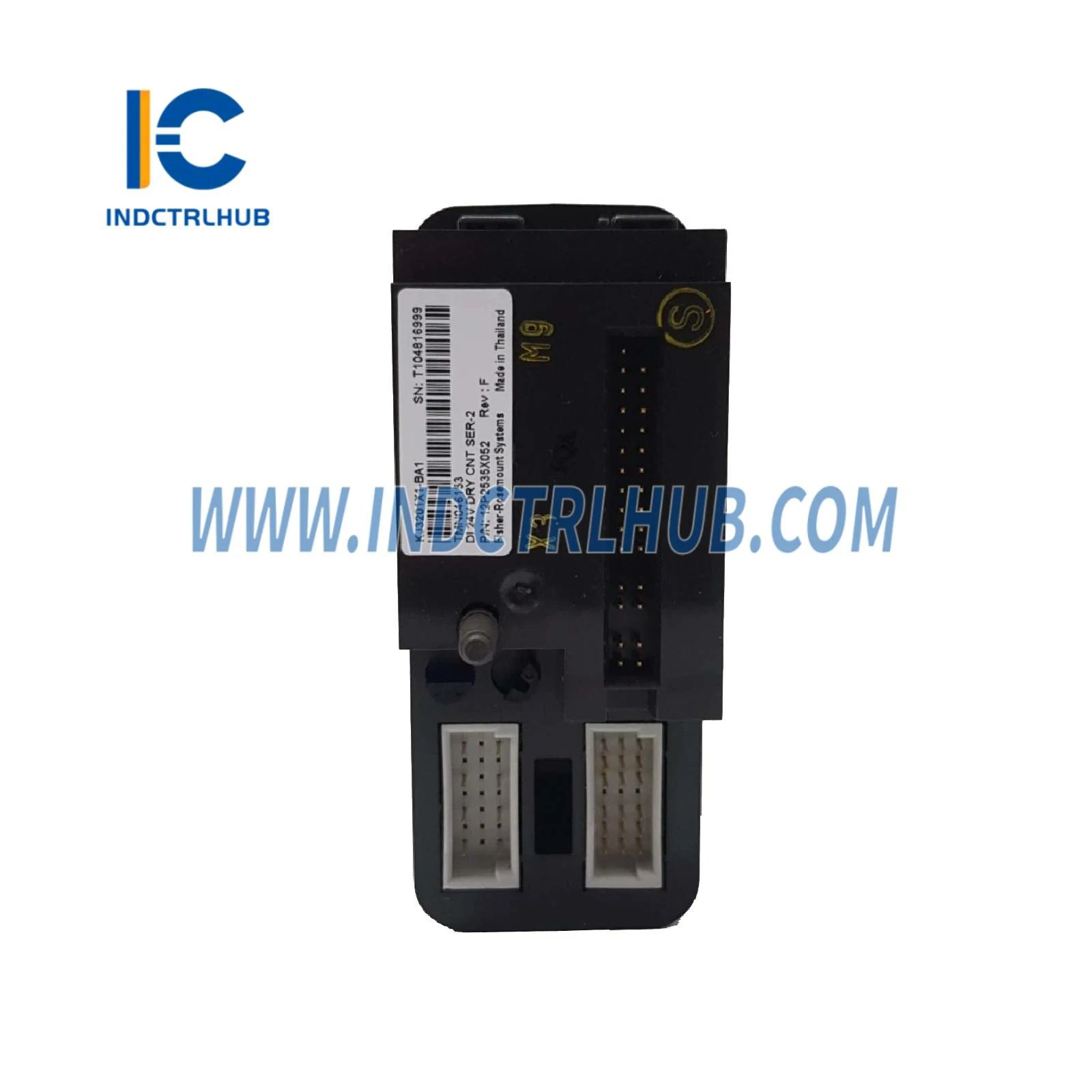

KJ3201X1-BA1 Input Card: Houses eight independent input channels with optical isolation, signal filtering, and LED status indicators. The card plugs into the carrier backplane via a high-reliability connector, receiving 24 VDC power and LocalBus communication from the controller.

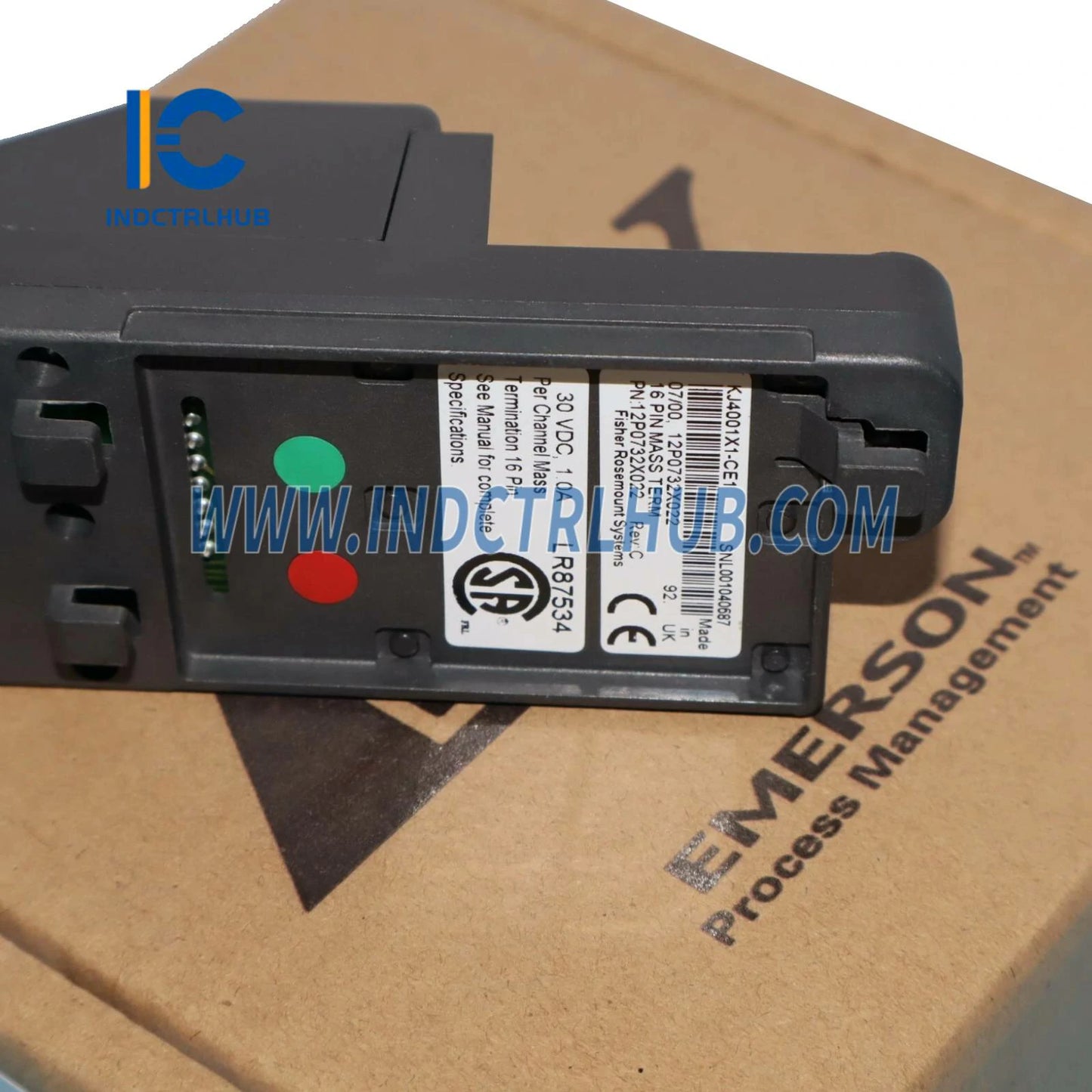

KJ4001X1-CE1 Terminal Block: Provides screw-terminal field wiring connections with clearly labeled channel assignments. The terminal block mates with the input card through a keyed connector, ensuring correct alignment and preventing installation errors. Spring-loaded retention clips secure the assembly without tools.
Integration Advantage: Purchasing the complete VE4001S2T2B3 set ensures component compatibility, eliminates part number confusion, and accelerates commissioning through pre-verified assemblies. Factory testing validates card-to-terminal block interface integrity before shipment.
Technical Specifications
| Input Channels | 8 independent 24 VDC discrete inputs |
| Input Type | Dry contact, wet contact, solid-state output compatible |
| Input Voltage Range | 11-30 VDC (24 VDC nominal) |
| Input Current | 7 mA typical at 24 VDC per channel |
| Logic Threshold | ON: >15 VDC, OFF: <5 VDC |
| Input Impedance | 3.3 kΩ per channel |
| Response Time | 5 ms typical (configurable 1-100 ms) |
| Isolation | 1500 VAC optical isolation channel-to-bus |
| Common Return | Single common for all 8 channels |
| Terminal Type | Screw terminals accepting 12-24 AWG wire |
| Status Indication | 8 green LEDs (one per channel) |
| Power Consumption | 3W typical from 24 VDC backplane |
| Operating Temperature | -40°C to +70°C ambient |
| Certifications | UL/CSA Class I Div 2, ATEX Zone 2, IECEx, SIL 2 capable |
Field Device Interface Applications
Limit Switch Monitoring: Acquire position feedback from mechanical limit switches on motor-operated valves, dampers, and actuators. The 5ms response time captures fast-acting switch transitions, while configurable filtering eliminates contact bounce from vibrating equipment.
Proximity Sensor Integration: Interface with inductive, capacitive, and photoelectric proximity sensors providing 24 VDC NPN or PNP outputs. Optical isolation prevents sensor ground faults from affecting control system integrity, critical in high-EMI environments near VFDs and welding equipment.
Safety Circuit Monitoring: Monitor emergency stop circuits, safety gate interlocks, light curtain status, and two-hand control stations in safety instrumented systems. SIL 2 capability supports integration into safety logic solvers for machine guarding and personnel protection applications.
Panel Pushbutton Inputs: Connect operator control stations, selector switches, and illuminated pushbuttons for manual process control. Debounce filtering prevents false triggering from switch contact chatter during operator actuation.
Installation and Wiring Best Practices
The VE4001S2T2B3 mounts to DeltaV M-series controller carriers (VE4050, VE4070) via the LocalBus backplane. Installation sequence: (1) Insert terminal block into carrier slot, (2) Plug input card into terminal block until retention clips engage, (3) Verify green power LED illumination, (4) Connect field wiring to labeled screw terminals.
Wiring Guidelines: Use 18-22 AWG shielded twisted-pair cable for long runs (>50 meters) to minimize noise pickup. Connect cable shields to ground at the control cabinet only—never at both ends to avoid ground loops. Maintain 300mm minimum separation between discrete input cables and AC power wiring.
Common Return Configuration: All eight input channels share a single common return terminal. This simplifies wiring for applications where all field devices reference the same ground potential. For mixed-ground applications, use separate input cards with isolated commons.
Diagnostic and Troubleshooting Features
Per-channel LED indicators provide instant visual confirmation of input states during commissioning and troubleshooting. Green LEDs illuminate when input voltage exceeds the ON threshold (15 VDC), enabling technicians to verify field device operation without accessing DeltaV graphics.
DeltaV diagnostics accessible through AMS Device Manager track input transition counts, detect stuck-at-zero or stuck-at-one failures, and log historical state changes. Predictive alerts flag channels with abnormal transition rates indicating degrading field devices or loose wiring connections.
Maintenance and Spare Parts Strategy
The modular architecture enables component-level replacement during troubleshooting. If diagnostics isolate a fault to the input card, technicians replace only the KJ3201X1-BA1 card while retaining the field-wired terminal block—eliminating re-wiring and reducing repair time by 75%.
Conversely, damaged terminal blocks (from lightning strikes or wiring errors) can be replaced without disturbing the input card. Hot-swap capability allows terminal block replacement under power in non-hazardous areas, though best practice recommends de-energizing field devices before maintenance.
System Compatibility and Integration
Compatible with DeltaV M-series controllers running versions 11.3 through 15.1 LTS. Configuration via DeltaV Explorer with automatic I/O channel assignment and address allocation. Supports mixed I/O configurations within the same carrier, enabling flexible system architectures combining analog, discrete, and specialty communication modules.
Integrates with DeltaV control modules, sequential function charts (SFC), and continuous control strategies. Input states available to all control logic with deterministic scan times <50ms for time-critical interlocking and sequencing applications.
Related DeltaV Discrete Input Products
| Product Model | Description | Product Link |
|---|---|---|
| VE4001S2T2B3 KJ3201X1-BA1 | 8-Channel Discrete Input Card (Card Only) | View Product |
| VE4001S2T2B2 | DeltaV M-Series Discrete Input Module (Alternative Terminal) | View Product |
| VE4031S2T2B1 | Redundant Discrete Input Module (Fault-Tolerant) | View Product |
Quality Assurance and Support
Factory-tested to IEC 61131-2 digital input standards with full functional verification of card-to-terminal block interface. Ships with installation guide, wiring diagrams, and configuration worksheets for rapid deployment. Backed by 18-month warranty covering manufacturing defects and component failures.
Global technical support provides application engineering assistance for input filtering configuration, grounding scheme validation, and troubleshooting guidance. Replacement components ship individually (card or terminal block) or as complete assemblies based on failure mode analysis.
