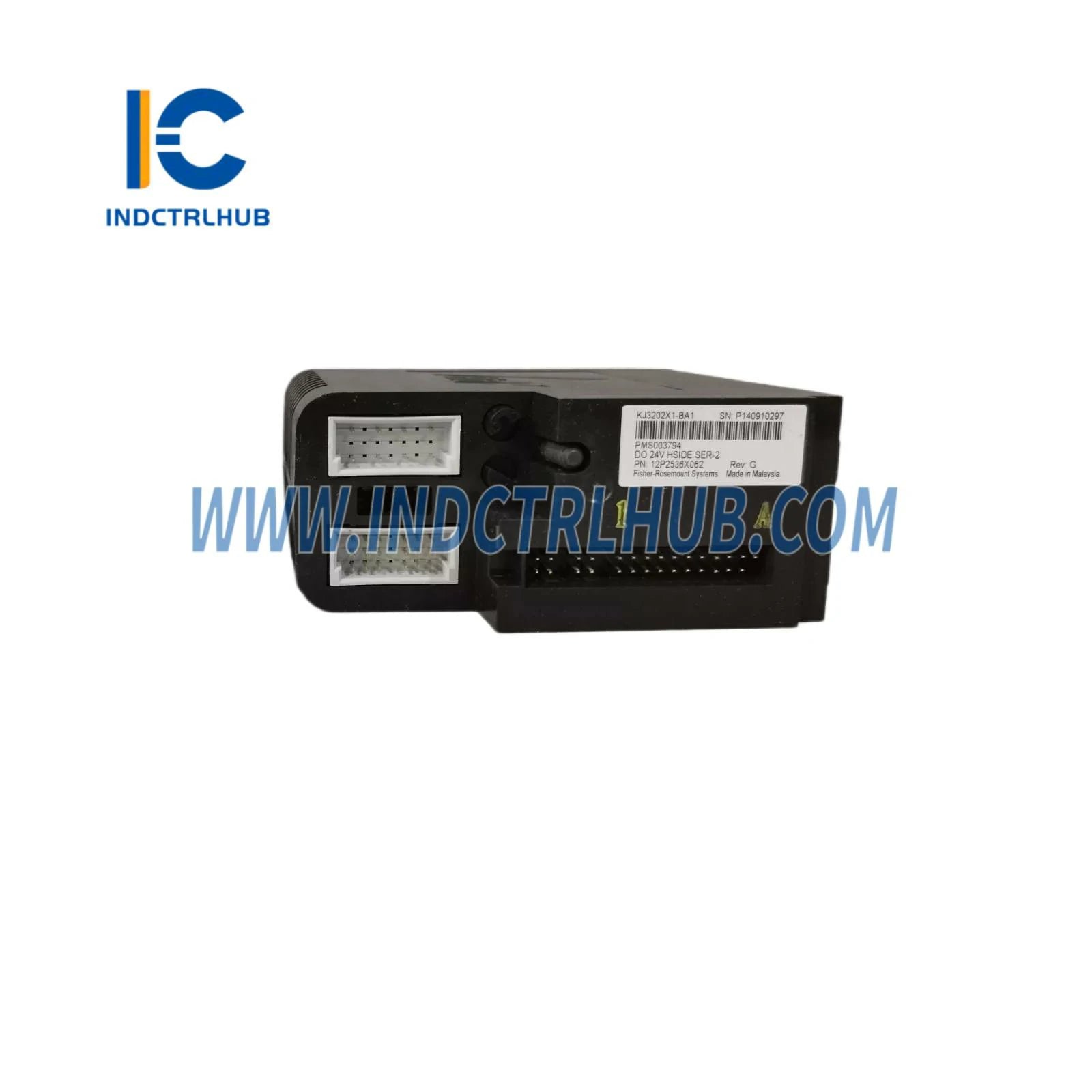

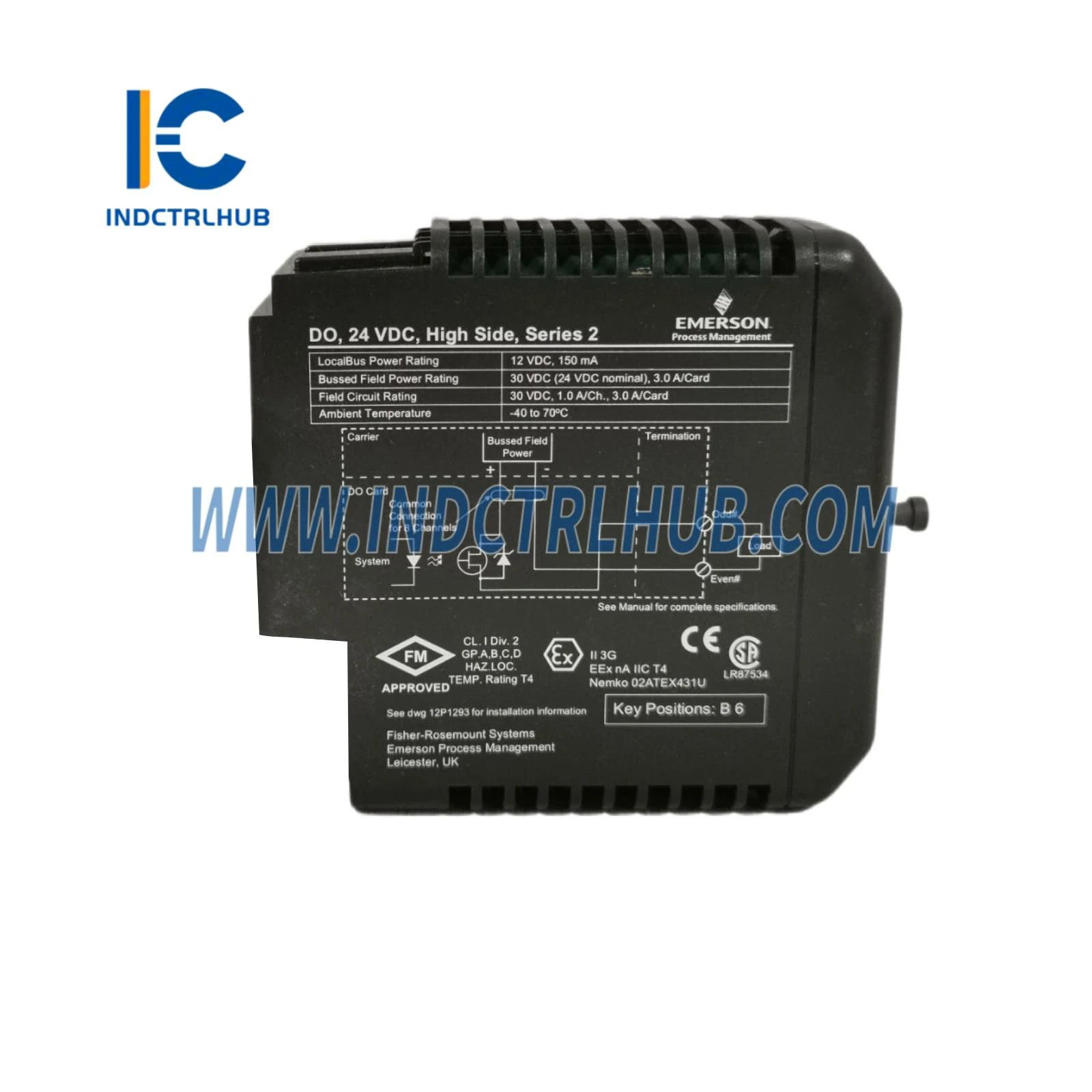

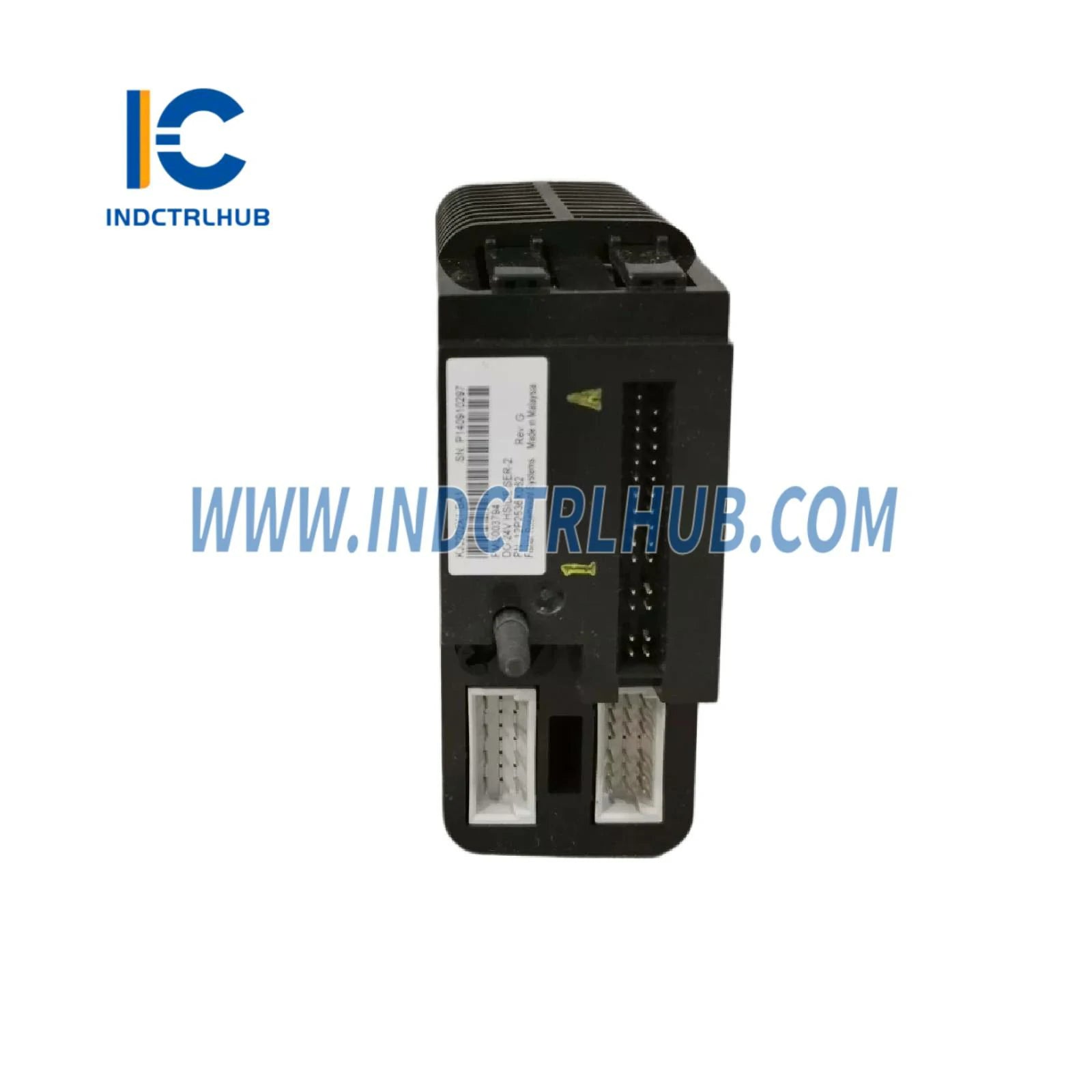

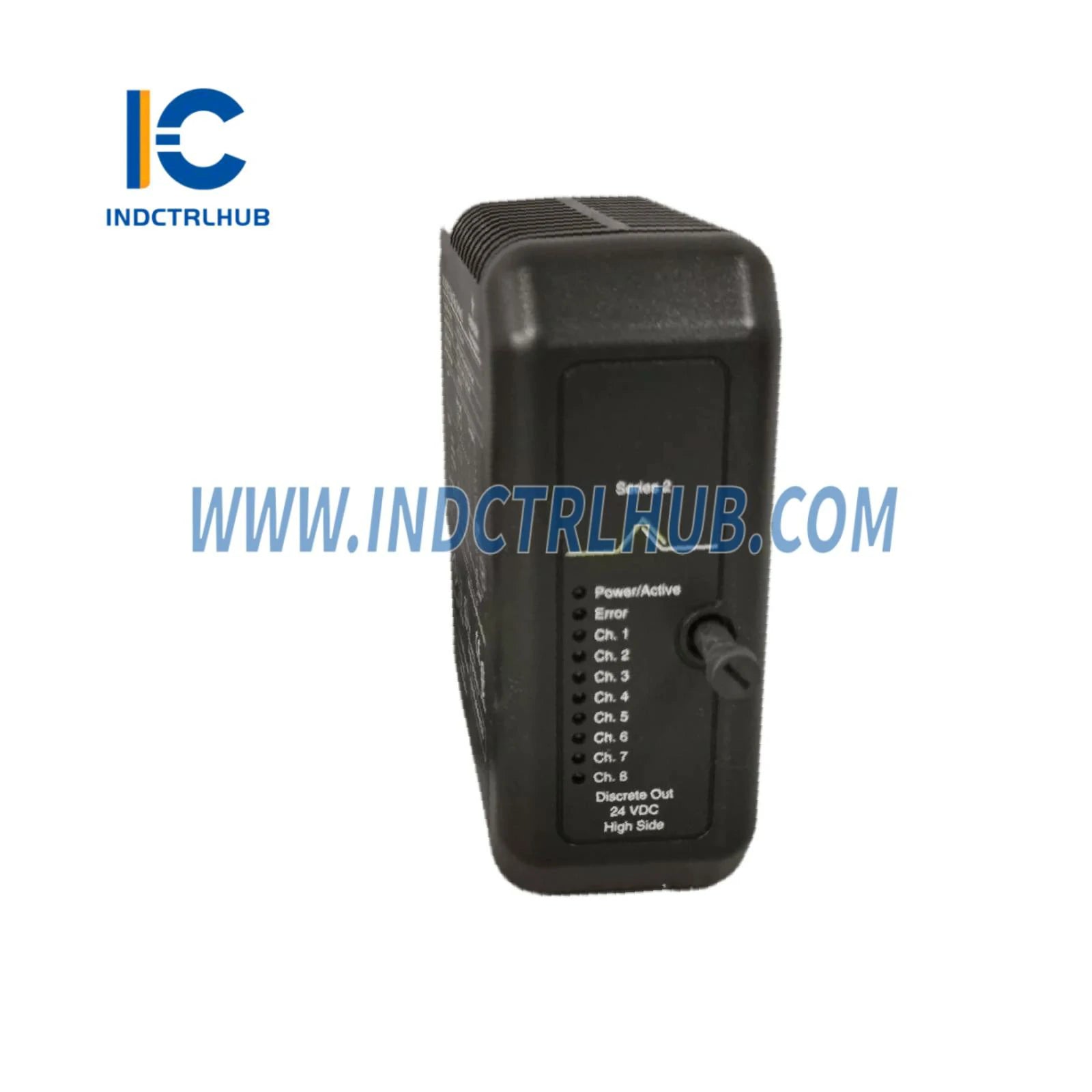

Emerson VE4001S2T2B3 KJ3201X1-BA1 Discrete Input Module
Emerson VE4001S2T2B3 KJ3201X1-BA1 Discrete Input Module
Manufacturer: Emerson
Product No.: KJ3202X1-BA1+KJ4001X1-CE1
Condition:1000 in stock
Product Type: Discrete Output Module
Product Origin: 6954789067890
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson VE4001S2T2B3 KJ3201X1-BA1 Discrete Input Module for DeltaV Systems
The Emerson VE4001S2T2B3 with KJ3201X1-BA1 card delivers high-density discrete input monitoring for DeltaV M-series distributed control systems. This 32-channel digital input module provides reliable on/off status acquisition from field devices including limit switches, pushbuttons, proximity sensors, relay contacts, and safety interlocks—forming the critical interface between binary field signals and advanced DeltaV control logic across process industries.
Understanding Discrete Input Technology
Discrete inputs (also called digital inputs or binary inputs) monitor two-state field devices that indicate on/off, open/closed, or true/false conditions. Unlike analog inputs that measure continuous variables like temperature or pressure, discrete inputs detect voltage presence or absence, making them essential for:
- Safety Interlocks: Emergency stop buttons, safety gate switches, flame detectors, gas leak sensors
- Equipment Status: Motor running feedback, valve position confirmation, pump seal failure alarms
- Process Conditions: High/low level switches, pressure relief valve position, filter differential pressure
- Operator Interface: Control panel pushbuttons, selector switches, manual override stations
VE4001S2T2B3 vs. Standard Discrete Input Modules
| Feature | VE4001S2T2B3 | Standard 16-Channel Modules |
|---|---|---|
| Channel Density | 32 channels per card | 16 channels per card |
| Termination Style | 16-pin mass termination (KJ4001X1-CE1) | Screw terminals or spring clamps |
| Wiring Time | 60% faster with pre-wired harnesses | Individual wire termination required |
| Cabinet Space | 50% reduction vs. 16-channel equivalent | Standard footprint |
| Commissioning | Plug-and-play with labeled connectors | Manual wire-by-wire checkout |
| Maintenance | Quick connector replacement | Individual wire troubleshooting |
Technical Specifications
| Input Channels | 32 independent discrete inputs |
| Input Voltage | 24 VDC nominal (18-30 VDC operating range) |
| Input Type | Sinking (common positive) or sourcing (common negative) |
| Input Current | 7 mA typical per channel at 24 VDC |
| ON Threshold | >15 VDC (logic high) |
| OFF Threshold | <5 VDC (logic low) |
| Input Impedance | 3.3 kΩ per channel |
| Response Time | 5 ms typical (configurable 1-100 ms filtering) |
| Isolation | 1500 VAC channel-to-bus, 250 VAC channel-to-channel |
| Diagnostic LEDs | Per-channel status indicators for visual verification |
| Scan Rate | 50 ms default (configurable 10-500 ms) |
| Operating Temperature | -40°C to +70°C ambient |
| Power Consumption | 4W typical from 24 VDC backplane |
| Certifications | UL/CSA Class I Div 2, ATEX Zone 2, IECEx, CE |
Mass Termination Advantages

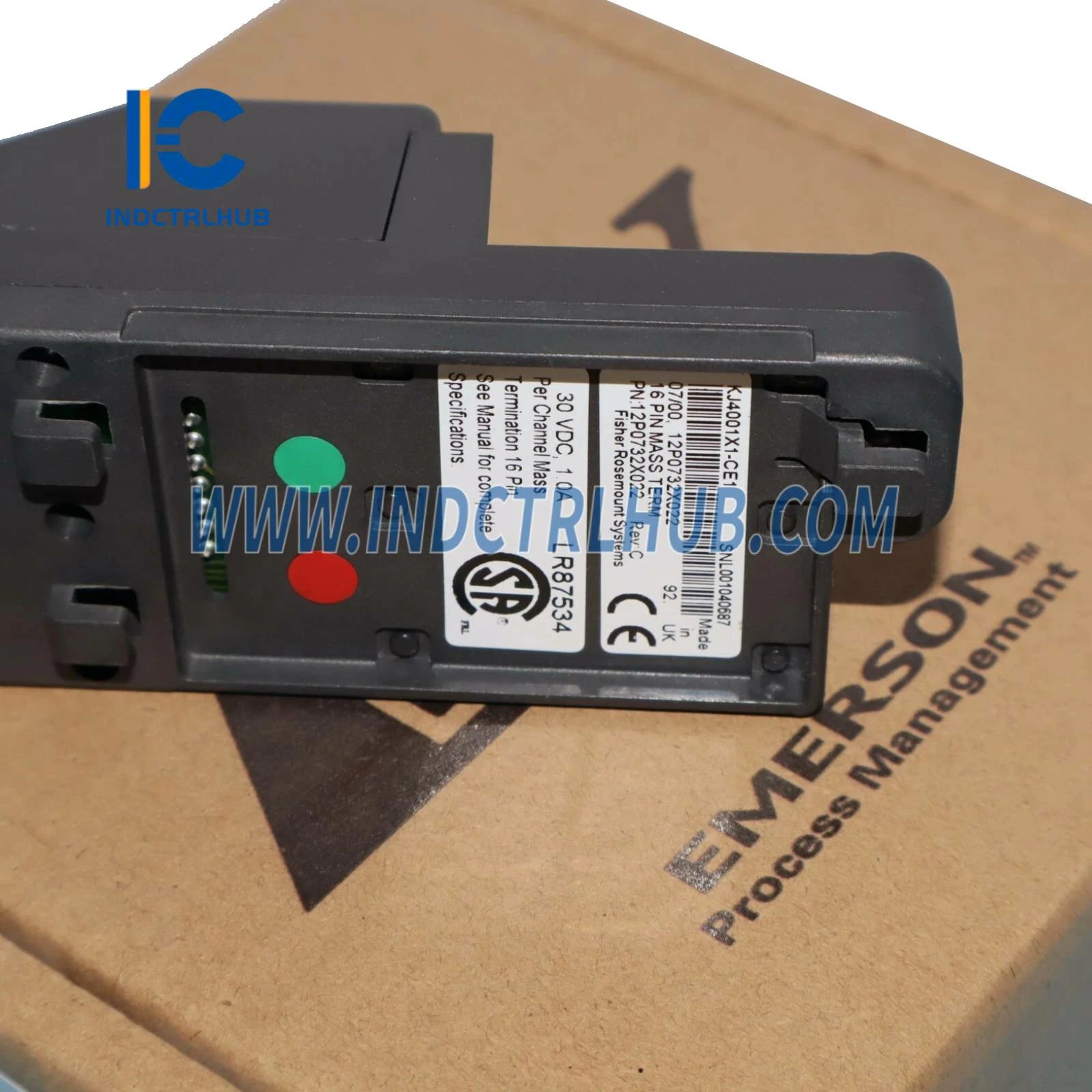

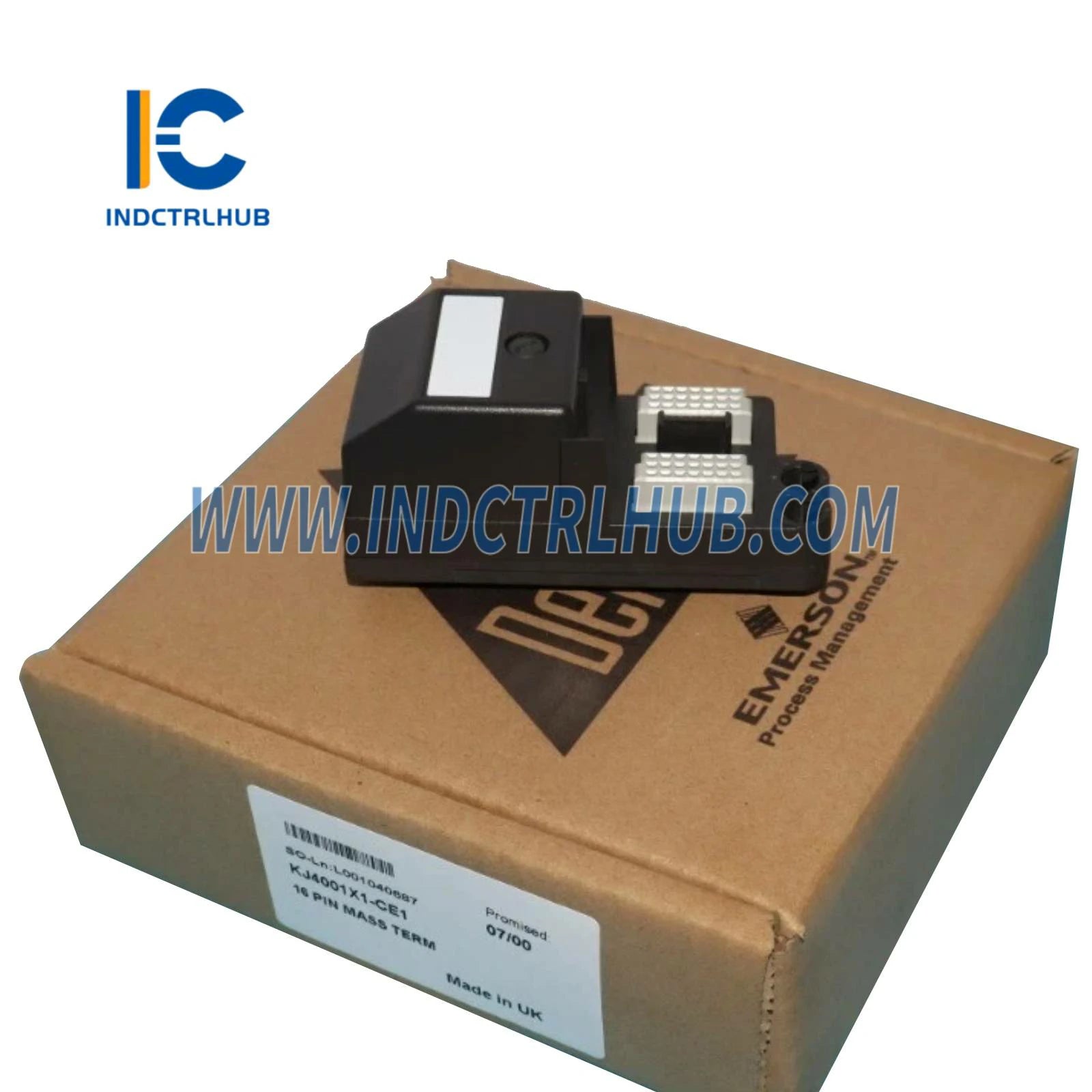

The VE4001S2T2B3 utilizes 16-pin mass termination blocks (KJ4001X1-CE1) that accept pre-fabricated cable assemblies, dramatically reducing installation time and wiring errors compared to traditional screw-terminal designs. Each connector handles 16 channels, requiring only two connectors for the full 32-channel complement.
Installation Time Comparison:
- Traditional Screw Terminals: 32 channels × 3 minutes per wire = 96 minutes per module
- Mass Termination: 2 connectors × 2 minutes = 4 minutes per module
- Time Savings: 92 minutes per module (96% reduction)
Pre-wired harnesses with labeled conductors eliminate field wiring errors, reduce commissioning time, and enable rapid module replacement during maintenance without re-terminating individual wires.
Industrial Application Scenarios
Safety Instrumented Systems (SIS): Monitor emergency shutdown pushbuttons, safety gate interlocks, flame detectors, and gas detection systems. High-density inputs consolidate safety signals into compact SIL-rated architectures for emergency shutdown sequences and process safety management.
Motor Control Center (MCC) Feedback: Acquire running status, overload trip, thermal protection, and auxiliary contact feedback from motor starters. Enables automated pump sequencing, compressor staging, and fan control with real-time equipment status visibility in DeltaV Operate.
Valve Position Confirmation: Monitor limit switches on motor-operated valves (MOVs), pneumatic actuators, and hydraulic cylinders. Provides closed-loop verification that valve commands executed correctly, preventing process upsets from stuck or failed actuators.
Process Alarm Monitoring: Interface with field-mounted alarm switches for high/low level, high/low pressure, high temperature, and equipment vibration. Consolidates distributed alarm points into centralized DeltaV alarm management with prioritization, shelving, and historical trending.
Configuration and Diagnostics
The VE4001S2T2B3 integrates with DeltaV through standard discrete input function blocks in DeltaV Control Studio. Each channel supports configurable input filtering (1-100 ms) to eliminate contact bounce and electrical noise. Alarm-on-change logic triggers immediate notifications when input states transition, enabling rapid response to process upsets.
Advanced diagnostics monitor wire break conditions, short circuits, and power supply failures. Per-channel LED indicators provide at-a-glance status verification during commissioning and troubleshooting. DeltaV AMS Device Manager logs state change events with timestamps for regulatory compliance and root cause analysis.
System Integration Best Practices
Common Wiring Configurations:
- Sinking Inputs (Common Positive): Field devices switch ground path; module common connected to +24 VDC
- Sourcing Inputs (Common Negative): Field devices switch positive voltage; module common connected to ground
Noise Immunity: Shielded twisted-pair cable recommended for runs >10 meters or electrically noisy environments. Shield grounded at module end only to prevent ground loops. Separate discrete input wiring from high-voltage power cables by minimum 300mm.
Power Budget: Each VE4001S2T2B3 consumes 4W from the DeltaV carrier backplane. Verify total I/O card power consumption does not exceed carrier capacity (typically 120W for 8-wide carriers).
Related DeltaV Discrete Input Products
| Product Model | Description | Product Link |
|---|---|---|
| VE4001S2T2B5 | Discrete Input Module with 40-Pin Mass Termination | View Product |
| VE4001S2T2B2 | DeltaV M-Series Discrete Input Module (Standard) | View Product |
| VE4001S2T1B2 KJ3206X1-BA1 | Discrete Input Module with Isolated Card | View Product |
Quality Assurance and Support
Factory-tested to IEC 61131-2 digital input standards with full functional verification across operating temperature range. Ships with configuration templates, wiring diagrams, and commissioning checklists for rapid deployment. Backed by 18-month warranty covering manufacturing defects and performance specifications.
Global technical support provides application engineering assistance for wiring configuration, noise troubleshooting, and integration with third-party safety systems. Replacement modules ship pre-configured to match existing channel assignments for minimal downtime during emergency repairs.
