Emerson VE4001S2T2B5 Discrete Input Module | DeltaV

Emerson VE4001S2T2B5 Discrete Input Module - High-Density Digital Signal Solution

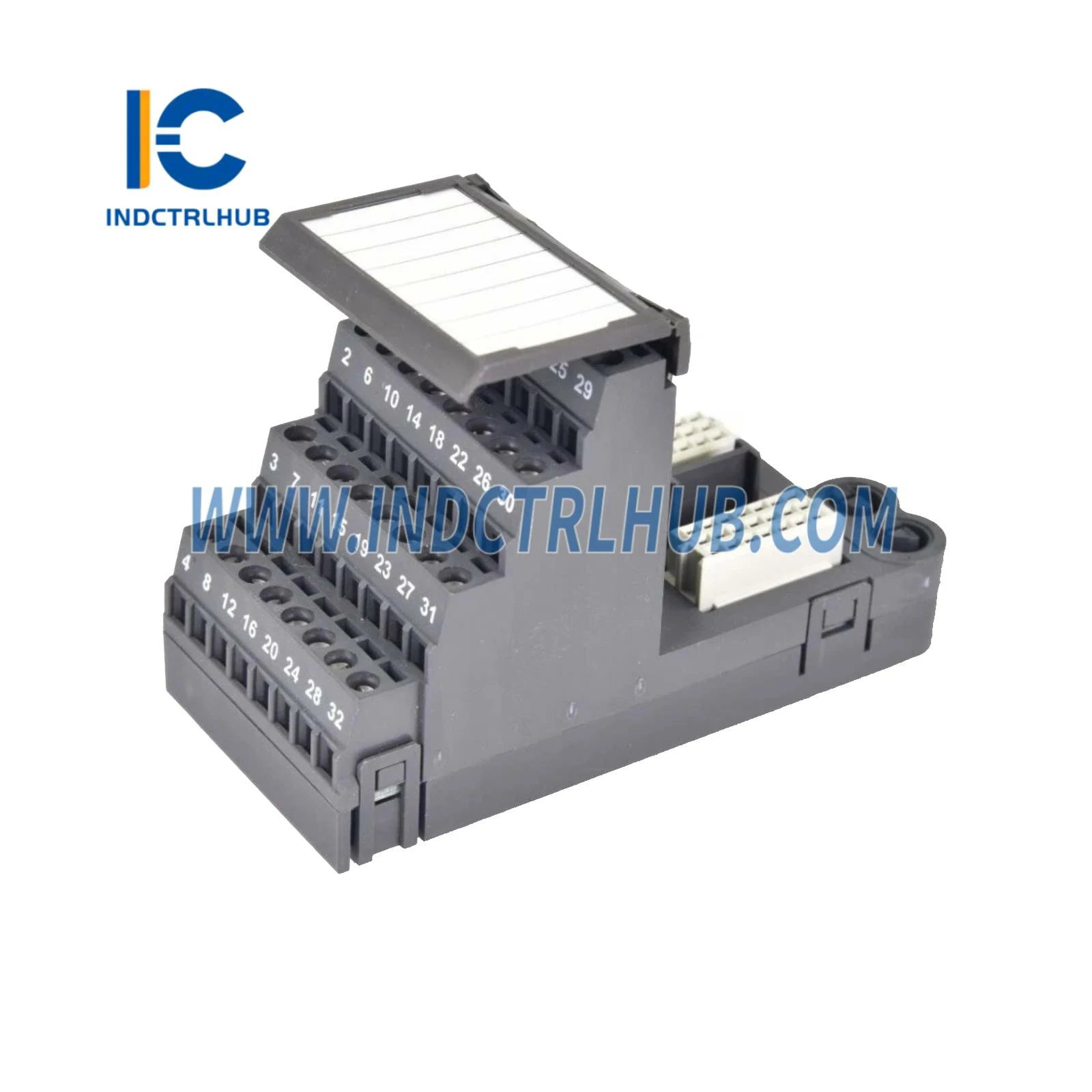

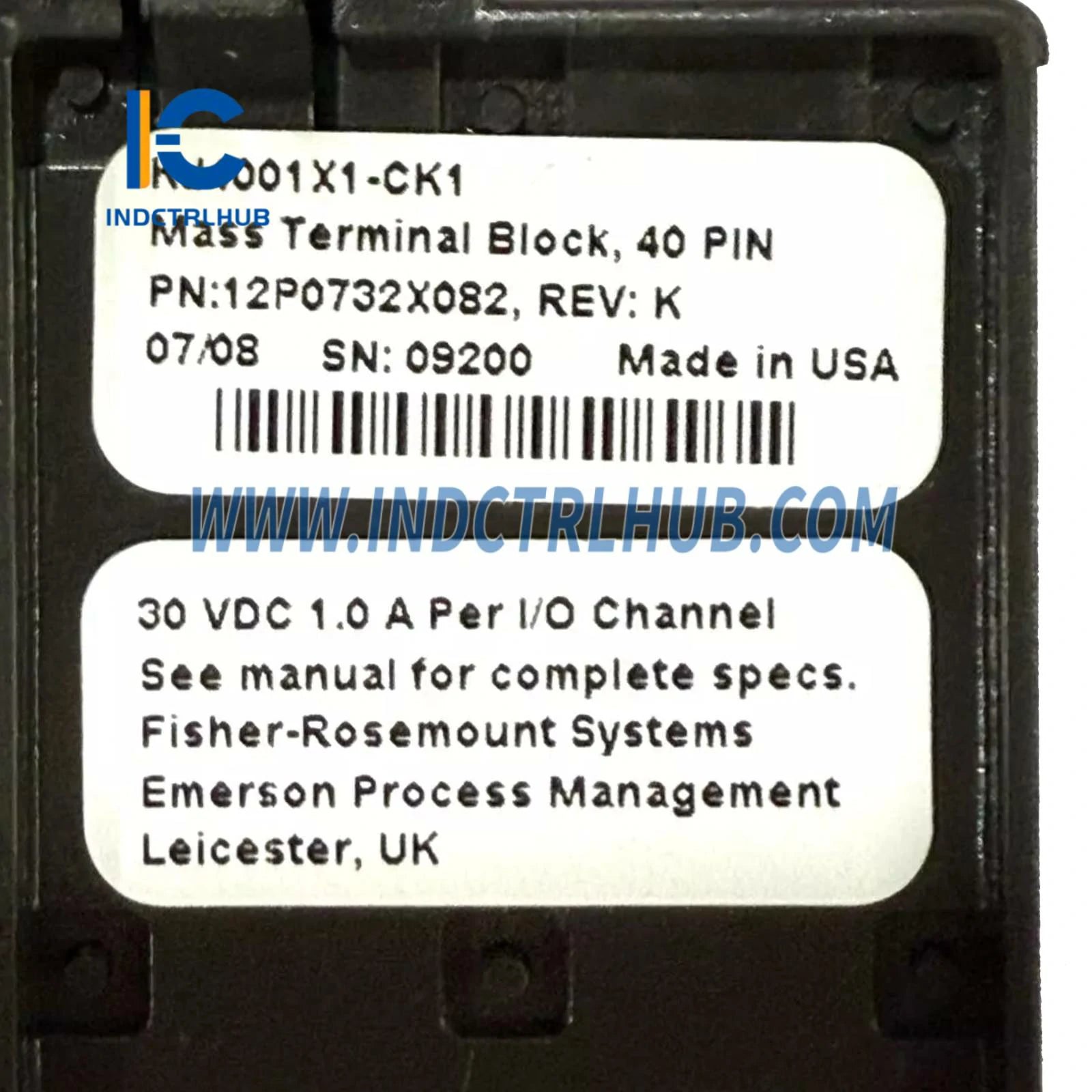

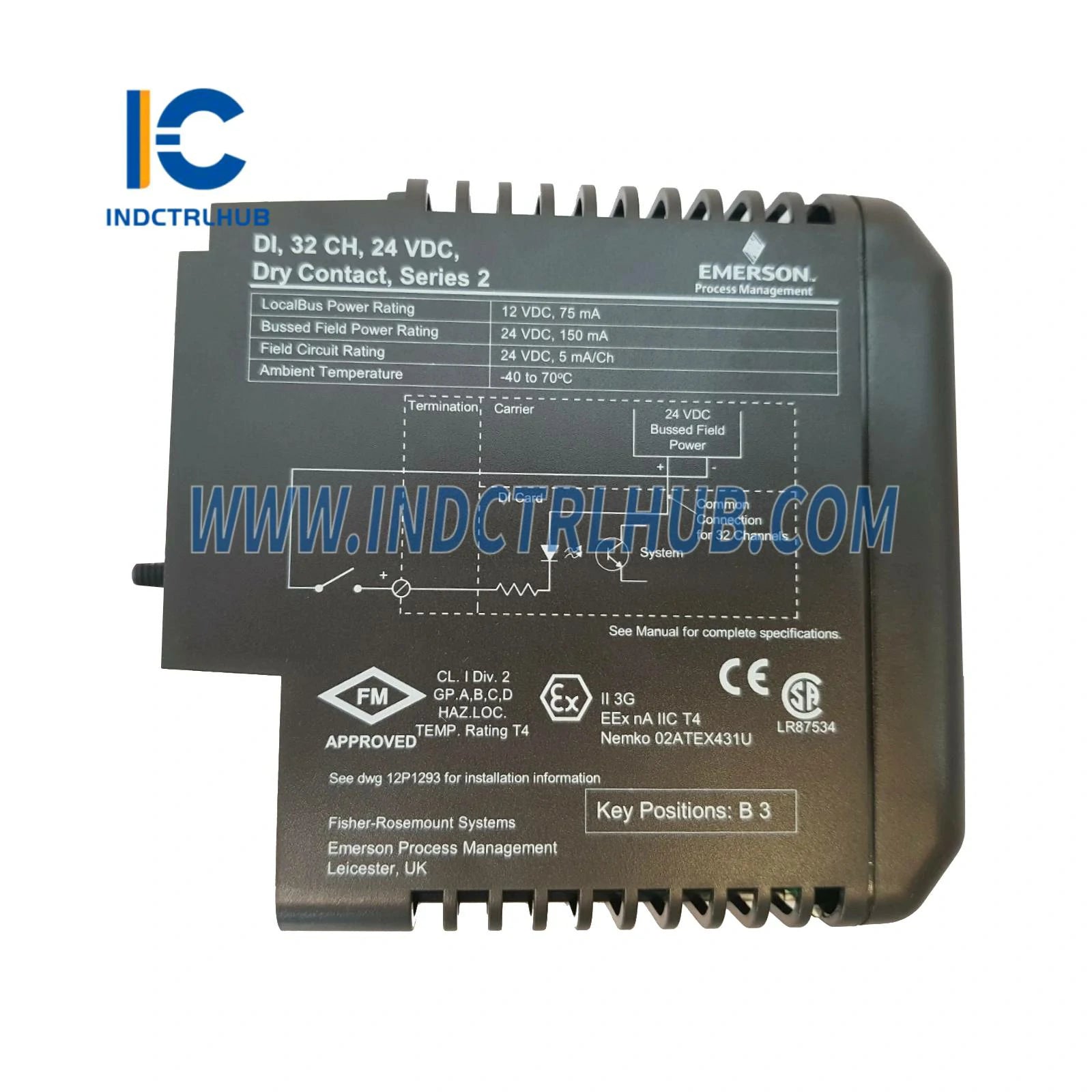

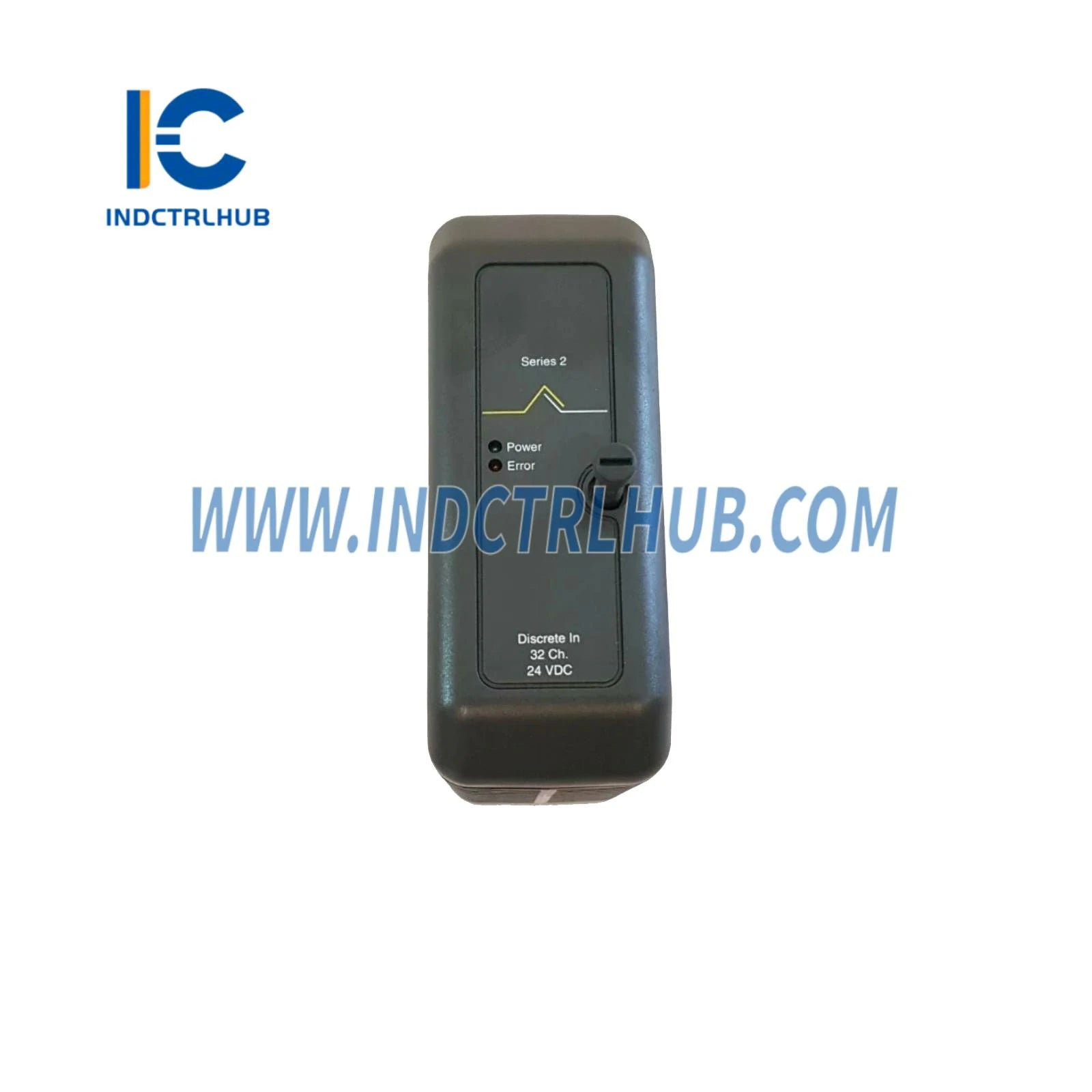

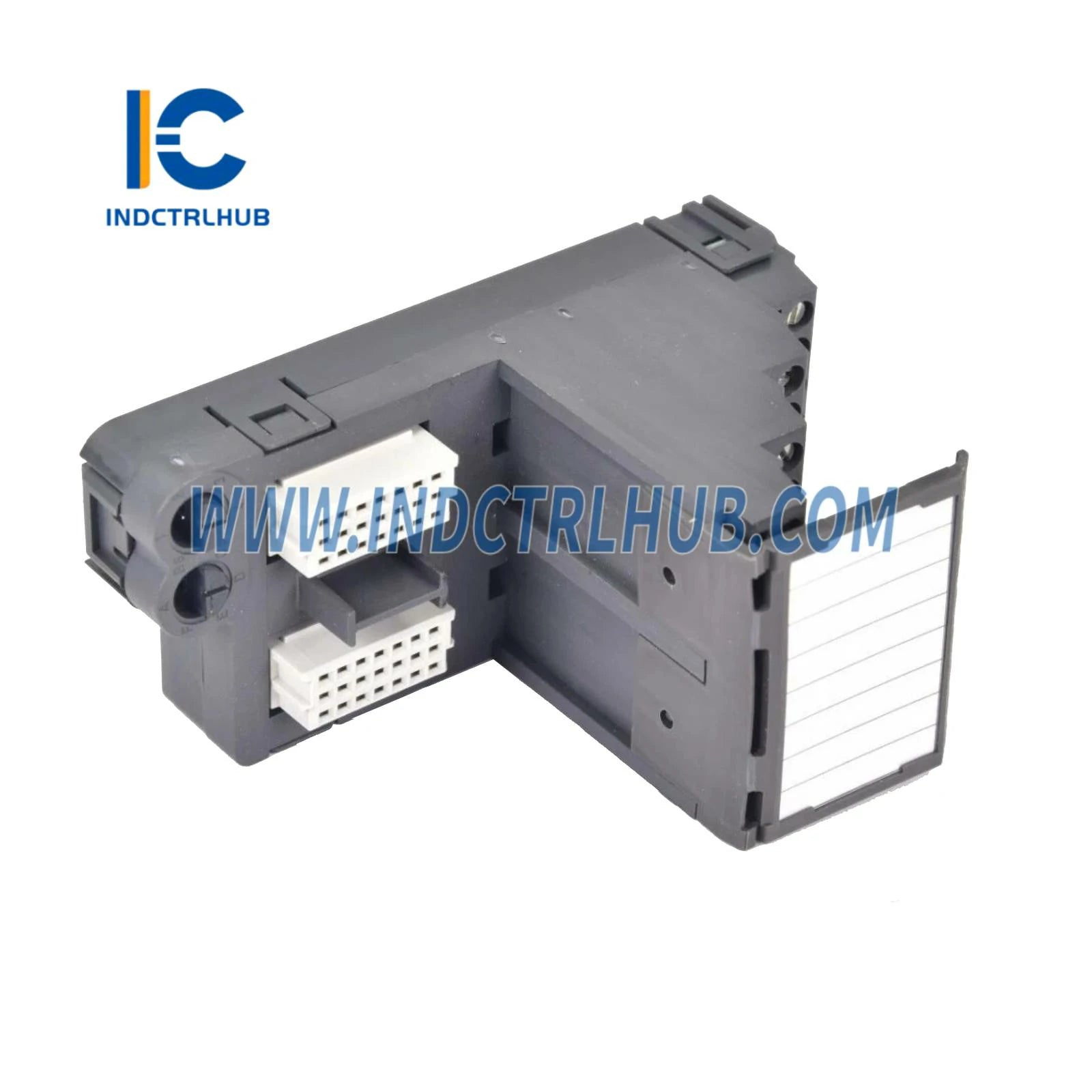

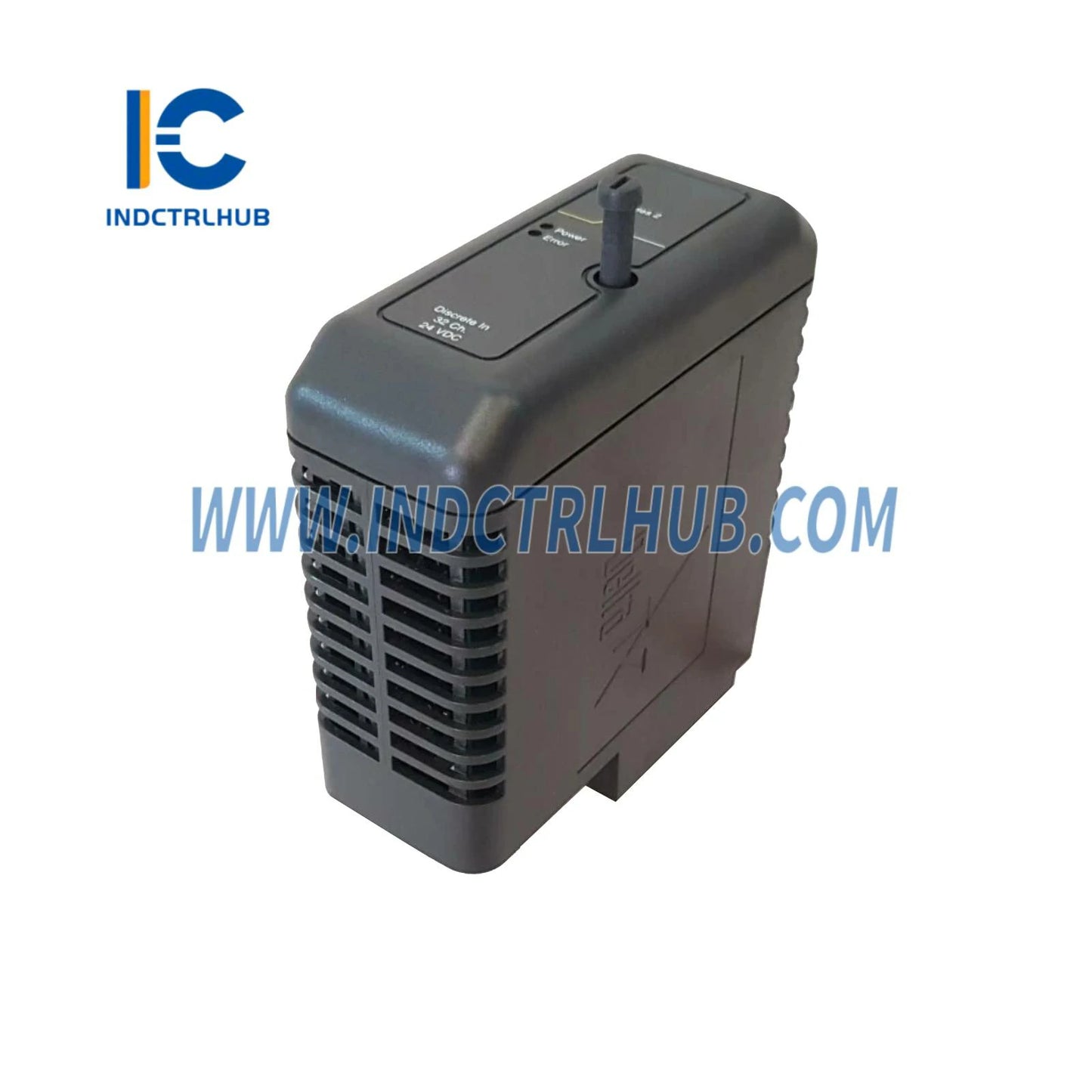

The Emerson VE4001S2T2B5 discrete input module combines the KJ3203X1-BA1 digital input card with the KJ4001X1-CK1 carrier assembly, delivering robust on/off signal acquisition for DeltaV distributed control systems. This high-density module excels in monitoring valve positions, limit switches, motor status indicators, and alarm contacts across process manufacturing, utilities, and industrial automation environments.

Core Technical Specifications

• Input Channels: 32 discrete digital inputs per module
• Signal Type: Dry contact and wet contact compatible
• Voltage Range: 24VDC nominal input voltage
• Input Impedance: High-impedance design for minimal load
• Response Time: <5ms typical signal detection
• Isolation: Channel-to-backplane optical isolation
• Operating Range: -40°C to +70°C ambient temperature
• LED Indicators: Per-channel status indication for diagnostics

Industrial Application Scenarios

Engineered for comprehensive digital signal monitoring in complex automation systems. Deploy the VE4001S2T2B5 for valve position feedback networks, motor starter status monitoring, emergency shutdown system inputs, and alarm panel integration. The high channel density reduces cabinet space requirements while the optical isolation protects control systems from field voltage transients—critical for maintaining uptime in continuous process operations.

Advanced Integration Solutions

This module seamlessly integrates with DeltaV M-series controllers through the KJ4001X1-CK1 carrier interface. The KJ3203X1-BA1 card features intelligent debounce filtering to eliminate false triggers from mechanical contact bounce, while the per-channel LED indicators enable rapid field troubleshooting without diagnostic tools. Hot-swappable architecture allows module replacement during operation, and automatic configuration download from the DeltaV database ensures zero-touch commissioning for maintenance efficiency.

Performance Advantages

• ✓ High-density 32-channel design maximizes I/O cabinet utilization efficiency
• ✓ Optical isolation protects control systems from field electrical disturbances
• ✓ Intelligent debounce filtering eliminates mechanical contact bounce issues
• ✓ Per-channel LED diagnostics accelerate troubleshooting and commissioning
• ✓ Hot-swappable design enables maintenance without process interruption
