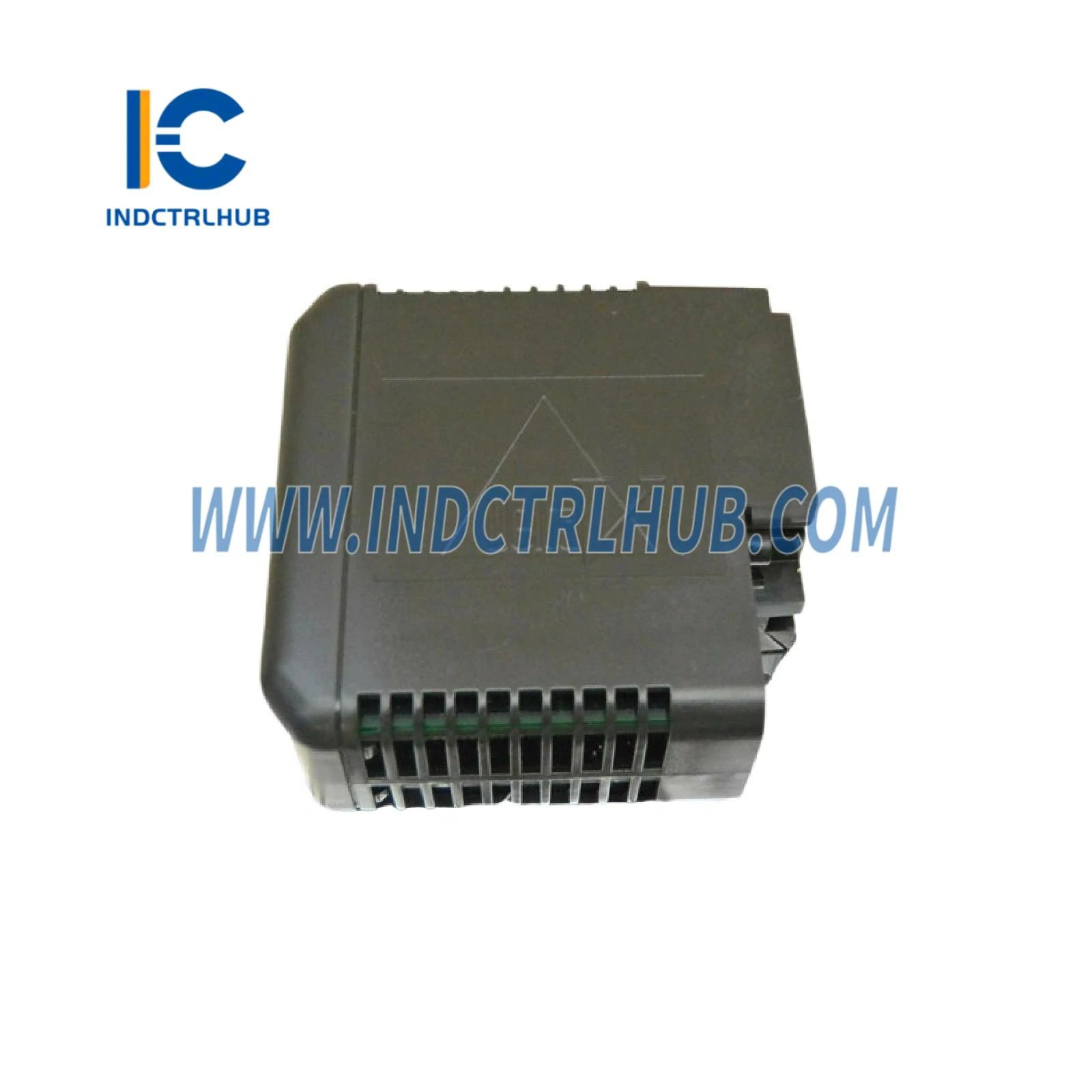

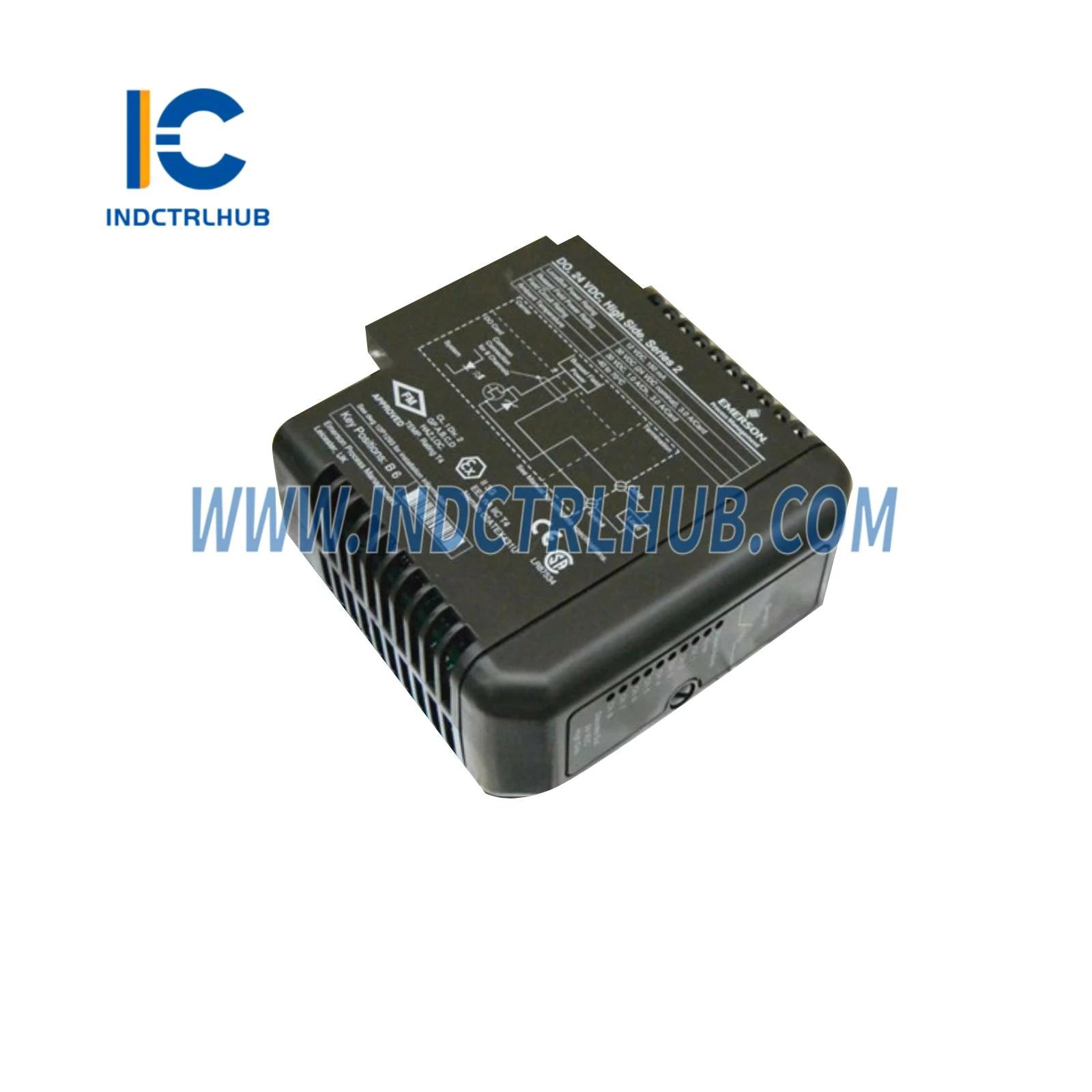

Emerson VE4001S2T1B2 DeltaV 32-Channel Discrete Input Module
Emerson VE4001S2T1B2 DeltaV 32-Channel Discrete Input Module
Manufacturer: Emerson
Product No.: VE4001S2T1B2
Condition:1000 in stock
Product Type: Discrete Input Module
Product Origin: 6954789067901
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson VE4001S2T1B2 DeltaV 32-Channel Discrete Input Module
The Emerson VE4001S2T1B2 delivers enterprise-grade discrete input signal acquisition for DeltaV M-series distributed control systems. This 32-channel module interfaces with 24 VDC field devices including limit switches, proximity sensors, push buttons, relay contacts, and safety interlocks—providing the essential link between binary field instrumentation and DeltaV control logic across oil & gas, chemical processing, power generation, and manufacturing industries.
Module Overview & Key Differentiators
The VE4001S2T1B2 belongs to the DeltaV M-series I/O family, distinguished by its compact single-slot design that consolidates 32 discrete inputs where legacy systems require two 16-channel cards. This high-density architecture reduces cabinet footprint, simplifies wiring, and lowers total installed cost while maintaining the reliability and diagnostic capabilities expected from Emerson automation platforms.
Core Advantages:
- 32 independent 24 VDC inputs in single-slot form factor
- Optical isolation (1500 VAC) prevents ground loops and protects control systems
- Configurable input filtering (1-100 ms) eliminates contact bounce and noise
- Per-channel LED indicators accelerate commissioning and troubleshooting
- Hot-swappable design enables online replacement without process shutdown
- SIL 2 capable for safety instrumented system applications
Technical Specifications
| Input Channels | 32 independent discrete inputs |
| Input Voltage | 24 VDC nominal (11-30 VDC range) |
| Input Current | 7 mA typical per channel at 24 VDC |
| Logic Levels | ON: >15 VDC | OFF: <5 VDC |
| Input Impedance | 3.3 kΩ per channel |
| Response Time | 5 ms typical (software configurable 1-100 ms) |
| Isolation | 1500 VAC optical isolation (channel-to-bus) |
| Channel Grouping | 4 groups of 8 channels with independent commons |
| Scan Rate | 50 ms complete scan (all 32 channels) |
| Diagnostic LEDs | 32 individual channel status indicators |
| Power Consumption | 5W typical from 24 VDC backplane |
| Operating Temperature | -40°C to +70°C ambient |
| Humidity Range | 5-95% RH non-condensing |
| Certifications | UL/CSA Class I Div 2, ATEX Zone 2, IECEx, SIL 2 |
Industrial Application Scenarios
Emergency Shutdown Systems (ESD): Monitor critical safety inputs including emergency stop buttons, safety gate positions, flame detectors, and pressure relief valve status. Optical isolation ensures fault tolerance while fast 5ms response meets safety integrity level requirements for SIL 2 applications.
Pump and Compressor Protection: Acquire vibration switch trips, bearing temperature alarms, seal failure indicators, and lube oil pressure switches. Integrate with DeltaV protective logic to execute automated shutdown sequences preventing catastrophic equipment damage.
Batch Process Control: Interface with level switches, weight scale contacts, valve position confirmations, and material presence sensors in pharmaceutical and food processing batch systems. High channel density accommodates complex recipe-driven processes with minimal I/O hardware.
Conveyor and Material Handling: Monitor photo-eyes, proximity sensors, jam detectors, and diverter gate positions in automated material handling systems. Configurable input filtering prevents false triggers from dust, vibration, and electromagnetic interference common in industrial environments.
Installation Best Practices
Wiring Considerations: The VE4001S2T1B2 features four independent common returns (8 channels per common), enabling flexible grounding schemes. For optimal noise immunity, group channels by signal source and maintain separate commons for different field power supplies. Use shielded twisted-pair cable for runs exceeding 30 meters or in electrically noisy environments.
Grounding Strategy: Connect module chassis ground to dedicated instrumentation ground bus using minimum 4mm² (12 AWG) wire. Avoid sharing ground paths with motor drives, welders, or other high-current equipment. Verify ground resistance <1Ω to reference point for optimal optical isolation performance.
Power Supply Sizing: Each input channel draws 7 mA at 24 VDC when energized. For fully populated 32-channel operation, ensure field power supply provides minimum 250 mA continuous capacity plus 20% margin for transient loads and aging. Use regulated 24 VDC supplies with <5% ripple for stable logic threshold operation.
Troubleshooting Common Issues
Intermittent Input Signals: If inputs randomly toggle between ON/OFF states, increase input filter time constant through DeltaV configuration. Start with 20ms filter for mechanical switches, 50ms for relay contacts subject to vibration. Verify field wiring connections are tight and free from corrosion.
Inputs Stuck at ON State: Check for short circuits in field wiring using multimeter. Disconnect field wiring and measure resistance to ground—should read >10 kΩ. If short persists, replace field cable. Verify field power supply voltage is within 11-30 VDC range using DeltaV diagnostics.
No Response from Multiple Channels: Verify common return connections are properly terminated. Measure voltage between input terminal and corresponding common—should read 24 VDC when field device is energized. Check carrier backplane power using module diagnostic LEDs. If power LED is off, reseat module or verify carrier power distribution.
Configuration and Commissioning
Module configuration occurs through DeltaV Explorer with automatic channel discovery upon installation. Assign descriptive tag names matching P&ID documentation for operator clarity. Configure input filters based on field device characteristics: 1-5ms for solid-state sensors, 10-20ms for mechanical switches, 50-100ms for relay contacts in high-vibration applications.
Enable diagnostic alarms for stuck-at-zero and stuck-at-one conditions to detect field device failures. Set alarm deadbands to prevent nuisance alarms from marginal signals near logic thresholds. Utilize DeltaV's input transition counters to monitor switch actuation frequency for predictive maintenance scheduling.
Maintenance and Lifecycle Management
The VE4001S2T1B2 requires no scheduled maintenance beyond periodic visual inspection of LED indicators and terminal block connections. Annual torque verification of screw terminals prevents loose connections from thermal cycling. Monitor diagnostic counters for abnormal input transition rates indicating failing field devices.
Hot-swap capability enables online module replacement during production runs. Replacement modules automatically download configuration from the controller, eliminating manual setup. Maintain spare modules in climate-controlled storage (15-30°C, <70% RH) for emergency replacements.
Related DeltaV Discrete Input Products
| Product Model | Description | Product Link |
|---|---|---|
| VE4001S2T1B2 KJ3206X1-BA1 | 32-Channel DI Module with Card Assembly | View Product |
| VE4001S2T2B4 | 32-Channel Discrete Input Module (Alternative Terminal) | View Product |
| VE4001S2T2B5 | DeltaV 32-Channel Discrete Input Module | View Product |
Quality Assurance & Support
Factory-tested to IEC 61131-2 industrial controller standards with full functional verification and environmental stress screening. Ships with installation manual, wiring diagrams, and configuration templates for rapid deployment. Backed by 18-month warranty covering manufacturing defects and performance specifications.
Global technical support provides application engineering assistance for input filtering optimization, grounding scheme validation, and troubleshooting guidance. Firmware updates available through DeltaV system upgrades maintain compatibility with evolving control strategies and diagnostic capabilities.
