Emerson KJ4010X1-BF1 Left LocalBus Extender Cable

Emerson KJ4010X1-BF1 Left LocalBus Extender Cable - DeltaV I/O System Expansion Solution

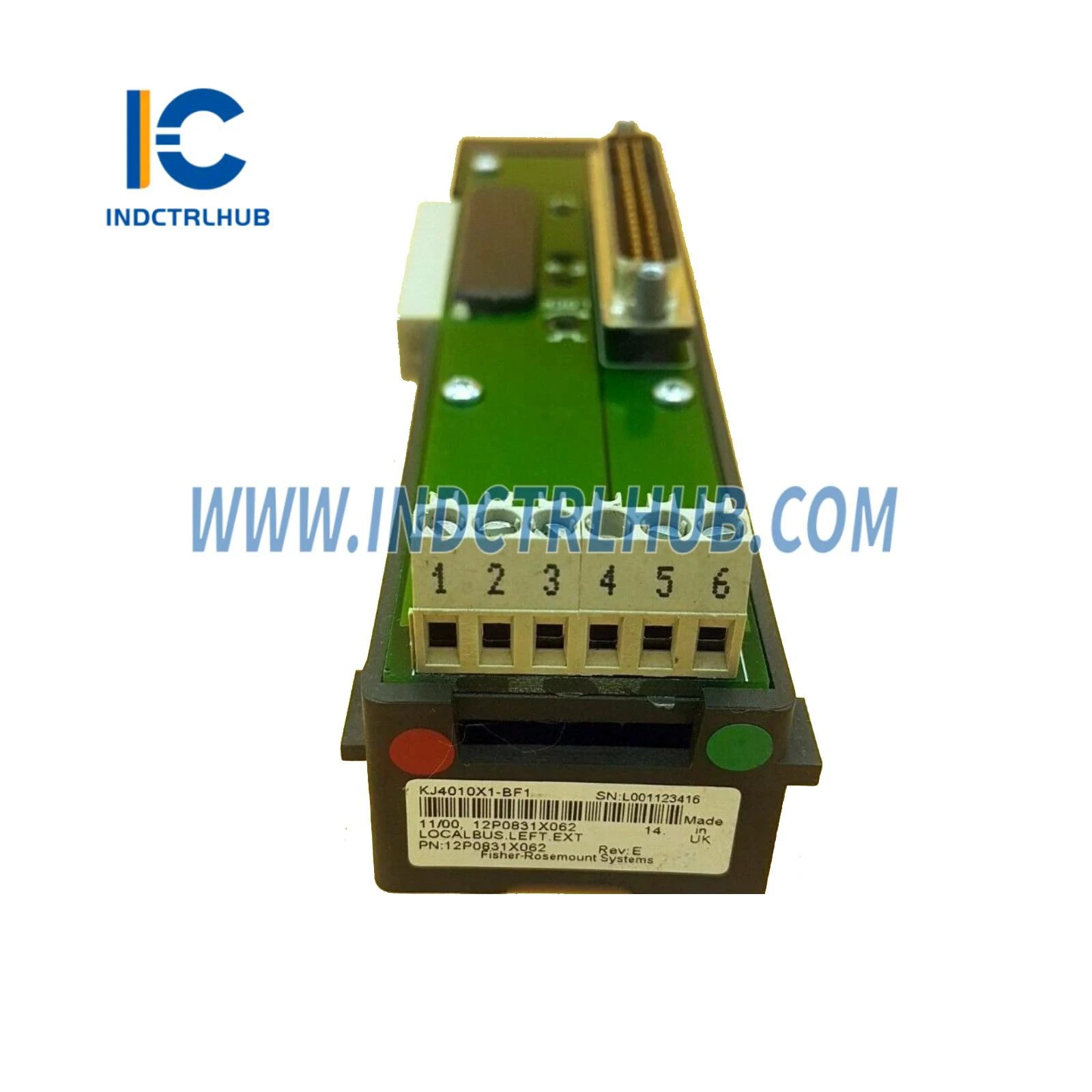

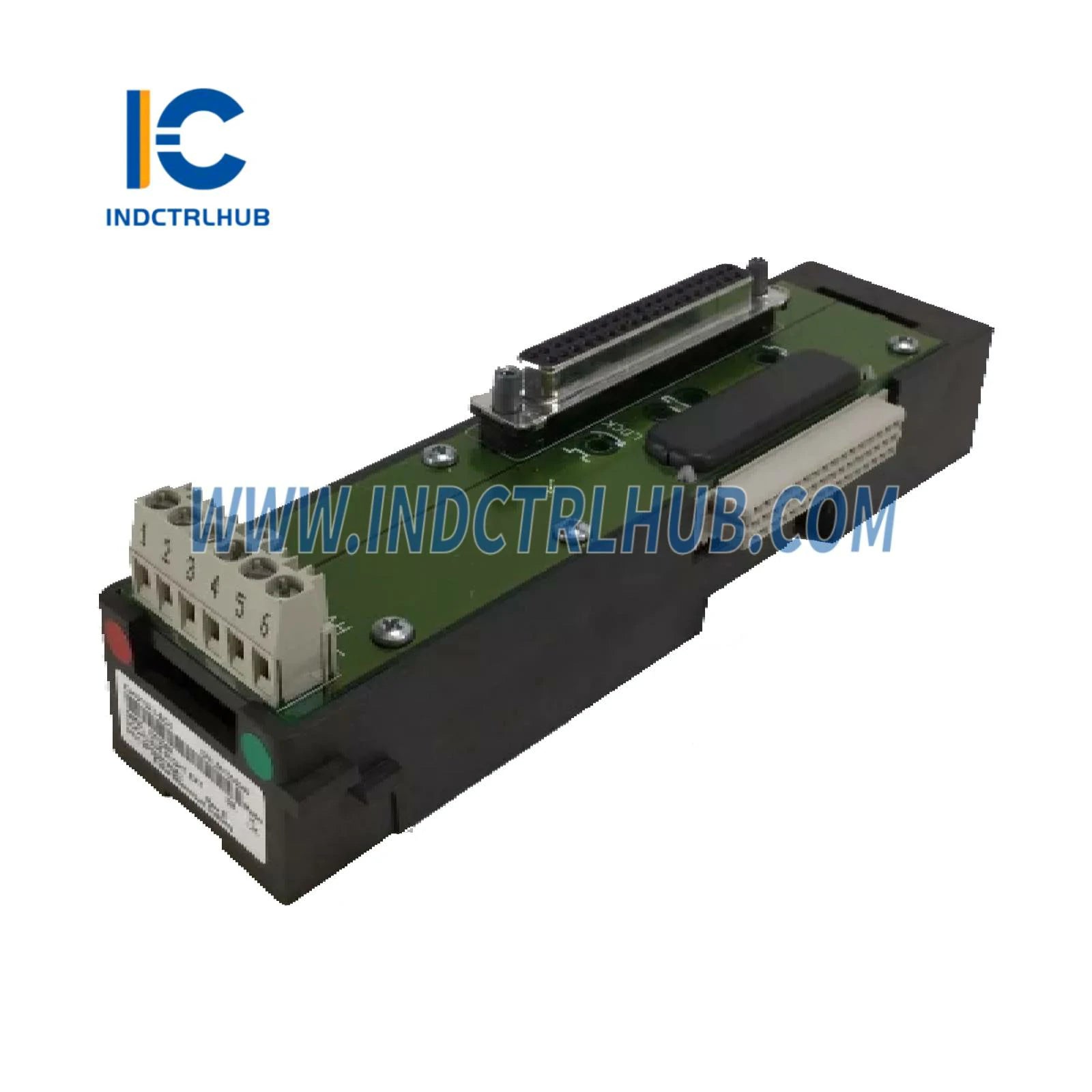

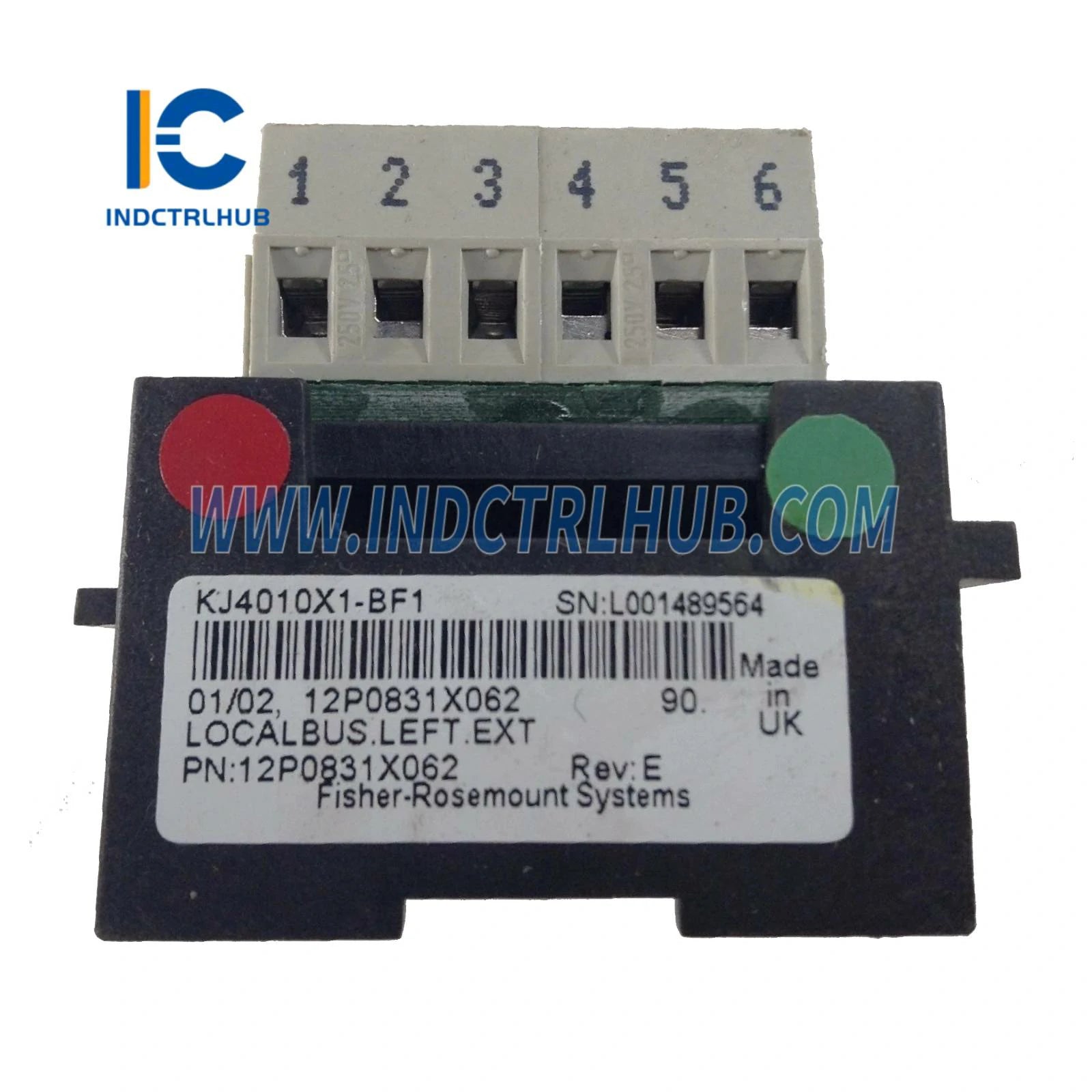

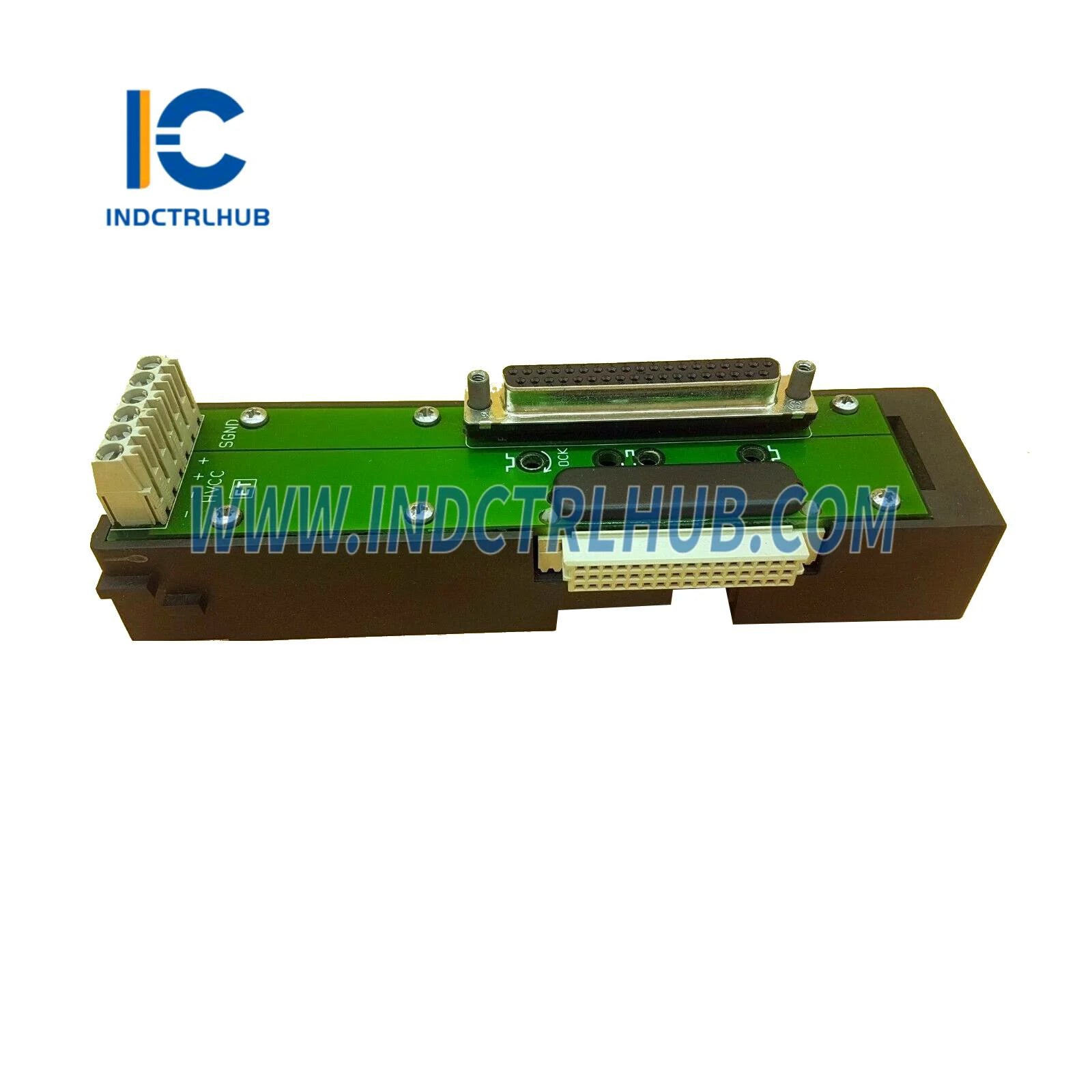

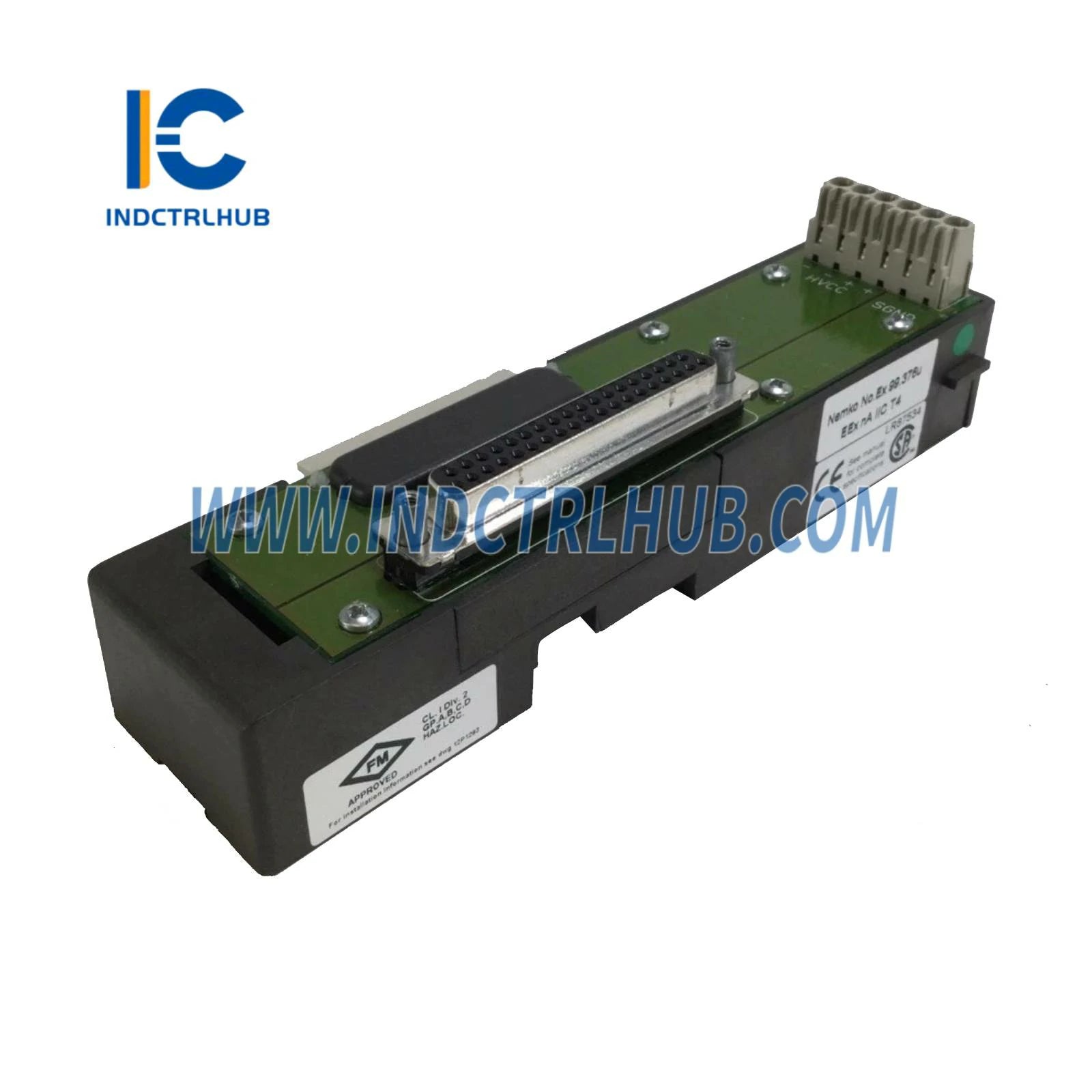

The Emerson KJ4010X1-BF1 (12P0831X062) Left LocalBus Extender Cable Assembly provides critical I/O expansion capabilities for DeltaV distributed control systems, enabling flexible cabinet layouts and extended I/O carrier configurations. This precision-engineered cable assembly maintains signal integrity and power distribution across LocalBus segments, supporting reliable communication between DeltaV controllers and remote I/O carriers in process automation applications.

Core Technical Specifications

• Part Numbers: KJ4010X1-BF1, 12P0831X062 (interchangeable designations)
• Cable Type: Left LocalBus Extender (directional orientation)
• Power Distribution: 12VDC at 8A for I/O carrier power
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Environmental Protection: IP20 rating with ISA-S71.04-1985 Class G3 conformal coating
• Maximum System Length: Combined I/O carriers and extenders ≤ 6.5 meters
• System Compatibility: DeltaV Scalable Process System with M-Series and S-Series controllers

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations
• IECEx International: Compliant with global hazardous area standards per Document 12P2046
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

DeltaV System Architecture Applications

Distributed I/O Cabinet Layouts: Enable flexible marshalling cabinet designs by extending LocalBus connections between I/O carriers positioned in separate cabinet sections or adjacent enclosures. The left-orientation cable facilitates logical signal flow from controller to field termination panels, reducing wiring complexity and improving maintainability in large-scale DCS installations.

Multi-Enclosure I/O Expansion: Connect I/O carriers across multiple control cabinets or marshalling panels while maintaining LocalBus power and communication integrity. The 12VDC 8A power capacity supports multiple I/O carriers per segment, enabling cost-effective system expansion without additional power supplies or controller modules.

Redundant Controller Configurations: Support redundant DeltaV controller architectures by providing reliable LocalBus extension for dual I/O carrier configurations. The cable's rugged construction ensures continuous operation during controller switchovers, maintaining process control integrity in critical applications requiring high availability.

Retrofit and Modernization Projects: Facilitate DeltaV system upgrades and expansions in existing facilities where cabinet space is constrained or I/O density requirements have increased. The extender cable enables incremental I/O additions without complete cabinet redesigns, minimizing project costs and installation downtime.

Left vs. Right Orientation Explained

Understanding cable directionality for proper system configuration:

• Left Extender (KJ4010X1-BF1): Connects from controller or carrier to the left-side expansion position, following standard DeltaV LocalBus topology conventions
• Right Extender (KJ4010X1-BG1): Connects from controller or carrier to the right-side expansion position for mirror-image cabinet layouts
• System Planning: Cable orientation must match physical cabinet layout and I/O carrier positioning to ensure proper signal routing and power distribution
• Installation Verification: Incorrect orientation may result in communication failures or power distribution issues requiring cable replacement

Critical Installation Requirements

Mandatory safety and performance guidelines per Document 12P2046:

Power-Off Installation: LocalBus extender cables must NEVER be inserted or removed while system power is energized. De-energize the entire DeltaV system or verify the area is certified non-hazardous before disconnecting carriers or cables to prevent electrical hazards and equipment damage.

Maximum Length Restrictions: The combined length of all I/O carriers and extender cables in a single LocalBus segment must not exceed 6.5 meters (21.3 feet). Exceeding this limit may cause communication errors, power voltage drops, or intermittent I/O failures requiring system troubleshooting.

Conduit Protection: Interconnecting cables between separate enclosures MUST be routed through rigid or flexible conduit to provide mechanical protection, electromagnetic shielding, and compliance with electrical codes. Exposed cable runs are prohibited in hazardous area installations.

Hazardous Area Compliance: Installation in Zone 2 or Division 2 classified locations requires strict adherence to Document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions" and the "Installing Your DeltaV Automation System" manual to maintain safety certifications.

Environmental Ruggedness

Engineered for reliable operation in demanding industrial conditions:

• Extended Temperature Range: -40°C to +70°C operation accommodates outdoor installations, arctic climates, desert environments, and non-climate-controlled equipment rooms
• Shock Resistance: 10g ½-sinewave for 11ms withstands mechanical impacts from nearby equipment, seismic events, or transportation vibration
• Vibration Tolerance: 1mm peak-to-peak (5-16 Hz), 0.5g (16-150 Hz) for installations near rotating machinery, compressors, or high-traffic areas
• Humidity Resistance: 5% to 95% non-condensing operation in coastal, tropical, and high-humidity process environments
• Conformal Coating: ISA-S71.04-1985 Class G3 protection against airborne contaminants, corrosive gases, and industrial pollutants

System Design Considerations

Maintenance & Service Life

Designed for long-term reliability with minimal maintenance:

• No User-Serviceable Parts: Factory-sealed assembly with no field-replaceable components
• Disassembly Prohibited: Opening or modifying the cable assembly voids certifications and creates safety hazards
• No Calibration Required: Digital communication and power distribution require no periodic calibration or adjustment
• Replacement Criteria: Replace cable if physical damage, connector wear, or communication errors are detected during system diagnostics

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV system components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert DCS technical support from certified DeltaV system engineers
• ✓ Extensive inventory of current production and legacy DeltaV cables and accessories
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete system design consultation and installation documentation support

Related DeltaV LocalBus Components

Ordering Information & Documentation

• KJ4010X1-BF1 / 12P0831X062: Left LocalBus Extender Cable Assembly (this product)
• Installation Manual: Document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions"
• System Manual: "Installing Your DeltaV Automation System" for complete system design guidelines
• Technical Support: Contact our DeltaV specialists for cable length calculations, system topology design, and hazardous area compliance verification
