Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ4010X1-BG1 / 12P0830X062 |
|
Description |

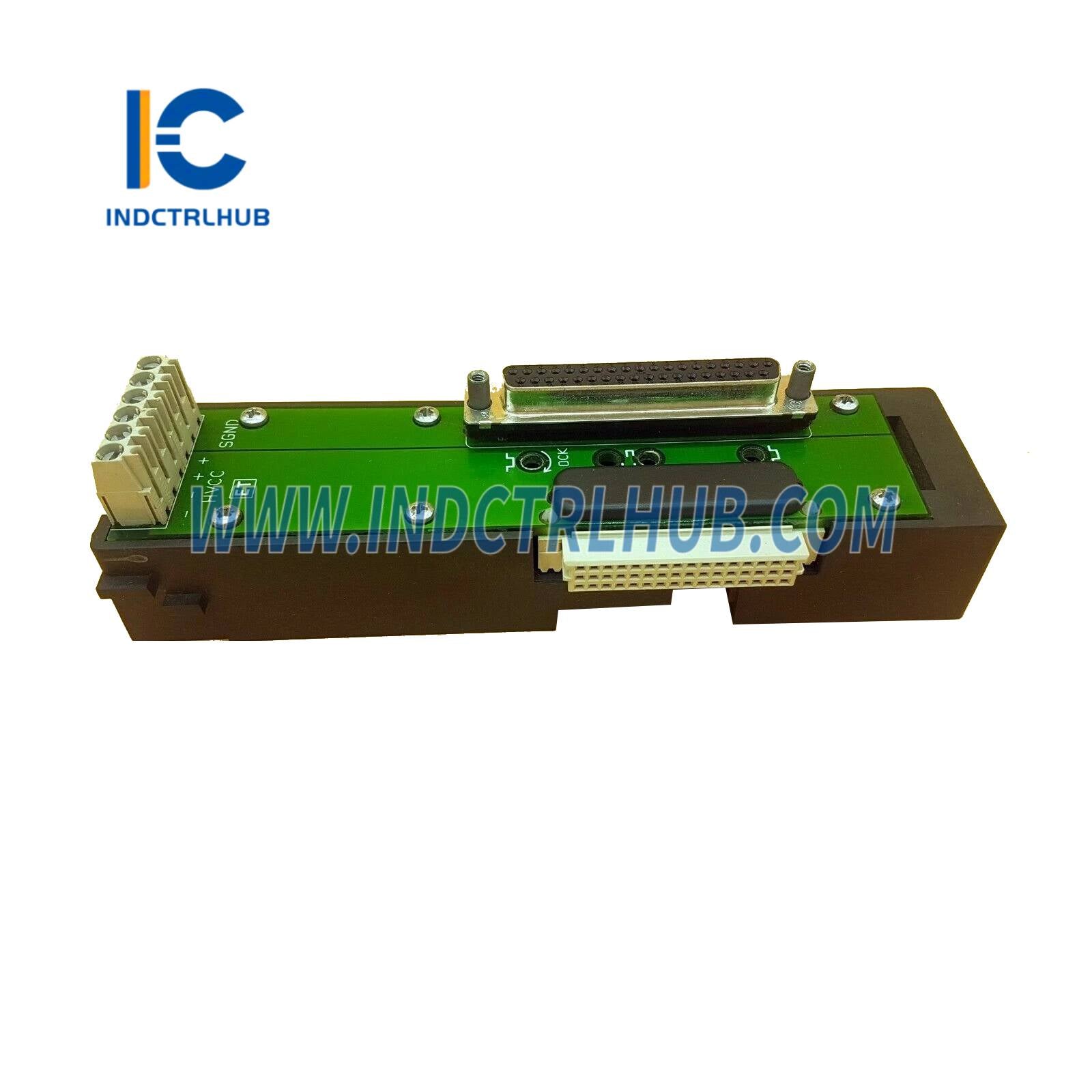

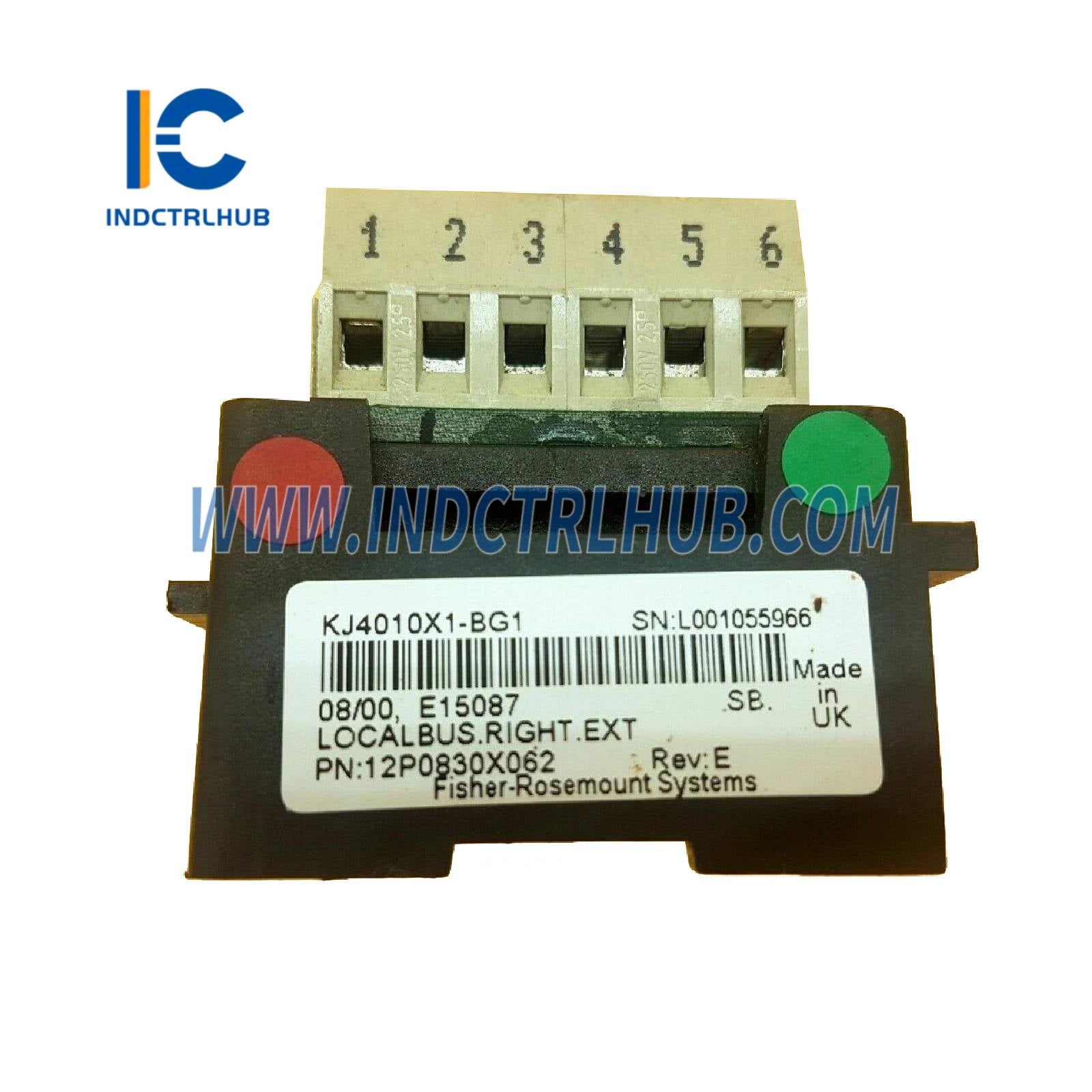

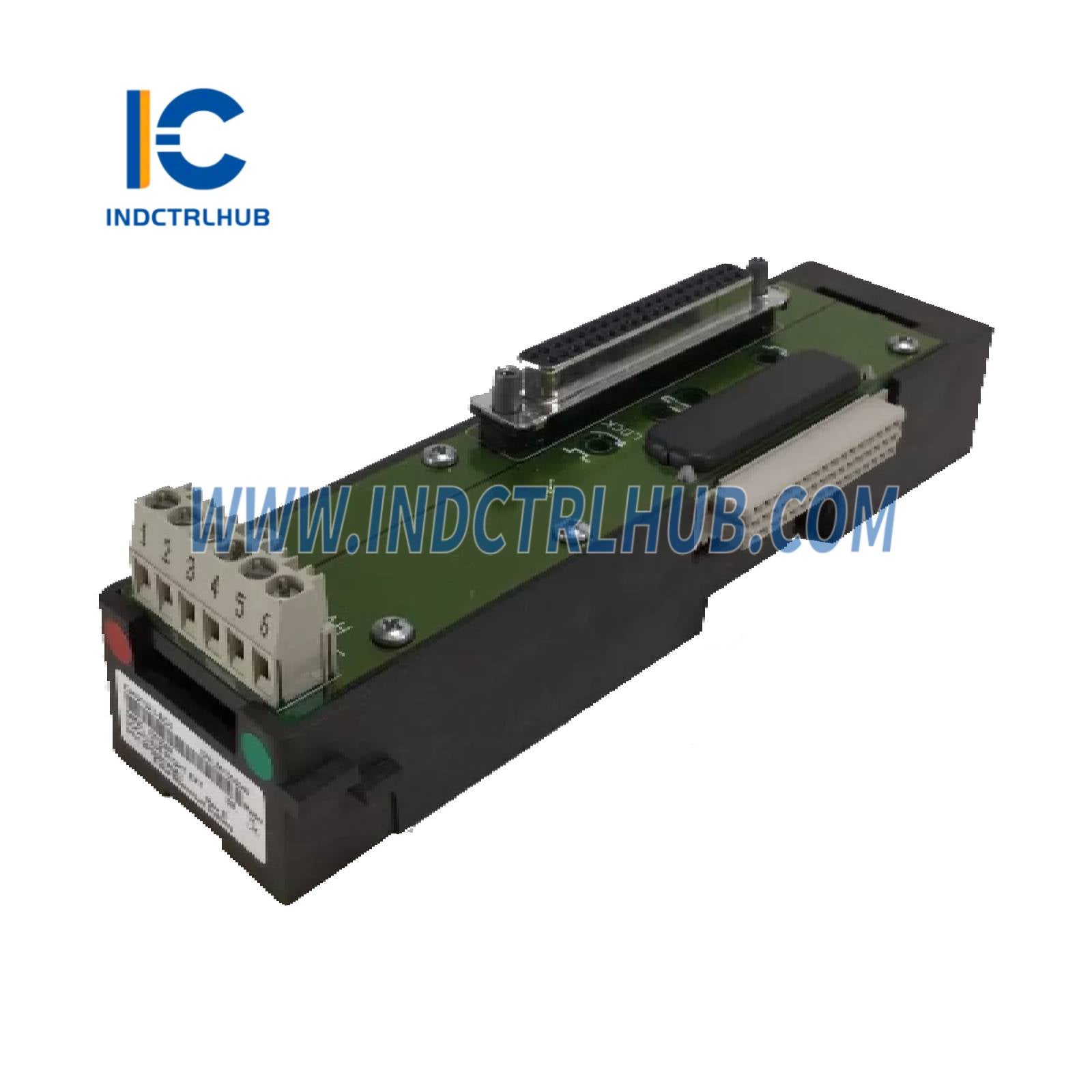

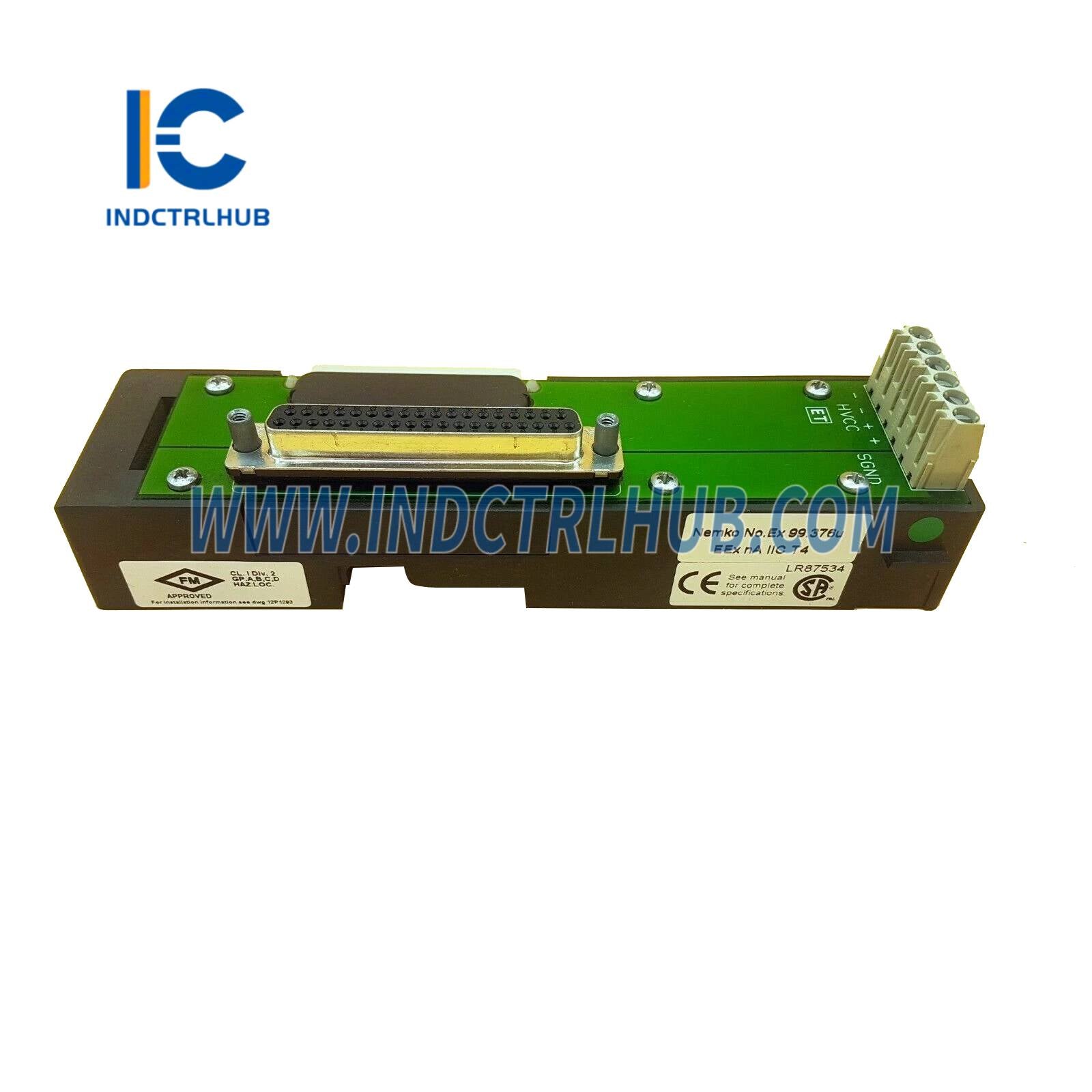

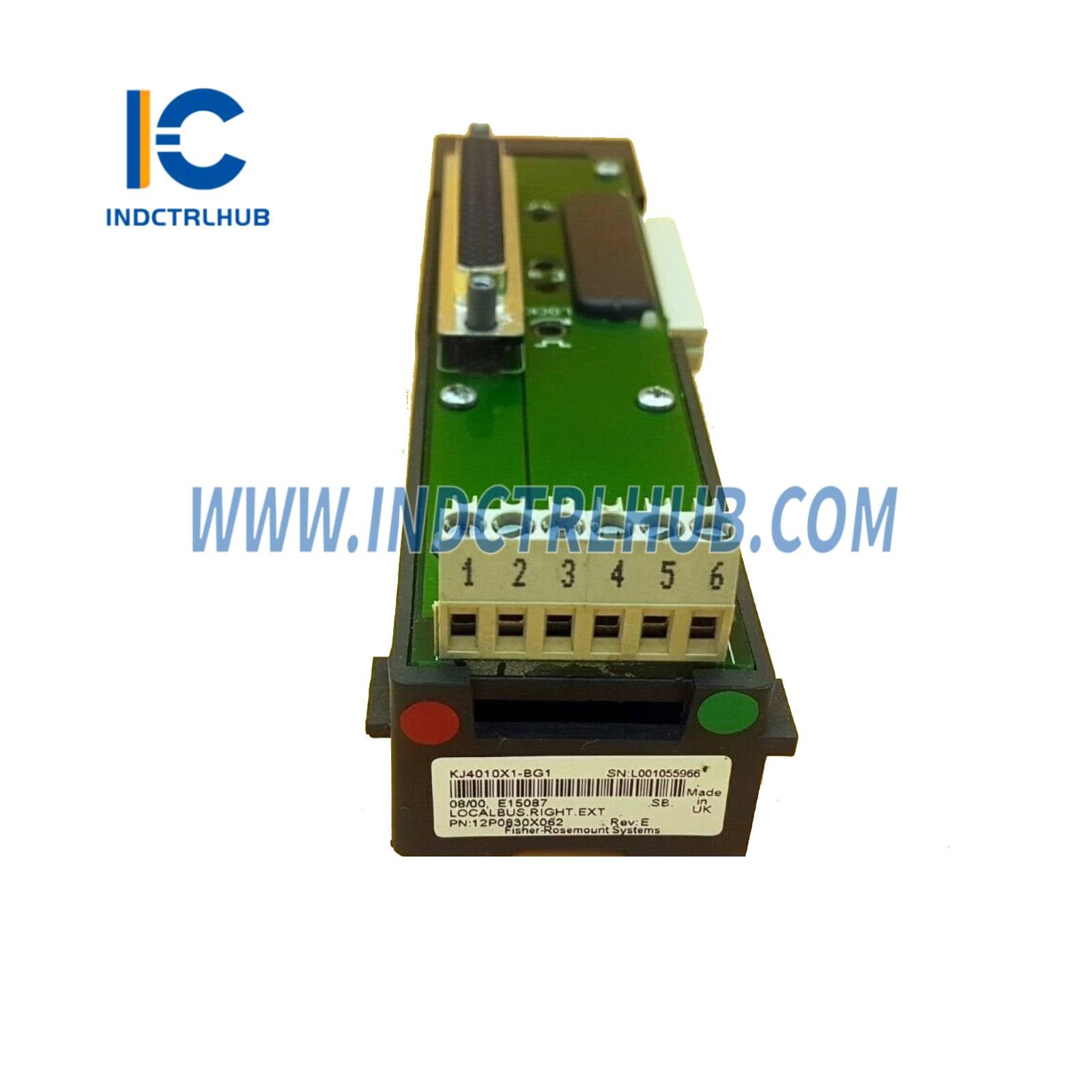

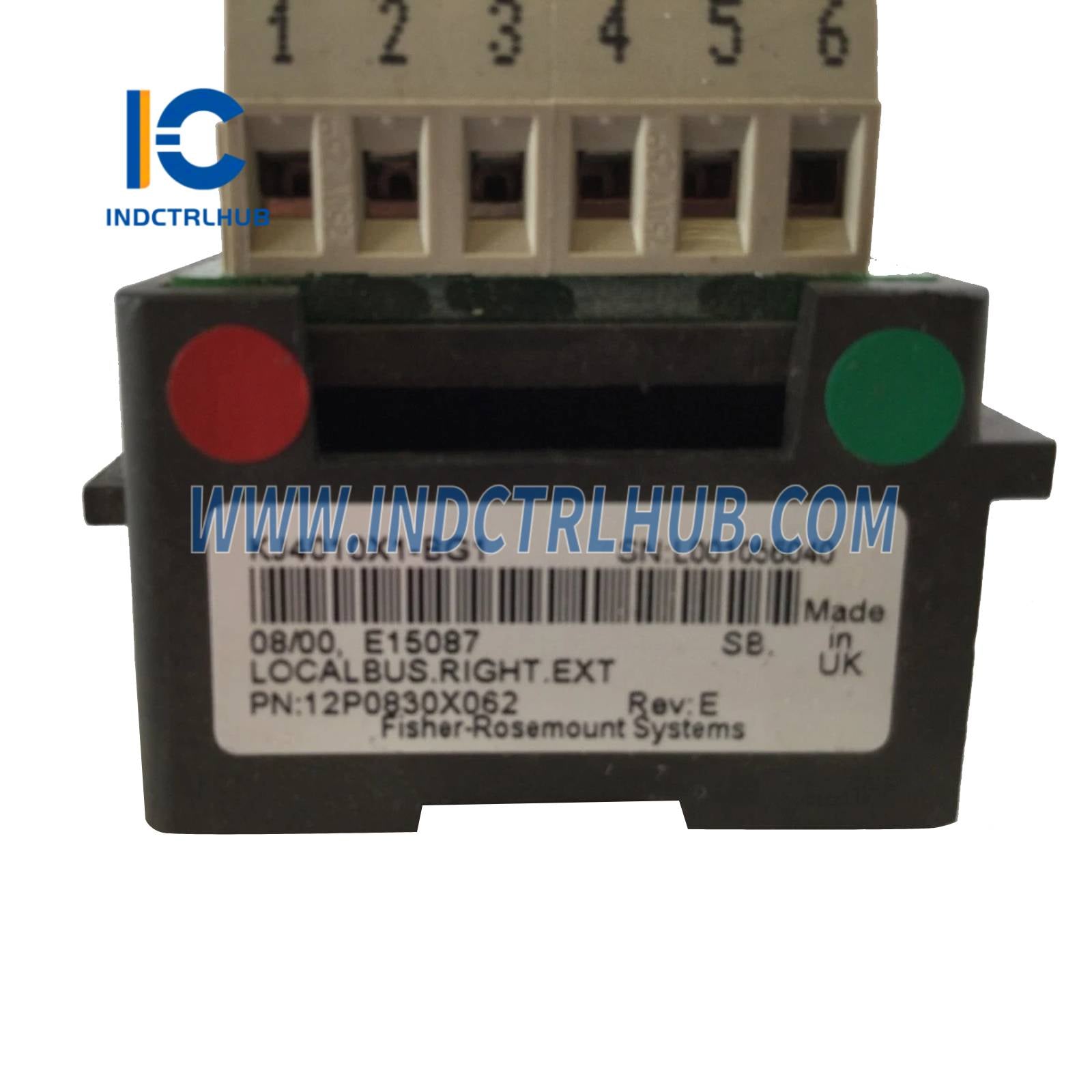

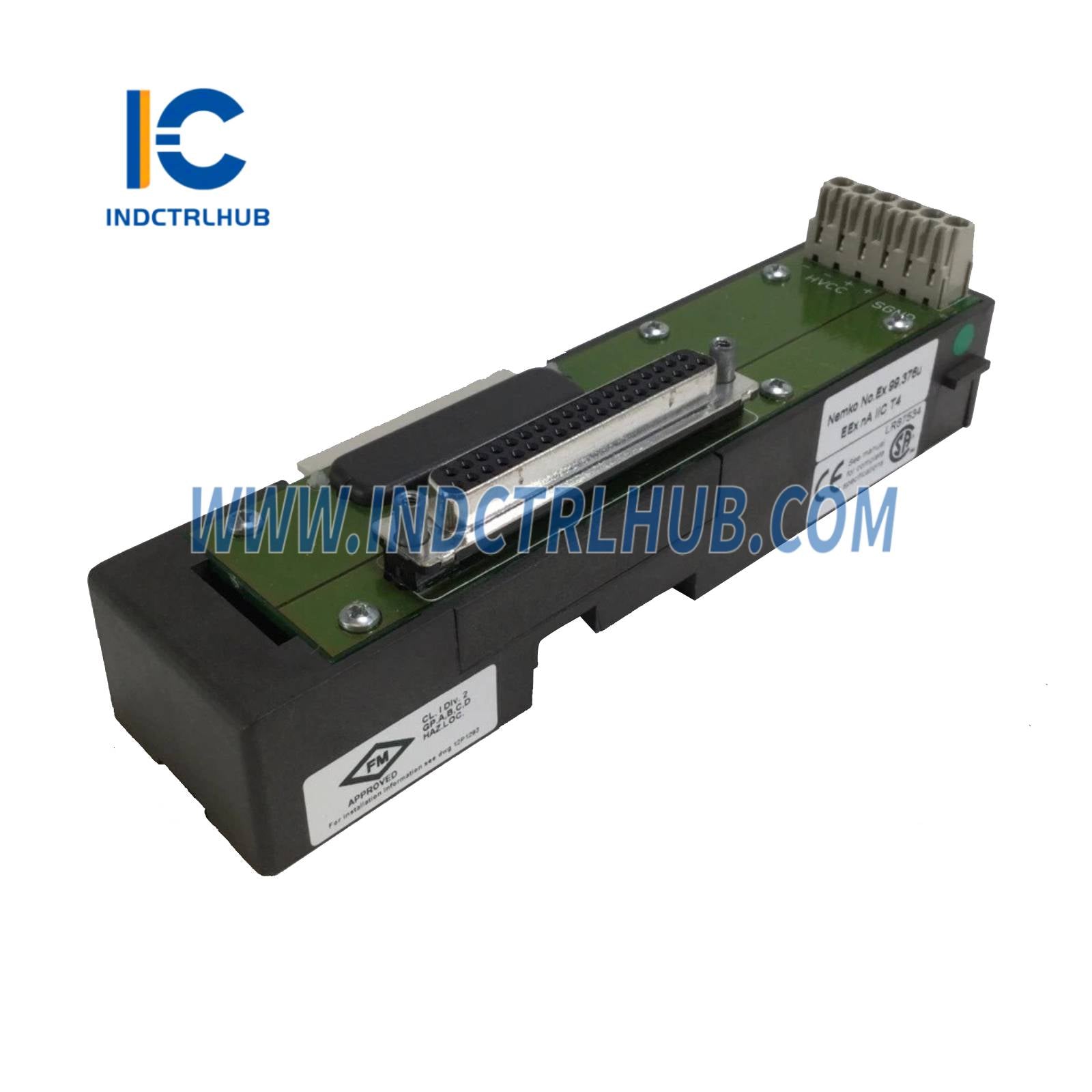

Right LocalBus Extender Cable Assembly |
Power Specifications
|
Parameter |
Value |
|---|---|
|
LocalBus Power |
12.6 VDC at 8 A |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10g ½ Sinewave for 11 ms |
|
Vibration |
1 mm Peak to Peak from 5–16 Hz; 0.5 g from 16–150 Hz |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
|
IP Rating |
IP20 |
Important Notes
-
Hazardous Area Installation:
-
Refer to Document 12P2046 – DeltaV™ Scalable Process System Zone 2 Installation Instructions
-
Additional instructions available in the Installing Your DeltaV Automation System manual
-
Installation & Removal Guidelines:
-
Do not remove or insert while system is energized
-
Power must be de-energized before disconnecting any components
-
Must not be unplugged unless system is off or area is confirmed safe
-
Maximum total length for I/O carriers and extenders: 6.5 meters
-
Cables between enclosures must be in conduit
-
Maintenance:
-
No user-serviceable parts
-
Disassembly not recommended
-
Calibration is not required
