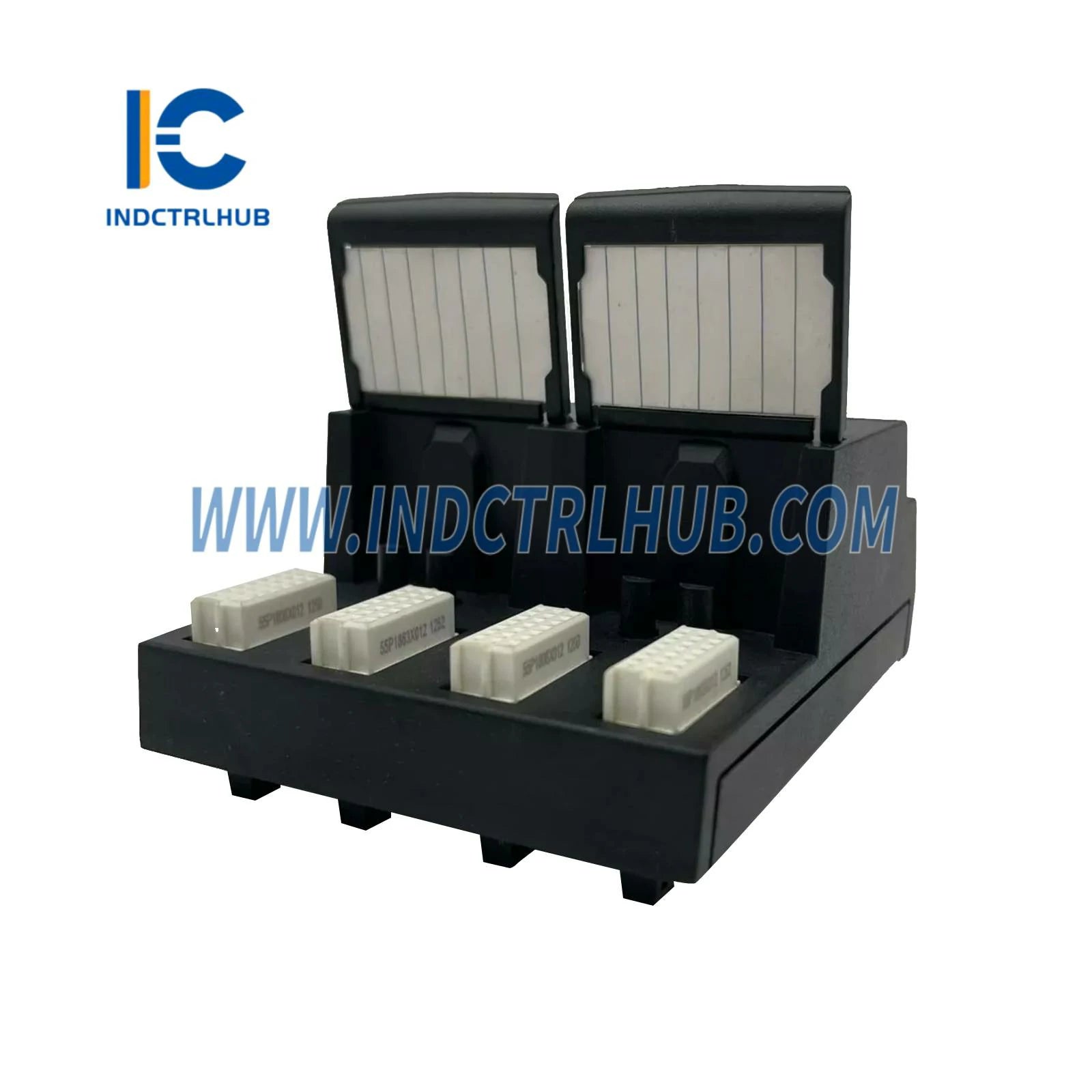

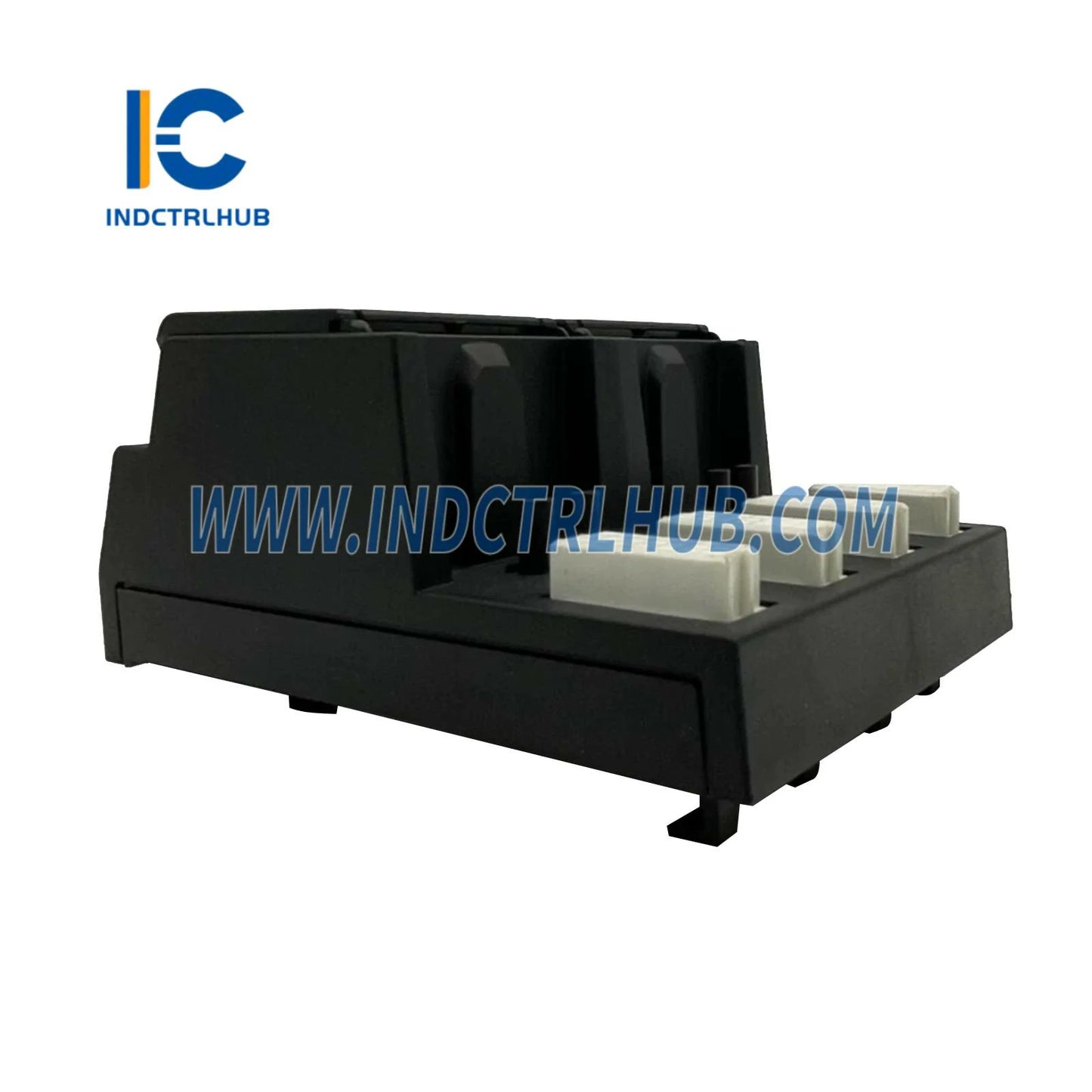

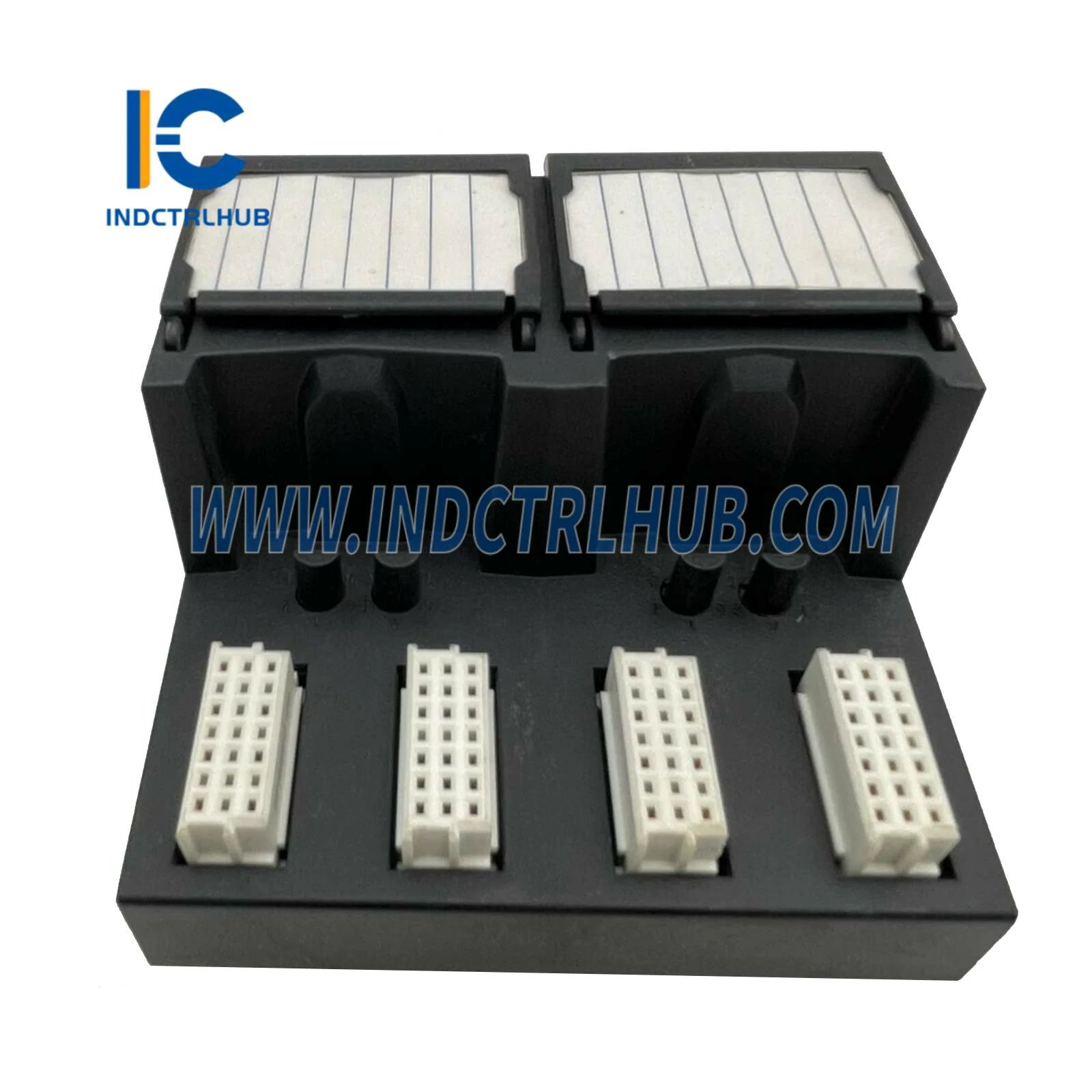

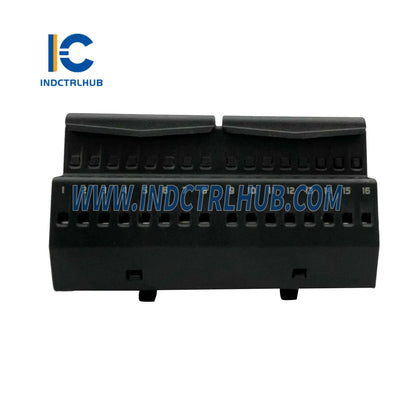

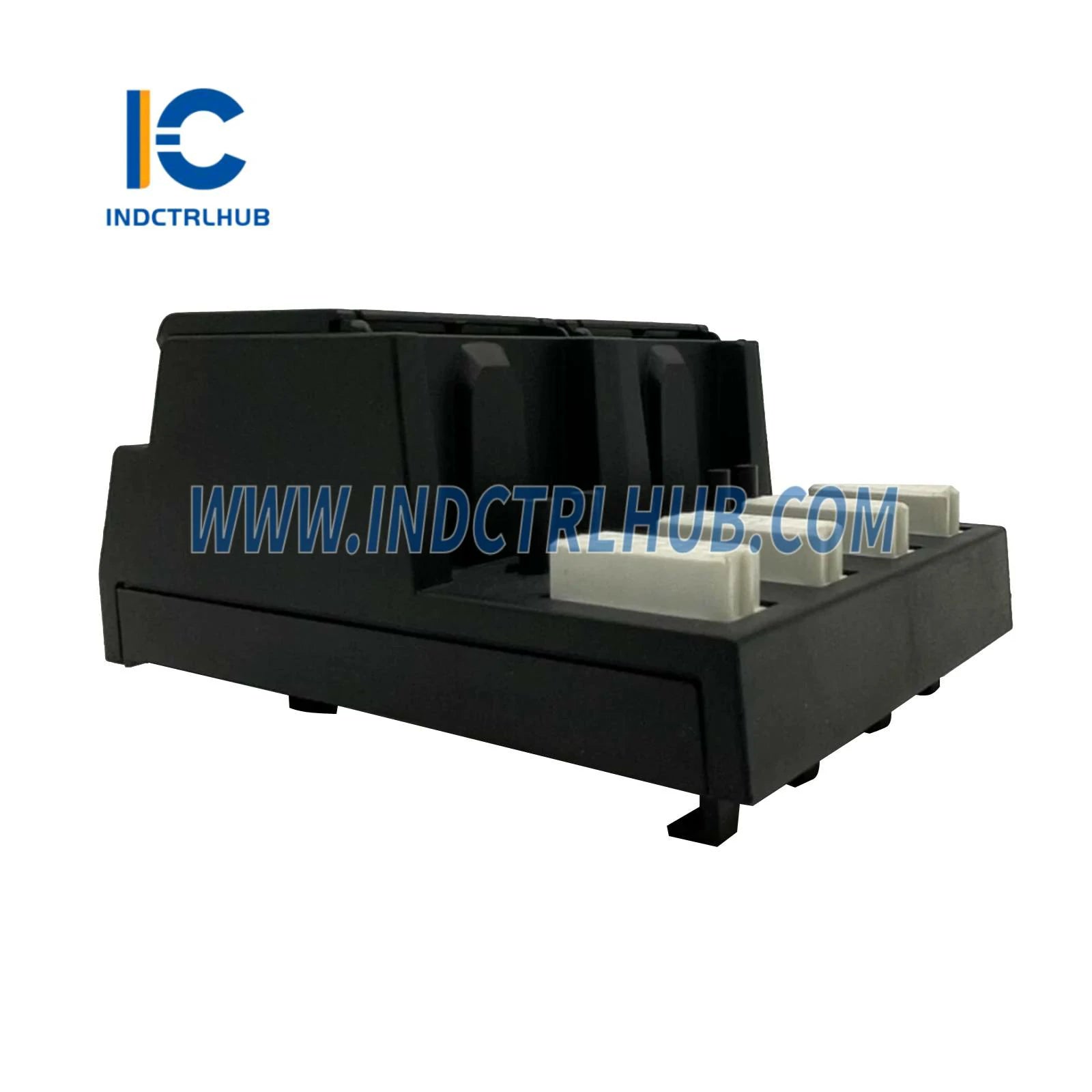

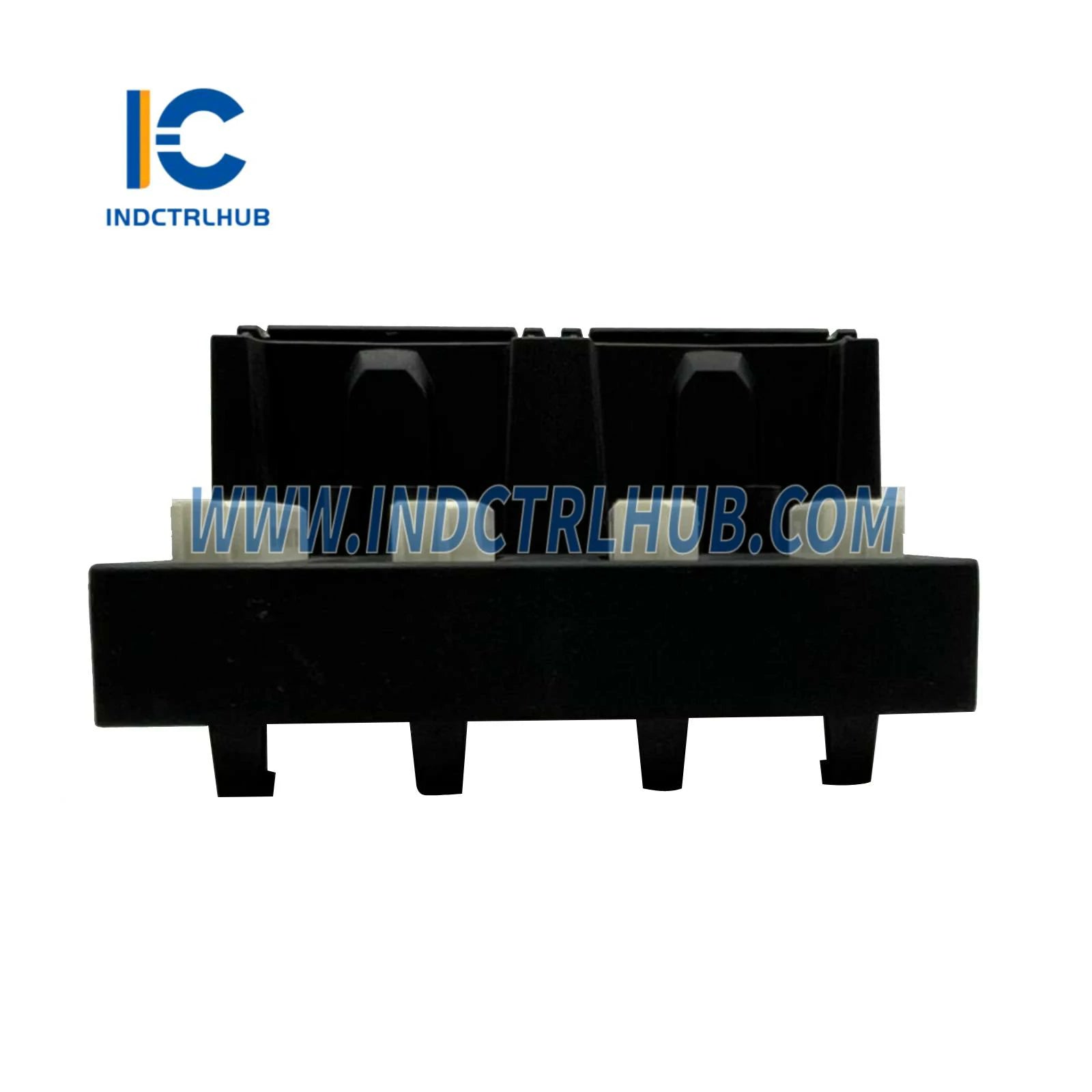

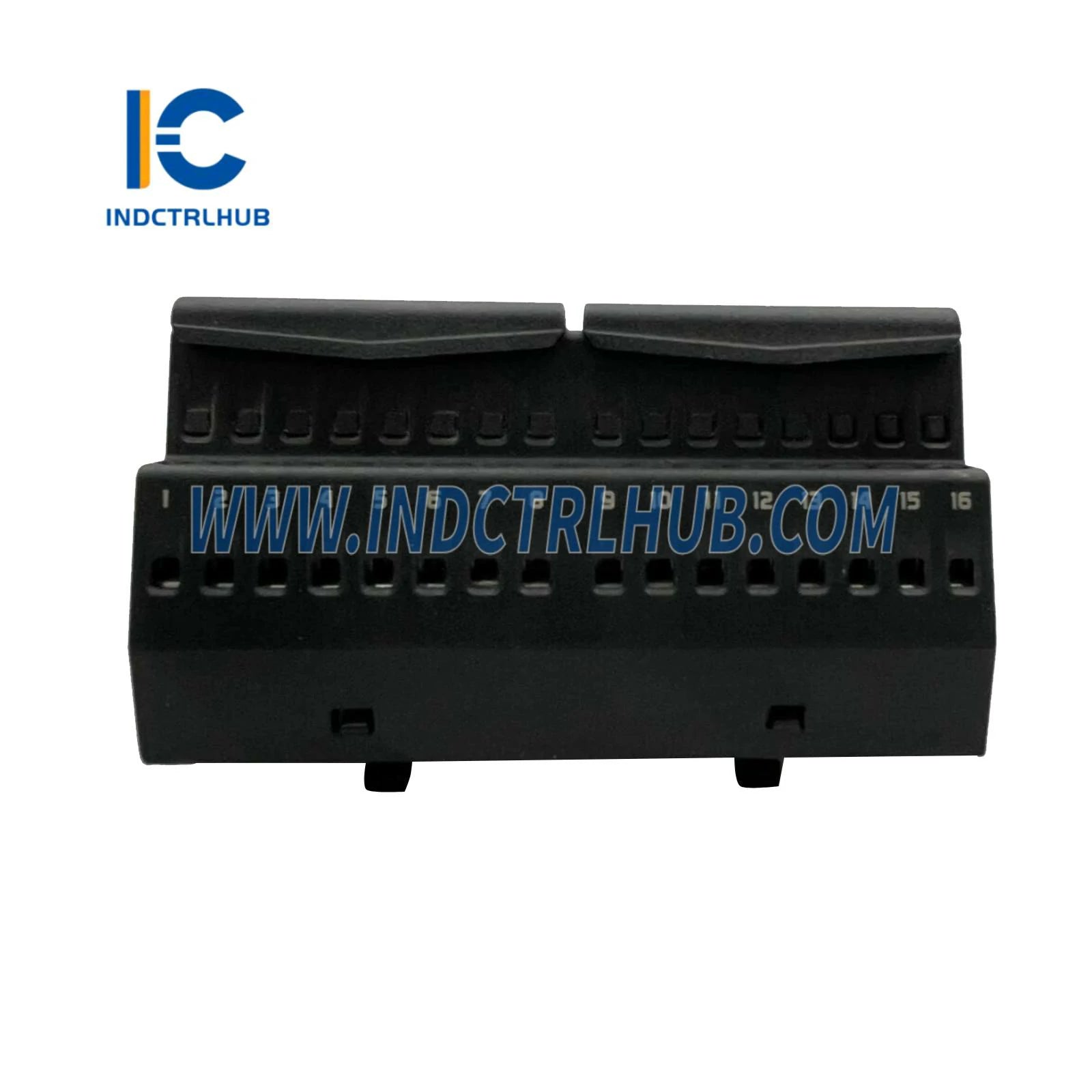

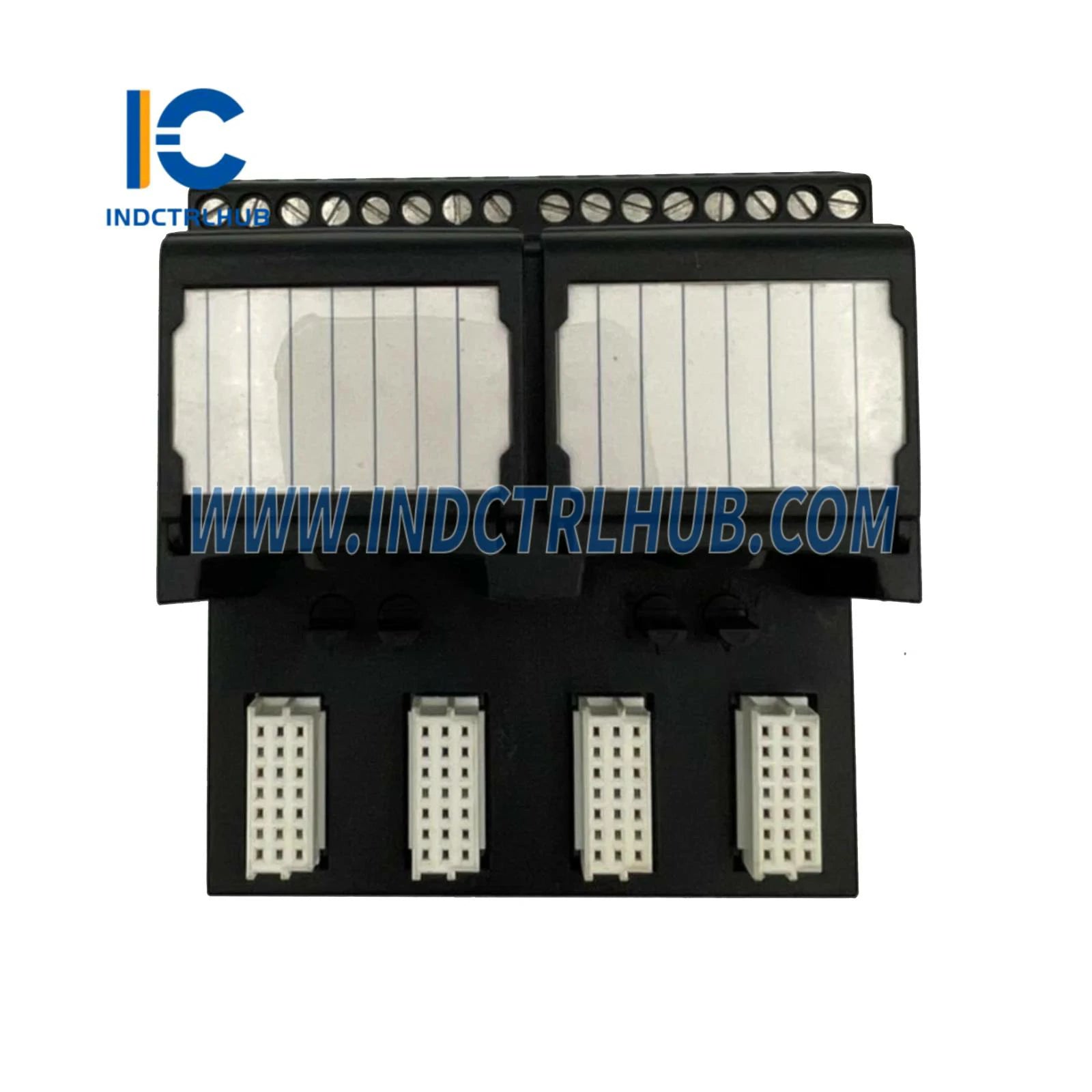

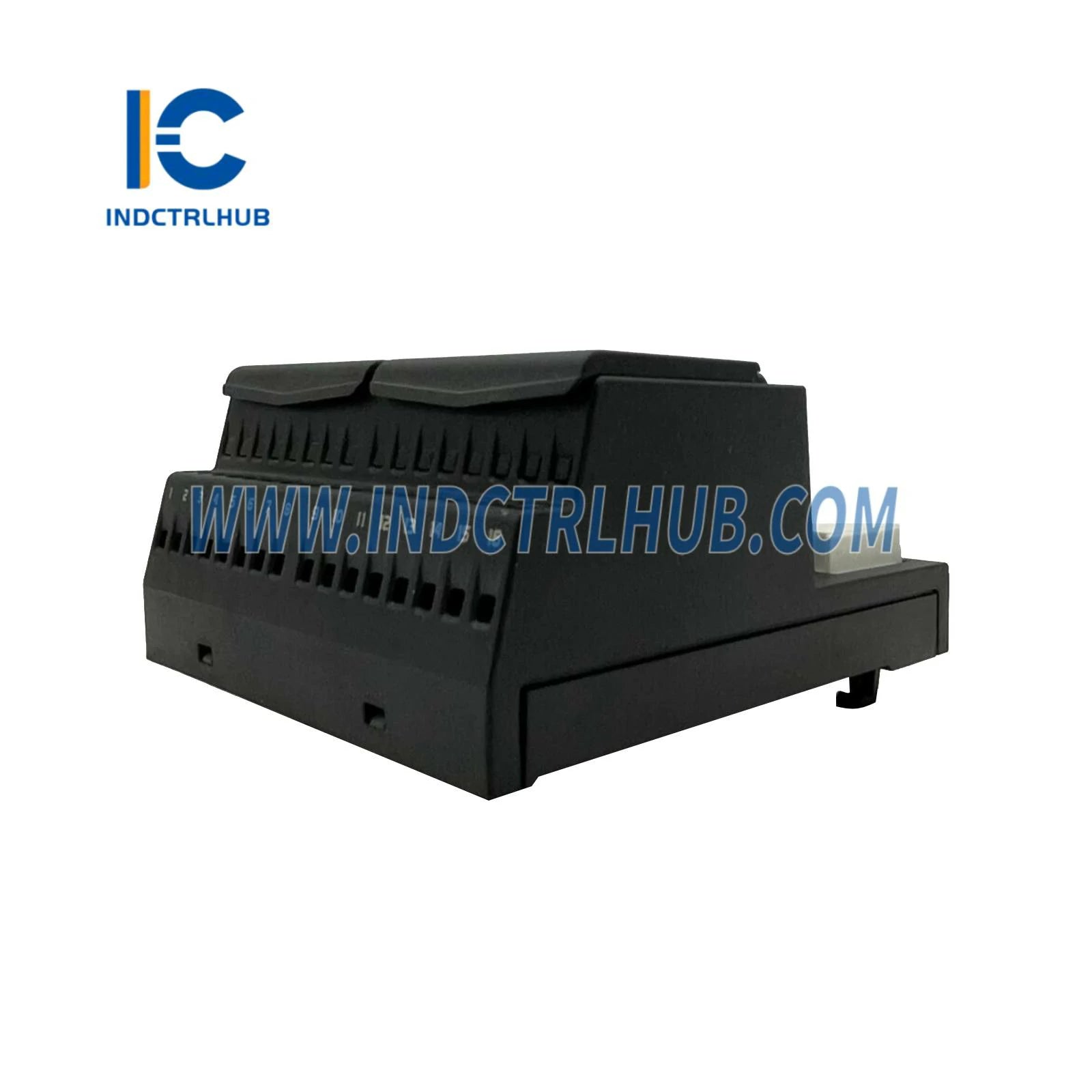

Emerson KJ4006X1-BK1 Redundant Interface Terminal Block

Emerson KJ4006X1-BK1 Redundant Interface Terminal Block - High-Availability I/O for DeltaV Systems

The Emerson KJ4006X1-BK1 (12P4725X022) Redundant Interface Terminal Block provides mission-critical field wiring connectivity for DeltaV redundant I/O systems, ensuring continuous process control operation even during controller or I/O card failures. Engineered for high-availability applications in oil & gas, chemical, pharmaceutical, and power generation facilities, this terminal block enables seamless failover between redundant I/O channels without process interruption or data loss.

Core Technical Specifications

• Part Numbers: KJ4006X1-BK1, 12P4725X022 (interchangeable designations)
• Function: Redundant interface terminal block for DeltaV S-series I/O cards
• Field Power: 35VDC at 1A maximum for field device excitation
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Terminal Block Keying: Automatically set according to installed I/O card type
• Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating
• System Compatibility: DeltaV S-series redundant I/O subsystems

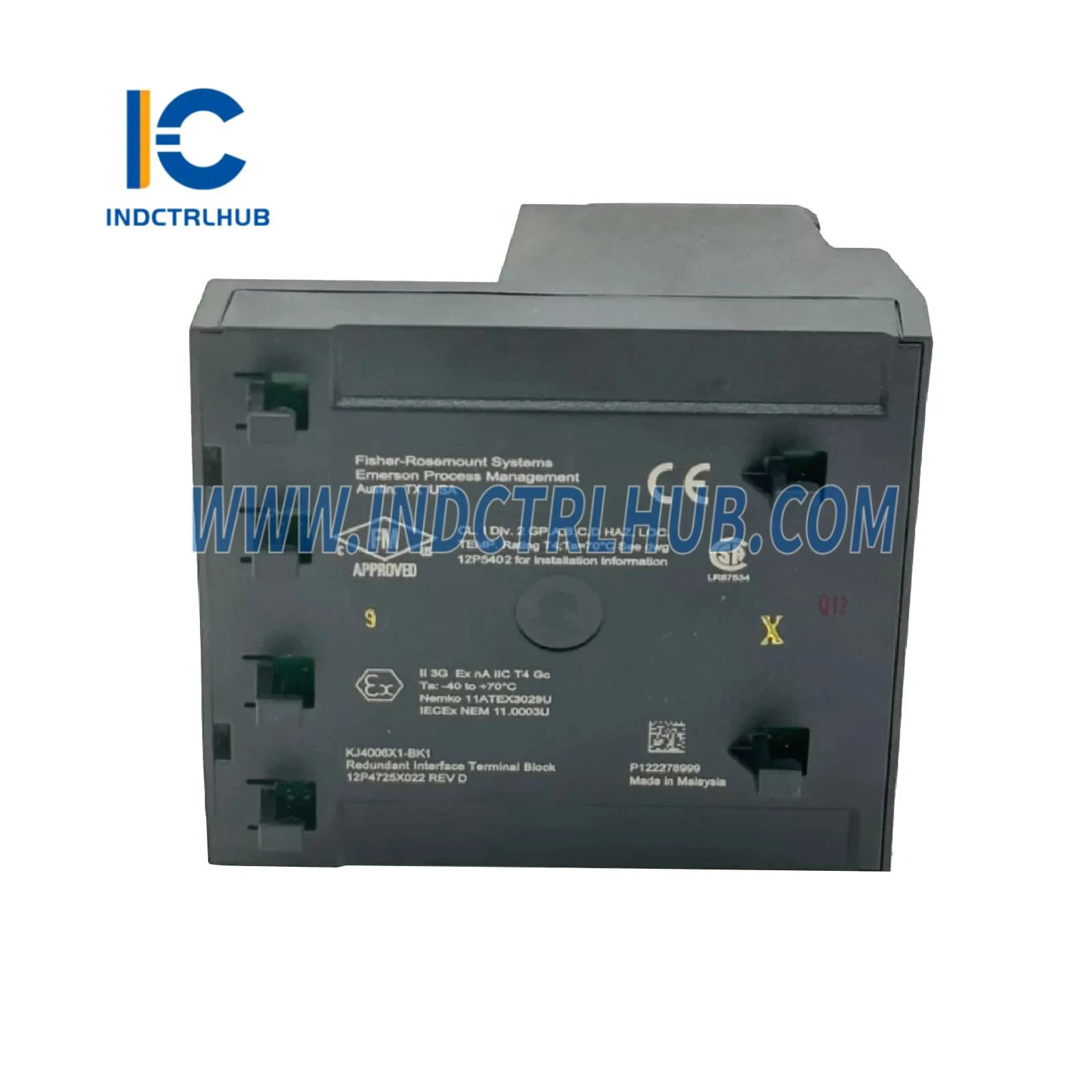

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations per Document 12P5404
• IECEx International: Compliant with global hazardous area standards
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Redundant I/O Architecture Benefits

Zero-Downtime Maintenance: Redundant terminal blocks enable hot-swapping of I/O cards without interrupting field signals or process control loops. Maintenance technicians can replace failed cards, perform firmware upgrades, or conduct preventive maintenance during normal plant operations without scheduling costly production shutdowns.

Automatic Failover Protection: When a primary I/O card fails, the redundant partner seamlessly assumes control within milliseconds, maintaining continuous signal acquisition and output control. The DeltaV controller automatically switches to the backup channel without operator intervention, preventing process upsets, safety system trips, or product quality deviations.

Enhanced System Availability: Dual-channel redundancy eliminates single points of failure in critical control loops for emergency shutdown systems, burner management, compressor anti-surge control, and reactor temperature regulation. This architecture achieves 99.99%+ availability required for continuous process industries operating 24/7/365.

Diagnostic Visibility: Built-in health monitoring continuously compares signals from both redundant channels, detecting sensor drift, wiring faults, or card degradation before failures occur. Predictive diagnostics enable condition-based maintenance strategies that reduce spare parts inventory and extend equipment lifecycle.

Industrial Process Applications

Emergency Shutdown Systems (ESD): Interface redundant pressure transmitters, flame detectors, and valve position switches in safety instrumented systems (SIS) for refineries, offshore platforms, and LNG terminals. Redundant I/O ensures fail-safe operation during critical shutdown sequences where single-channel failures could compromise personnel safety or environmental protection.

Compressor Anti-Surge Control: Connect redundant flow, pressure, and temperature transmitters for centrifugal compressor protection systems. Dual-channel measurement prevents false trips that cause production losses while maintaining surge protection integrity during sensor or I/O card failures.

Burner Management Systems (BMS): Monitor redundant flame scanners, fuel valve positions, and air flow measurements in boiler and furnace control applications. Redundant architecture meets NFPA 85 and IEC 61508 safety requirements for combustion control systems in power plants and process heaters.

Reactor Temperature Control: Acquire signals from redundant thermocouples and RTDs in exothermic chemical reactors where temperature excursions can trigger runaway reactions. Continuous measurement availability prevents batch losses and ensures product quality consistency in pharmaceutical and specialty chemical manufacturing.

Pipeline Custody Transfer: Interface redundant Coriolis flowmeters and densitometers for fiscal measurement applications requiring auditable accuracy and zero data gaps. Redundant I/O maintains measurement integrity during card maintenance while satisfying API MPMS and ISO 5167 custody transfer standards.

Rotary Keying System

Intelligent mechanical coding prevents installation errors:

• Automatic Configuration: Terminal block key position automatically adjusts to match the installed I/O card type (analog input, analog output, digital input, digital output)
• Error Prevention: Mechanical keying physically prevents insertion of incompatible I/O cards, eliminating wiring errors and configuration mistakes during installation or maintenance
• Visual Verification: Color-coded key positions provide instant visual confirmation of correct terminal block/I/O card pairing during commissioning and troubleshooting
• Field Flexibility: Keying system allows terminal block reuse when changing I/O card types, reducing spare parts inventory and lifecycle costs

Installation & Maintenance Guidelines

Critical safety and operational requirements:

Hot-Swap Capability: Terminal blocks can be installed or removed with system power ON only when NO I/O card is installed AND NO field wiring is connected. This feature enables pre-wiring of terminal blocks in marshalling cabinets before I/O card installation, reducing commissioning time.

Hazardous Area Installation: Refer to Document 12P5404 "DeltaV S-Series Digital Automation System Zone 2 Installation Instructions" for classified location requirements. Additional installation details are provided in the "DeltaV S-Series and CHARMs Hardware Installation" manual.

No User-Serviceable Parts: Terminal blocks are factory-calibrated sealed assemblies with no internal adjustments or replaceable components. Units should not be disassembled, and no field calibration is required throughout their operational lifetime.

Environmental Specifications

Redundant I/O System Architecture

The KJ4006X1-BK1 terminal block integrates into DeltaV redundant I/O configurations:

• Dual I/O Cards: Supports two identical I/O cards (primary and backup) in redundant carrier assemblies
• Common Field Wiring: Single set of field wires connects to both redundant channels through the terminal block
• Automatic Switchover: DeltaV controller selects active channel based on card health status and signal quality
• Bumpless Transfer: Failover occurs without output glitches or measurement discontinuities
• Synchronized Operation: Both channels track process simultaneously for instant backup readiness

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV automation components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert DCS technical support from certified automation engineers
• ✓ Extensive inventory of current production and legacy DeltaV spare parts
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, wiring diagrams, and installation assistance

Complementary DeltaV Redundant I/O Components

Ordering Information & System Components

• KJ4006X1-BK1 / 12P4725X022: Redundant Interface Terminal Block (this product)
• Compatible I/O Cards: DeltaV S-series redundant analog and digital I/O modules
• Carrier Assemblies: VE4050 series 8-wide I/O interface carriers
• Installation Documentation: Document 12P5404 (Zone 2 Installation Instructions)

Technical Documentation & Support

Complete installation manuals including Document 12P5404 "DeltaV S-Series Digital Automation System Zone 2 Installation Instructions" and "DeltaV S-Series and CHARMs Hardware Installation" manual available upon request. Our application engineering team provides redundant I/O system design consultation, failover testing procedures, and troubleshooting assistance for high-availability DeltaV implementations.
