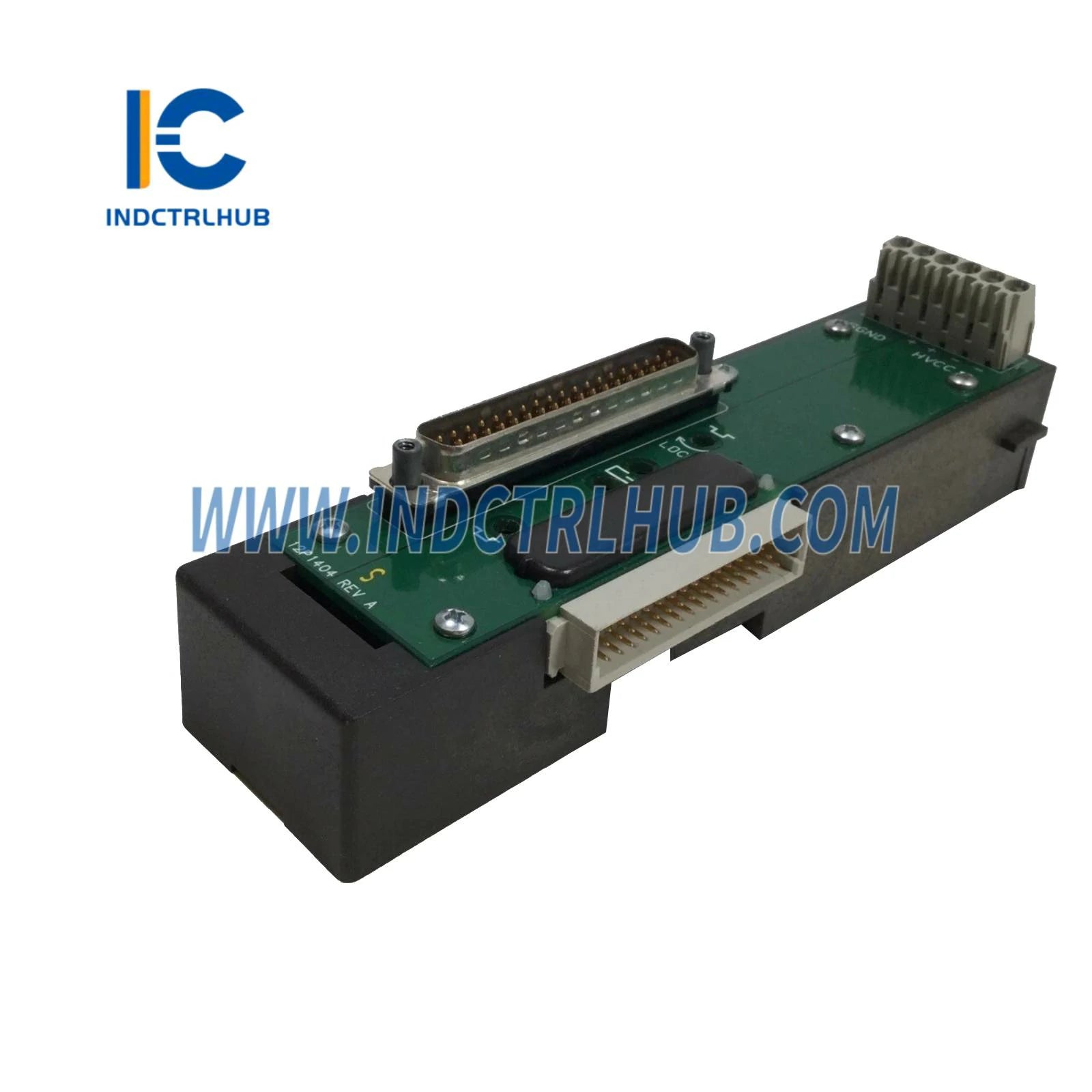

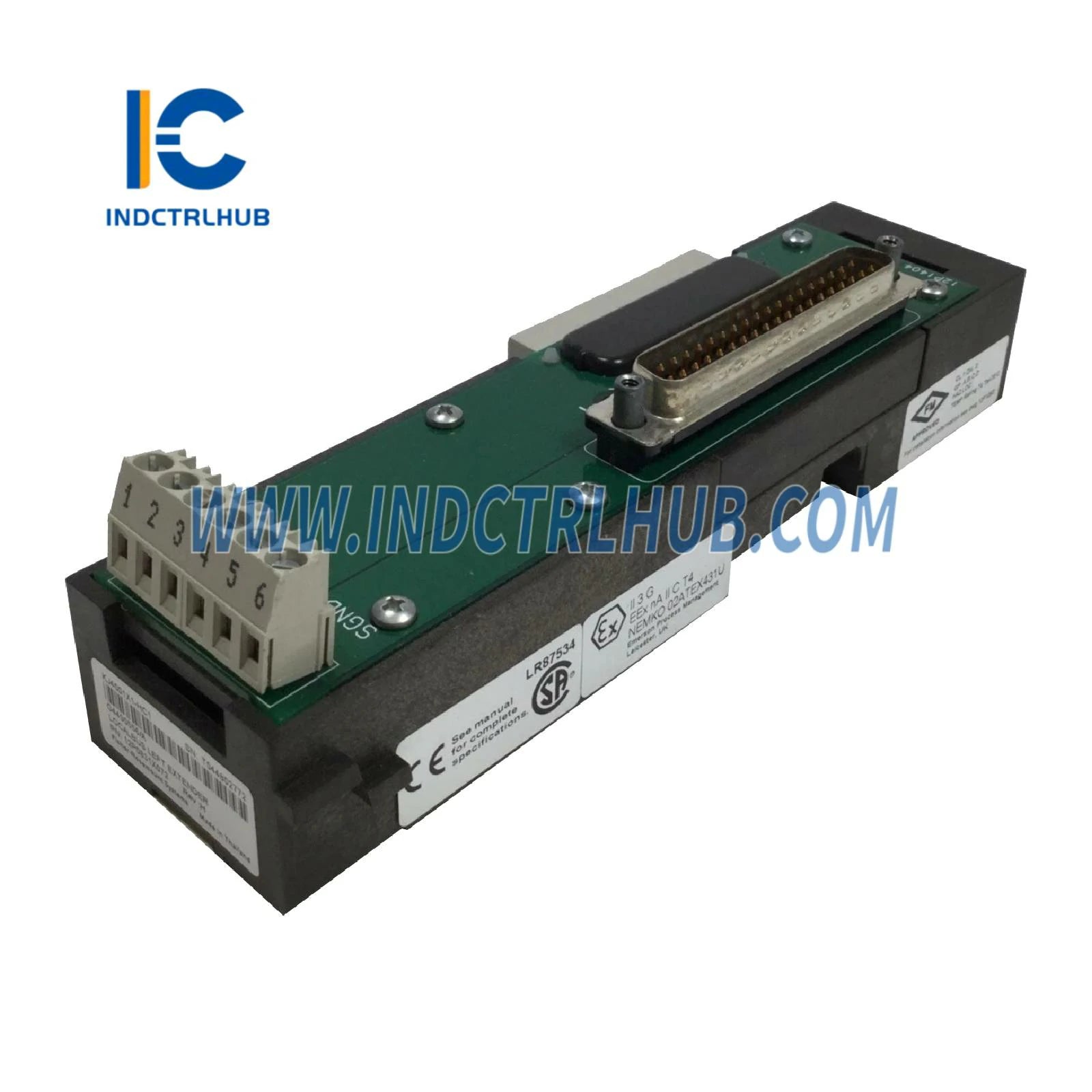

Emerson KJ4001X1-HC1 LocalBus Left Extender

Emerson KJ4001X1-HC1 LocalBus Left Extender - Single-Carrier DeltaV I/O Expansion Cable

The Emerson KJ4001X1-HC1 LocalBus Left Extender provides reliable single-carrier connectivity for DeltaV distributed control system I/O expansion. This left-side extender cable enables horizontal I/O carrier placement to the left of the controller or previous carrier, supporting 12VDC at 8A for dependable power and communication distribution across oil & gas, chemical, pharmaceutical, and power generation facilities requiring flexible cabinet layouts.

Core Technical Specifications

• Model Number: KJ4001X1-HC1
• Configuration: Single left-side extender for one I/O carrier connection
• LocalBus Power: 12VDC at 8A maximum current capacity
• Connector Type: Single left-side connector for linear topology
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Maximum System Length: 6.5 meters combined (I/O carriers + LocalBus extenders)
• Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating
• System Compatibility: DeltaV M-series and S-series controllers with I/O carriers

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations
• IECEx International: Compliant with global hazardous area standards per Document 12P2046
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Industrial System Architecture Applications

Linear I/O Carrier Chains: Create sequential left-to-right I/O carrier arrangements within control cabinets and marshalling panels. The single left extender enables daisy-chain topology where each carrier connects to the next carrier positioned to its left, maintaining organized cable routing and simplifying troubleshooting by providing clear signal flow direction from controller to field terminations.

Asymmetric Cabinet Layouts: Accommodate control room designs where I/O carriers must be positioned predominantly on one side of the controller due to existing infrastructure constraints, cable tray locations, or field wiring entry points. The left extender allows flexible cabinet organization without requiring symmetric left-right carrier distribution.

Phased System Expansions: Support incremental DCS capacity additions during plant turnarounds or capacity expansion projects. Add new I/O carriers to the left of existing installations without disrupting operational carriers, minimizing commissioning downtime and reducing project risk by enabling staged cutover strategies.

Process Unit Segregation: Organize I/O carriers by process area or equipment group within centralized control rooms. Position carriers handling reactor instrumentation to the left of separation unit carriers, maintaining logical field termination groupings that align with process flow diagrams and simplify operator training.

Refinery Control Building Installations: Enable horizontal cabinet expansion in refinery control buildings where vertical space is limited by low ceiling heights or overhead cable tray congestion. The single left extender provides clean, organized cable routing that facilitates future modifications and reduces installation labor costs.

Single Left Extender Architecture Advantages

Critical benefits for streamlined DeltaV I/O system design:

• Linear Topology: Simple daisy-chain architecture simplifies system documentation and troubleshooting
• Directional Signal Flow: Clear left-to-right or right-to-left signal path aids fault isolation
• Reduced Cable Count: Single connector minimizes cabinet wiring complexity compared to dual extenders
• Flexible Positioning: Accommodates asymmetric cabinet layouts and space constraints
• Cost-Effective Expansion: Lower cost than dual extenders for single-carrier connections

Installation Requirements & Best Practices

Critical guidelines for reliable LocalBus operation:

Maximum System Length: The combined length of all I/O carriers and LocalBus extender cables must not exceed 6.5 meters. This includes the physical dimensions of carriers plus the length of all extender cables in the LocalBus chain. Measure actual carrier widths and cable lengths before installation to verify compliance with this critical limit.

Power Budget Management: Calculate total I/O module power consumption to ensure it remains within the 12VDC at 8A LocalBus capacity. Each I/O module datasheet specifies current draw; sum all modules across all carriers in the LocalBus chain to verify total load does not exceed 8A. Reserve 20-30% margin for future expansion.

Non-Hot-Swappable: The KJ4001X1-HC1 is NOT hot-swappable. System power MUST be completely de-energized before cable removal or insertion. Attempting to connect or disconnect the extender while powered can cause LocalBus communication failures, I/O module damage, or electrical hazards in classified areas.

Conduit Protection: All interconnecting cables between separate enclosures MUST be installed in conduit for mechanical protection and EMC compliance. Use rigid or flexible conduit rated for the area classification and environmental conditions. Conduit provides protection against physical damage, rodent intrusion, and electromagnetic interference.

Grounding & Shielding: Maintain proper cabinet grounding and LocalBus shield continuity throughout the cable chain. Connect cabinet ground bus to building ground per NEC/IEC requirements. Improper grounding introduces ground loops, common mode noise, and communication errors that can cause intermittent I/O failures.

Hazardous Area Installation Requirements

Critical safety guidelines for classified locations:

• Installation Documentation: Refer to Document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions" and "DeltaV M-Series Hardware Installation and Reference" manual
• Power-Down Requirement: System MUST be powered down before cable installation or removal - no exceptions for hazardous areas
• Energy Isolation: Disconnect LocalBus power, verify zero energy state with multimeter, and apply lockout/tagout before cable work
• Conduit Requirements: Inter-enclosure cables require rigid or flexible conduit rated for Zone 2/Div 2 applications
• Hot Work Permits: Obtain appropriate permits and perform gas testing before cable installation in classified areas

Environmental Specifications

LocalBus Extender Cable Selection Guide

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV automation components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert DCS technical support from certified automation engineers
• ✓ Extensive inventory of current production and legacy DeltaV interconnect cables
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, installation drawings, and system design assistance

Complementary DeltaV LocalBus Components

Ordering Information & System Planning

• KJ4001X1-HC1: LocalBus Left Extender (this product)
• System Planning: Calculate total carrier dimensions + cable lengths to ensure ≤6.5m total system length
• Power Budget: Verify total I/O module consumption remains within 12VDC @ 8A LocalBus capacity
• Cable Management: Plan cable routing to minimize electromagnetic interference from VFDs and power cables

Technical Documentation & Support

Complete installation manuals including Document 12P2046 (Zone 2 Installation Instructions) and "DeltaV M-Series Hardware Installation and Reference" available upon request. Our application engineering team provides system architecture consultation, LocalBus topology design, power budget analysis, and cabinet layout optimization for DeltaV I/O expansions.

Maintenance & Service Life

• No User-Serviceable Parts: Factory-assembled cable with sealed connectors requires no field maintenance
• No Calibration Required: Digital communication protocol eliminates drift and calibration requirements
• Do Not Disassemble: Connector disassembly voids warranty and may compromise signal integrity
• Replacement Criteria: Replace if physical damage, connector wear, or communication errors occur
• Spare Parts Strategy: Maintain spare extender cables for critical applications to minimize downtime
