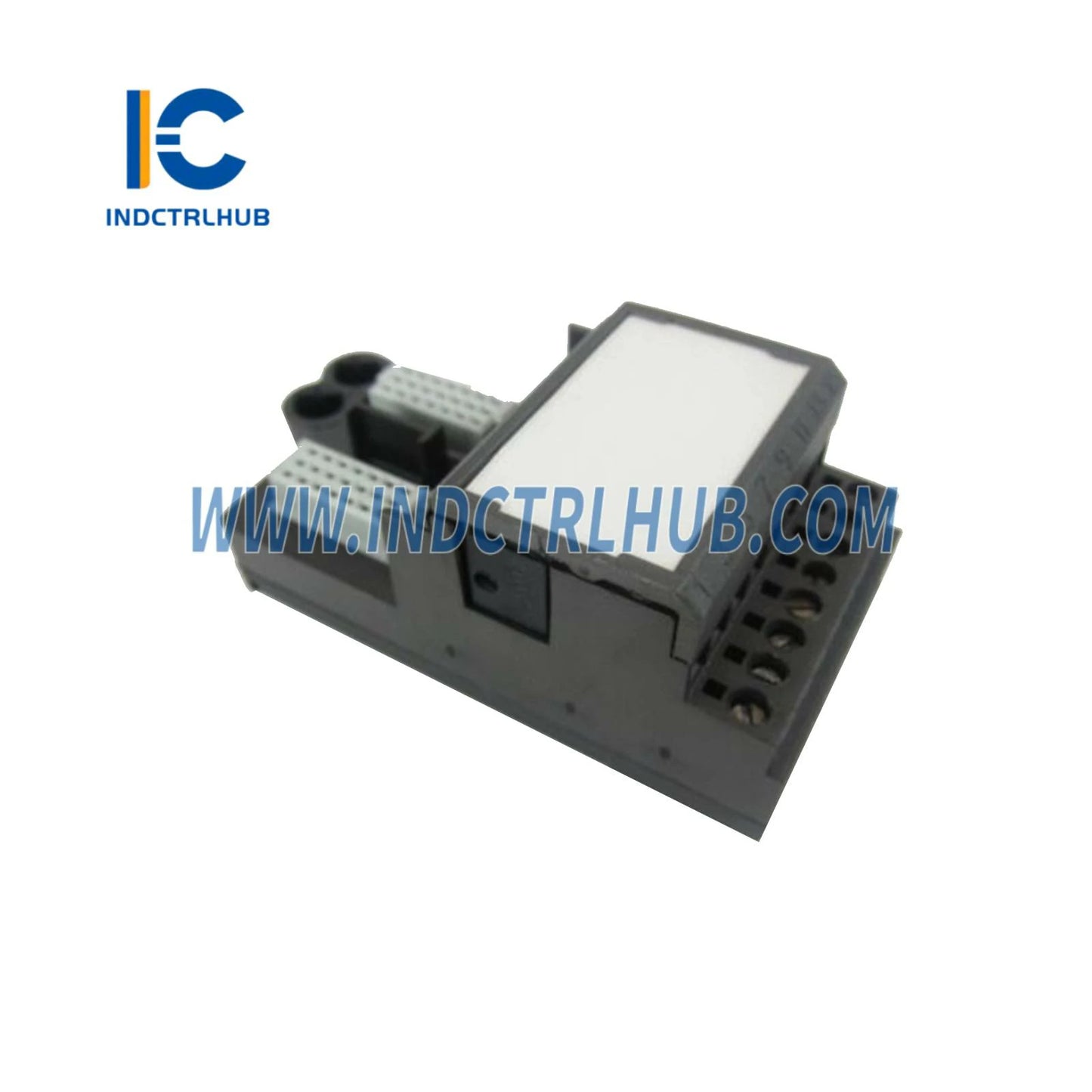

Emerson KJ4001X1-CF1 Mass Terminal Block 24-Pin

Emerson KJ4001X1-CF1 Mass Terminal Block 24-Pin - Streamlined Field Wiring for DeltaV I/O Systems

The Emerson KJ4001X1-CF1 Mass Terminal Block 24-Pin provides efficient field wiring termination for DeltaV distributed control system I/O cards. This mass termination solution consolidates 24 individual wire connections into a single plug-in assembly, dramatically reducing installation time and minimizing wiring errors in oil & gas, chemical, pharmaceutical, and power generation facilities requiring high-density I/O connectivity.

Core Technical Specifications

• Model Number: KJ4001X1-CF1
• Pin Configuration: 24-pin mass termination connector
• Input Power Rating: 30VDC @ 1A per cable connection
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Shock Resistance: 10g half-sine wave for 11ms
• Vibration Tolerance: 1mm peak-to-peak (2-13.2 Hz); 0.7g (13.2-150 Hz)
• Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating
• System Compatibility: DeltaV M-series and S-series I/O cards

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations
• IECEx International: Compliant with global hazardous area standards per Document 12P2046
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Industrial Field Wiring Applications

High-Density I/O Marshalling: Simplify field wiring termination in control cabinets and marshalling panels where dozens or hundreds of I/O points require connection to DeltaV I/O cards. The 24-pin mass termination design allows a single plug-in connection to replace 24 individual screw terminal connections, reducing installation time by up to 70% compared to traditional terminal strip wiring methods.

Refinery Control Room Installations: Accelerate commissioning schedules for large-scale DCS installations in refineries, petrochemical plants, and gas processing facilities. Pre-wire field cables to mass terminal blocks in the shop or field, then quickly connect to I/O cards during system integration, minimizing control room downtime and enabling parallel installation activities.

Offshore Platform Retrofits: Enable rapid I/O card replacement during platform turnarounds or equipment upgrades. The plug-in mass termination design allows technicians to swap failed I/O cards without disturbing field wiring, reducing mean time to repair (MTTR) and minimizing production downtime in offshore oil & gas operations where maintenance windows are limited by weather and logistics.

Pharmaceutical Clean Room Installations: Maintain clean room integrity during DCS installations and modifications. Mass terminal blocks allow field wiring to be completed outside the clean room, then quickly connected to I/O cards during controlled installation windows, minimizing particulate generation and reducing validation requirements for GMP-compliant facilities.

Power Plant Distributed Control: Support large-scale DCS installations in coal, gas, nuclear, and renewable power generation facilities where thousands of I/O points require connection to distributed I/O cabinets. The mass termination approach reduces labor costs, improves wiring quality, and simplifies troubleshooting by providing clear one-to-one cable-to-card relationships.

Mass Termination Architecture Advantages

Critical benefits for efficient DeltaV I/O system installation:

• Reduced Installation Time: Single plug-in connection replaces 24 individual wire terminations, cutting installation labor by 60-70%
• Improved Wiring Quality: Factory-assembled connectors eliminate field termination errors and ensure consistent connection quality
• Simplified Troubleshooting: Clear cable-to-card mapping simplifies fault isolation and reduces diagnostic time
• Hot-Swap Capability: Replace I/O cards without disturbing field wiring (when system is de-energized per safety requirements)
• Reduced Cabinet Space: Compact mass termination design requires less cabinet depth than traditional terminal strip installations

Installation Requirements & Best Practices

Critical guidelines for reliable mass termination operation:

De-Energized Installation: Mass terminal blocks MUST be installed and removed only when system power is de-energized. Unlike some DeltaV components, mass terminal blocks are NOT hot-swappable and require complete power isolation before connection or disconnection to prevent electrical arcing, component damage, or personnel injury.

Connector Alignment: Ensure proper alignment of the 24-pin connector with the I/O card receptacle before applying insertion force. Misalignment can bend pins, damage connectors, or create intermittent connections that are difficult to diagnose. Use alignment guides and verify visual alignment before fully seating the connector.

Cable Strain Relief: Provide adequate strain relief for field cables connected to mass terminal blocks to prevent mechanical stress on wire terminations. Use cable ties, cable clamps, or cable management channels to secure cables within 6 inches of the terminal block, preventing vibration-induced wire fatigue or connector loosening.

Wire Gauge Compatibility: Verify field wire gauge compatibility with terminal block screw terminals. Using wire gauges outside the specified range can result in poor connections, increased contact resistance, or terminal damage. Consult DeltaV hardware installation manual for approved wire gauge ranges.

Labeling & Documentation: Clearly label each mass terminal block with its associated I/O card designation, cabinet location, and field cable identification. Maintain as-built drawings showing terminal block assignments to simplify future troubleshooting and system modifications.

Hazardous Area Installation Requirements

Critical safety guidelines for classified locations:

• Installation Documentation: Refer to Document 12P2046 "DeltaV CHARMs I/O Subsystem Zone 2 Installation Instructions" and "DeltaV S-Series and CHARMs Hardware Installation" manual
• De-Energized Requirement: System MUST be de-energized before terminal block installation or removal in all areas, hazardous or non-hazardous
• Energy Isolation: Follow lockout/tagout procedures and verify zero energy state before handling terminal blocks
• Grounding Continuity: Verify proper grounding continuity through mass terminal block connections to prevent ground loops or floating grounds

Environmental Specifications

Compatible DeltaV I/O Cards

The KJ4001X1-CF1 24-pin mass terminal block is compatible with various DeltaV I/O card types:

• Analog Input Cards: 16-channel 4-20mA HART, thermocouple/mV, RTD/resistance input cards
• Analog Output Cards: 16-channel 4-20mA HART output cards for valve control and final elements
• Discrete Input Cards: 32-channel 24VDC digital input cards for switch and sensor monitoring
• Discrete Output Cards: 32-channel 24VDC digital output cards for solenoid and relay control

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV automation components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert DCS technical support from certified automation engineers
• ✓ Extensive inventory of current production and legacy DeltaV terminal blocks
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, wiring diagrams, and installation assistance

Complementary DeltaV Terminal Blocks

Ordering Information & System Planning

• KJ4001X1-CF1: Mass Terminal Block 24-Pin (this product)
• Quantity Planning: Order one terminal block per I/O card requiring mass termination
• Spare Parts Strategy: Maintain 10% spare inventory for rapid replacement during maintenance activities
• Cable Assembly: Consider pre-assembled field cables with mating connectors to further reduce installation time

Technical Documentation & Support

Complete installation manuals including Document 12P2046 (Zone 2 Installation Instructions) and "DeltaV S-Series and CHARMs Hardware Installation" manual available upon request. Our application engineering team provides wiring diagram review, terminal block selection guidance, and installation best practices for complex DeltaV I/O systems with mass termination requirements.

Maintenance & Service Life

• No User-Serviceable Parts: Factory-assembled terminal block requires no field maintenance
• No Calibration Required: Passive wiring component eliminates calibration requirements
• Do Not Disassemble: Terminal block disassembly voids warranty and may compromise connection integrity
• Replacement Criteria: Replace if connector pins are bent, damaged, or if intermittent connections occur
• Inspection Frequency: Visually inspect terminal blocks annually for signs of corrosion, overheating, or mechanical damage
