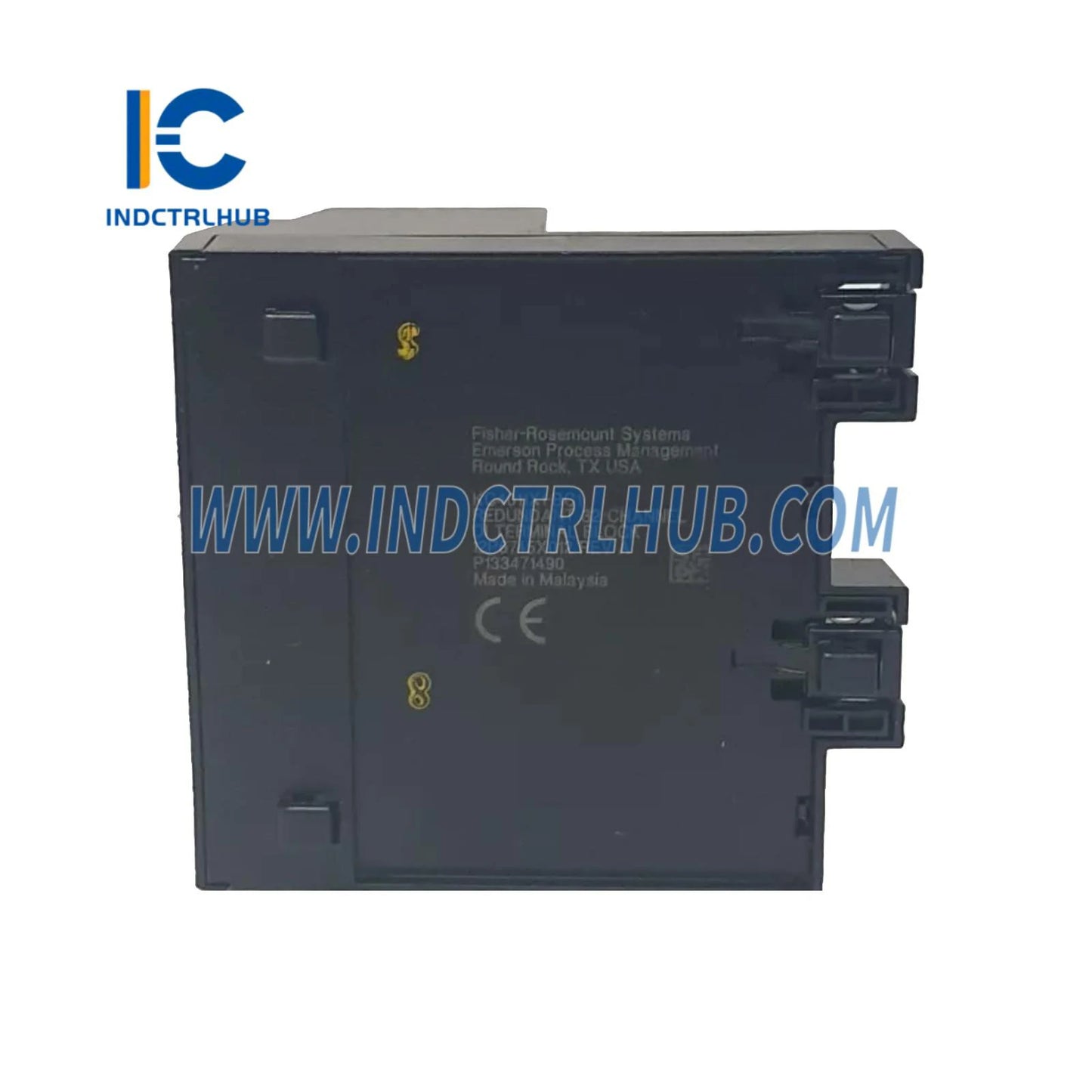

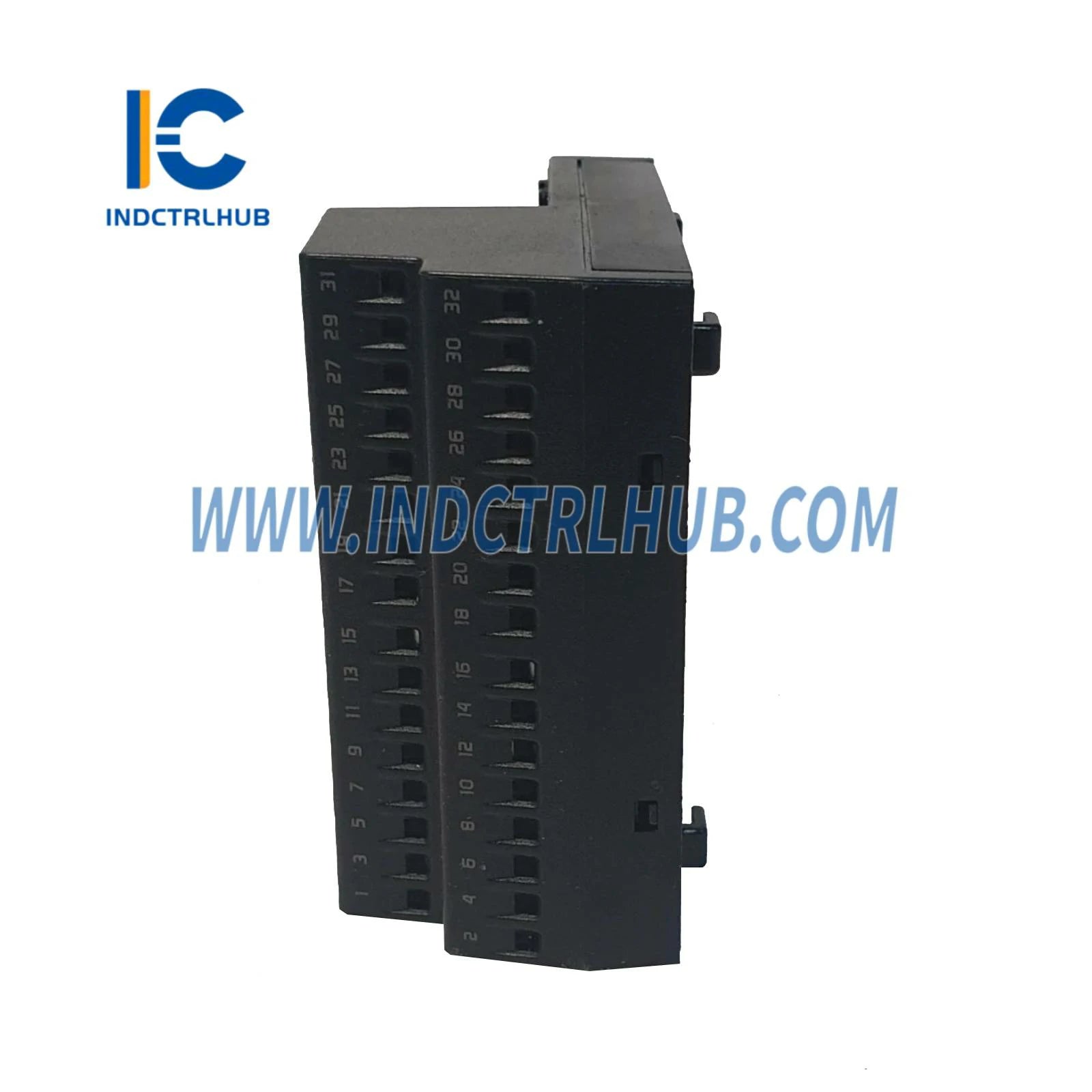

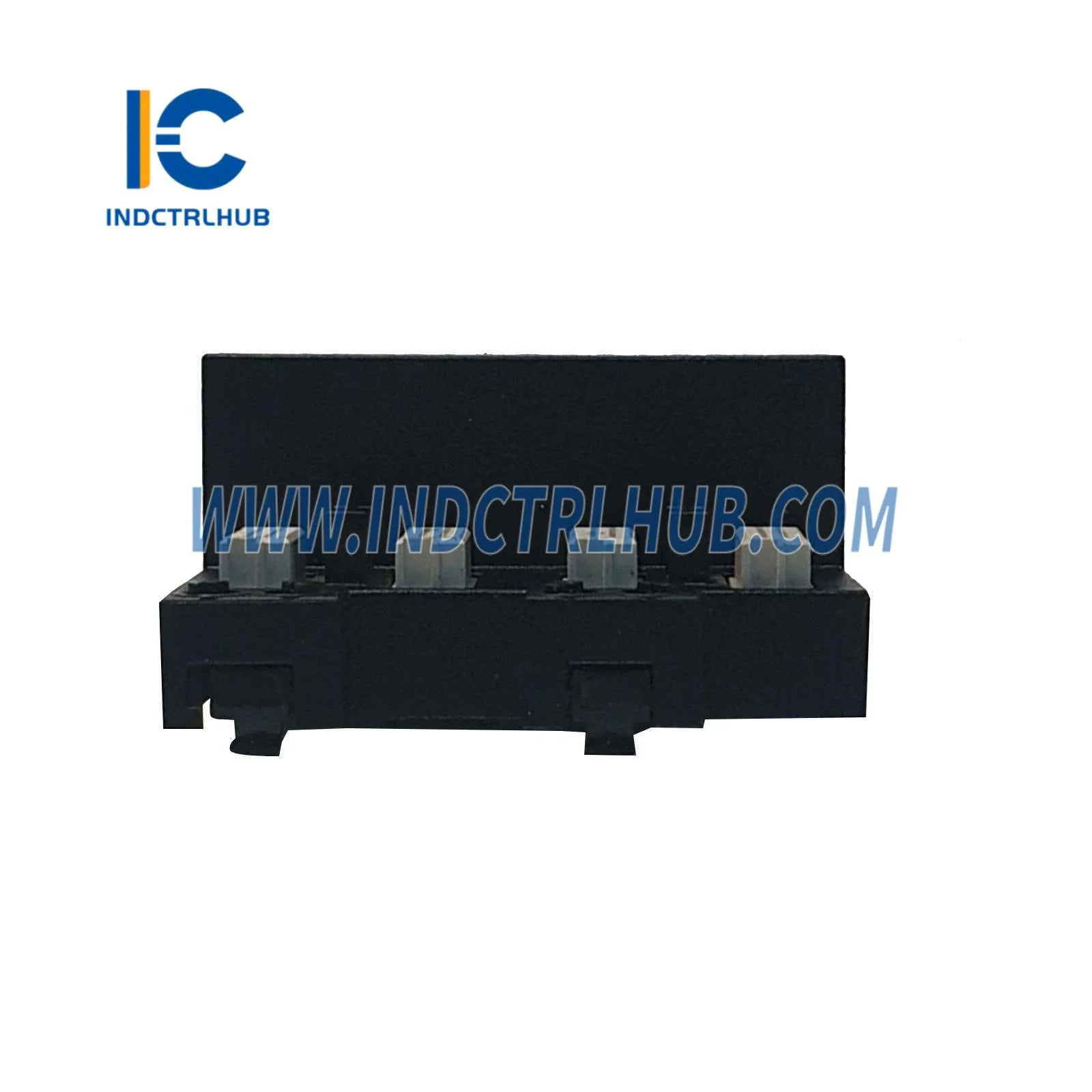

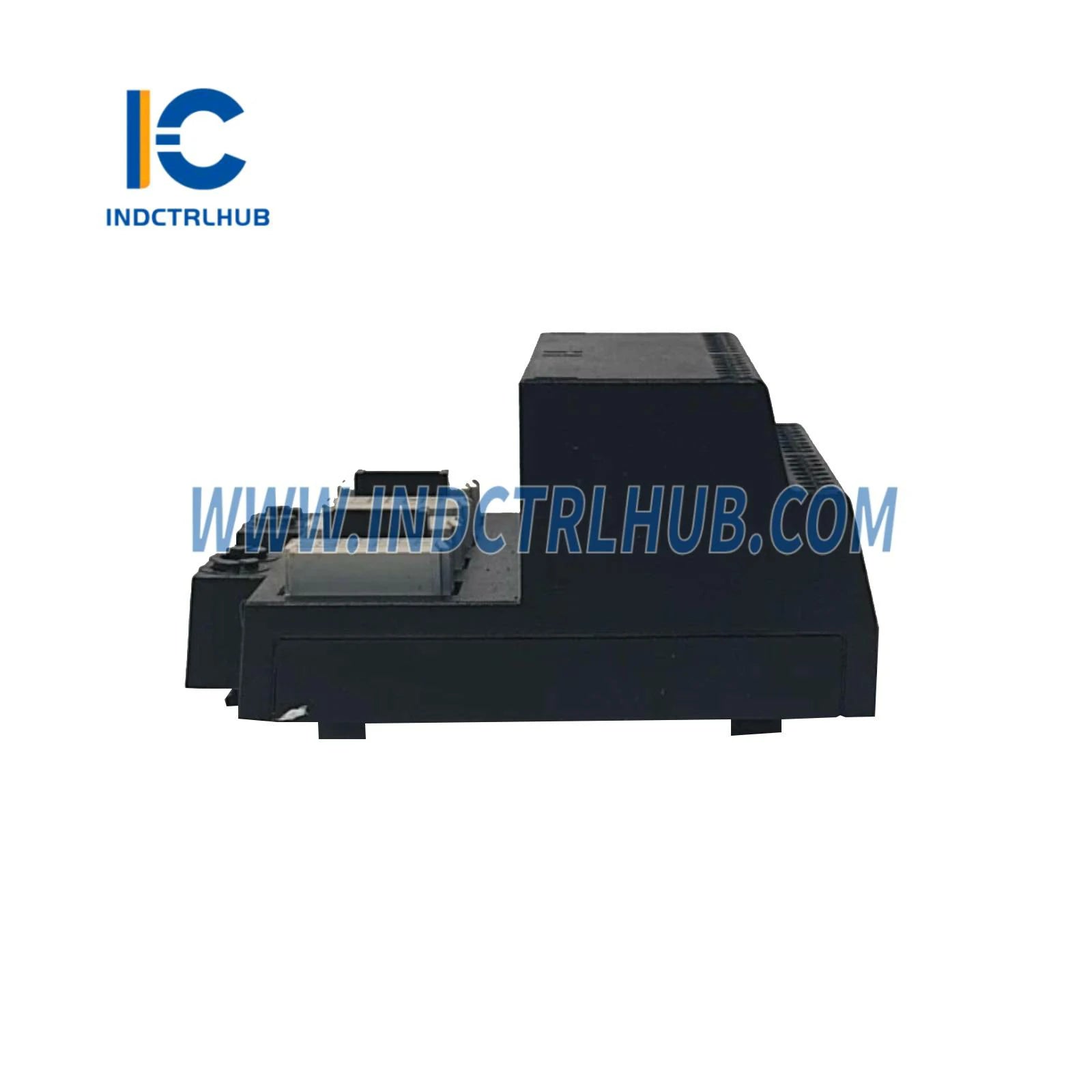

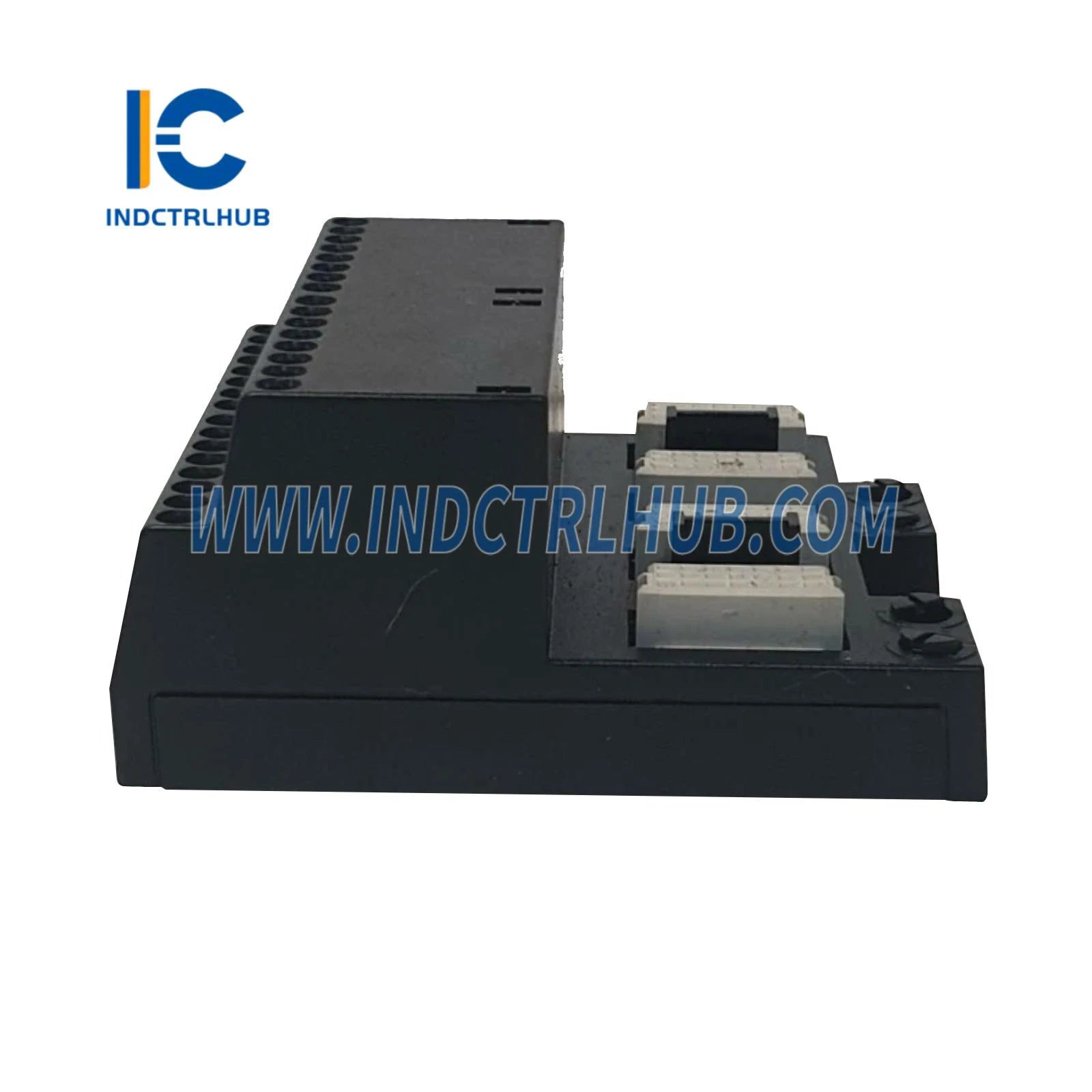

Emerson KC4011X1-BC1 Redundant DI 32-Channel Terminal Block

Quantity

24/7 Support
30-Day Returns
Fast Shipping

Emerson KC4011X1-BC1 Redundant DI 32-Channel Terminal Block - High-Availability Field Wiring Solution for DeltaV

The Emerson KC4011X1-BC1 Redundant DI 32-Channel Terminal Block provides critical field wiring termination for redundant discrete input applications in DeltaV distributed control systems. Designed for high-availability installations requiring fault-tolerant signal acquisition, this terminal block enables dual-channel input monitoring from safety-critical field devices across oil & gas, chemical, pharmaceutical, and power generation facilities where process continuity is paramount.

Core Technical Specifications

Model Number: KC4011X1-BC1
Configuration: Redundant discrete input terminal block, 32 channels
Field Circuit Rating: 30VDC at 5mA per channel (160mA total)
Terminal Block Key: E3 position for proper card compatibility
Operating Temperature: -40°C to +70°C (-40°F to 158°F)
Wiring Capacity: Screw cage terminals for 22-14 AWG field wiring
Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating
System Compatibility: DeltaV redundant I/O cards and controllers

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
ATEX Europe: Zone 2 certified for explosive atmosphere installations per Document 12P2046
IECEx International: Compliant with global hazardous area standards
Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Redundant Input Architecture Applications

Safety Instrumented Systems (SIS): Provide redundant signal acquisition for emergency shutdown (ESD) systems, fire & gas detection, and burner management systems (BMS). The dual-channel architecture enables 1oo2 (one-out-of-two) voting logic where either input channel can trigger protective actions, ensuring fail-safe operation even during single-point failures of field devices, wiring, or I/O cards.

Critical Process Monitoring: Monitor essential process parameters where measurement integrity directly impacts safety, environmental compliance, or product quality. Connect redundant level switches, pressure switches, and temperature switches to dual input channels, allowing the control system to detect and annunciate sensor failures while maintaining process visibility through the healthy channel.

Turbine Control Systems: Interface with redundant flame detectors, vibration monitors, and overspeed trip devices in gas turbine and steam turbine control applications. The KC4011X1-BC1 terminal block supports the high-reliability requirements of power generation facilities where turbine trips result in significant revenue loss and grid stability impacts.

Offshore Platform Safety Systems: Provide fault-tolerant signal acquisition for platform emergency shutdown systems, process shutdown systems (PSD), and fire & gas detection panels. The rugged construction withstands marine environments with 10g shock resistance and vibration tolerance up to 0.7g (13.2-150 Hz), critical for installations subject to wave motion and mechanical vibration.

Pharmaceutical Manufacturing: Support validated control systems requiring redundant measurement of critical process parameters (CPPs) and critical quality attributes (CQAs). The redundant input architecture enables continuous process monitoring during I/O card maintenance, supporting 24/7 production schedules without compromising GMP compliance or batch integrity.

Redundant Input Architecture Advantages

Critical benefits for high-availability process control:

Fault Tolerance: Dual-channel inputs eliminate single points of failure in critical measurement paths
Online Maintenance: Replace failed I/O cards without process shutdown or loss of measurement visibility
Diagnostic Capability: Control system detects and annunciates discrepancies between redundant channels
Improved Uptime: Maintain process control during sensor failures, wiring faults, or I/O card malfunctions
Regulatory Compliance: Meets IEC 61508 and IEC 61511 requirements for safety instrumented systems

Installation Requirements & Best Practices

Critical guidelines for reliable redundant input operation:

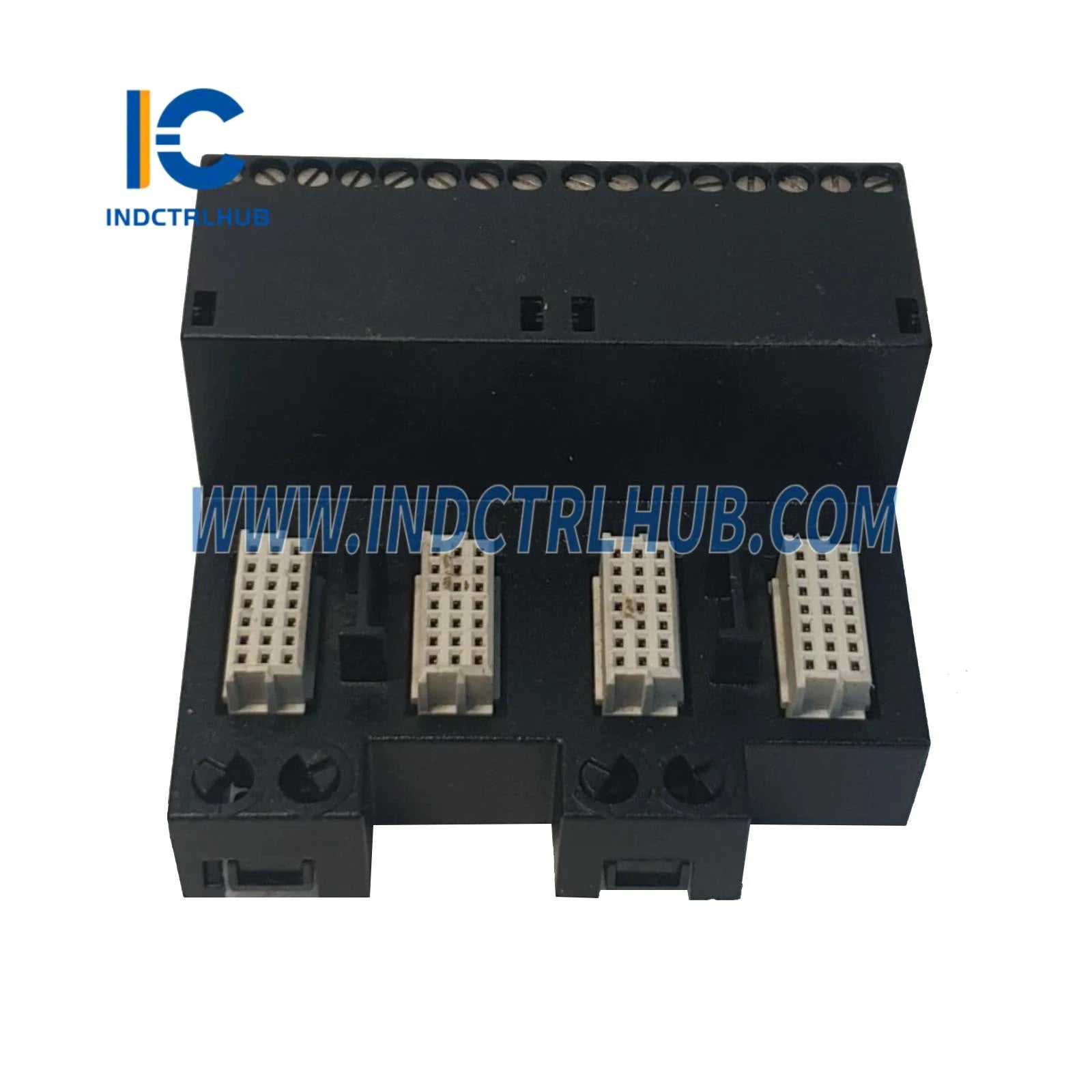

Rotary Keying System: The terminal block features E3 key position to ensure compatibility with redundant discrete input I/O cards. The rotary keying mechanism prevents incorrect terminal block installation and ensures field wiring matches the installed card type, reducing commissioning errors and preventing damage to field devices or I/O electronics.

Field Wiring Practices: Route redundant input channels through separate cable trays or conduits to prevent common-mode failures from physical damage, fire, or flooding. Use different wire colors or cable jackets for primary and secondary channels to simplify troubleshooting and reduce cross-wiring errors during installation and maintenance.

Power-On Installation: The KC4011X1-BC1 terminal block may be removed or inserted with system power applied ONLY if no I/O card is installed and no field wiring is connected. This capability enables pre-wiring of terminal blocks in the shop before field installation, reducing on-site commissioning time and minimizing exposure to hazardous areas.

Grounding & Shielding: Maintain proper cabinet grounding and shield termination for all field cables. For redundant inputs, terminate cable shields at the terminal block end only (not at field device end) to prevent ground loops between redundant channels. Use isolated barriers or galvanic isolators if field devices are located in different grounding zones.

Environmental Specifications

Parameter	Specification
Operating Temperature	-40°C to +70°C (-40°F to 158°F)
Shock Resistance	10g half-sine wave for 11ms
Vibration Tolerance	1mm peak-to-peak (2-13.2 Hz); 0.7g (13.2-150 Hz)
Humidity Range	5% to 95% non-condensing
Airborne Contaminants	ISA-S71.04-1985 Class G3 protection
Terminal Block Key	E3 position

Typical Field Device Connections

Device Type	Application	Redundancy Benefit
Pressure Switches	High/low pressure interlocks, compressor protection	Detect switch failures, maintain protection during maintenance
Level Switches	Tank overfill protection, pump dry-run prevention	Prevent false trips from single switch failures
Temperature Switches	Overheat protection, freeze detection	Continuous monitoring during sensor replacement
Flame Detectors	Burner flame monitoring, turbine combustion detection	Maintain flame supervision during detector testing
Vibration Monitors	Rotating equipment protection, bearing monitoring	Avoid spurious trips from transducer failures
Emergency Stop Buttons	Personnel safety, equipment emergency shutdown	Ensure E-stop functionality during wiring faults

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV automation components:

✓ 100% authentic OEM products with full manufacturer traceability and warranty
✓ Expert DCS technical support from certified automation engineers
✓ Extensive inventory of current production and legacy DeltaV terminal blocks
✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
✓ Competitive pricing with volume discounts for project quantities
✓ Complete documentation, wiring diagrams, and installation assistance

Complementary DeltaV Terminal Block Components

Product Model	Description	Link
KJ4006X1-BF1	Discrete 32-Channel Terminal Block for standard (non-redundant) digital I/O	View Product
KC3021X1-BA1	32-Channel Dry Contact Input Terminal Block for voltage-free contact monitoring	View Product
VE4031S2T2B1	DeltaV Redundant Discrete Input Module (I/O card for use with this terminal block)	View Product

Ordering Information & System Planning

KC4011X1-BC1: Redundant DI 32-Channel Terminal Block (this product)
Key Position: E3 - verify I/O card compatibility before ordering
Redundant I/O Card: Order compatible redundant discrete input card separately
Spare Parts Strategy: Maintain spare terminal blocks for critical applications to minimize downtime
Cable Planning: Route redundant channels through separate cable trays for fault tolerance

Technical Documentation & Support

Complete installation manuals including Document 12P2046 (Zone 2 Installation Instructions) and "DeltaV S-Series and CHARMs Hardware Installation" manual available upon request. Our application engineering team provides redundant system architecture consultation, wiring diagram review, voting logic configuration guidance, and troubleshooting assistance for complex high-availability DeltaV implementations.

Maintenance & Service Life

No User-Serviceable Parts: Terminal block requires no field maintenance beyond periodic wiring inspection
No Calibration Required: Passive wiring termination requires no calibration or adjustment
Do Not Disassemble: Terminal block disassembly voids warranty and may compromise keying mechanism
Replacement Criteria: Replace if physical damage, connector wear, or keying mechanism failure occurs
Inspection Schedule: Annually inspect terminal screws for tightness and wire insulation for damage
Expected Service Life: 15+ years in typical control room environments with proper installation
