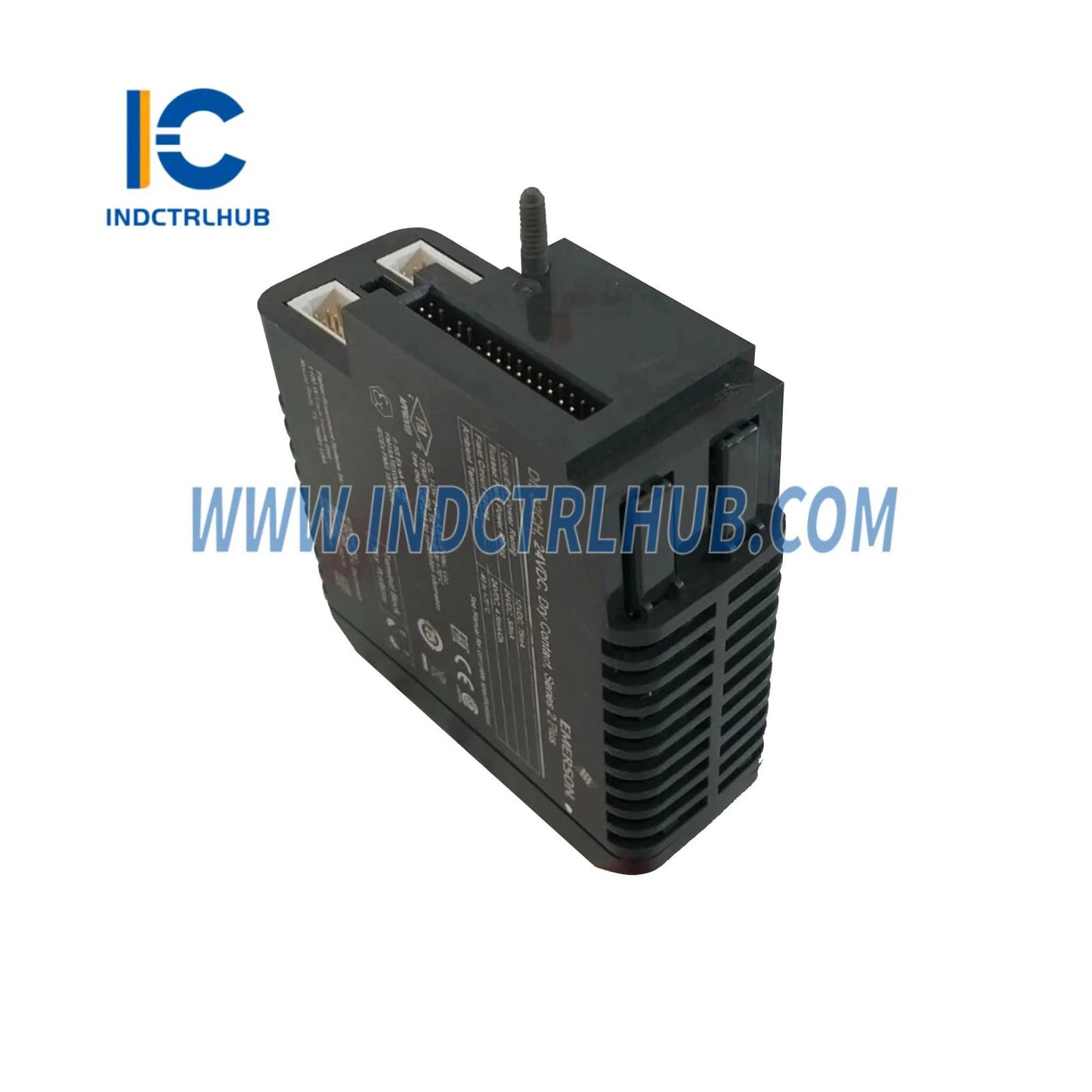

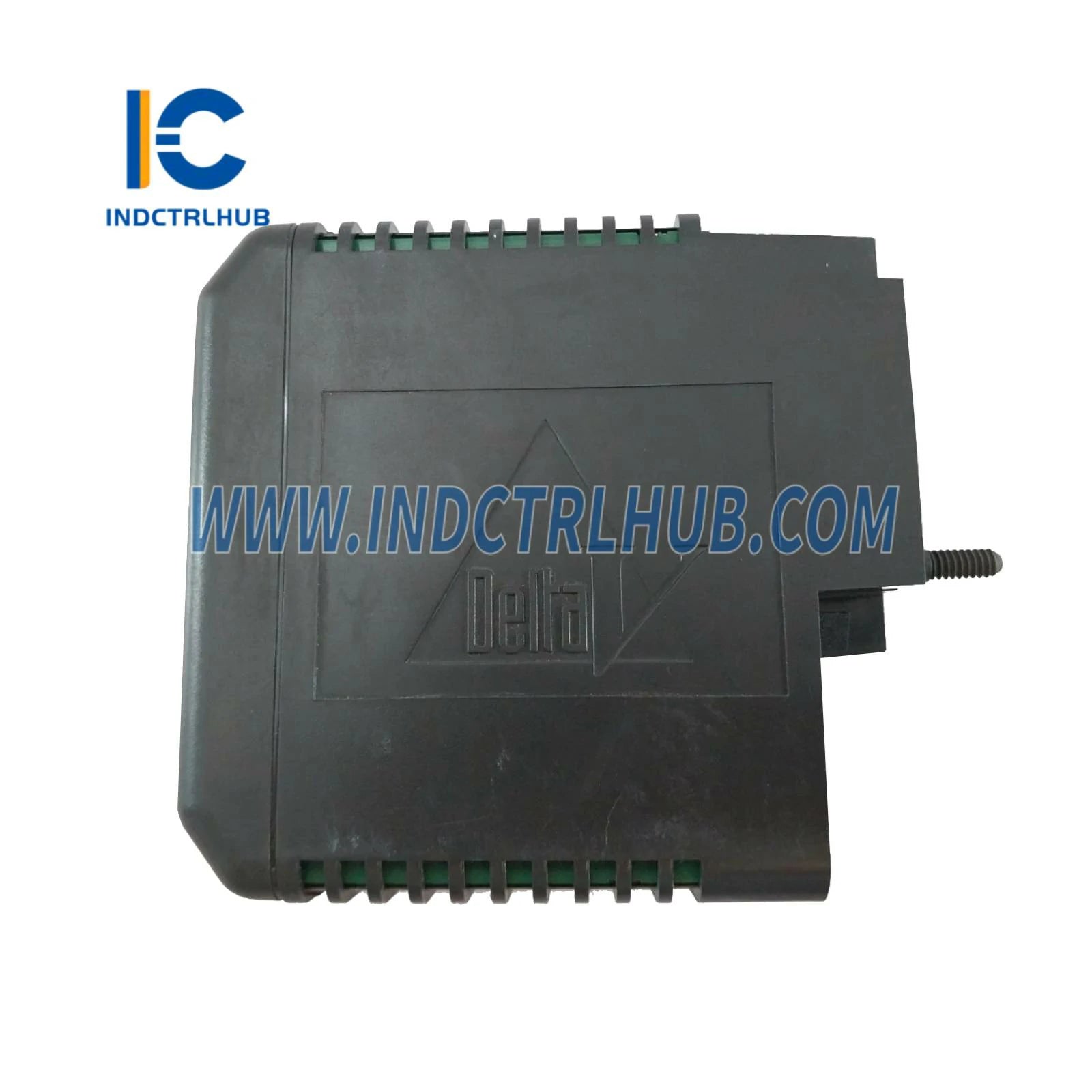

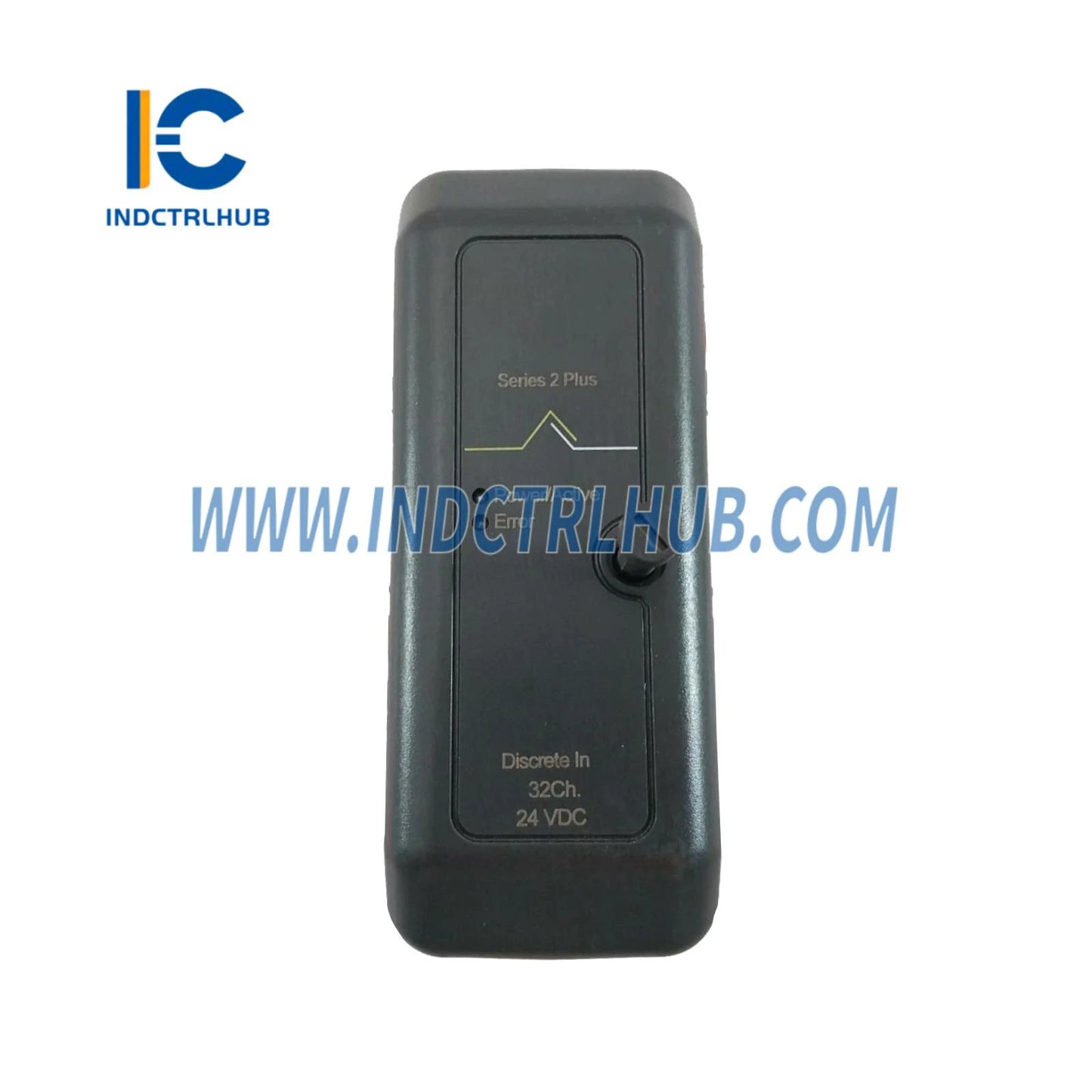

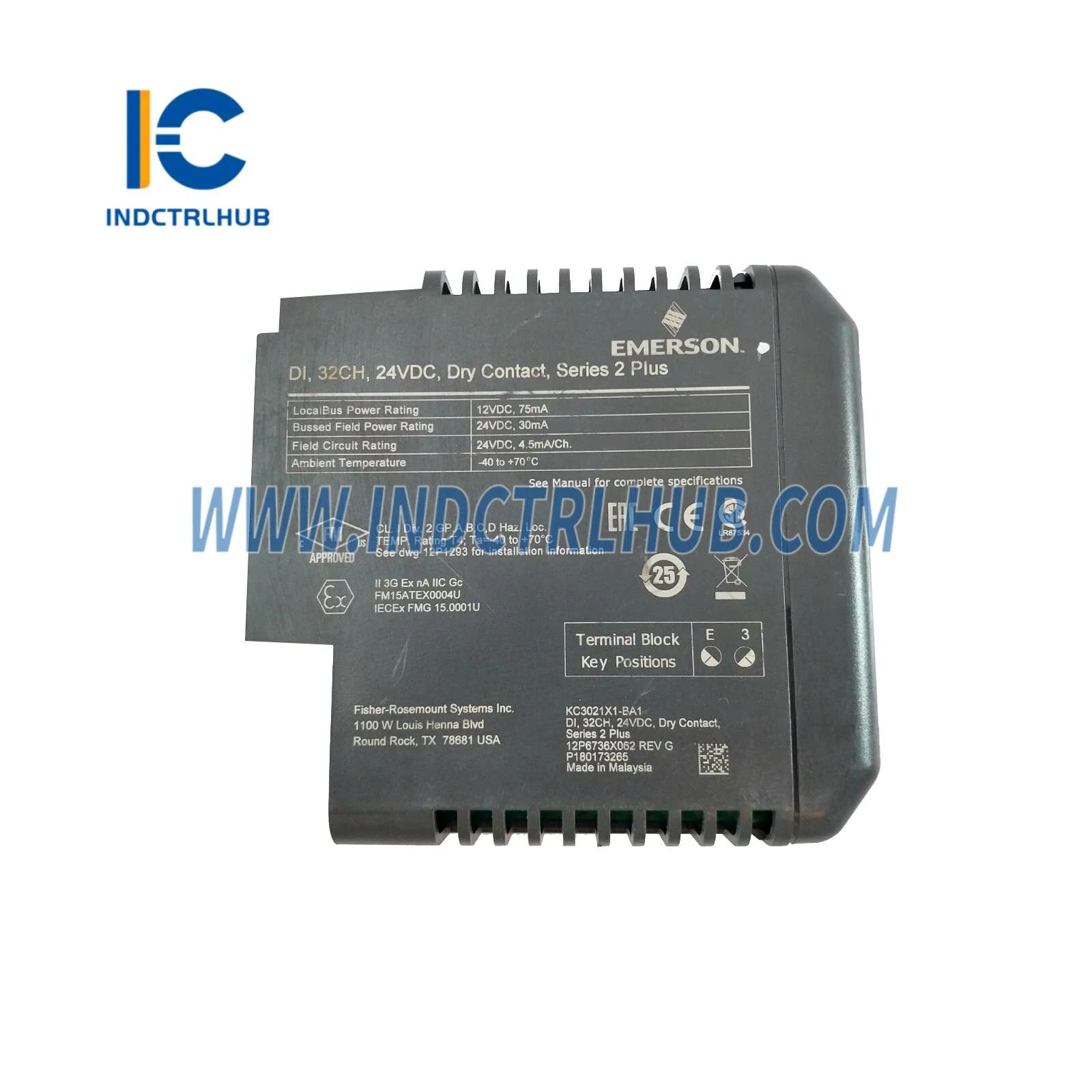

Emerson KC3021X1-BA1 32-Channel Dry Contact Input Terminal Block

Emerson KC3021X1-BA1 32-Channel Dry Contact Input Terminal Block

The Emerson KC3021X1-BA1 is a high-density dry contact input terminal block engineered for DeltaV DI Plus (Digital Input Plus) systems. With 32 individually isolated channels in a compact form factor, this terminal block delivers reliable signal acquisition from discrete field devices including limit switches, pushbuttons, relay contacts, and proximity sensors across process automation installations.

Technical Specifications

• Input Channels: 32 dry contact inputs, individually isolated
• Operating Voltage: 24 VDC nominal (18-30 VDC range)
• Input Type: Dry contact, wet contact, or solid-state switch compatible
• Response Time: <10 ms typical per channel
• Isolation: 250V channel-to-channel, 1500V channel-to-ground
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Mounting: DIN rail compatible with snap-lock mechanism

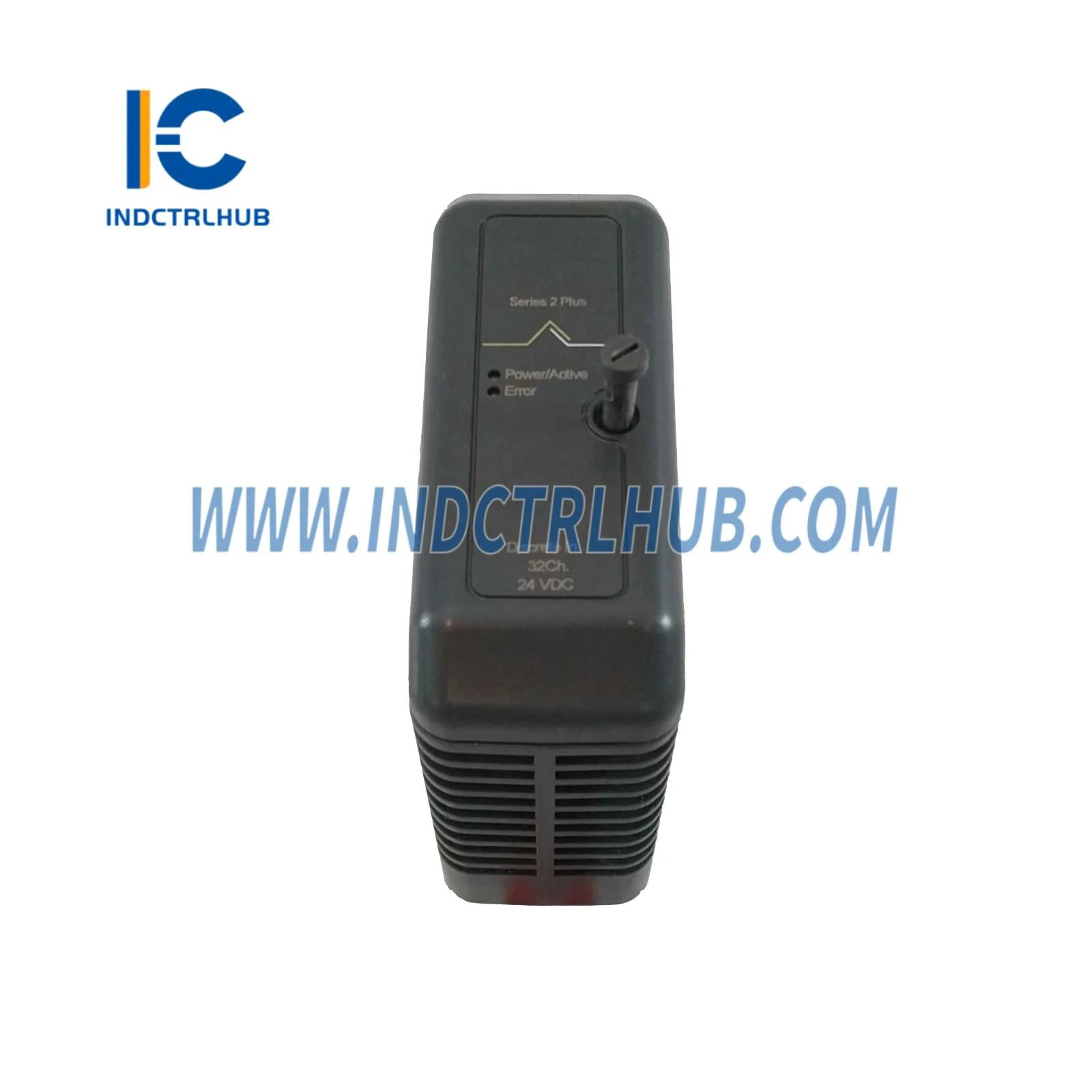

• LED Indicators: Per-channel status indication for rapid diagnostics
• Wiring: Screw terminal connections, 12-24 AWG wire capacity
• Certifications: UL, CE, ATEX Zone 2 approved

Industrial Applications

Valve Position Monitoring: Interface with limit switches on motor-operated valves (MOVs) and actuators to confirm open/closed positions in pipeline networks, ensuring accurate valve status feedback for interlock logic and safety shutdown sequences.

Equipment Status Monitoring: Collect run/stop status signals from pumps, compressors, and conveyors. The KC3021X1-BA1's high channel density reduces cabinet space requirements while maintaining individual channel isolation to prevent cross-talk in electrically noisy environments.

Safety Interlock Systems: Integrate with emergency stop buttons, guard switches, and safety relays in machinery protection circuits. Fast response times ensure timely detection of safety-critical events, while galvanic isolation protects the DCS from field-side electrical faults.

Alarm Annunciation: Connect to process alarm contacts from temperature switches, pressure switches, and level sensors. Per-channel LED indicators provide immediate visual confirmation of alarm states during commissioning and troubleshooting.

System Integration

The KC3021X1-BA1 mounts directly onto DeltaV DI Plus carrier modules, auto-discovering upon power-up with zero configuration required. Field wiring terminates at clearly labeled screw terminals with integrated wire retention clips to prevent loosening under vibration. The terminal block's removable design allows replacement without disturbing field wiring—critical for minimizing downtime during maintenance activities.

Each input channel features software-configurable debounce filtering (0-1000 ms) to eliminate contact bounce from mechanical switches and relays. Built-in diagnostics continuously monitor for open-circuit and short-circuit conditions, triggering immediate alarms through the DeltaV control system.

Engineering Advantages

✓ Space Efficiency: 32 channels in a single terminal block reduce panel footprint by 40% compared to legacy 16-channel designs
✓ Hot-Swap Capability: Replace terminal blocks without powering down the carrier or disrupting adjacent I/O
✓ Universal Compatibility: Accepts dry contacts, wet contacts (up to 30 VDC), and solid-state outputs
✓ Proven Reliability: MTBF > 200,000 hours in continuous industrial operation

What's Included

Each KC3021X1-BA1 terminal block ships factory-tested with calibration documentation, DIN rail mounting clips, and wiring labels. Compatible with all DeltaV DI Plus carrier modules and VE-series I/O subsystems for seamless integration into existing DeltaV architectures.
