Product Description
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
Not specified |
|
Model/Part Number |
990-05-50-01-05 |
|
Description |

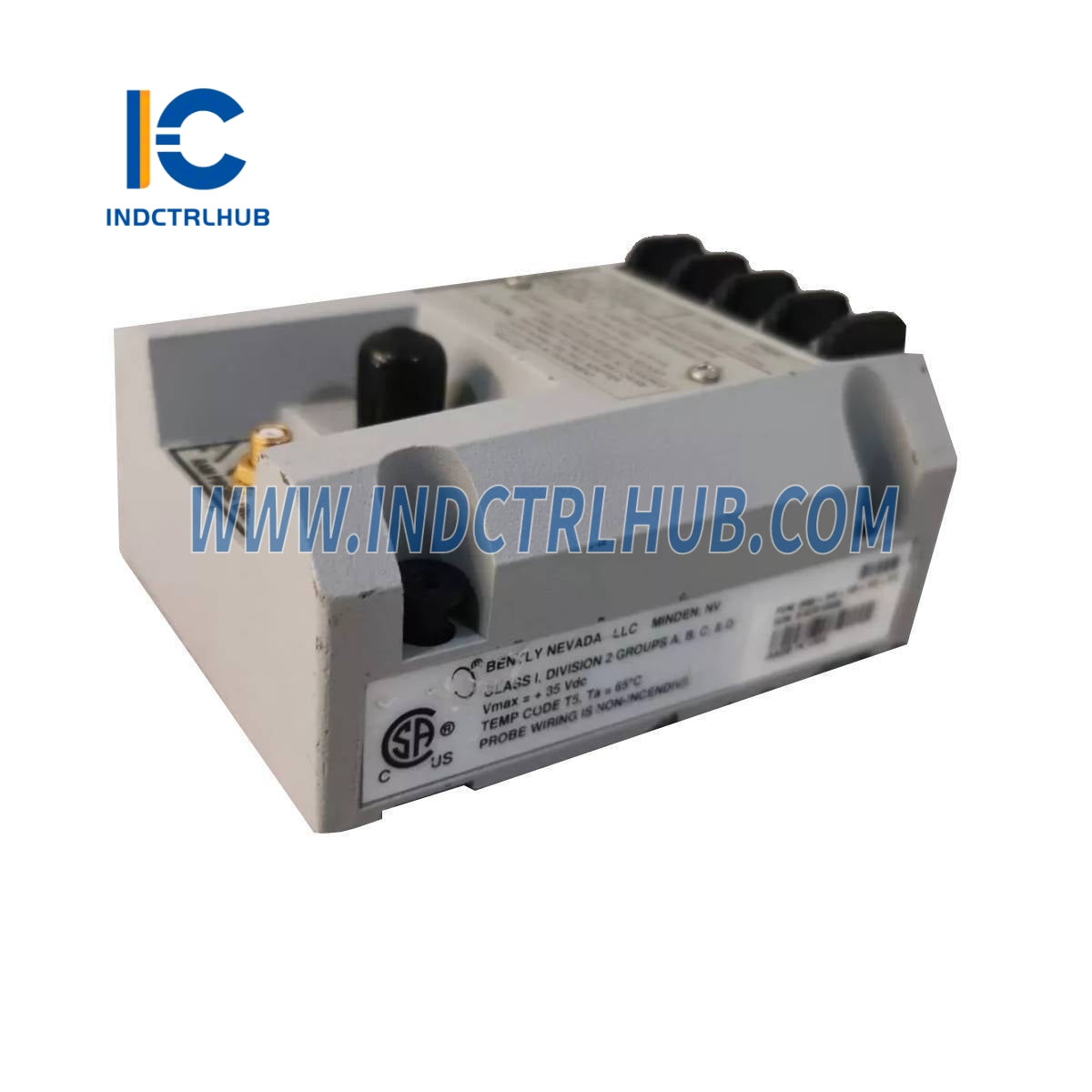

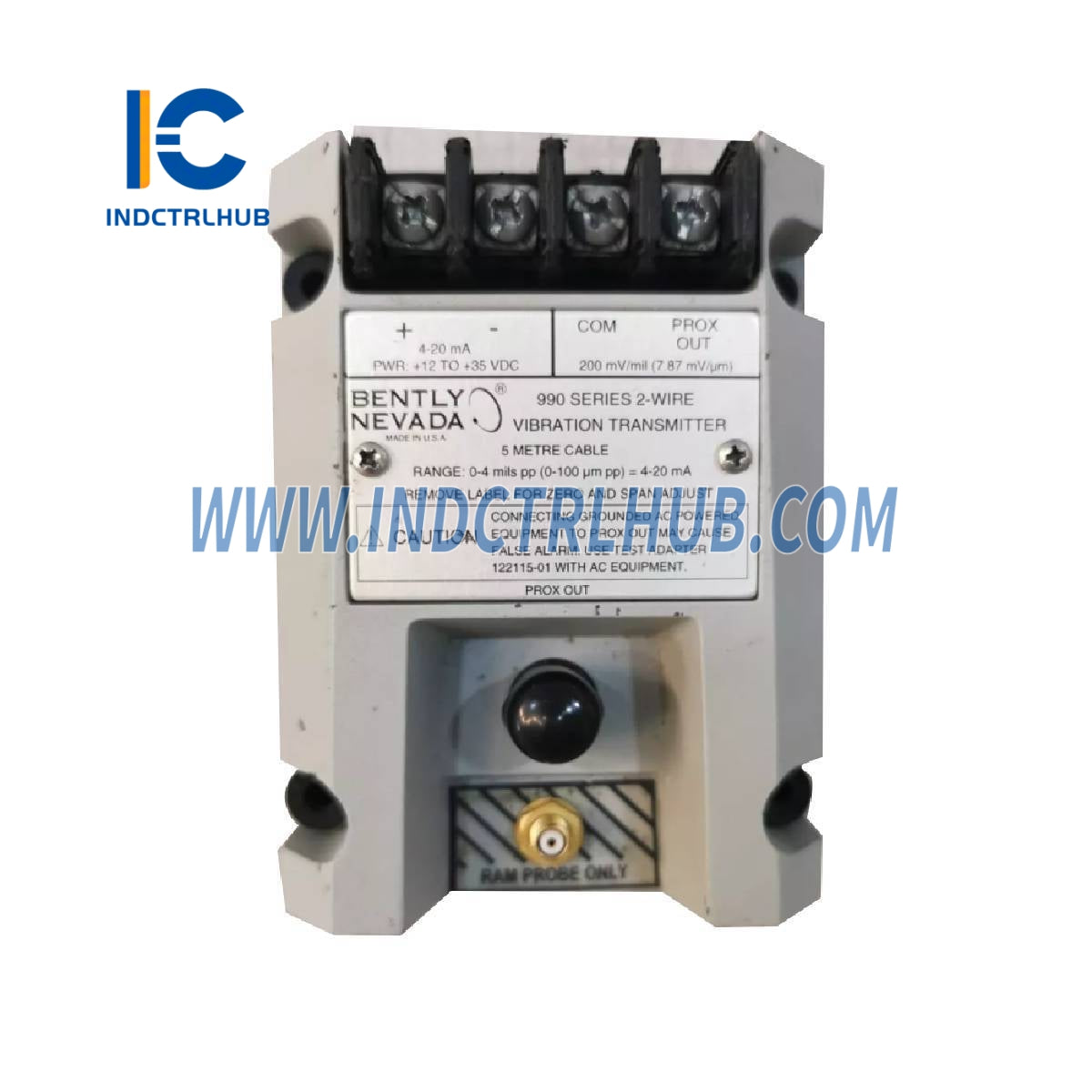

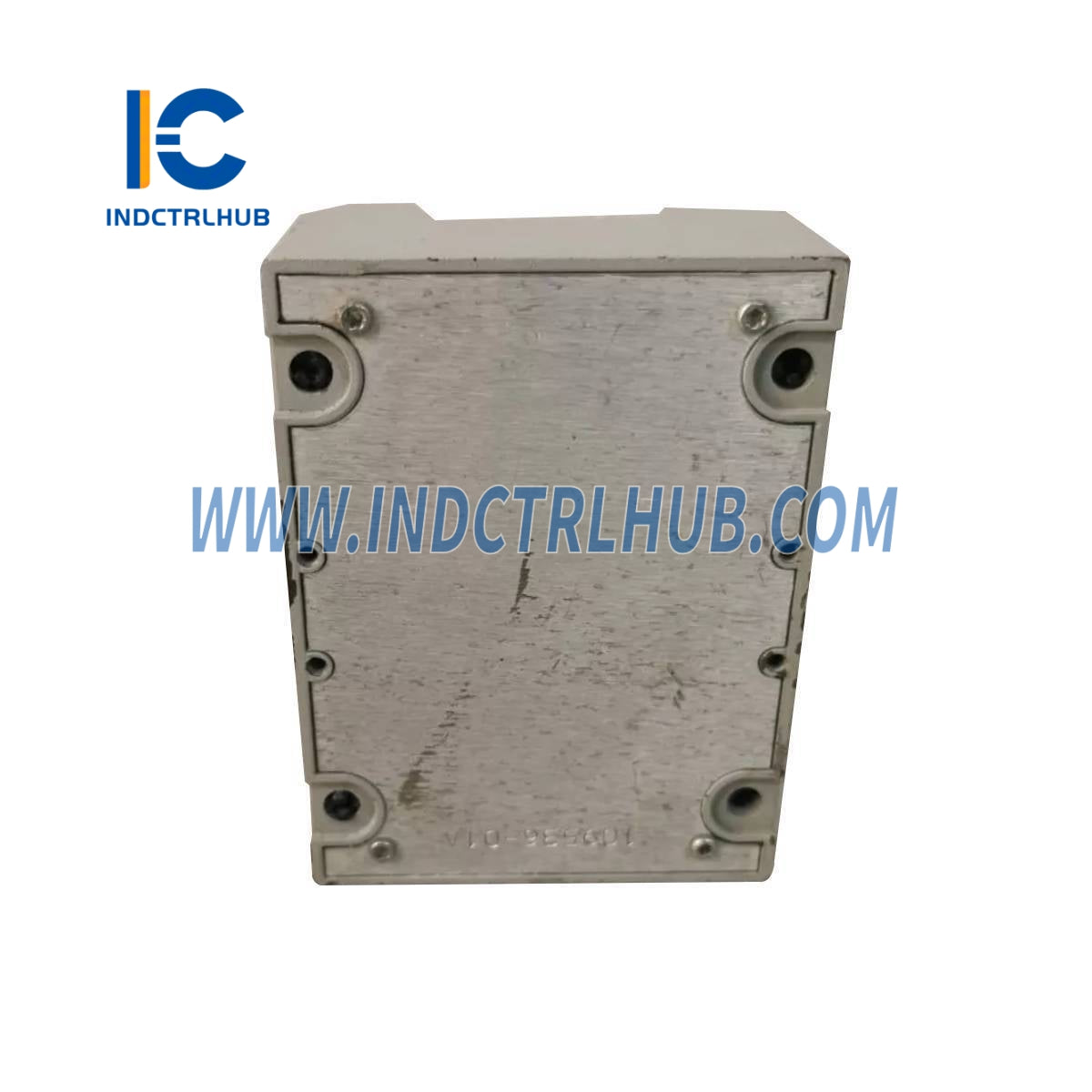

990 Vibration Transmitter |
_
_
__ Description
The_990 Vibration Transmitter_is intended for_OEMs (Original Equipment Manufacturers)_of_centrifugal air compressors,_small pumps,_motors, or_fans. It provides a simple_4-20 mA proportional vibration signal_as input to machinery control systems.
_
_
__ Environmental Limits
|
Property |
Value |
|---|---|
|
Transmitter Operating Temperature |
-35°C to +85°C (-31°F to +185°F) |
|
Storage Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Probe Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Relative Humidity |
100% condensing, non-submerged (with protection of coaxial connectors) |
_
_
__ Mechanical Specifications
|
Property |
Value |
|---|---|
|
Transducer Tip Material |
Polyphenylene sulfide (PPS) |
|
Transducer Case Material |
AISI 303 or 304 Stainless Steel (SST) |
|
Probe Cable |
75_ coaxial, fluoroethylene propylene (FEP) insulated |
|
Cable Armor |
Optional flexible AISI 302 SST with optional FEP outer jacket |
|
Tensile Strength |
222 N (50 lbf) probe case to probe lead, maximum |
|
Transmitter Weight |
0.43 kg (0.9 lbm) |
|
Total System Weight |
0.82 kg (1.8 lbm) typical |
_
_
__ Ordering Information Breakdown _ 990-05-50-01-05
|
Field |
Code |
Description |
|---|---|---|
|
A |
04 |
Full-scale Option: 0-4 mils pp (0-100 μm pp) |
|
B |
50 |
System Length Option: 5.0 meters (16.4 feet) |
|
C |
01 |
Mounting Option: 35 mm DIN rail clips |
|
D |
00 |
Agency Approval Option: Not required |
_
_
__ Probe Cable and Mounting Options
|
Option |
Description |
|---|---|
|
A_Full-scale Option |
04: 0-4 mils pp (0-100 μm pp), 05: 0-5 mils pp (0-125 μm pp), 08: 0-8 mils pp (0-200 μm pp), 10: 0-10 mils pp (0-250 μm pp) |
|
B_System Length Option |
50: 5.0 meters (16.4 feet), 70: 7.0 meters (23.0 feet) |
|
C_Mounting Option |
01: 35 mm DIN rail clips, 02: Bulkhead screws, 03: DIN clips and screws |
|
D_Agency Approval Option |
00: Not required, 01: CSA Division 2, 05: CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval |
