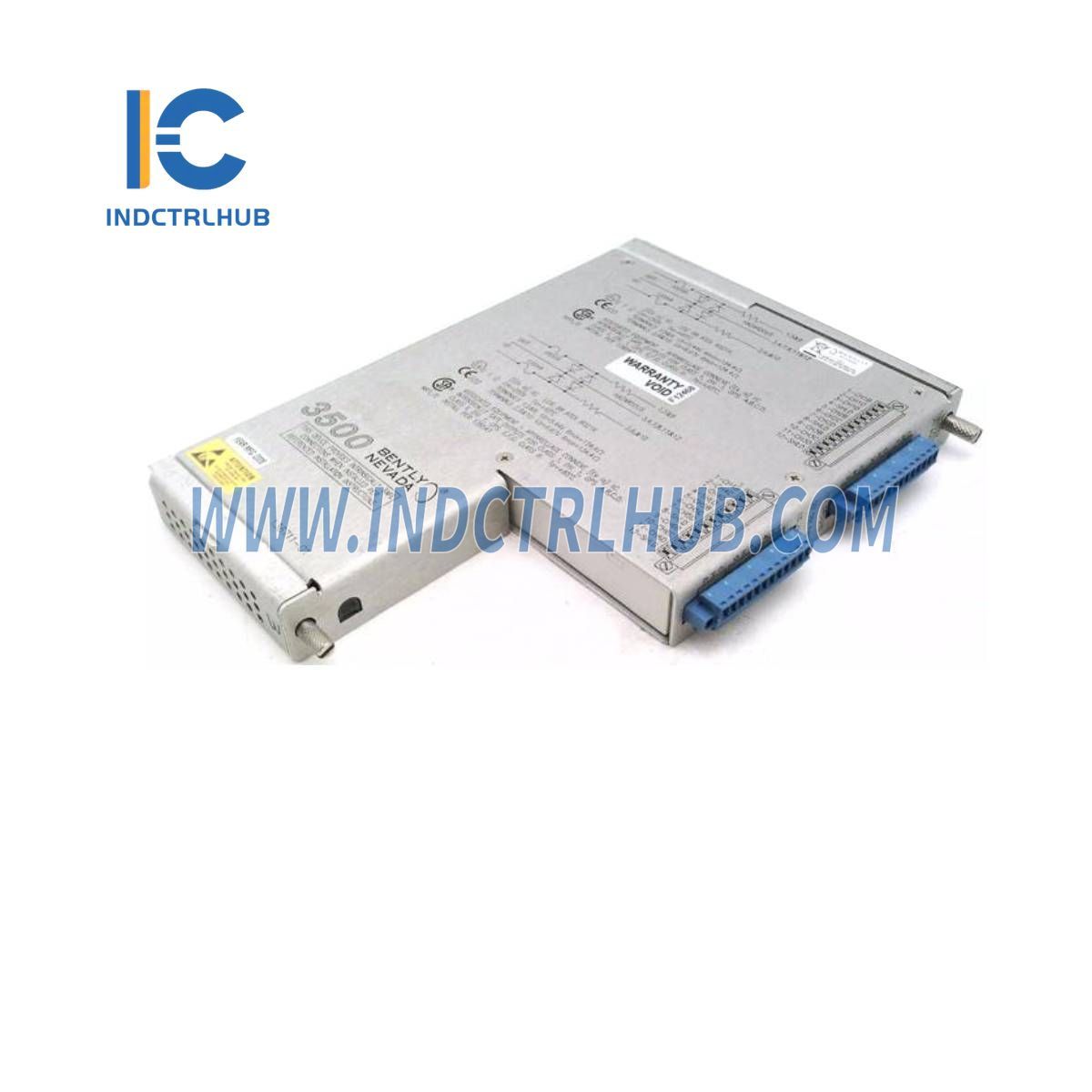

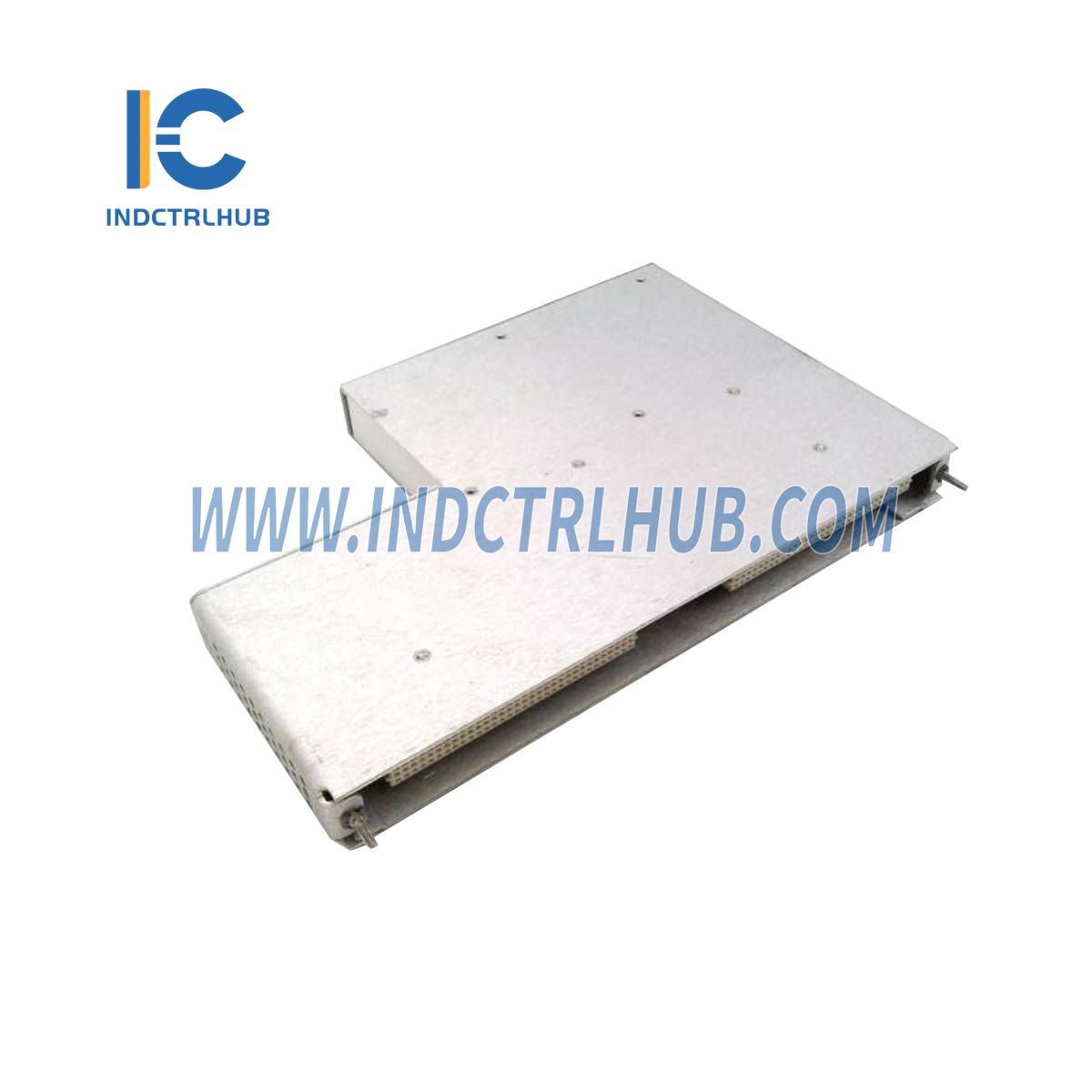

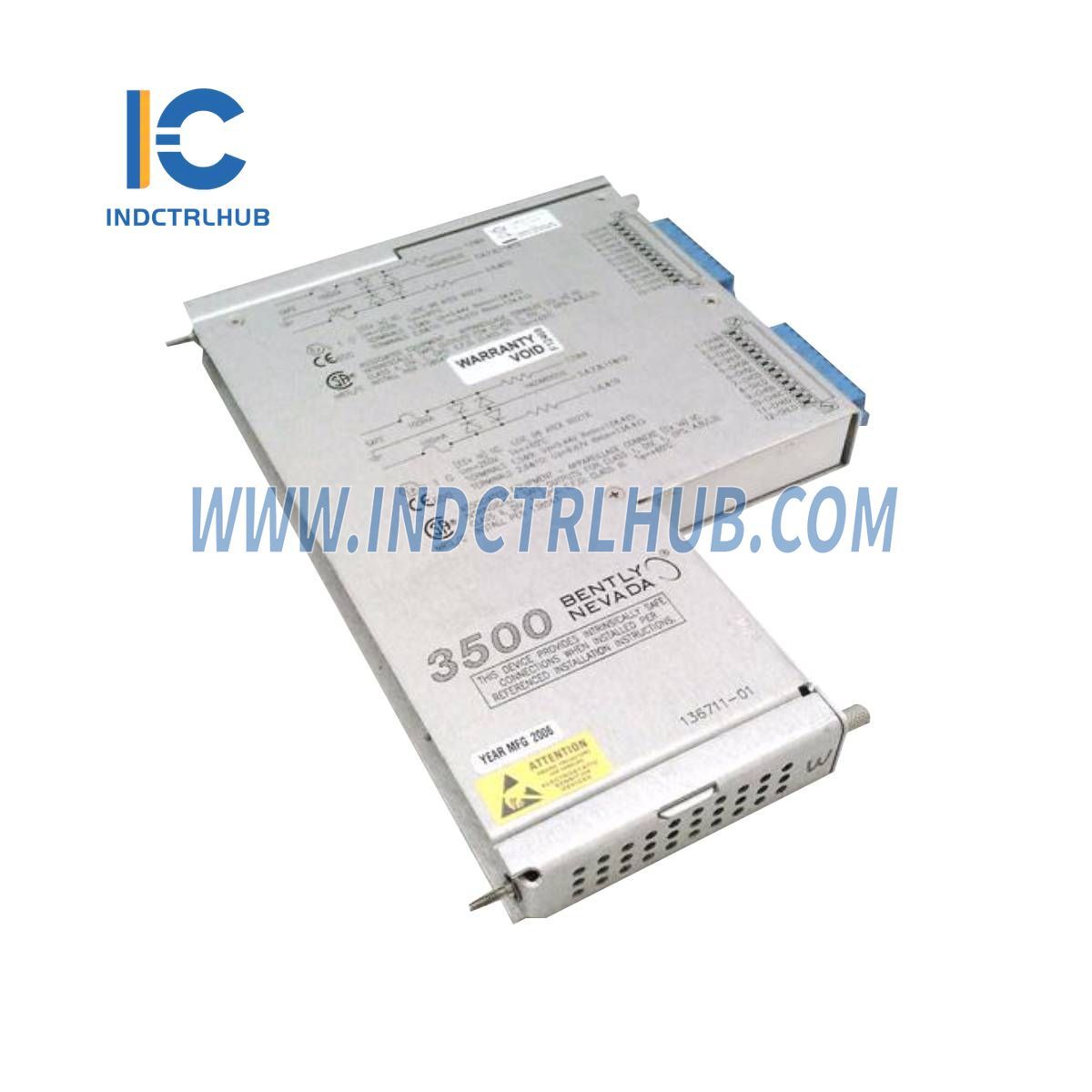

Bently Nevada 3500/60 136711-01 RTD/TC I/O Module
Bently Nevada 3500/60 136711-01 RTD/TC I/O Module
Manufacturer: Bently Nevada
Product No.: 136711-01
Condition:1000 in stock
Product Type: RTD/TC I/O Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Information: Bently Nevada 3500/60 RTD/TC I/O Module
| Manufacturer | Bently Nevada (A Baker Hughes Business) |
|---|---|
| Series | 3500/60 |
| Model/Part Number | 3500/60 136711-01 |
| Model Type | RTD/TC I/O Module |
General Description
The 3500/60 RTD/TC I/O Module is designed for monitoring and processing signals from RTD (Resistance Temperature Detectors) or TC (Thermocouple) transducers. The module supports 1 to 6 inputs, making it suitable for applications that require temperature monitoring. The module provides high precision and reliable temperature measurements in various industrial environments.
Key Specifications
| Specification | Details |
|---|---|
| Signal Inputs | Accepts 1 to 6 RTD or TC transducer signals |
| Input Impedance | 10 M_ for each lead input |
| Power Consumption | 7 watts (nominal) |
| Isolation | |
| System Isolation | 500 Vdc |
| Channel-to-Channel Isolation | 250 Vdc |
| Isolation Purpose | Required only for fault scenarios, not during normal operation. |
| Environmental Limits | |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) with Internal/External Termination I/O Modules. 0°C to +65°C (32°F to +150°F) with Internal Barrier I/O Modules (Internal Termination). |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
Dimensions and Weight
| Module Type | Dimensions (H x W x D) | Weight |
|---|---|---|
| Monitor Module | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) | 0.91 kg (2.0 lb) |
| I/O Modules | 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) | 0.45 kg (1.0 lb) |
| I/O Modules (Internal Barrier) | 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in) | 0.46 kg (1.01 lb) |
Ordering Information
| Option | Details |
|---|---|
| A: I/O Module Type | |
| 0 1 | RTD/TC Non-isolated I/O Module, Internal Terminations |
| 0 2 | RTD/TC Non-isolated I/O Module, External Terminations |
| 0 3 | TC Isolated I/O Module, Internal Terminations |
| 0 4 | TC Isolated I/O Module, External Terminations |
| 0 5 | RTD/TC Non-isolated I/O Module with Internal Barriers |
| B: Agency Approval Option | |
| 0 0 | None |
| 0 1 | CSA/NRTL/C (Class 1, Div 2) |
| 0 2 | ATEX/IECEx/CSA (Class 1, Zone 2) |
