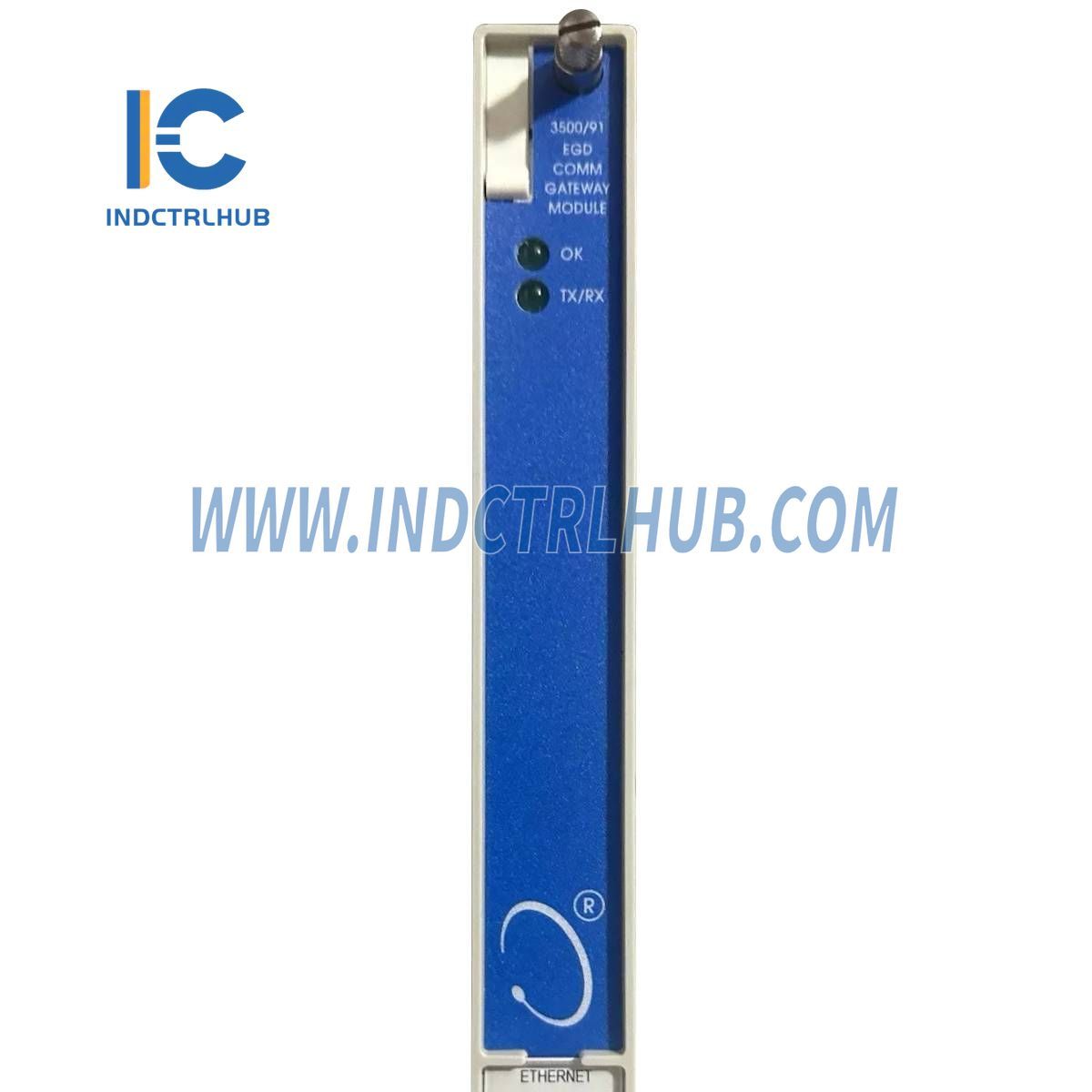

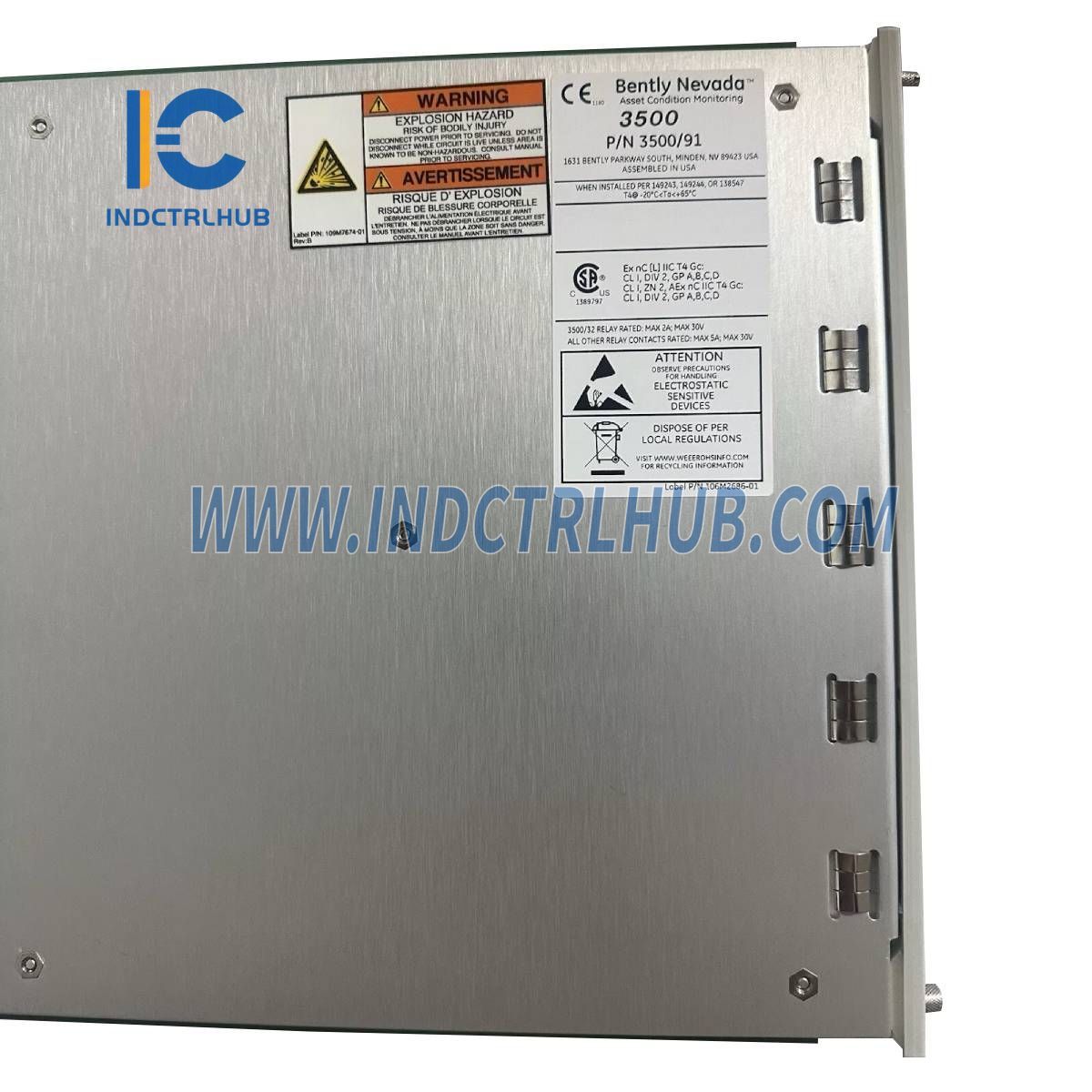

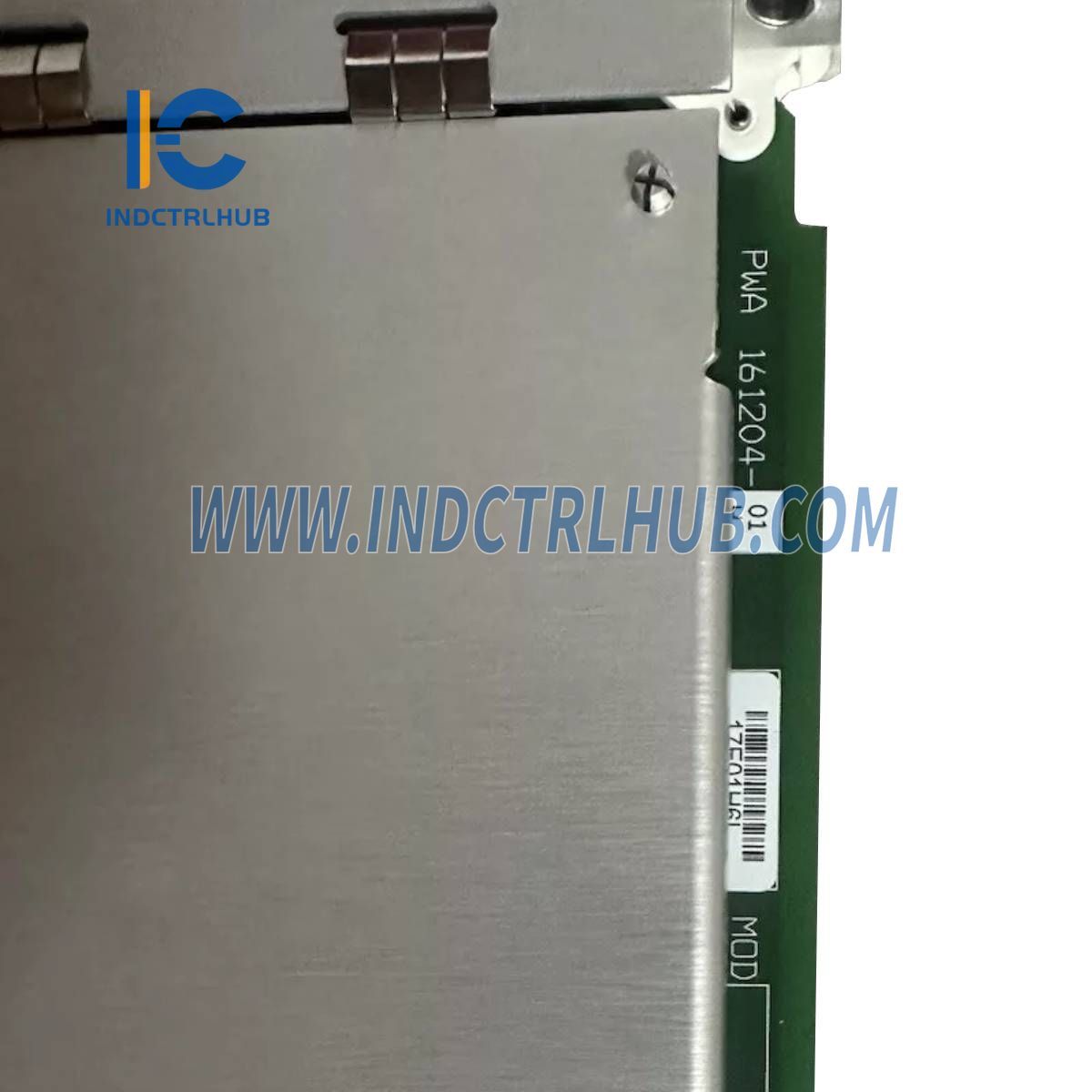

Bently Nevada 3500/91 161204-01 EGD Gateway Module

Product Details

• Manufacturer: Bently Nevada
• Series: 3500/91
• Model/Part Number: 161204-01
• Model Type: EGD Gateway Module

Description

The 3500/91 EGD (Ethernet Global Data) Communication Gateway module provides communication capabilities for the 3500 rack-monitored values and status. This Ethernet-based network path enables integration with controllers that are compatible with the EGD protocol, offering response times suitable for controller applications.

Specifications

Inputs

• Power Consumption: 7.4 watts typical
• Data Types:
  • Producer Exchanges:
    • Rack, Module, Channel, and Data value status
    • Data values (float)
    • Setpoints (float)
  • Consumer Exchange:
    • Group Reset
    • Group Trip Multiply
    • Group Alarm Inhibit
    • Group Special Alarm Inhibit

Environmental Limits

• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Humidity: 95%, non-condensing

Physical Specifications

• Main Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in)
• Weight: 0.79 kg (1.75 lbs.)
• I/O Module Dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
• I/O Module Weight: 0.39 kg (0.85 lbs.)
