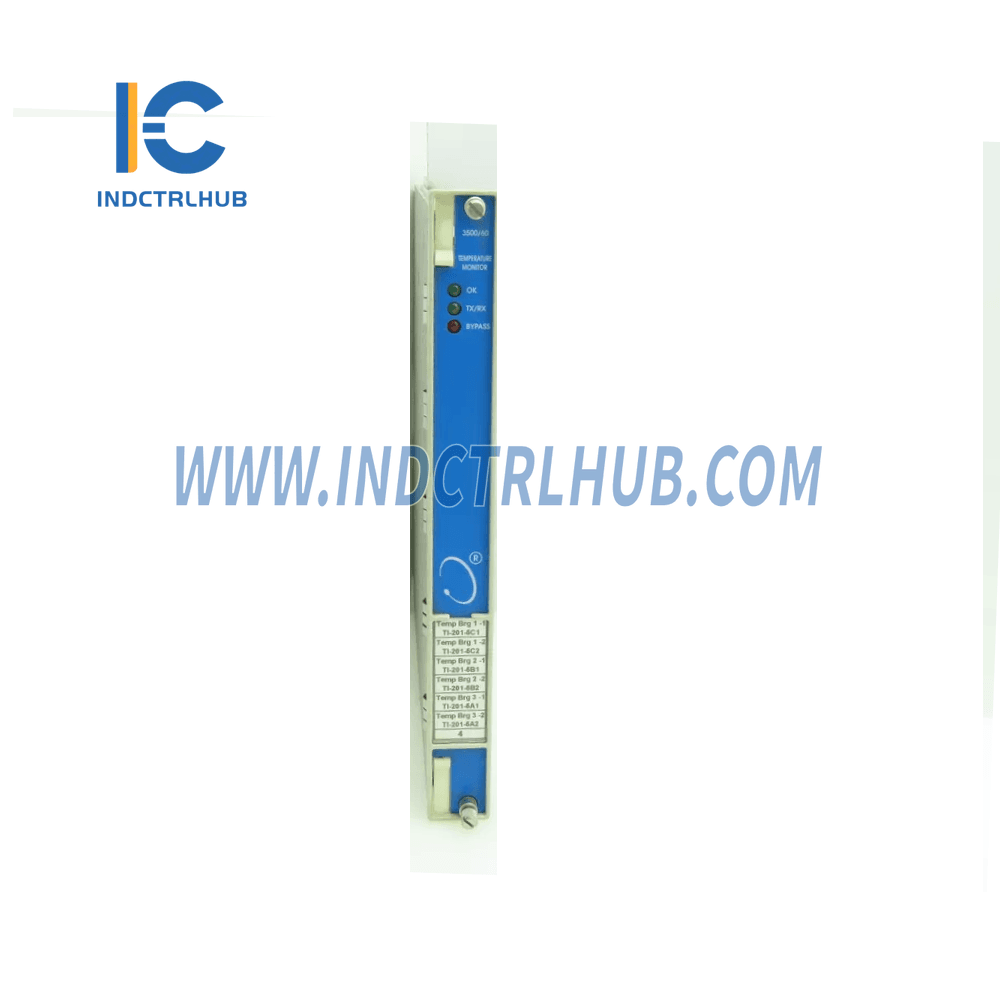

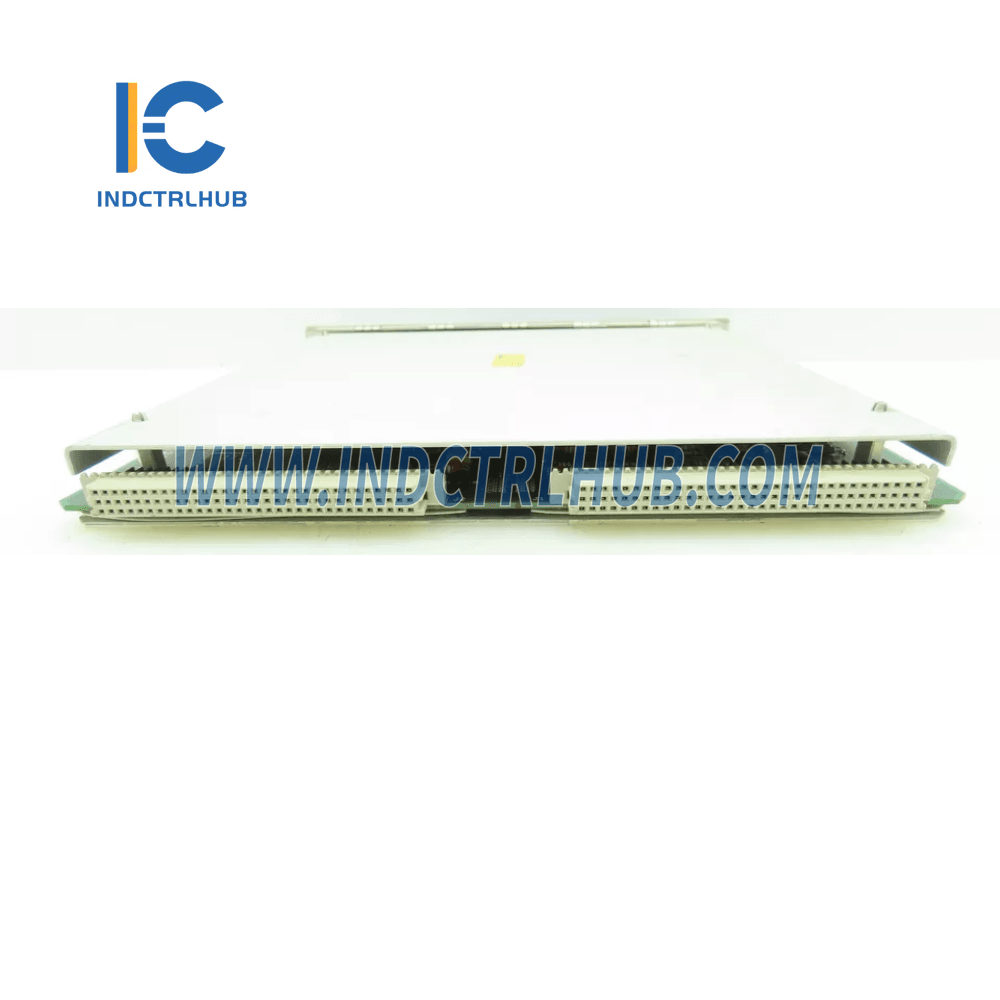

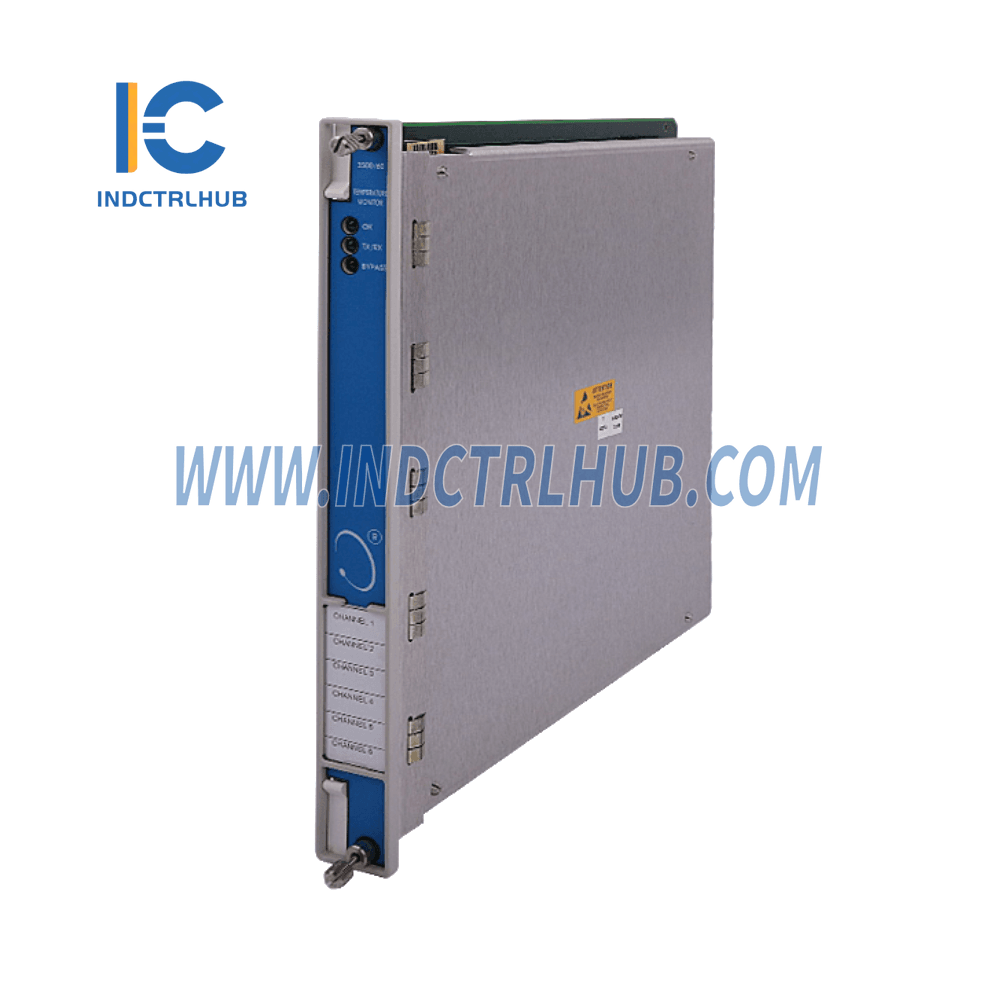

Product Description
Product Details
- Manufacturer: Bently Nevada
- Series: 3500/60
- Model/Part Number: 173186-01
- Model Type: Temperature Module
Description
The 3500/60 module is designed for six-channel temperature monitoring, accepting both Resistance Temperature Detector (RTD) and Thermocouple (TC) inputs. The module conditions these inputs and compares them against user-programmable alarm setpoints.
Key features include:
- Monitor for temperature measurements.
- Identical functionality with the 3500/61, except the 3500/60 does not have recorder outputs for each channel.
- I/O Modules can be isolated or non-isolated, with 500Vdc isolation provided.
Specifications
| Attribute | Details |
|---|---|
| Number of Channels | 6 |
| Input Types | RTD, Thermocouple (TC) |
| I/O Module Type | Isolated and Non-isolated I/O Modules |
| System Isolation | 500Vdc |
| Channel-to-Channel Isolation | 250Vdc |
| LED Indicators | OK, TX/RX, Bypass |
Environmental Limits
-
Operating Temperature:
- -30°C to +65°C (-22°F to +150°F) with Internal/External Termination I/O Modules.
- 0°C to +65°C (32°F to +150°F) with Internal Barrier I/O Modules (Internal Termination).
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Physical Dimensions
| Attribute | Details |
|---|---|
| Monitor Module Dimensions | 241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.91 kg (2.0 lb) |
| I/O Module Dimensions | 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
| I/O Module Weight | 0.45 kg (1.0 lb) |
Ordering Information
The part number format for 3500/60 Temperature Module:
3500/60-AA-BB
| A: I/O Module Type | Options |
|---|---|
| 01 | RTD/TC Non-isolated I/O Module (Internal Terminations) |
| 02 | RTD/TC Non-isolated I/O Module (External Terminations) |
| 03 | TC Isolated I/O Module (Internal Terminations) |
| 04 | TC Isolated I/O Module (External Terminations) |
| 05 | RTD/TC Non-isolated I/O Module (with Internal Barriers) |
| B: Agency Approval Option | Options |
|---|---|
| 00 | None |
| 01 | CSA/NRTL/C (Class 1, Div 2) |
| 02 | ATEX/IECEx/CSA (Class 1, Zone 2) |
