Product Description
Product Details
Manufacturer: Bently Nevada
Model/Part Number: 3500/42-04-00 (135489-01)
Model Type: I/O Module with Internal Barriers
Description

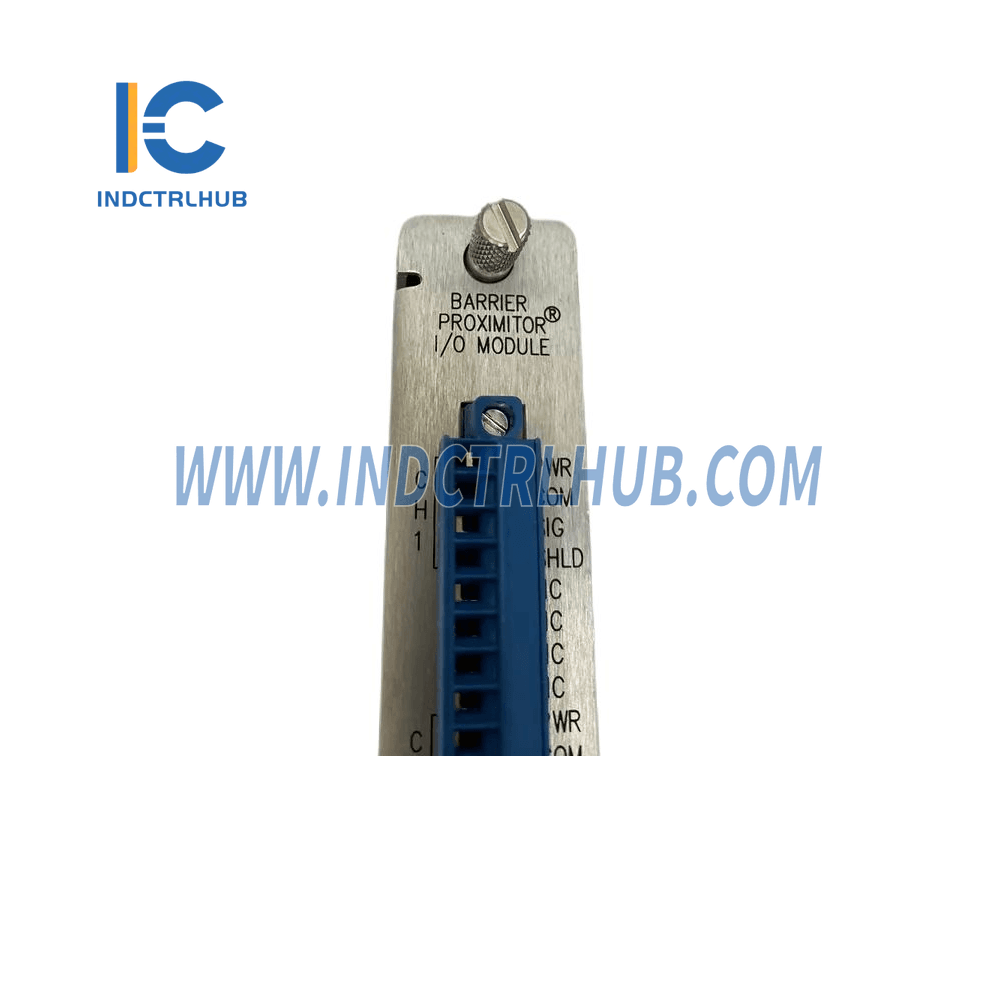

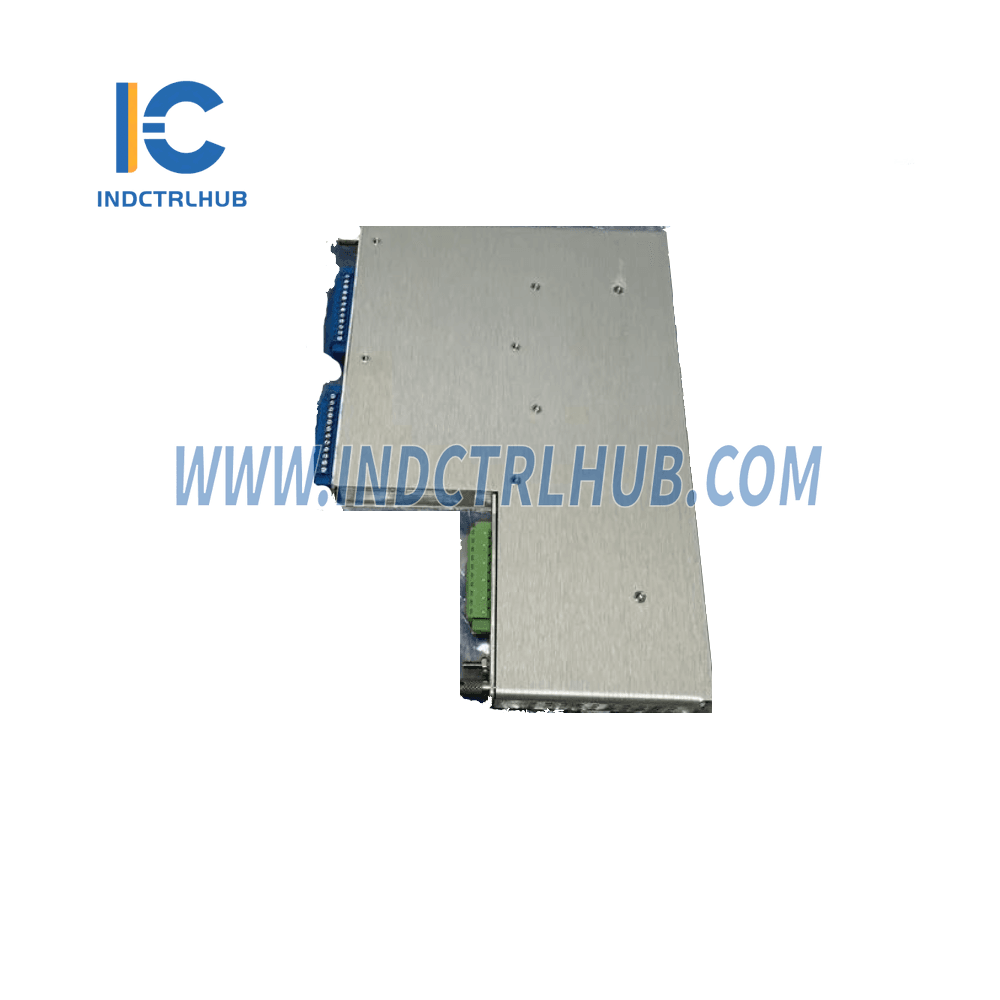

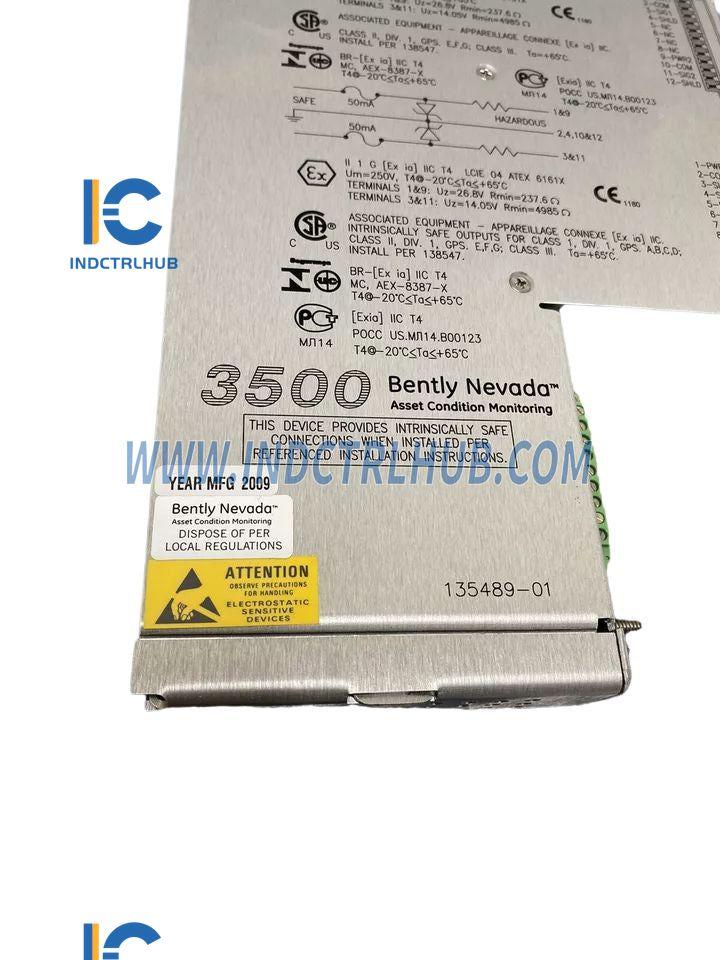

The Bently Nevada 3500/42-04-00 (135489-01) is an I/O Module with internal barriers and internal terminations designed for use in systems requiring intrinsically safe signal conditioning for Proximitor and/or Seismic transducers. This module provides four channels of intrinsically safe signal conditioning, with two internally mounted zener barrier modules, one for each pair of transducer channels.
Internal Termination I/O modules require direct wiring of each transducer to the I/O module. The module offers the following configurations:
- Four channels for Proximitor transducers only
- Two channels for Proximitor transducers and two for Seismic transducers
- Four channels for Seismic transducers only
The module is suitable for use in hazardous areas where intrinsically safe devices are required, and the system will need an Earthing Module to ensure safety. For more detailed system requirements, refer to the Rack Installation and Maintenance Manual.
This module works with the 3500/42M Proximitor Seismic Monitor, a four-channel monitor that accepts input from proximity and seismic transducers, conditions the signal, and compares it with user-programmable alarms to provide vibration and position measurements.
Ordering Information
The part number format for the 3500/42-04-00 module is 3500/42-AA-BB.
Field Breakdown:
-
AA: I/O Module Type
- 01: Discrete I/O Module with Internal Terminations
- 02: Discrete I/O Module with External Terminations
- 03: TMR I/O Module with External Terminations
- 04: I/O Module with Internal Barriers (4 x Prox. Channels)
- 05: I/O Module with Internal Barriers (2 x Prox. + 2 x Velomitor Channels)
- 06: I/O Module with Internal Barriers (4 x Velomitor Channels)
-
BB: Agency Approval Option
- 00: None
- 01: CSA-NRTL/C
Spares
- 3500/42 Monitor: 125672-02
- Discrete I/O Module with Internal Terminations: 128229-01
- Discrete I/O Module with External Terminations: 128240-01
- I/O Module with Internal Barriers (Internal Terminations): 135489-01
- TMR I/O Module with External Terminations: 126632-01
- External Termination Block (Euro Style connectors): 125808-02
- External Termination Block (Terminal Strip connectors): 128015-02
- Recorder External Termination Block (Euro Style connectors): 128702-01
- Recorder External Termination Block (Terminal Strip connectors): 128710-01
- Bussed External Termination Block (Euro Style connectors): 132242-01
- Bussed External Termination Block (Terminal Strip connectors): 132234-01
- 3500/42 I/O Module four-pin connector shunt: 00530843
- 3500/42 Monitor Manual: 129773-01
Applications
- Intrinsically Safe Signal Conditioning for Proximitor and Seismic transducers
- Suitable for use in hazardous areas requiring intrinsically safe connections
- Vibration and Position Monitoring in applications like rotating equipment, pumps, turbines, compressors, etc.
- Earthing Module required for intrinsically safe applications
