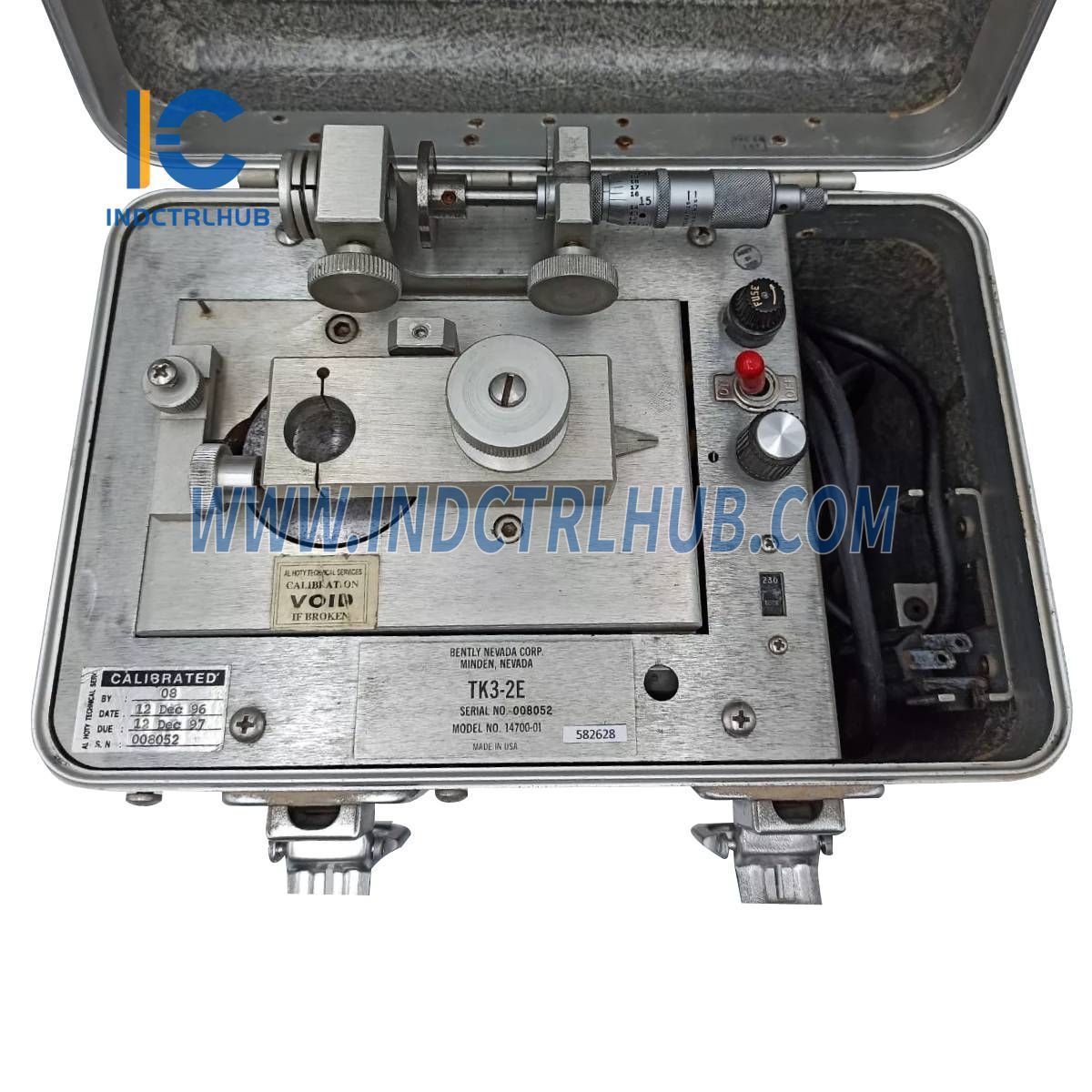

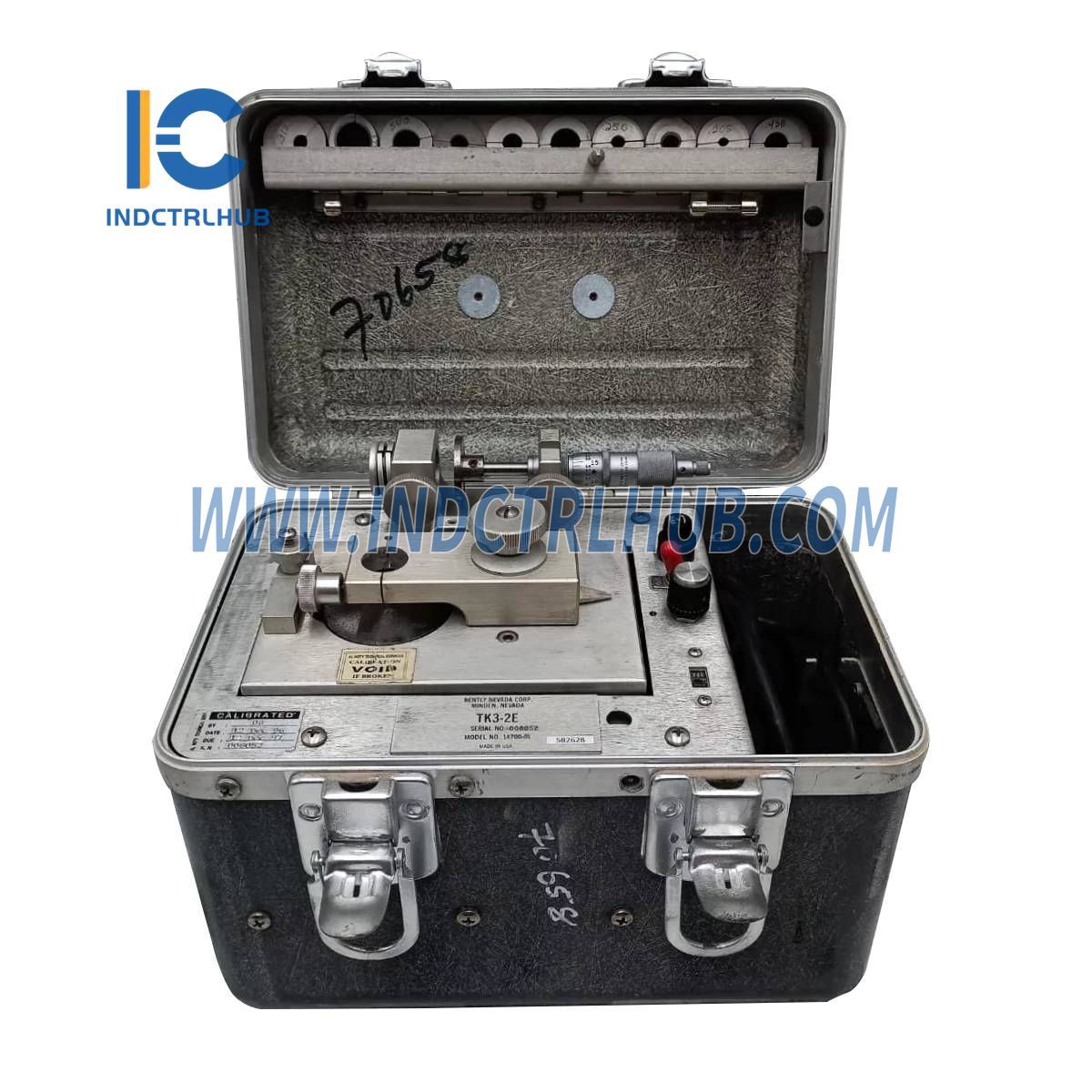

Bently Nevada TK3-2E CALIBRATION INSTRUMENT

Product Details

• Manufacturer: Bently Nevada
• Model/Part Number: TK3-2E
• Model Type: Calibration Instrument

General Overview

The TK3-2E and TK3-2G are self-contained calibration instruments, designed for use with proximity transducers (Proximitors). These instruments require proper power connections to function. The TK3-2E operates at 115/230 Vac, and users need to ensure the switch is correctly set to prevent circuit damage. The TK3-2G requires careful handling, as it must be kept upright to prevent oil spillage.

Recommended Maintenance Equipment

• Digital Multimeter (4-1/2 digits)
• Oscilloscope
• Power Supply
• Probes and Extension Cables

Minimum Specifications for Maintenance Equipment

• Multimeter: 1 megohm input impedance, ac volts up to 100 Volts, dc volts up to 100 Volts, dc current to 200 milliamps, resistance to 1 megohm.
• Oscilloscope: 10 Volts peak-to-peak, dc to 1 MHz bandwidth.
• Power Supply: -18V or -24 Vdc output, capable of at least 30 mA minimum output current, depending on the Proximitor used.

Equipment for Calibration

• Digital Multimeter: HP 3465A/B (DMM)
• Oscilloscope: Tektronix Model 5110
• Probes/Extension Cables: BNC

Specifications

Power

• TK3-2E: 95 to 125 Vac, 50 to 60 Hz, 1 amp max
• TK3-2G: 190 to 250 Vac, 50 to 60 Hz, 1 amp max
• Air Pressure: 40 to 90 psi @ 15 Std cfm max (2.76 x 10⁵ to 6.21 x 10⁵ N/m² @ 26 std cubic meters per hour)

Housing

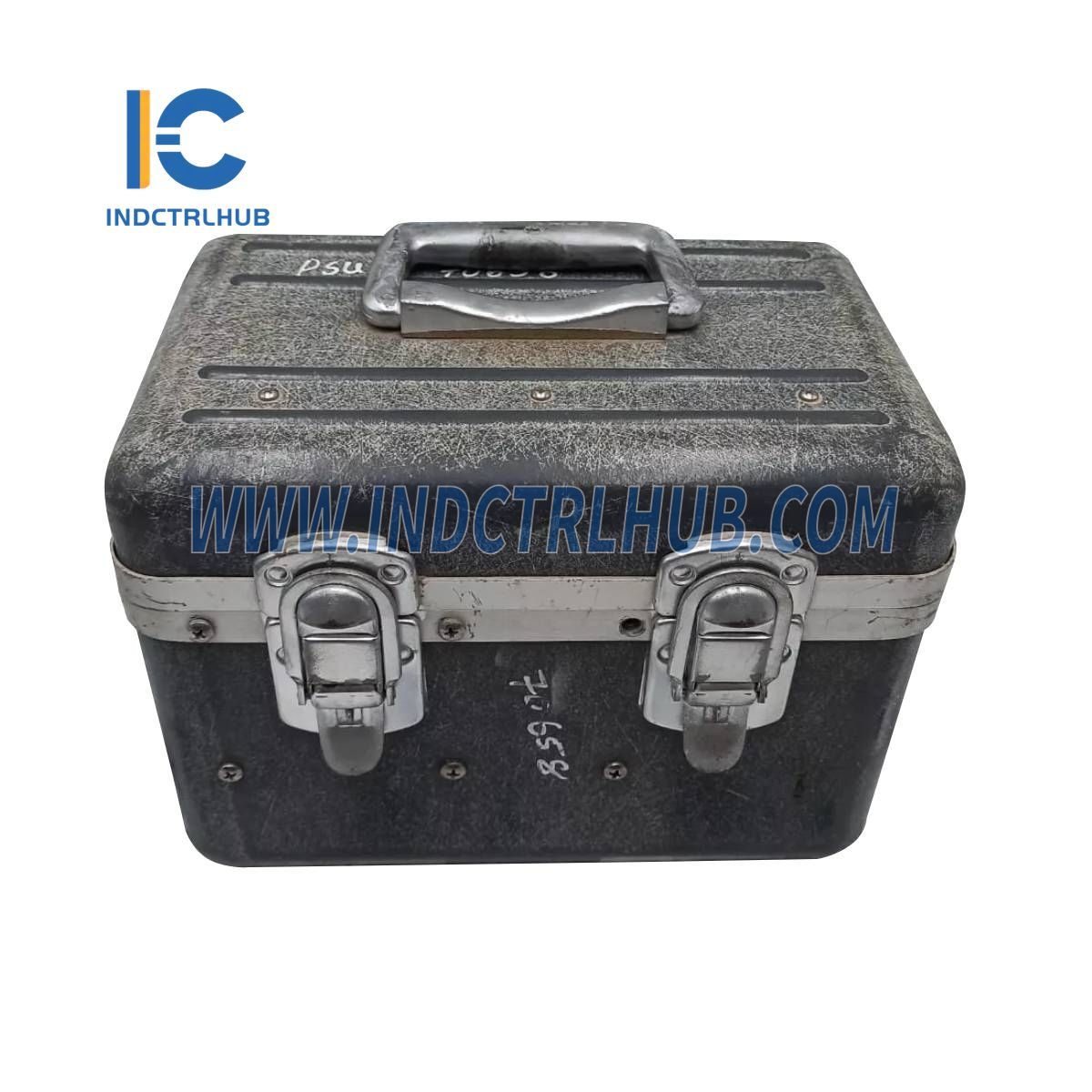

• Material: High-impact plastic portable carrying case.

Dimensions (Overall)

• Height: 8-1/2 inches (216 mm)
• Width: 7-1/4 inches (184 mm)
• Length: 11-1/4 inches (286 mm)

Controls

• Wobulator Speed
• Vibration Amplitude ON/OFF (TK3-2E)
• Oil Drip Rate Adjustment (TK3-2G)

Probe Adapters (Body Diameter)

• Inches: 0.205, 0.250, 0.312, 0.323, 0.375, 0.437, 0.500, 0.562, 0.625, 0.675
• Millimeters: 5.2, 6.4, 7.9, 8.2, 9.5, 11.1, 12.7, 14.3, 15.9, 17.1
• Probe Without Adapter: 0.750 inch (19.0 mm)

Target Material

• Recommended Material: 4140 steel

Wobulator (Speed)

• TK3-2E: 10,000 rpm ±2,500 rpm (overspecified line voltage range)
• TK3-2G: 5,000 rpm (overspecified air pressure range)

Vibration Amplitude Range

• 2 mils to 10 mils (50 µm to 254 µm) peak-to-peak

Key Notes

• TK3-2E is intended for more rigorous tasks, capable of higher speeds and slightly more stringent line voltage requirements compared to the TK3-2G.
• TK3-2G has an oil drip rate adjustment feature, which is crucial for specific applications requiring controlled lubrication.
