Product Description
Product Details
- Manufacturer: Bently Nevada
- Series: 3500/32
- Model/Part Number: 149986-02
- Model Type: 4-Channel Relay Control Module
Description

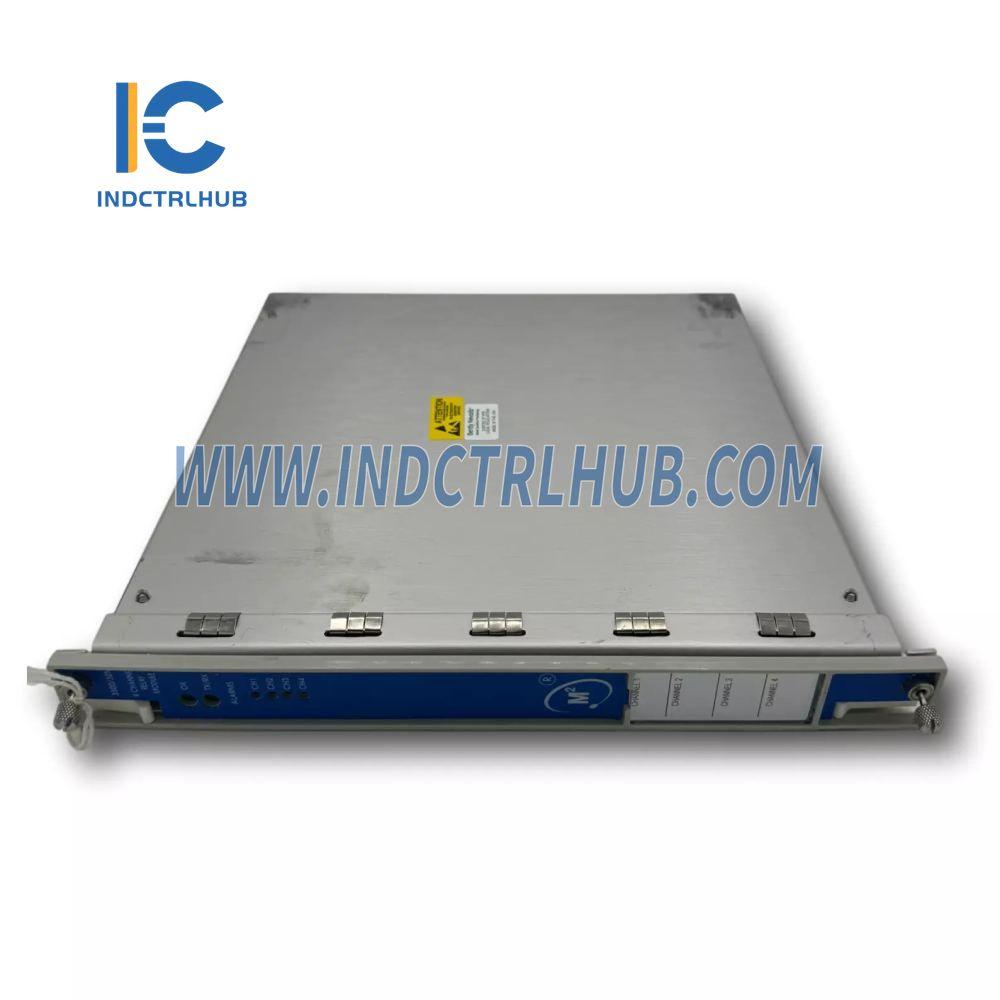

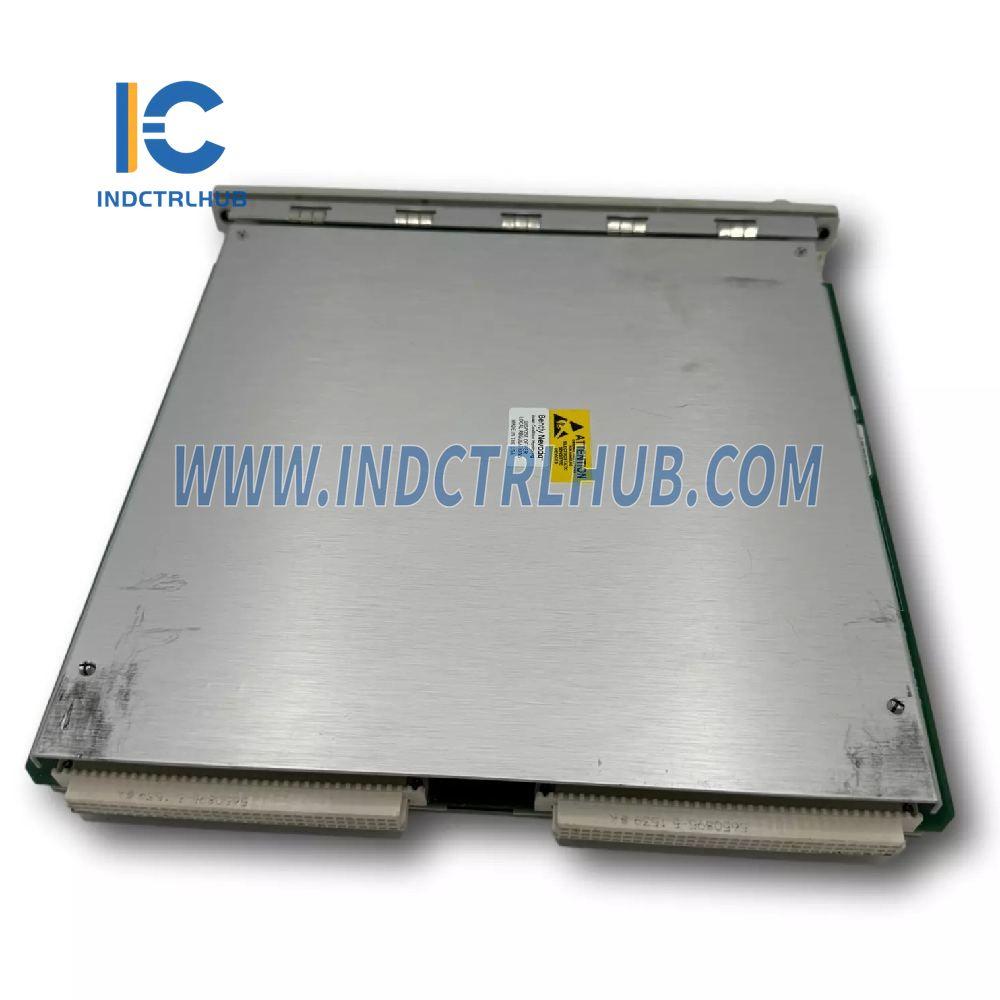

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Multiple 4-Channel Relay Modules can be installed in any available slot to the right of the Transient Data Interface Module. Each output on the module can be independently programmed to perform voting logic.
Specifications
Inputs
- Power Consumption: 5.8 watts (typical)
Outputs
- OK LED: Illuminates when the module is functioning properly.
- TX/RX LED: Flashes to indicate proper communication between this module and other modules in the rack.
- CH ALARM LED: Illuminates to indicate that the relay channel is in an alarm state.
Relays
- Type: Single-pole, double-throw (SPDT) relays
- Environmental Sealing: Epoxy-sealed
- Arc Suppressor: 250 Vrms, installed as standard
- Contact Life: 100,000 cycles @ 5 A, 24 Vdc or 240 Vac
- Operation: Each of the four relay channels is switch-selectable for Normally De-energized or Normally Energized.
Environmental Limits
- Operating Temperature: -30°C to +65°C (-22°F to +150°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity: 95%, non-condensing
Physical Specifications
- Dimensions (H x W x D): 241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
- Weight: 0.4 kg (1.0 lb)
Ordering Information
The part number format is 3500/32-AA-BB, with the following options:
-
A: Output Module
- 01: 4-Channel Relay Output Module
-
B: Agency Approval Option
- 00: None
- 01: cNRTLus (Class I, Div 2)
- 02: ATEX/IECEx/CSA (Class I, Zone 2)
