Product Description
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Series | 3500/15 |
| Model/Part Number | 3500/15-05-05-00, 106M1079-01, 106M1081-01 |
| Model Type | AC and DC Power Supplies |
Spares
| Part Number | Description |
|---|---|

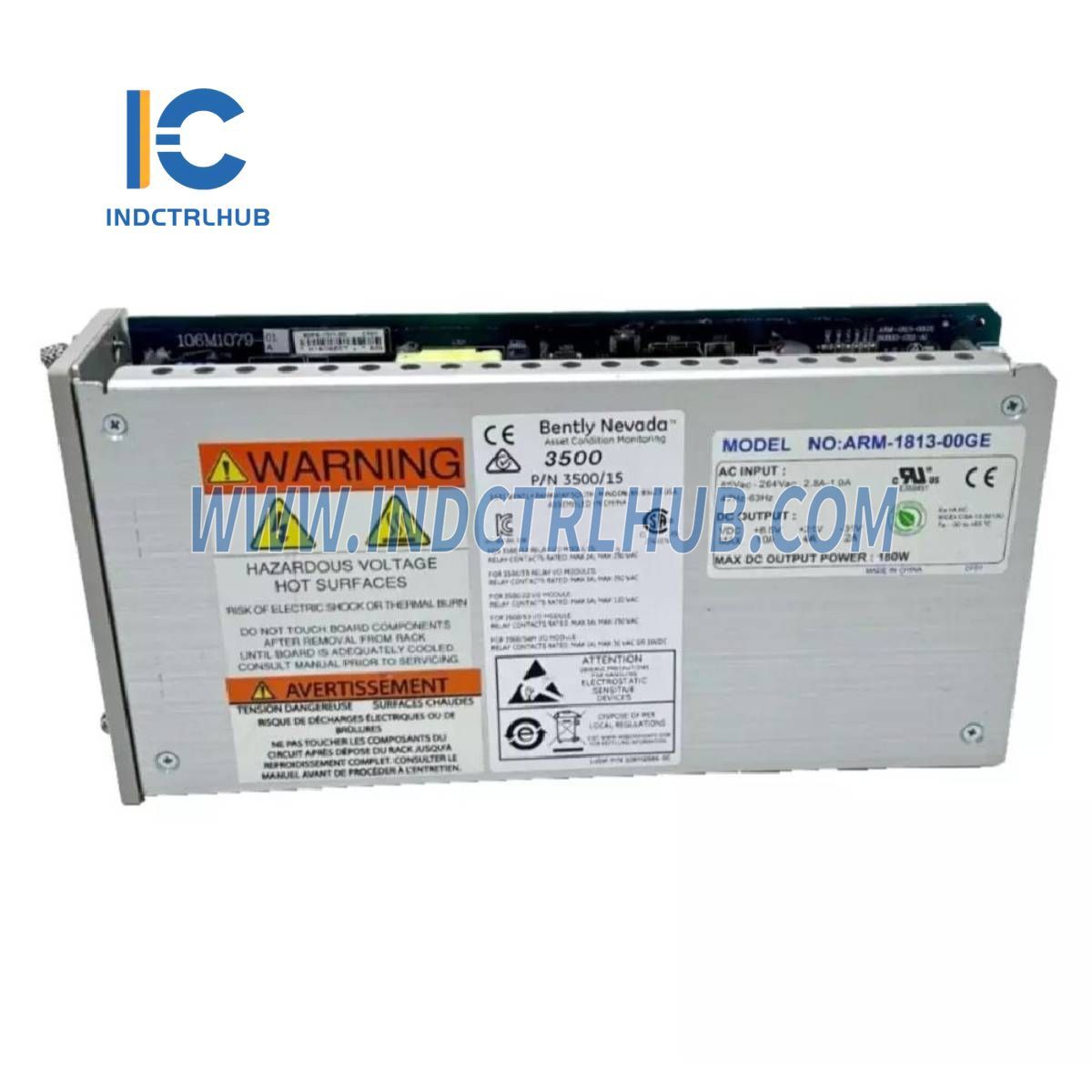

| 106M1079-01 | Universal AC Power Supply Module |

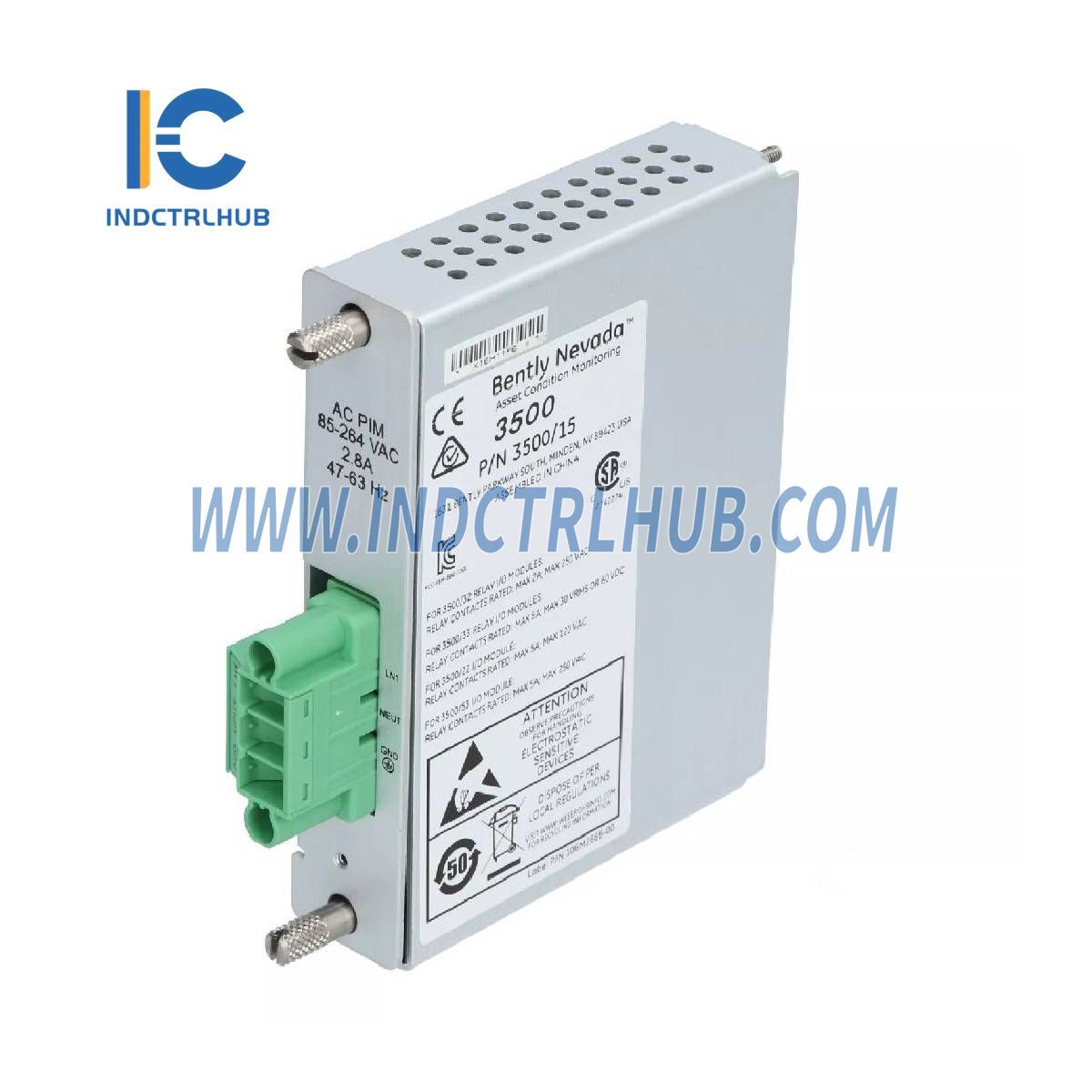

| 106M1081-01 | Universal AC Power Input Module |
Description

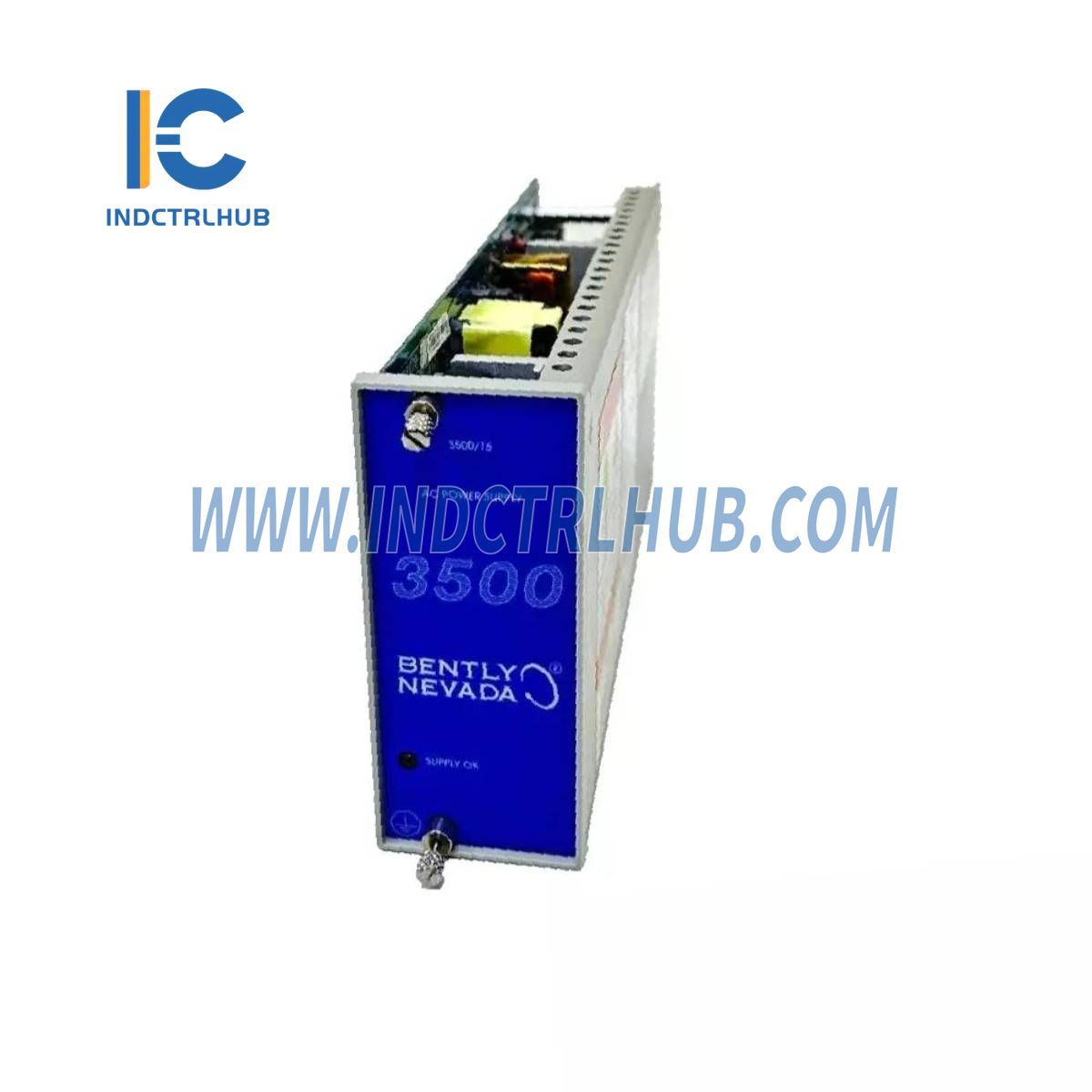

The 3500/15 AC and DC Power Supplies are half-height modules that must be installed in designated slots on the left side of the rack. The 3500 rack can contain one or two power supplies in any combination of AC and DC. Each power supply can power a full rack.
Specifications
Inputs
| Voltage Options | Description |
|---|---|
| Universal Voltage AC | Input Voltage: 110 to 220 Vac nominal |
| Non-hazardous Areas: 85 to 264 Vac rms | |
| Hazardous Areas: 85 to 250 Vac rms | |
| Peak Voltage: 120 to 373 Vac pk | |
| Input Frequency: 47 to 63 Hz | |
| Note: Not compatible with legacy High Voltage AC or Low Voltage AC units. | |
| High Voltage DC | Input Voltage: 88 to 140 Vdc |
| Low Voltage DC | Input Voltage: 20 to 30 Vdc |
Physical
| Module Type | Dimensions (H x W x D) | Weight |
|---|---|---|
| Power Supply Module | 120.7 mm x 50.8 mm x 251.5 mm | 1.39 kg (3.06 lb) |
| Power Input Module | 120.7 mm x 25.4 mm x 114.3 mm | 0.34 kg (0.75 lb) |
Environmental Limits
| Parameter | Range |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
Ordering Information
| Model/Part Number | Description |
|---|---|
| 3500/15 Power Supply Module | 3500/15 -AA-BB-CC |
| A: Power Supply Type (Top Slot) | 03: Legacy High Voltage DC (88 to 140 Vdc) |
| 04: Legacy Low Voltage DC (20 to 30 Vdc) | |
| 05: Universal AC Voltage (85 to 264 Vac rms) | |
| 06: High Voltage DC Supply | |
| 07: Low Voltage DC Supply | |
| B: Power Supply Type (Bottom Slot) | 00: No Supply (when no supply is required) |
| 03: Legacy High Voltage DC (88 to 140 Vdc) | |
| 04: Legacy Low Voltage DC (20 to 30 Vdc) | |
| 05: Universal AC Voltage (85 to 264 Vac rms) | |
| 06: High Voltage DC Supply | |
| 07: Low Voltage DC Supply | |
| C: Agency Approval | 00: None |
| 01: CSA / NRTL / C (Class 1, Division 2) |
