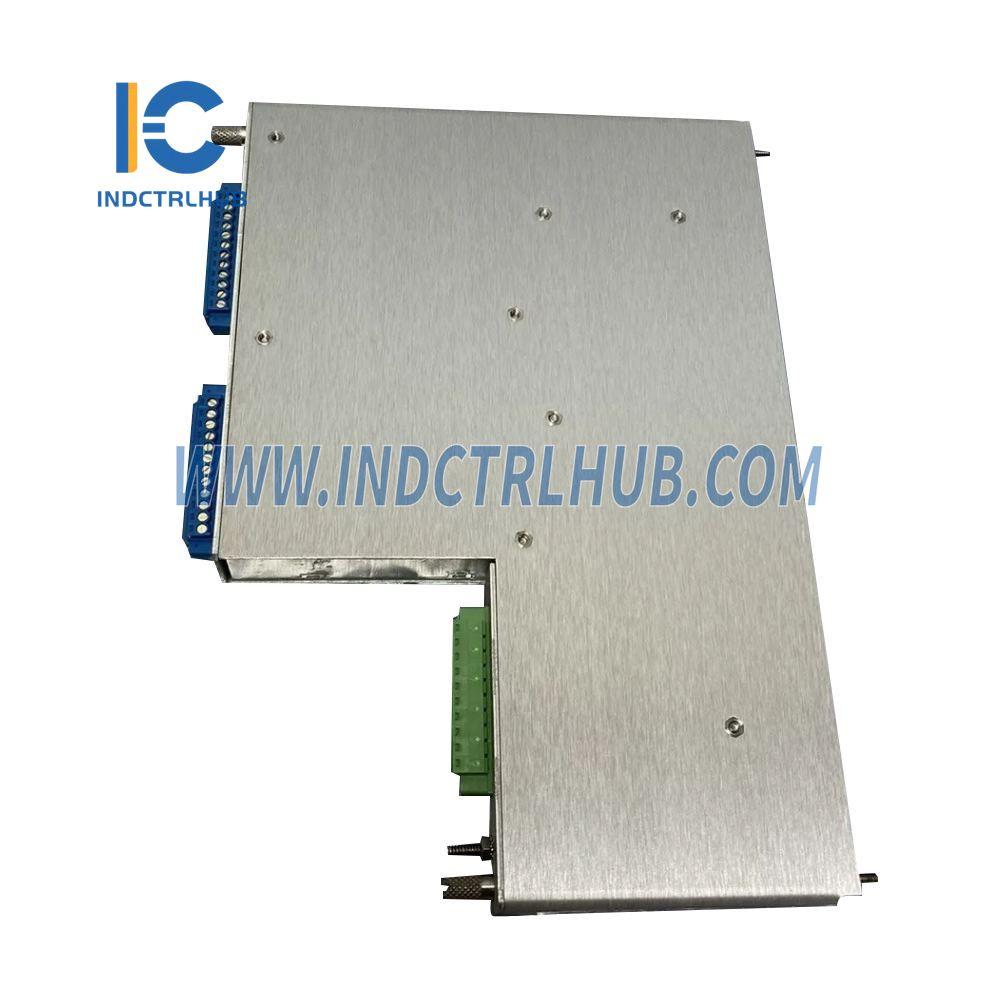

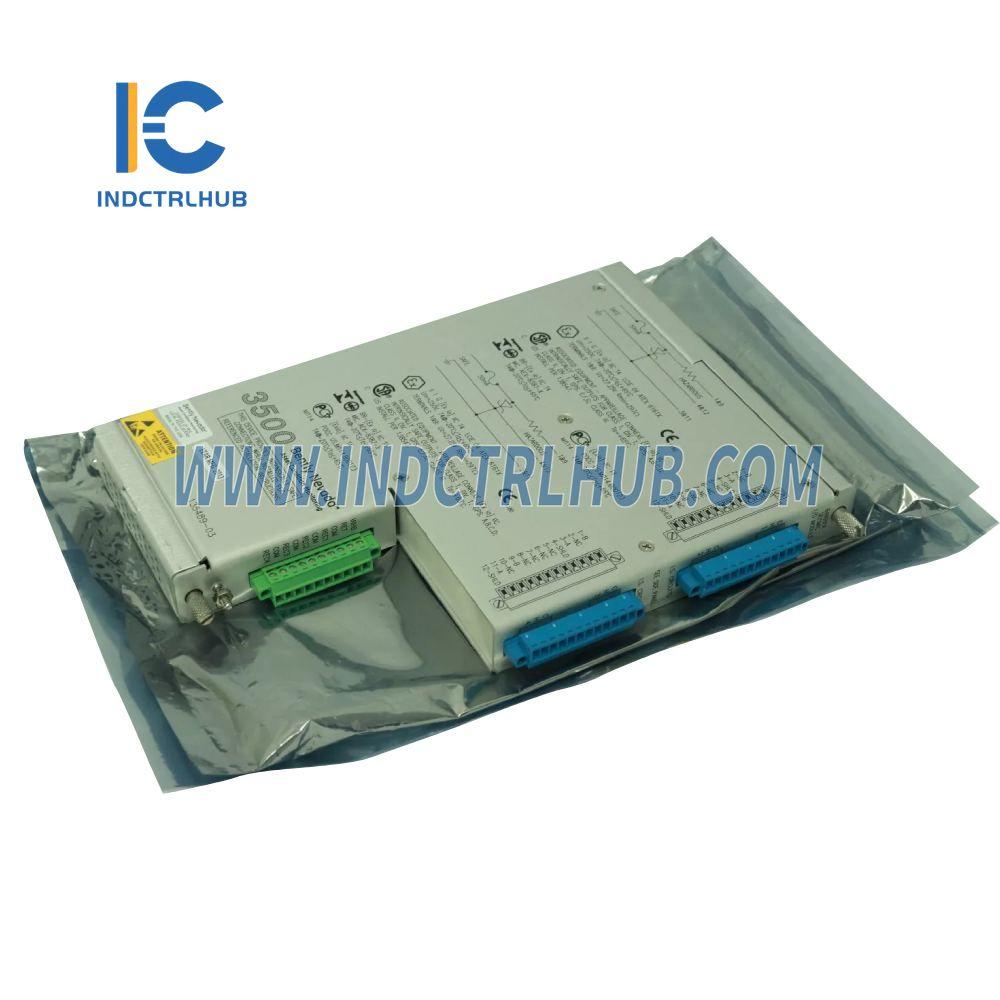

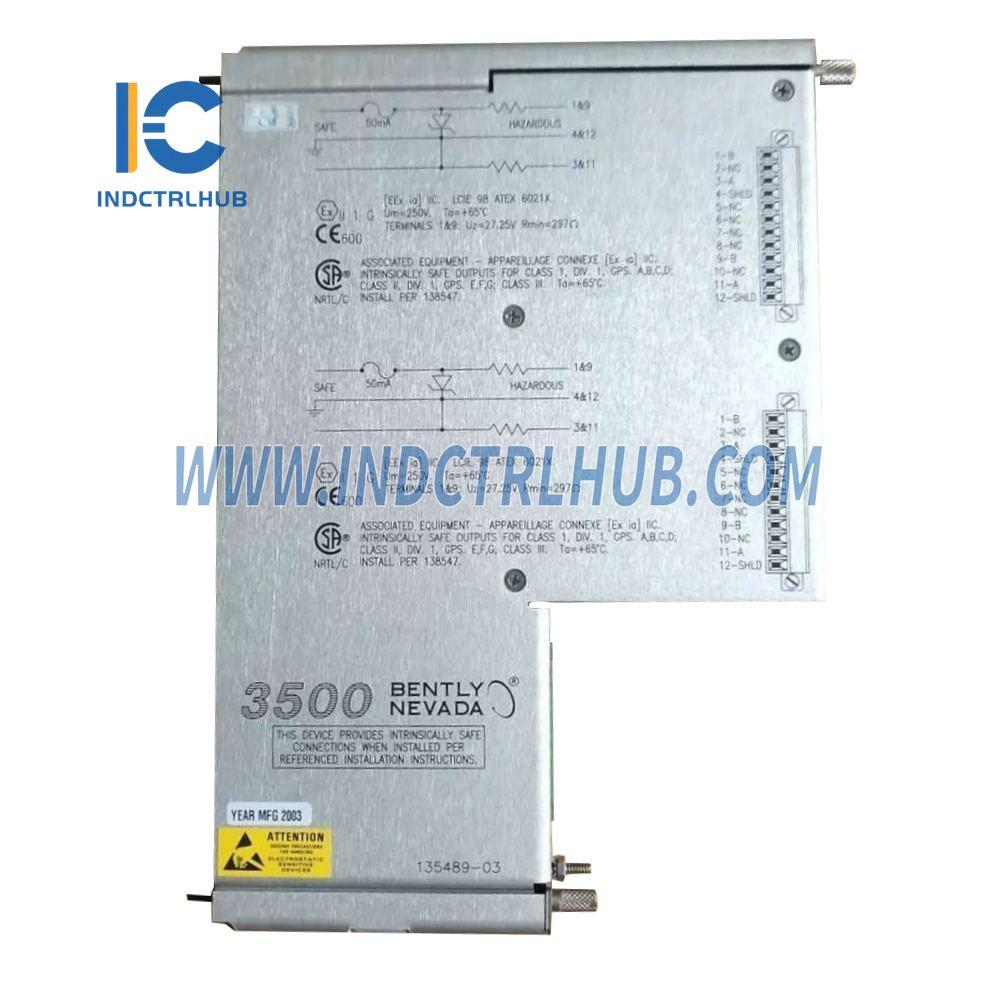

BENTLY NEVADA 3500/04 135489-03 I/O Module
BENTLY NEVADA 3500/04 135489-03 I/O Module
Manufacturer: Bently Nevada
Product No.: 135489-03
Condition:1000 in stock
Product Type: I/O Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
| Manufacturer | Bently Nevada |
|---|---|
| Model/Part Number | 135489-03 |
| Description | 3500/04 I/O Module |
Description
The 3500/04 Internal Barrier I/O Module serves as an intrinsically safe interface, providing explosion protection for transducer systems connected to the 3500 Machinery Protection System. It ensures safe installation of various transducer systems in hazardous areas while maintaining compatibility with the 3500 system.
Key Features:
- Provides intrinsic safety for hazardous area installations.
- Ensures seamless compatibility with the 3500 Machinery Protection System.
- Offers a cost-effective solution for transducer systems.
Specifications
Physical Information
| Property | Specification |
|---|---|
| Dimensions (H x W x D) | 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in) |
| Weight | 0.46 kg (1.01 lb) |
Temperature Specifications
| Parameter | Specification |
|---|---|
| Temperature Accuracy | ±1°C at +25°C, ±15°C over operating range |
| Phase Accuracy | -11° at 10 kHz |
Channel Parameters
| Parameter | Specification |
|---|---|
| Um | 250 V |
| Uo | 7.71 V |
| Io | 89.17 mA |
| Co | 9.3 µF |
| Lo | 4.55 mH |
| Po | 132.41 mW |
Ordering Information
| Model | 3500/04-AA-BB |
|---|---|
| A: I/O Module Type | |
| 01: Earthing I/O Module | |
| B: Agency Approval | |
| 00: None | |
| 01: North American HazLoc | |
| 02: Multi (CSA, ATEX, IECEx) |
