Product Description
General Information
• Manufacturer: Bently Nevada
• Series: 3300
• Model/Part Number: 330180-91-00

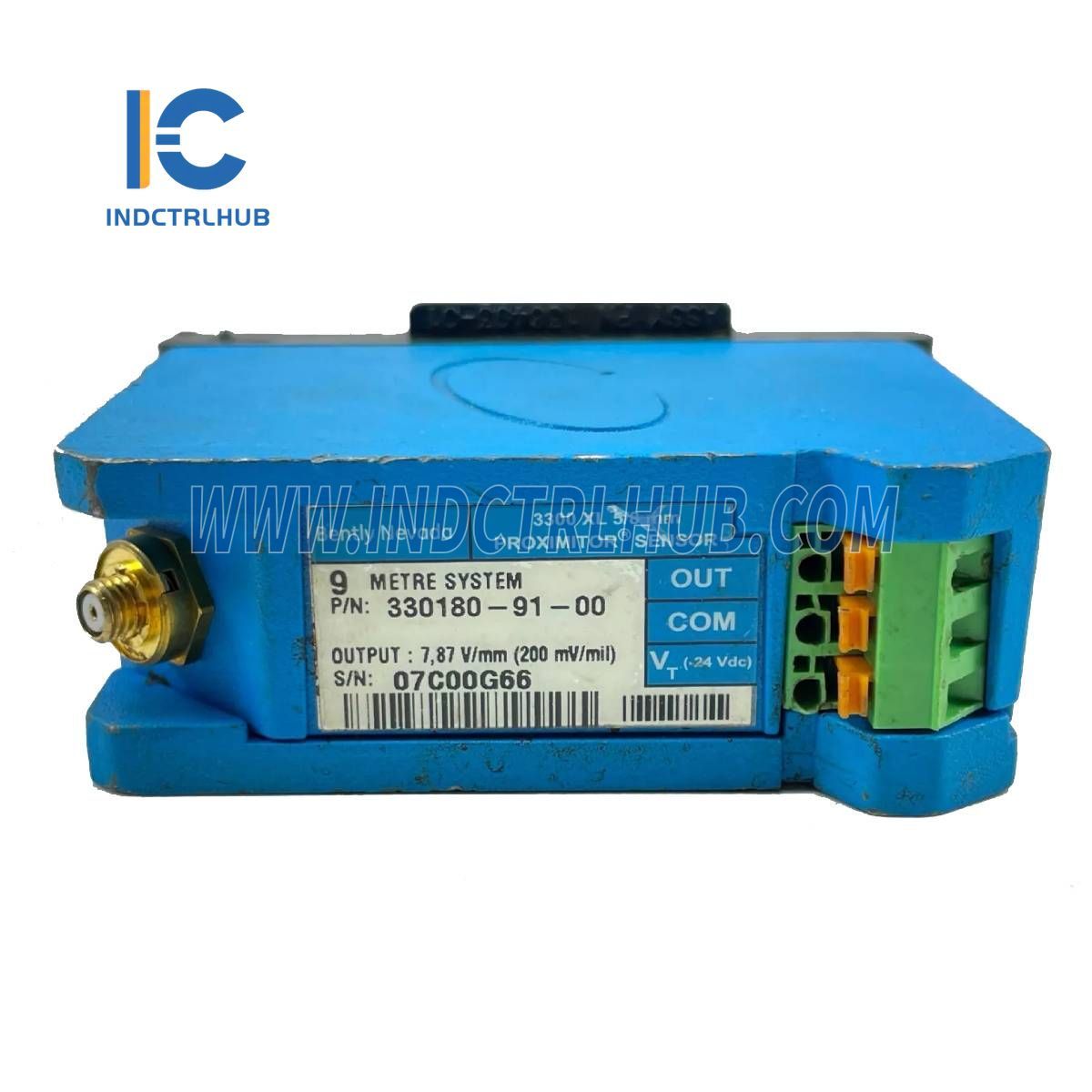

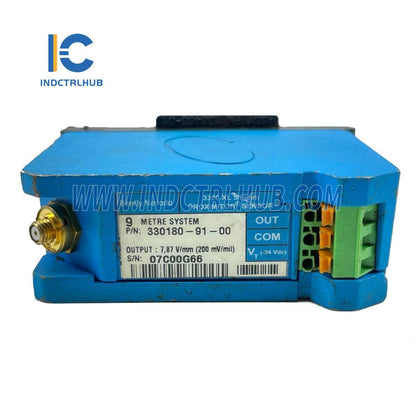

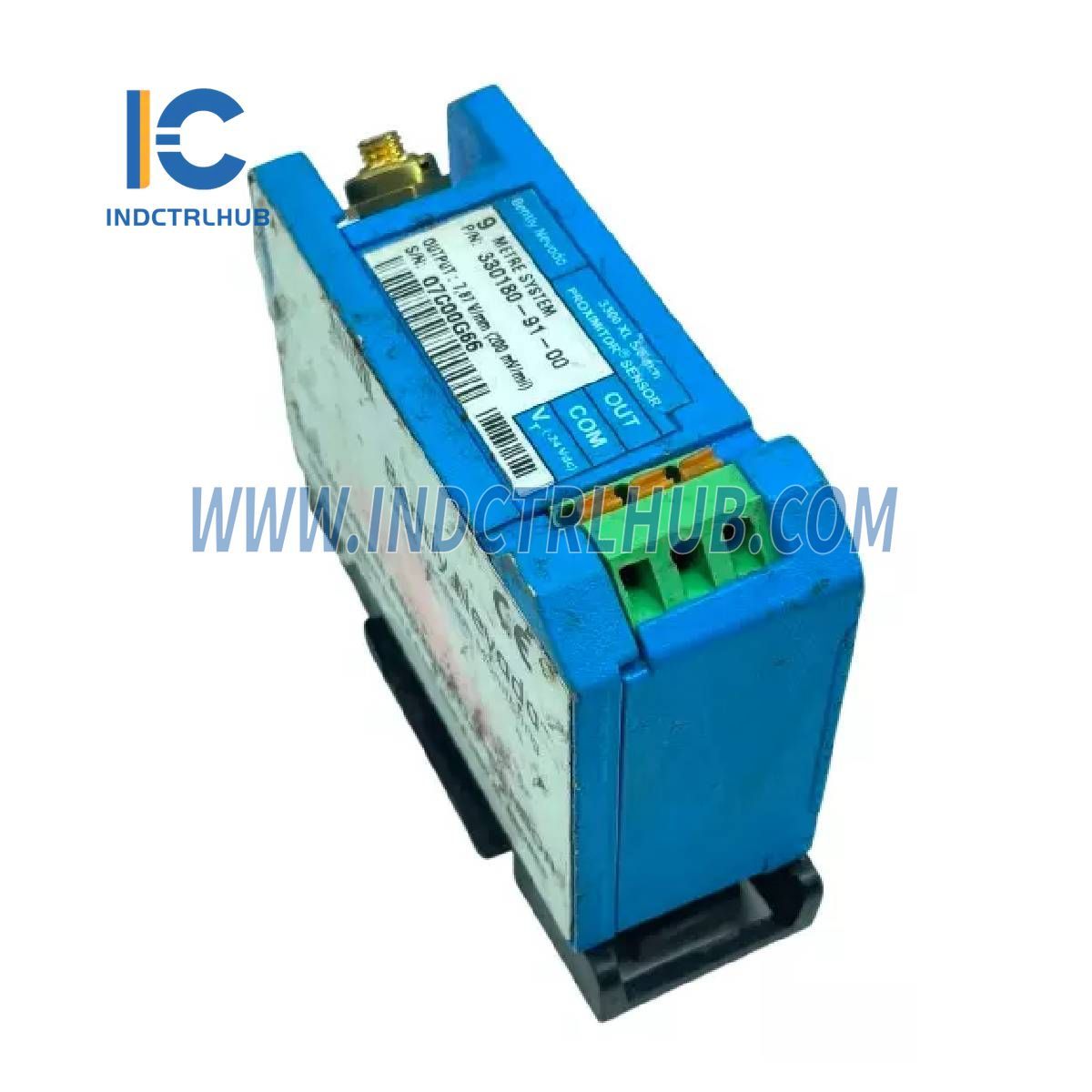

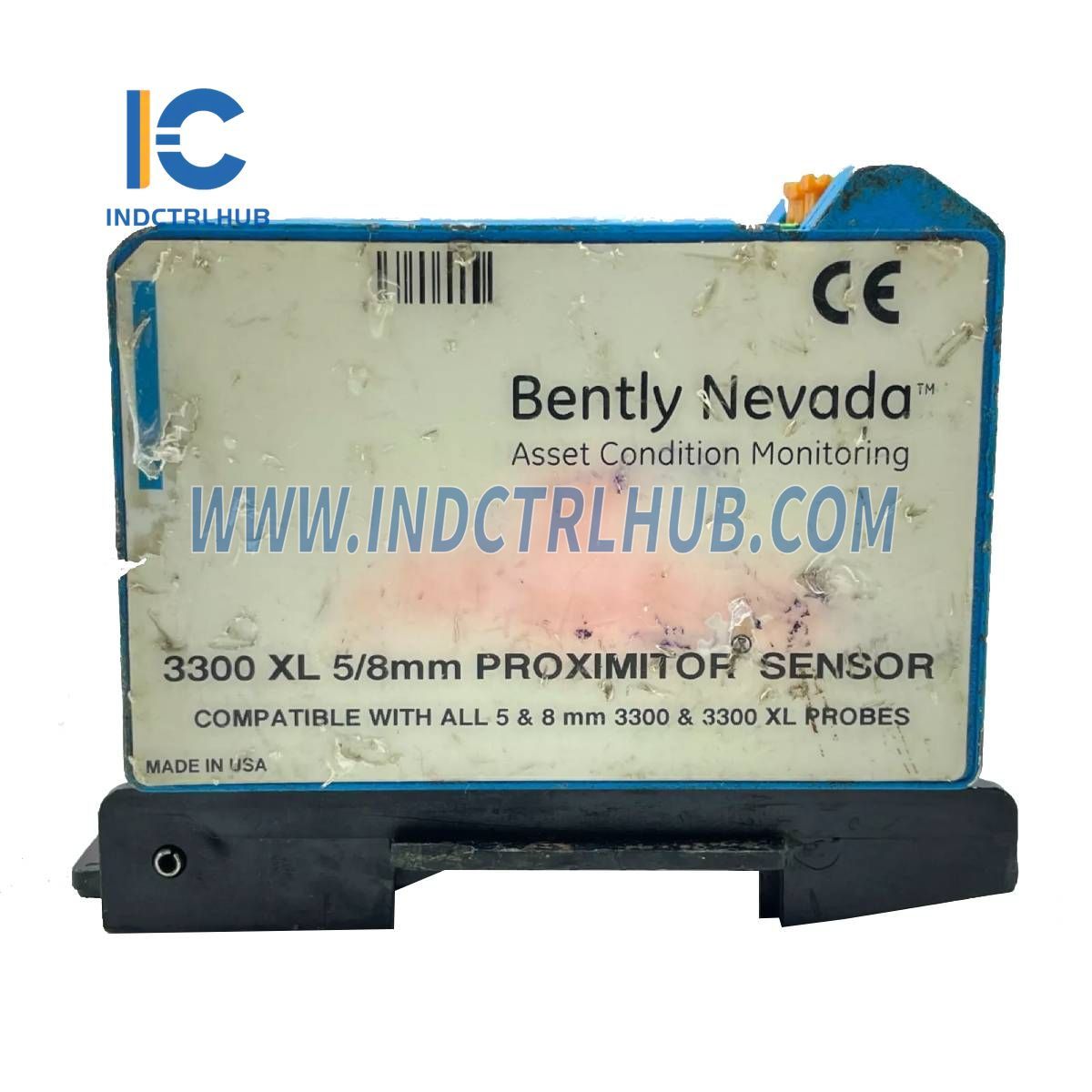

• Type: 3300 XL Proximitor Sensor
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
• One 3300 XL 8 mm probe
• One 3300 XL extension cable
• One 3300 XL Proximitor Sensor
Materials
|
Component |
Material |
|---|---|
|
Proximitor Sensor |
A308 aluminum |
|
Connector |
Gold-plated brass or gold-plated beryllium copper |
System Length Options
|
System Length |
Configuration |
|---|---|
|
1 meter |
Probe only |
|
5 meters |
Including extension cable |
|
9 meters |
Including extension cable |
Weight
|
Component |
Weight |
|---|---|
|
Total System |
0.7 kg (1.5 lb) |
|
Probe |
323 g/m (11.4 oz) |
|
Extension Cable |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor |
246 g (8.67 oz) |
Environmental Limits
|
Component |
Operating & Storage Temperature |
|---|---|
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Probe |
-52°C to +218°C (-62°F to +425°F) (probe tip) |
|
-51°C to +260°C (-60°F to +500°F) (probe cable & connector) |
Ordering Information for Proximitor Sensor
3300 XL Proximitor Sensor (330180-AA-BB)
A: Total Length and Mounting Option
|
Code |
Length & Mounting |
|---|---|
|
10 |
1.0m (3.3ft) system length, panel mount |
|
11 |
1.0m (3.3ft) system length, DIN mount |
|
12 |
1.0m (3.3ft) system length, no mounting hardware |
|
50 |
5.0m (16.4ft) system length, panel mount |
|
51 |
5.0m (16.4ft) system length, DIN mount |
|
52 |
5.0m (16.4ft) system length, no mounting hardware |
|
90 |
9.0m (29.5ft) system length, panel mount |
|
91 |
9.0m (29.5ft) system length, DIN mount |
|
92 |
9.0m (29.5ft) system length, no mounting hardware |
B: Agency Approval Option
|
Code |
Approval |
|---|---|
|
00 |
Not required |
|
05 |
CSA, ATEX, IECEx Approvals |
