Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330180-90-95 |
|
Model Type |

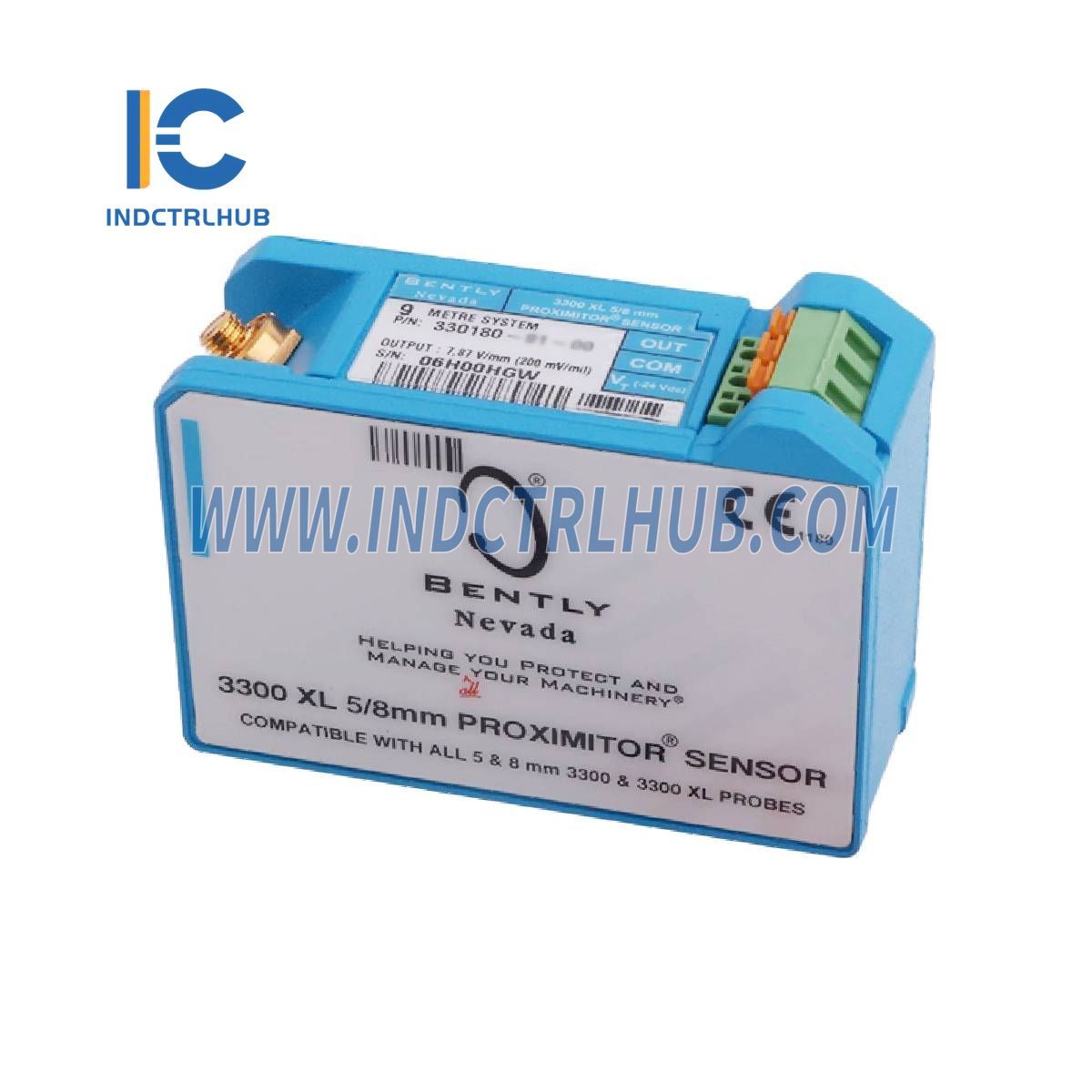

3300 XL Proximitor Sensor |
Description
The 3300 XL 8 mm Proximity Transducer System consists of:
• One 3300 XL 8 mm probe
• One 3300 XL extension cable
• One 3300 XL Proximitor Sensor
Materials
|
Component |
Material |
|---|---|
|
Proximitor Sensor Material |
A308 aluminum |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
Length and Weight
|
Specification |
Details |
|---|---|
|
System Length |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight (Typical) |
0.7 kg (1.5 lb m) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor Weight |
246 g (8.67 oz) |
Environmental Limits
|
Component |
Operating & Storage Temperature |
|---|---|
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Range Probe |
-52°C to +218°C (-62°F to +425°F) for probe tip -51°C to +260°C (-60°F to +500°F) for probe cable and connector |
Ordering Information for 3300 XL Proximitor Sensor
|
Part Number |
Description |
|---|---|
|
330180-AA-BB |
3300 XL Proximitor Sensor |
Configuration Options
|
Option |
Description |
|---|---|
|
A: Total Length and Mounting Option |
10: 1.0 meter (3.3 feet) system length, panel mount 11: 1.0 meter (3.3 feet) system length, DIN mount 12: 1.0 meter (3.3 feet) system length, no mounting hardware 50: 5.0 meters (16.4 feet) system length, panel mount 51: 5.0 meters (16.4 feet) system length, DIN mount 52: 5.0 meters (16.4 feet) system length, no mounting hardware 90: 9.0 meters (29.5 feet) system length, panel mount 91: 9.0 meters (29.5 feet) system length, DIN mount 92: 9.0 meters (29.5 feet) system length, no mounting hardware |
|
B: Agency Approval Option |
00: Not required 05: CSA, ATEX, IECEx Approvals |
