Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |

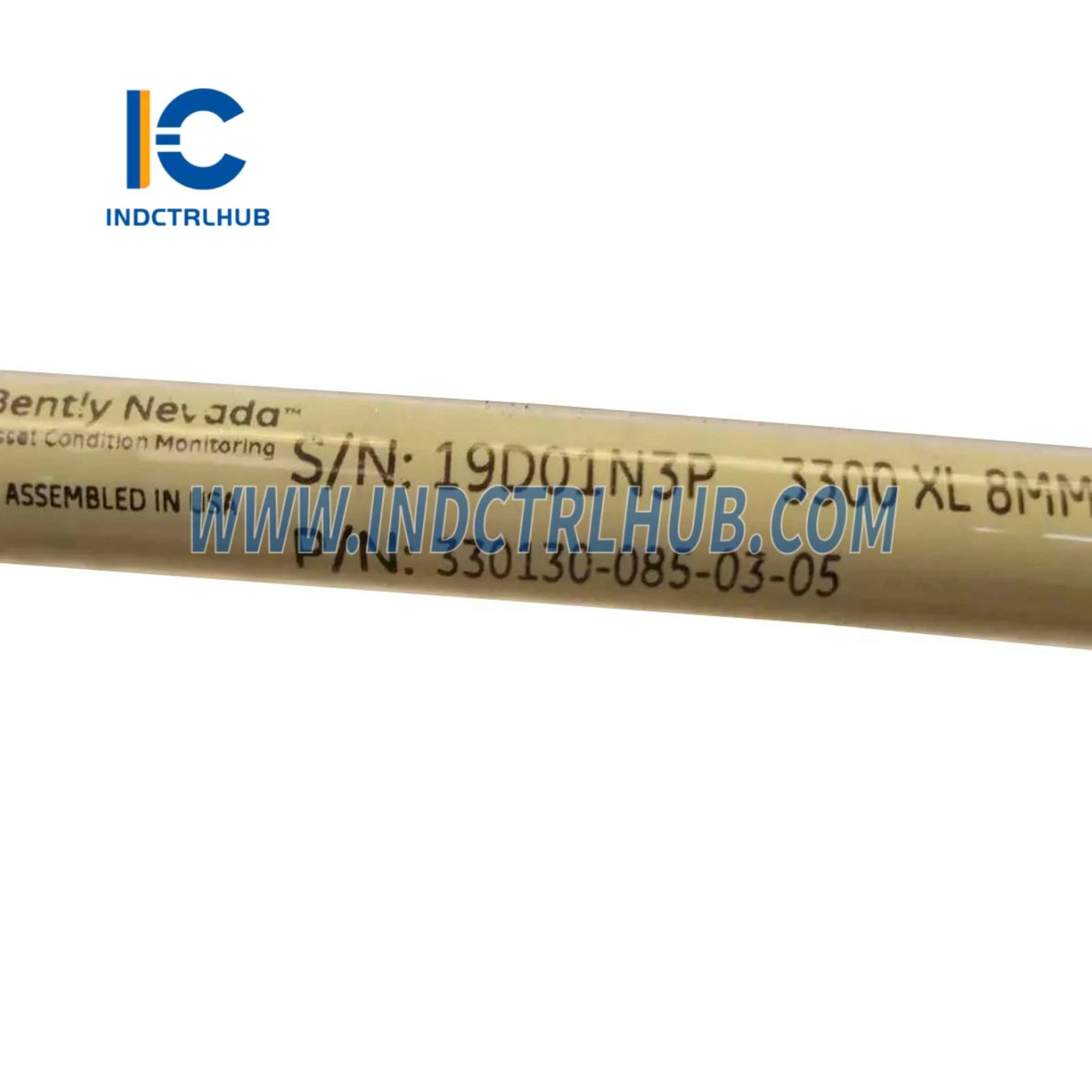

330130-085-03-05 |
|
Model Type |

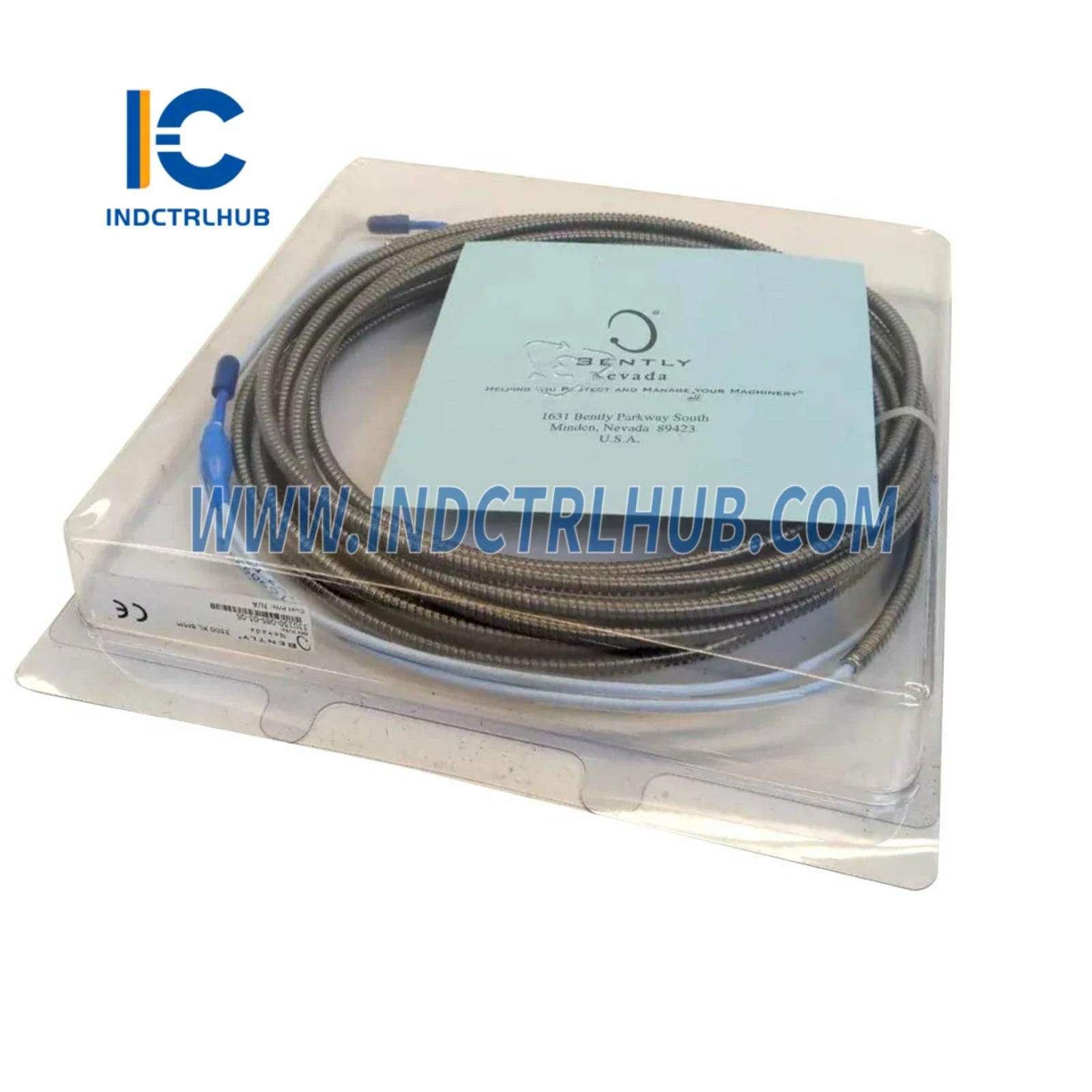

3300 XL Standard Extension Cable |
Extension Cable Material
|
Cable Type |
Material |
|---|---|
|
Standard Cable |
75Ω triaxial, fluoroethylene propylene (FEP) insulated |
|
Extended Temperature Range Cable |
75Ω triaxial, perfluoroalkoxy (PFA) insulated |
Mechanical Specifications
|
Specification |
Details |
|---|---|
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
Length and Weight
|
Specification |
Details |
|---|---|
|
System Length Options |
5 or 9 meters (including extension cable) or 1 meter (probe only) |
|
Total System Weight |
0.7 kg (1.5 lb m) |
|
Probe Weight |
323 g/m (11.4 oz) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
Extension Cable Temperature Range
|
Cable Type |
Operating & Storage Temperature |
|---|---|
|
Standard Cable |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Range Cable |
-52°C to +260°C (-62°F to +500°F) |
Ordering Information for 3300 XL Standard Extension Cable
|
Part Number |
Description |
|---|---|
|
330130-AAA-BB-CC |
Standard 3300 XL Extension Cable Configuration |
Configuration Options
|
Option |
Description |
|---|---|
|
A: Cable Length Option |
030: 3.0 meters (9.8 feet) 035: 3.5 meters (13.1 feet) 040: 4.0 meters (11.5 feet) 045: 4.5 meters (14.8 feet) 060: 6.0 meters (19.7 feet) 070: 7.0 meters (22.9 feet) 075: 7.5 meters (24.6 feet) 080: 8.0 meters (26.2 feet) 085: 8.5 meters (27.9 feet) |
|
B: Connector Protector and Cable Option |

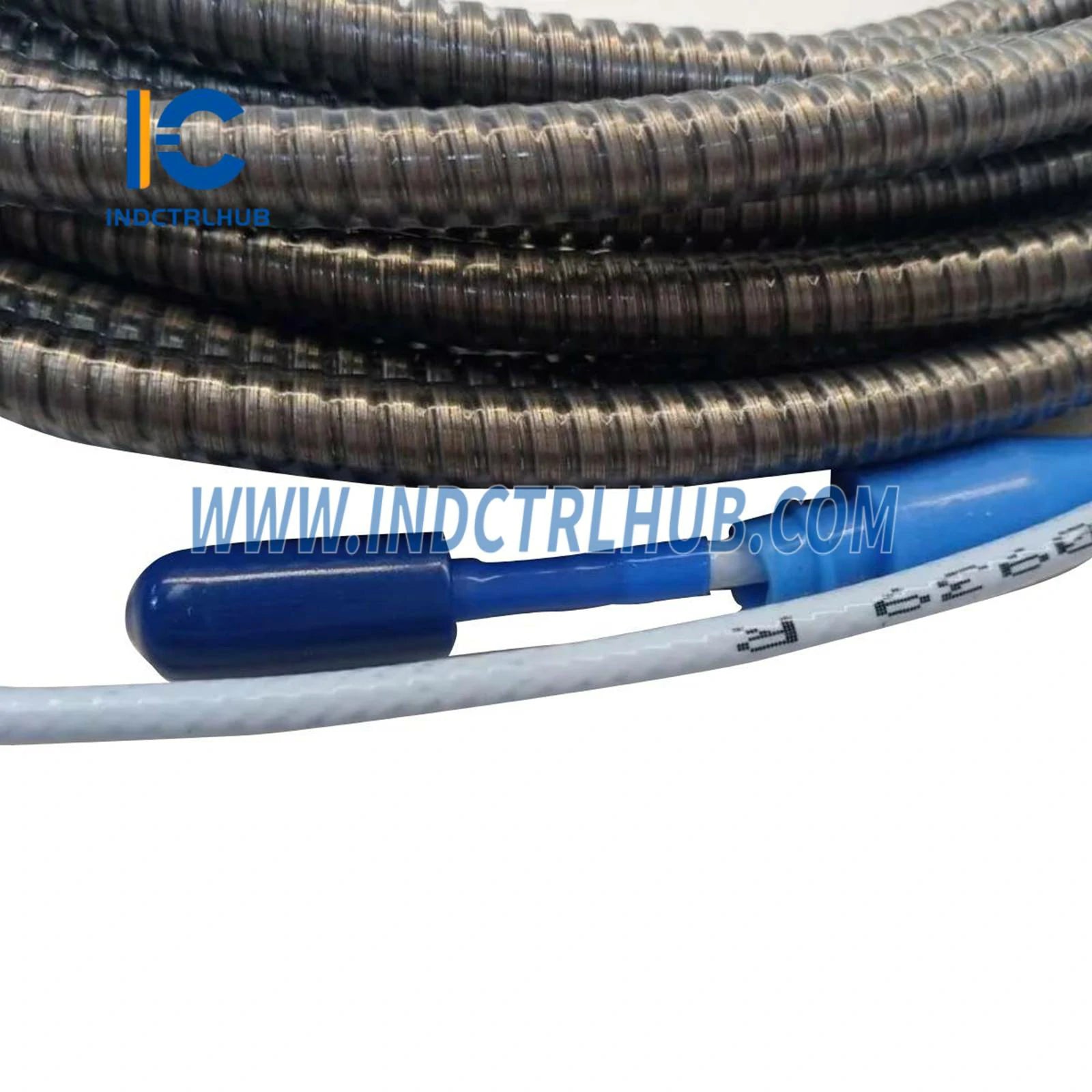

00: Standard cable 01: Armored cable 02: Standard cable with connector protector 03: Armored cable with connector protector 10: FluidLoc cable 11: Armored FluidLoc cable 12: FluidLoc cable with connector protector 13: Armored FluidLoc cable with connector protector |
|
C: Agency Approval Option |
00: Not required 05: CSA, ATEX, IECEx Approvals |
