Product Description
General Information
• Manufacturer: Bently Nevada
• Series: 3300 XL

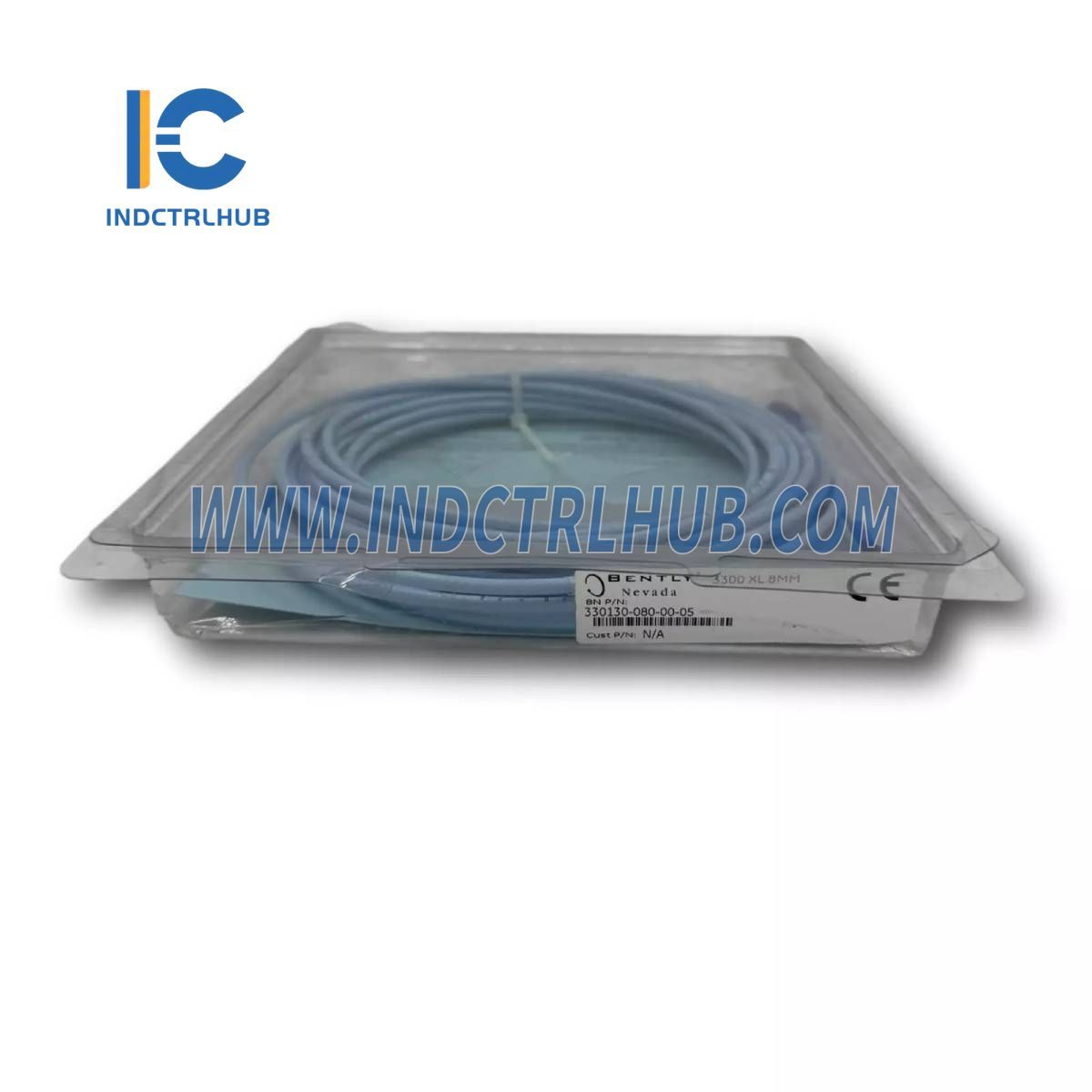

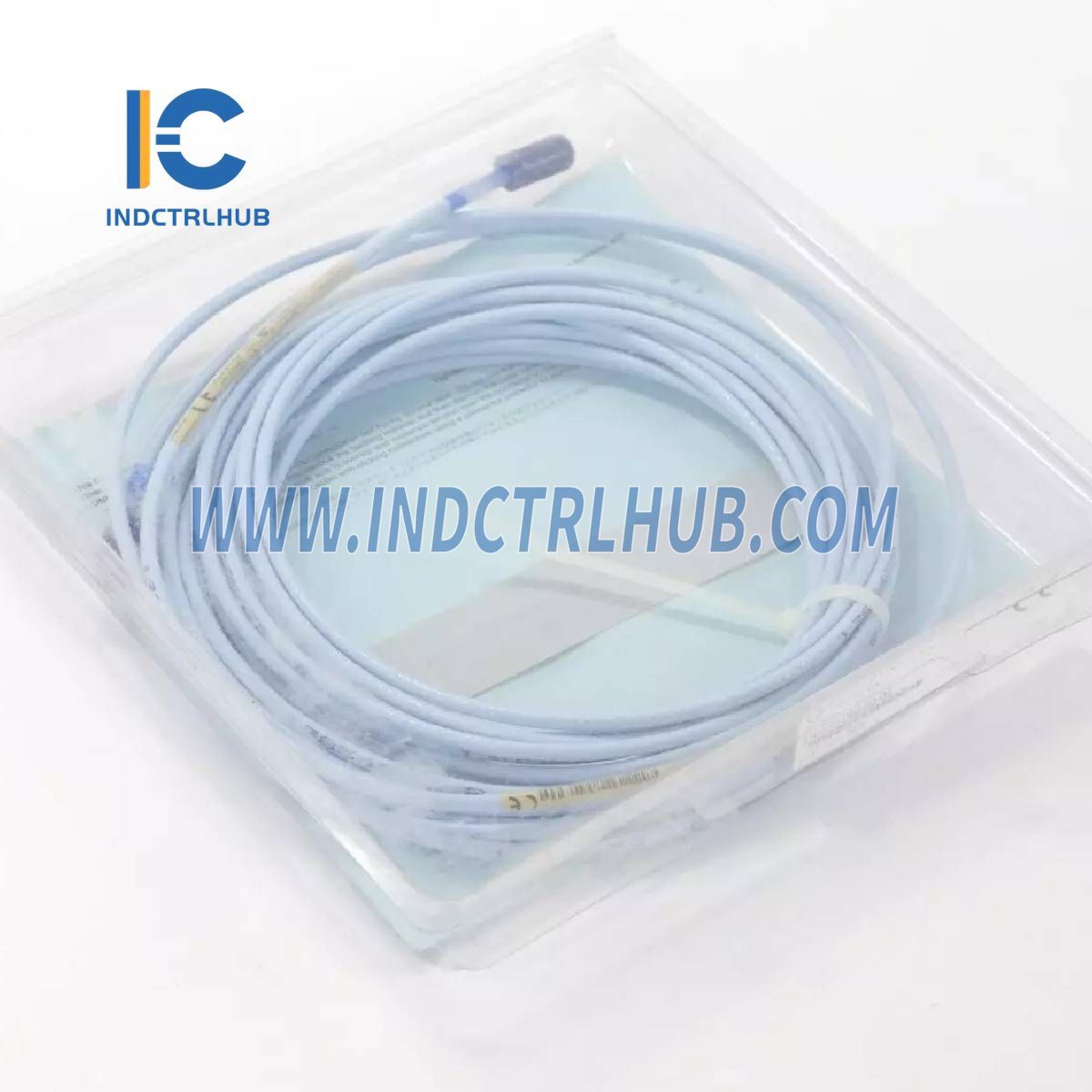

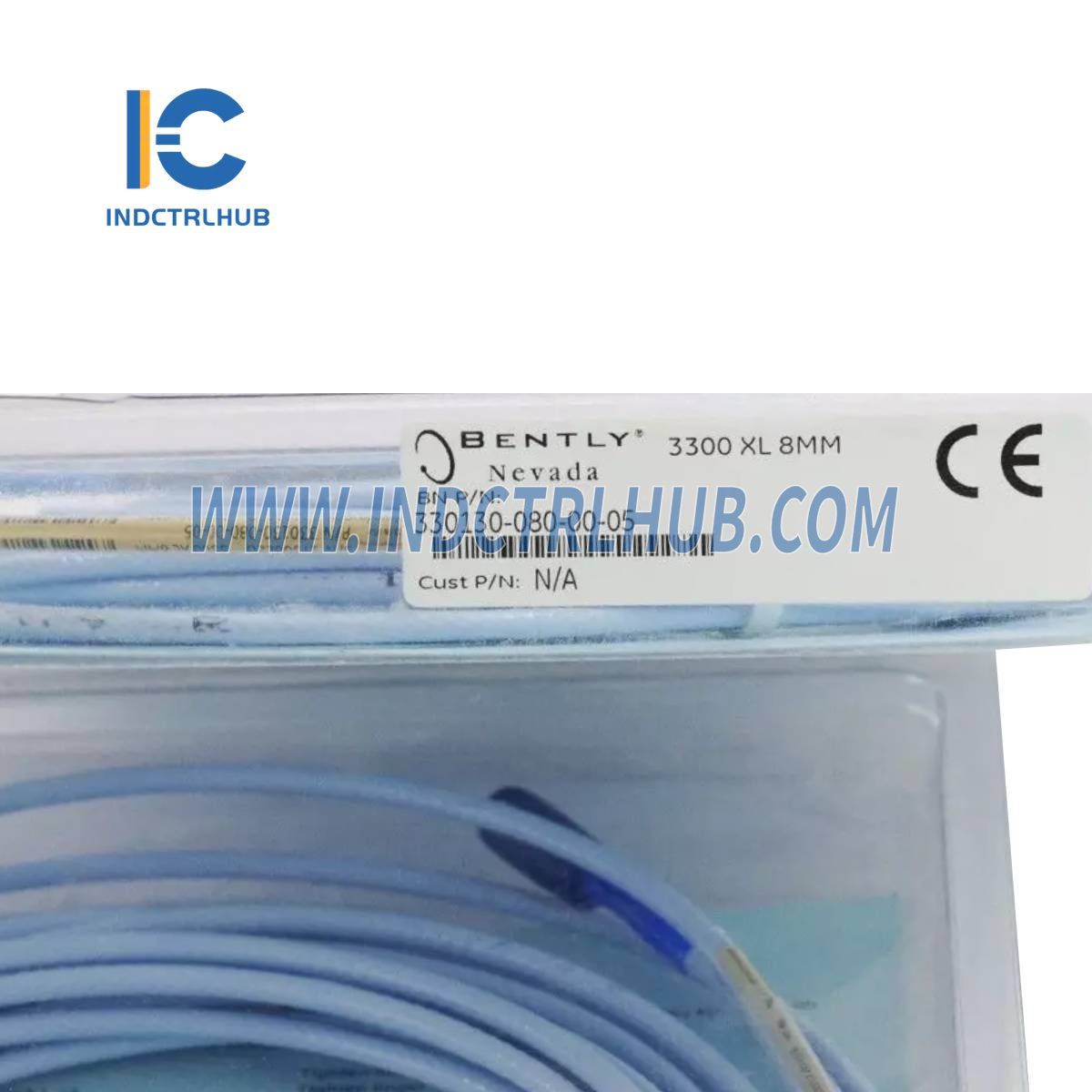

• Model/Part Number: 330130-080-00-05
• Model Type: Extension Cable
Specifications
Proximity Probe and Extension Cable Features
• TipLoc Molding: Provides a robust bond between the probe tip and body.
• CableLoc Design: Ensures 330 N (75 lbf) pull strength for a secure attachment between the probe cable and tip.
Electrical
|
Attribute |
Value |
|---|---|
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
Tensile Strength (Max Rated) |
330 N (75 lbf) at probe case to probe lead 270 N (60 lbf) at probe lead to extension cable connectors |
Nominal Extension Cable DC Resistance
|
Cable Length (m) |
Resistance (Ω) |
|---|---|
|
3.0 |
0.66 ± 0.10 |
|
3.5 |
0.77 ± 0.12 |
|
4.0 |
0.88 ± 0.13 |
|
4.5 |
0.99 ± 0.15 |
|
6.0 |
1.32 ± 0.21 |
|
7.0 |
1.54 ± 0.23 |
|
7.5 |
1.65 ± 0.25 |
|
8.0 |
1.76 ± 0.26 |
|
8.5 |
1.87 ± 0.28 |
Materials
|
Component |
Material |
|---|---|
|
Standard Cable |
75Ω triaxial, fluoroethylene propylene (FEP) insulated |
|
Extended Temperature Cable |
75Ω triaxial, perfluoroalkoxy (PFA) insulated |
Mechanical & Dimensional Data
|
Attribute |
Value |
|---|---|
|
Minimum Cable Bend Radius |
25.4 mm (1.0 in) |
|
System Length |
1 m, 5 m, or 9 m (including extension cable) |
|
Extension Cable Weight |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable Weight |
103 g/m (1.5 oz/ft) |
Ordering Information for Extension Cables
3300 XL Standard Extension Cable (330130-AAA-BB-CC)
A: Cable Length Option
• 030 → 3.0 meters (9.8 feet)
• 035 → 3.5 meters (13.1 feet)
• 040 → 4.0 meters (11.5 feet)
• 045 → 4.5 meters (14.8 feet)
• 060 → 6.0 meters (19.7 feet)
• 070 → 7.0 meters (22.9 feet)
• 075 → 7.5 meters (24.6 feet)
• 080 → 8.0 meters (26.2 feet)
• 085 → 8.5 meters (27.9 feet)
B: Connector Protector and Cable Option
• 00 → Standard cable
• 01 → Armored cable
• 02 → Standard cable with connector protector
• 03 → Armored cable with connector protector
• 10 → FluidLoc cable
• 11 → Armored FluidLoc cable
• 12 → FluidLoc cable with connector protector
• 13 → Armored FluidLoc cable with connector protector
C: Agency Approval Option
• 00 → Not required
• 05 → CSA, ATEX, IECEx Approvals
