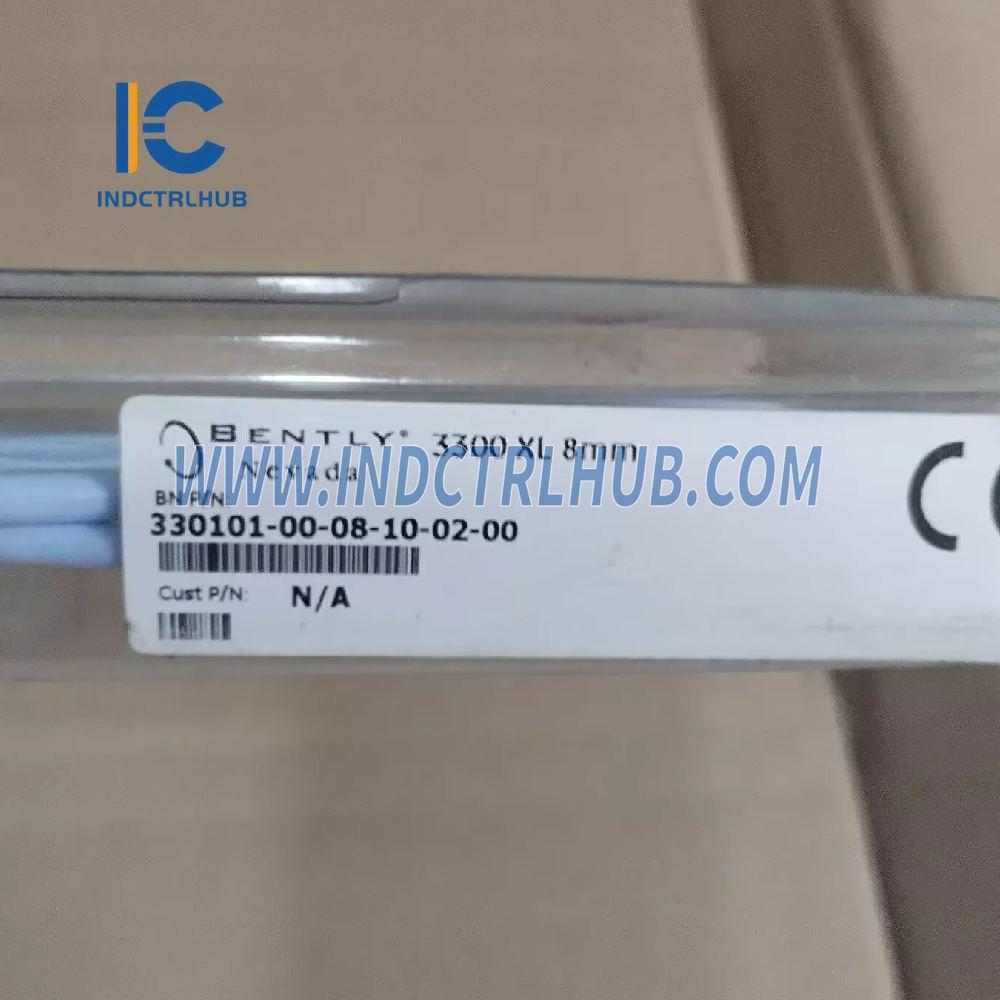

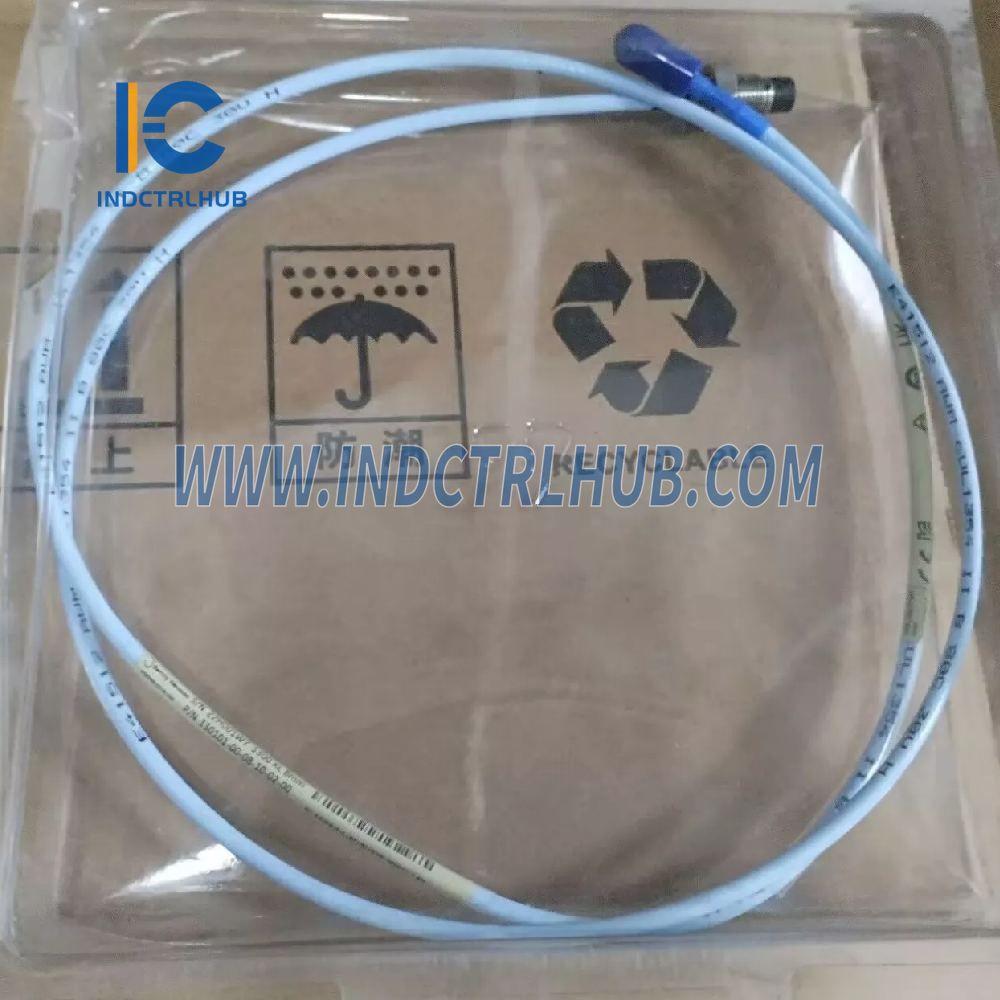

Bently Nevada 330101-00-08-10-02-00 3300 XL 8 mm Probe 3/8-24 UNF thread

Bently Nevada 330101-00-08-10-02-00 3300 XL 8 mm Probe 3/8-24 UNF thread

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-08-10-02-00

  • Condition:1000 in stock

  • Product Type: 3300 XL 8 mm Probe

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details:

  • Manufacturer: Bently Nevada
  • Model/Part Number: 330101-00-08-10-02-00
  • Description: 3300 XL 8 mm Probe 3/8-24 UNF thread without armor (2)

Options:

Part Number: 330101-AA-BB-CC-DD-EE

Option Description
A: Unthreaded Length Option Note: Unthreaded length must be at least 0.8 in. less than the case length. Order in increments of 0.1 in.
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 04 = 0.4 in.
B: Overall Case Length Option Order in increments of 0.1 in.
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 24 = 2.4 in.
C: Total Length Option 05: 0.5 meter (1.6 feet)
10: 1.0 meter (3.3 feet)
15: 1.5 meter (4.9 feet)
20: 2.0 meters (6.6 feet)
30: 3.0 meters (9.8 feet)
50: 5.0 meters (16.4 feet)
90: 9.0 meters (29.5 feet)
Note: 3-meter length option is only available on 330101 probes, and is designed for use with the 9-meter Proximitor sensor only. 5-meter probes are designed for use with the 5-meter Proximitor sensor only.
D: Connector and Cable-Type Option 01: Miniature coaxial ClickLoc connector with connector protector, standard cable
02: Miniature coaxial ClickLoc connector, standard cable
11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12: Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option 00: Not required
05: CSA, ATEX, IECEx approvals

Materials:

  • Proximitor Sensor Material: A308 aluminum
  • Connector Material: Gold-plated brass or gold-plated beryllium copper

System Length:

  • 5 or 9 meters (including extension cable) or 1 meter (probe only)

Weight:

  • Probe weight: 323 g/m (11.4 oz)



Check below popular items for more information in  Industrial Control Hub
Brand Description  Price (USD)  Stock Link
Bently Nevada 3500/42M Proximitor/Seismic Monitor (09-00, 176449-02 + 140471-01)  1807-2807  300 Proximitor/Seismic Monitor
Bently Nevada 3500/65 16-Channel Temperature Monitor (01-00, 145988-02 + 172103-01)  3207-4207  500 16-Channel Temperature Monitor
Bently Nevada 3500/22M TDI Module and I/O (01-01-00)  6999-7999  400 TDI Module and I/O
Bently Nevada 3500/42M Prox/Seismic I/O Module (128229-01)  0-843  300 Prox/Seismic I/O Module
Bently Nevada 3500/70M Recip Impulse Velocity Monitor (176449-09)  3001-4001  200 Recip Impulse Velocity Monitor
Bently Nevada 3500/61 Temperature Modules (05-01, 163179-02)  4855-5855  700 Temperature Modules
View full details

Product Description

Product Details:

  • Manufacturer: Bently Nevada
  • Model/Part Number: 330101-00-08-10-02-00
  • Description: 3300 XL 8 mm Probe 3/8-24 UNF thread without armor (2)

Options:

Part Number: 330101-AA-BB-CC-DD-EE

Option Description
A: Unthreaded Length Option Note: Unthreaded length must be at least 0.8 in. less than the case length. Order in increments of 0.1 in.
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 04 = 0.4 in.
B: Overall Case Length Option Order in increments of 0.1 in.
Maximum case length: 9.6 in.
Minimum case length: 0.8 in.
Example: 24 = 2.4 in.
C: Total Length Option 05: 0.5 meter (1.6 feet)
10: 1.0 meter (3.3 feet)
15: 1.5 meter (4.9 feet)
20: 2.0 meters (6.6 feet)
30: 3.0 meters (9.8 feet)
50: 5.0 meters (16.4 feet)
90: 9.0 meters (29.5 feet)
Note: 3-meter length option is only available on 330101 probes, and is designed for use with the 9-meter Proximitor sensor only. 5-meter probes are designed for use with the 5-meter Proximitor sensor only.
D: Connector and Cable-Type Option 01: Miniature coaxial ClickLoc connector with connector protector, standard cable
02: Miniature coaxial ClickLoc connector, standard cable
11: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
12: Miniature coaxial ClickLoc connector, FluidLoc cable
E: Agency Approval Option 00: Not required
05: CSA, ATEX, IECEx approvals

Materials:

  • Proximitor Sensor Material: A308 aluminum
  • Connector Material: Gold-plated brass or gold-plated beryllium copper

System Length:

  • 5 or 9 meters (including extension cable) or 1 meter (probe only)

Weight:

  • Probe weight: 323 g/m (11.4 oz)
