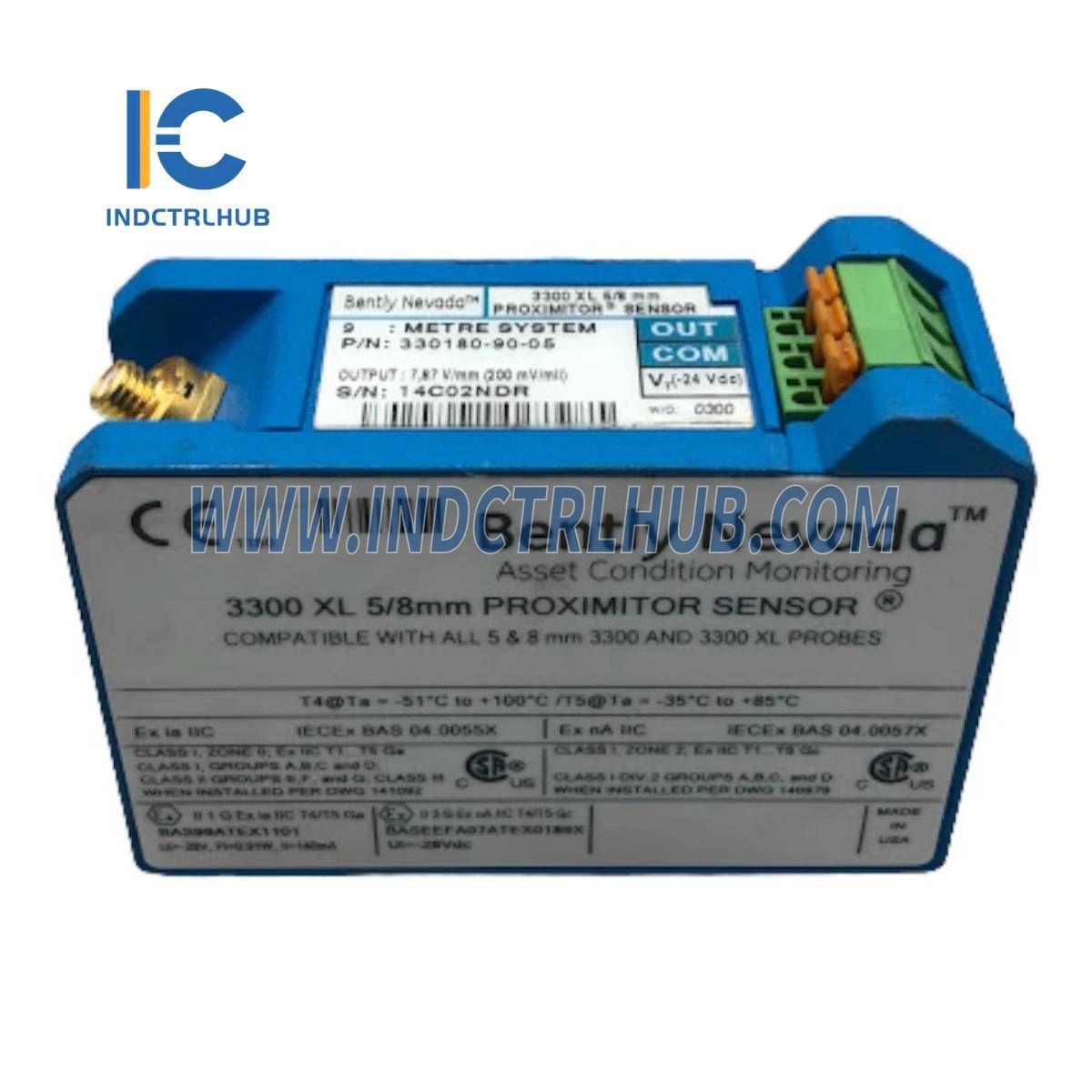

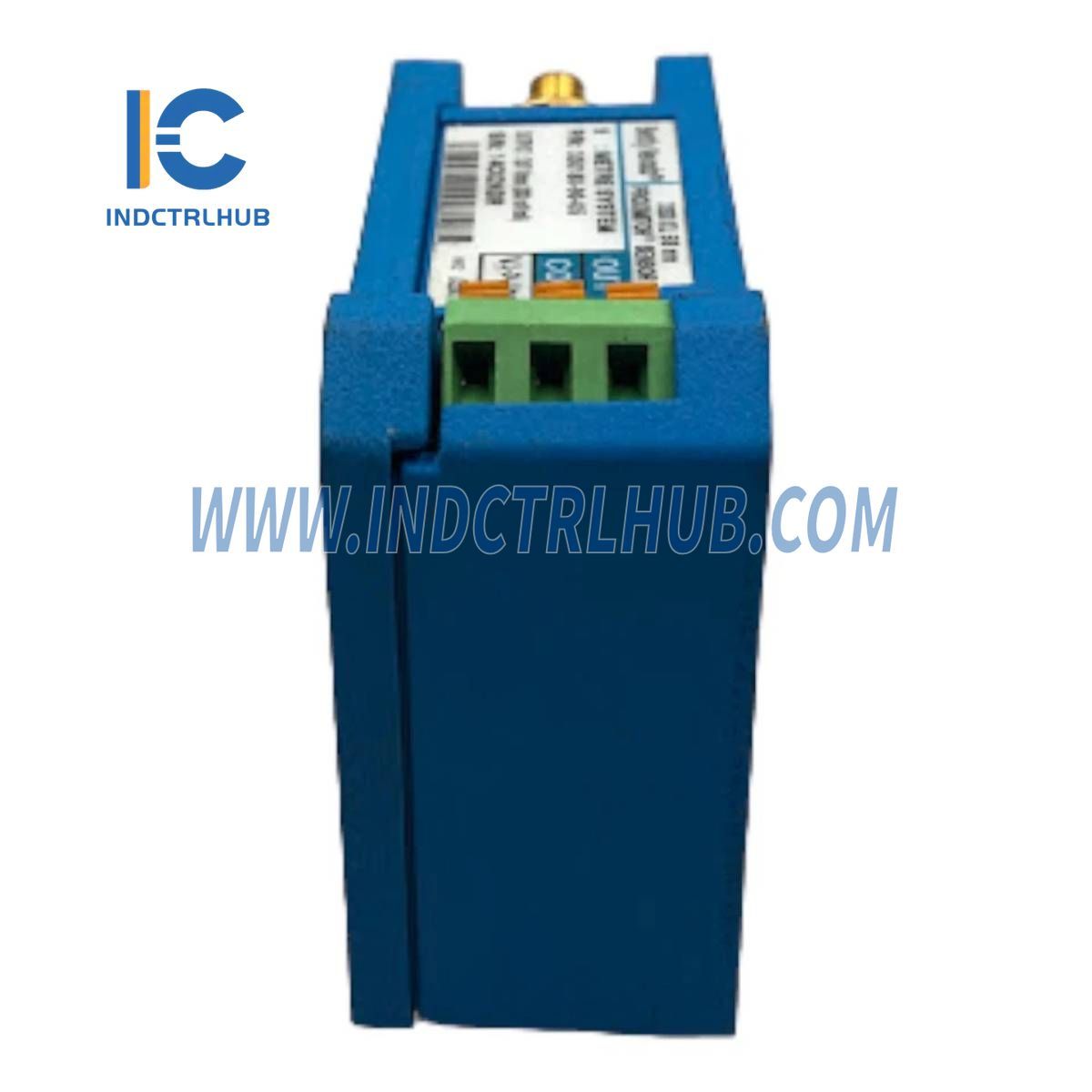

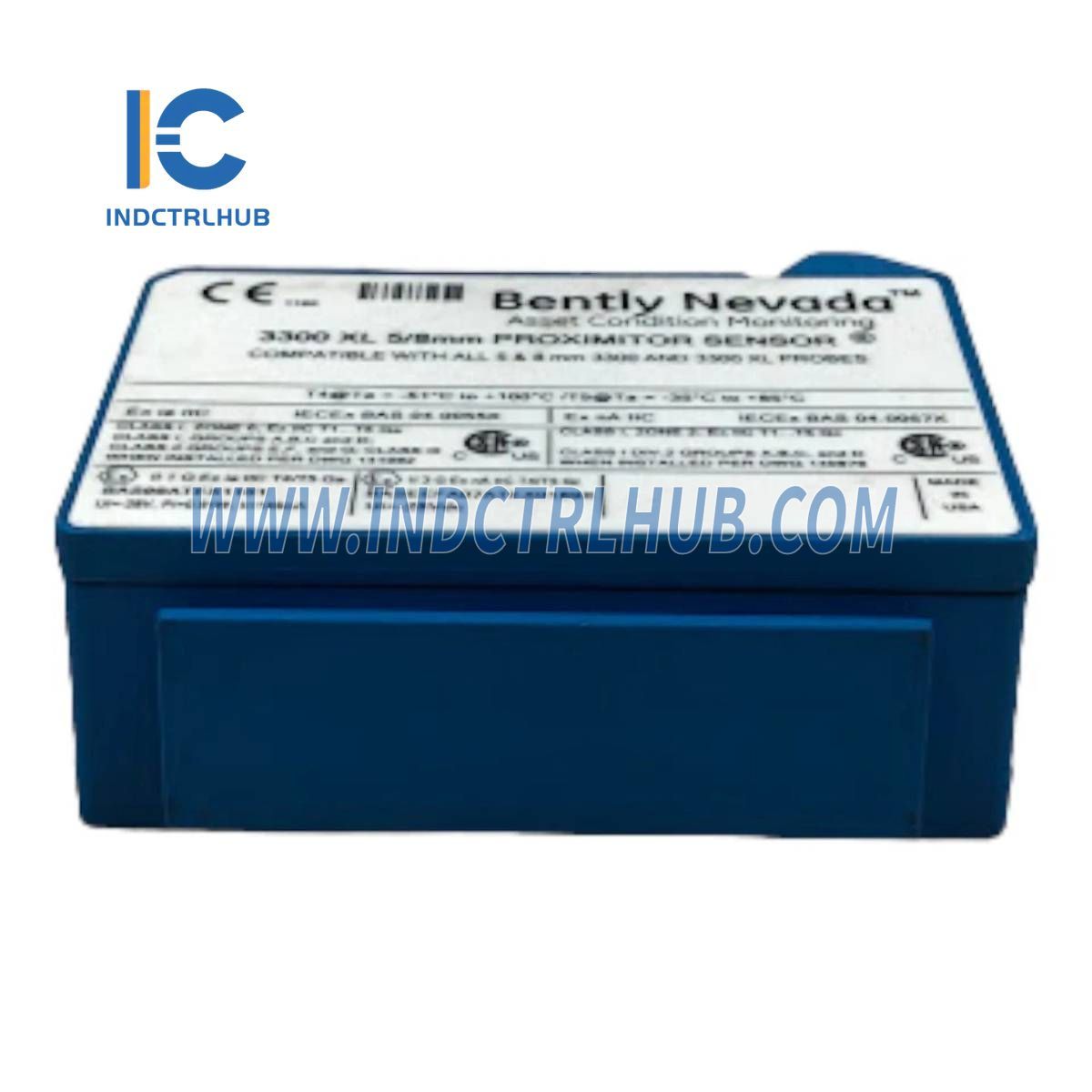

Bently Nevada 3300 XL 330180-90-05 Proximitor Sensor System
Bently Nevada 3300 XL 330180-90-05 Proximitor Sensor System
Manufacturer: Bently Nevada
Product No.: 330180-90-05
Condition:1000 in stock
Product Type: Proximitor Sensor System
Product Origin: USA
Payment: T/T, Western Union
Weight: 246g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
__Manufacturer:_Bently Nevada
__Model/Part Number:_330180-90-05
__Series:_3300 XL
__Type:_Proximitor Sensor System
Specifications
Electrical
|
Attribute |
Value |
|---|---|
|
Input |
Accepts 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
|
Power Requirement |
-17.5 Vdc to -26 Vdc, 12 mA max consumption |
|
Supply Sensitivity |
< 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
Materials
|
Component |
Material |
|---|---|
|
Proximitor Sensor |
A308 aluminum |
|
Connector |
Gold-plated brass or gold-plated beryllium copper |
Dimensions & Weight
|
Component |
Length |
Weight |
|---|---|---|
|
System Length |
5 or 9 meters (incl. extension cable) / 1 meter (probe only) |
0.7 kg (1.5 lb) |
|
Probe |
- |
323 g/m (11.4 oz) |
|
Extension Cable |
- |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable |
- |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor |
- |
246 g (8.67 oz) |
Environmental Limits
|
Component |
Operating Temperature |
Storage Temperature |
|---|---|---|
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
- |
|
Extended Temperature Probe |
-52°C to +218°C (-62°F to +425°F) (probe tip), -51°C to +260°C (-60°F to +500°F) (cable & connector) |
- |
|
Standard Cable |
-52°C to +177°C (-62°F to +350°F) |
- |
|
Extended Temperature Cable |
-52°C to +260°C (-62°F to +500°F) |
- |
|
Proximitor Sensor |
-52°C to +100°C (-62°F to +212°F) |
-52°C to +105°C (-62°F to +221°F) |
Ordering Information
Model: 330180-AA-BB
__Total Length and Mounting Option
__1.0m (3.3ft): Panel mount (10), DIN mount (11), No mounting hardware (12)
__5.0m (16.4ft): Panel mount (50), DIN mount (51), No mounting hardware (52)
__9.0m (29.5ft): Panel mount (90), DIN mount (91), No mounting hardware (92)
__Agency Approval Option
__00: Not required
__05: CSA, ATEX, IECEx Approvals
