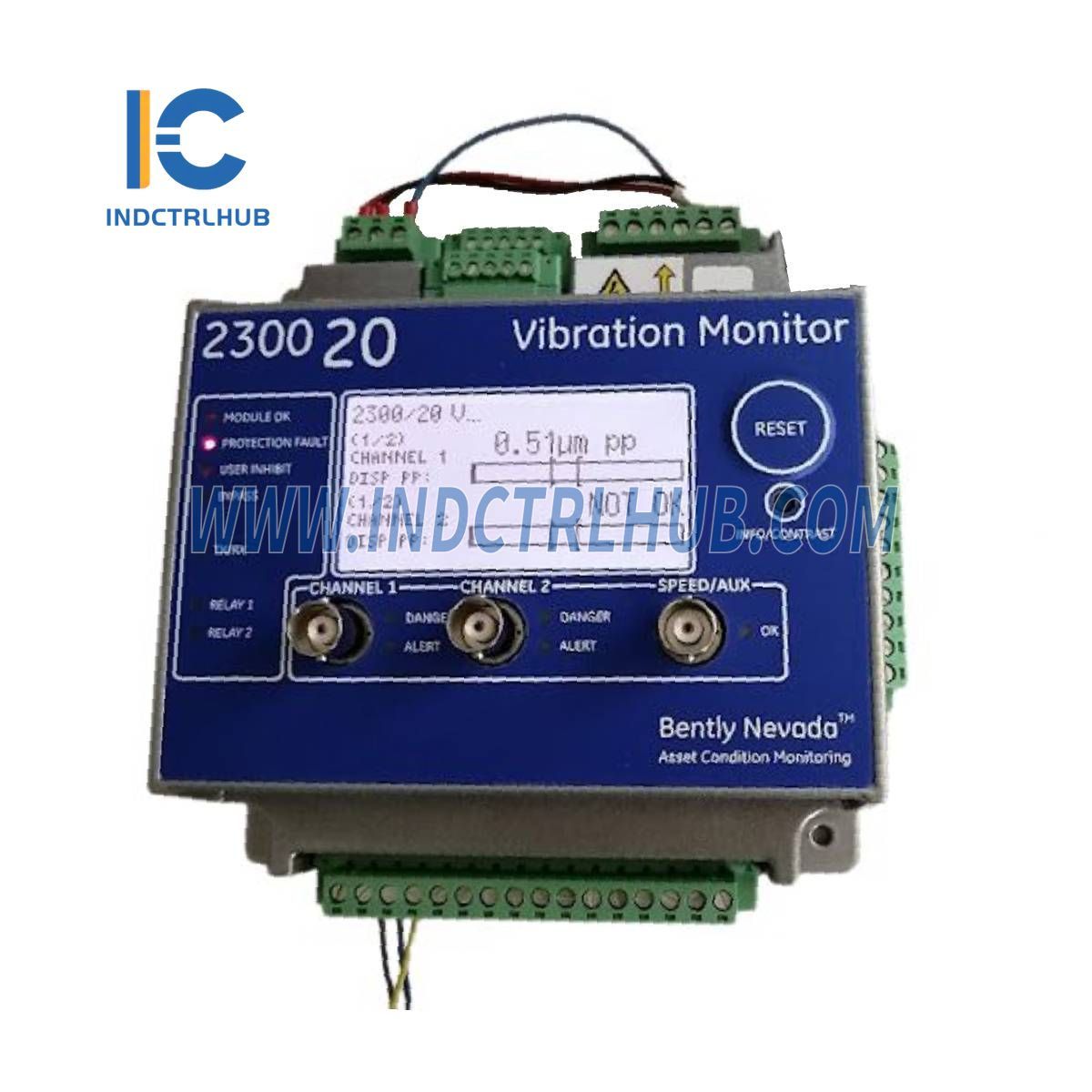

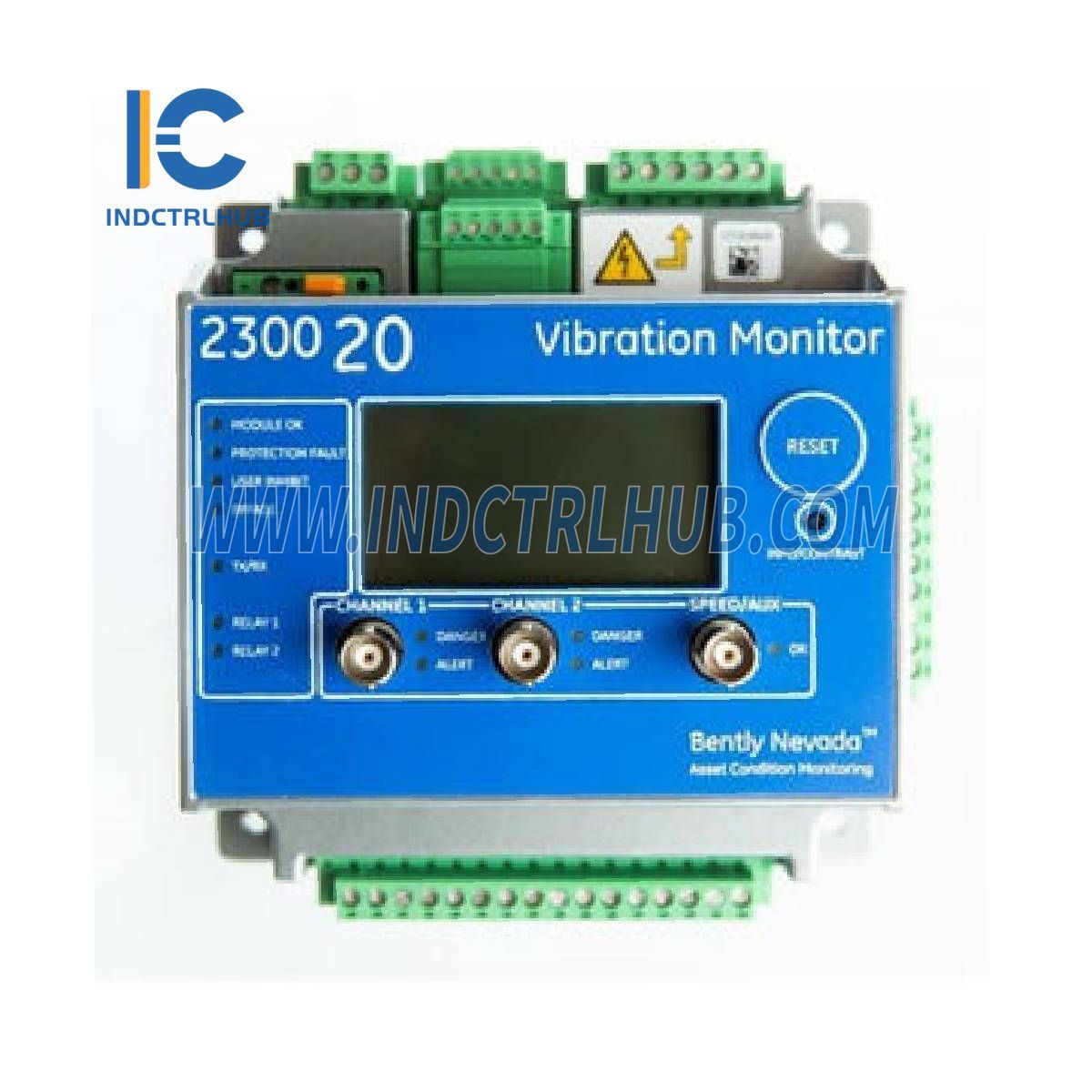

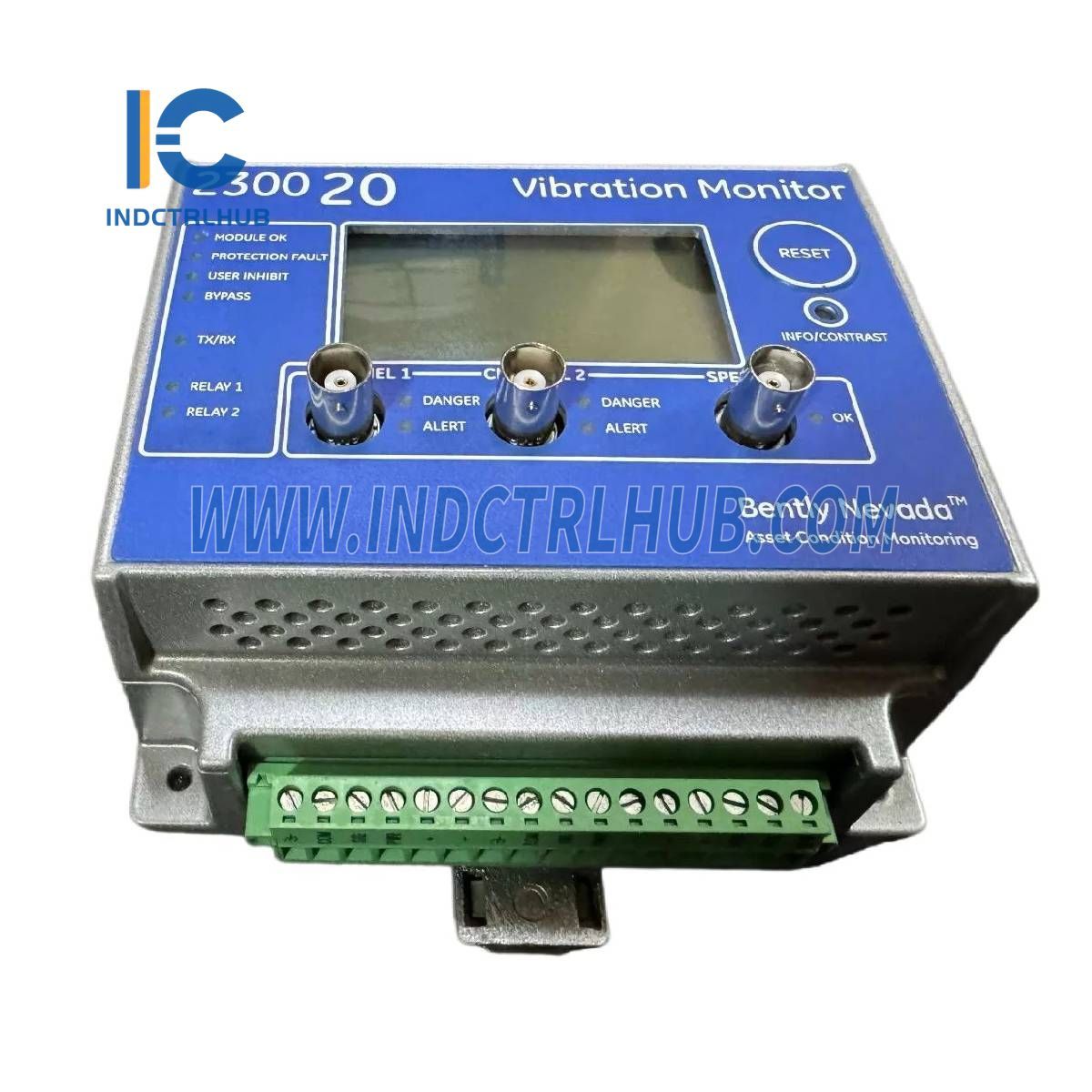

Product Description
General Information
-
Manufacturer: Bently Nevada
-
Series: 2300/20
-
Model/Part Number: 2300/20-CN
-
Model Type: Vibration Monitor
Description
The 2300 Vibration Monitor offers a cost-effective solution for continuous vibration monitoring and protection of less critical and spare machinery. Ideal for industries like oil & gas, power generation, water treatment, pulp and paper, manufacturing, mining, and cement, it’s designed to provide reliable monitoring for medium to low-criticality machinery.
Specifications
Inputs
-
Power Input: DC 18–36 Vdc, max 7.5 W
Environmental Limits
| Attribute | Value |
|---|---|
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | Up to 95%, non-condensing |
| Vibration Limitation | 3 g |
Battery Life for Real-Time Clock
| Power Mode | Battery Life |
|---|---|
| Powered | 38 years at 50°C (122°F) |
| Un-powered | 12 years at 50°C (122°F) |
Physical
| Attribute | Value |
|---|---|
| Dimensions | 127 mm x 127 mm x 76.2 mm (5 in. x 5 in. x 3 in.) |
| Weight | 1.03 kg (2.26 lbs) |
| Mounting | Panel mount or DIN rail (adapter included) |
Ordering Information
2300 Series Vibration Monitor (2300/20-AA)
-
Option A:
-
00 → None
-
02 → Multiple Explosive Atmosphere Certifications (ATEX/IECEx/CSA)
