Product Description
Product Details:
Manufacturer: Bently Nevada
Model/Part Number: 177230-01-02-CN

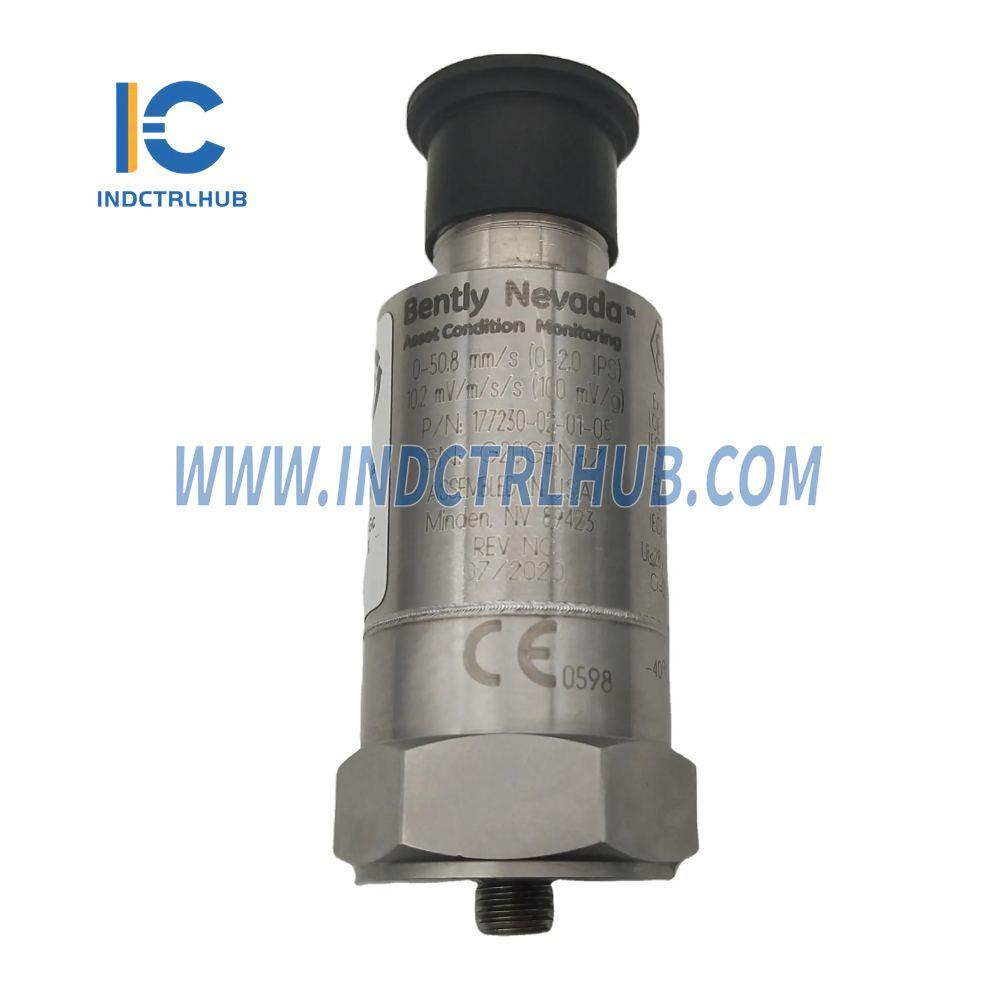

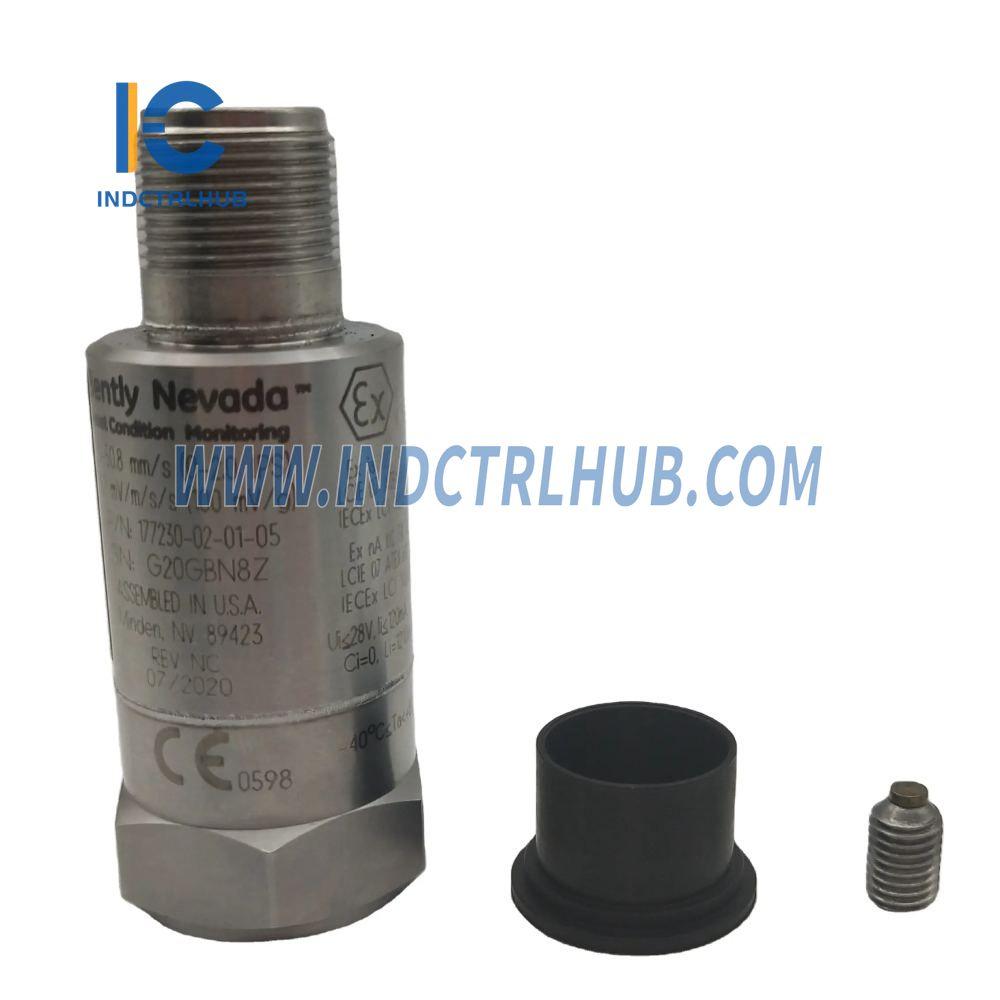

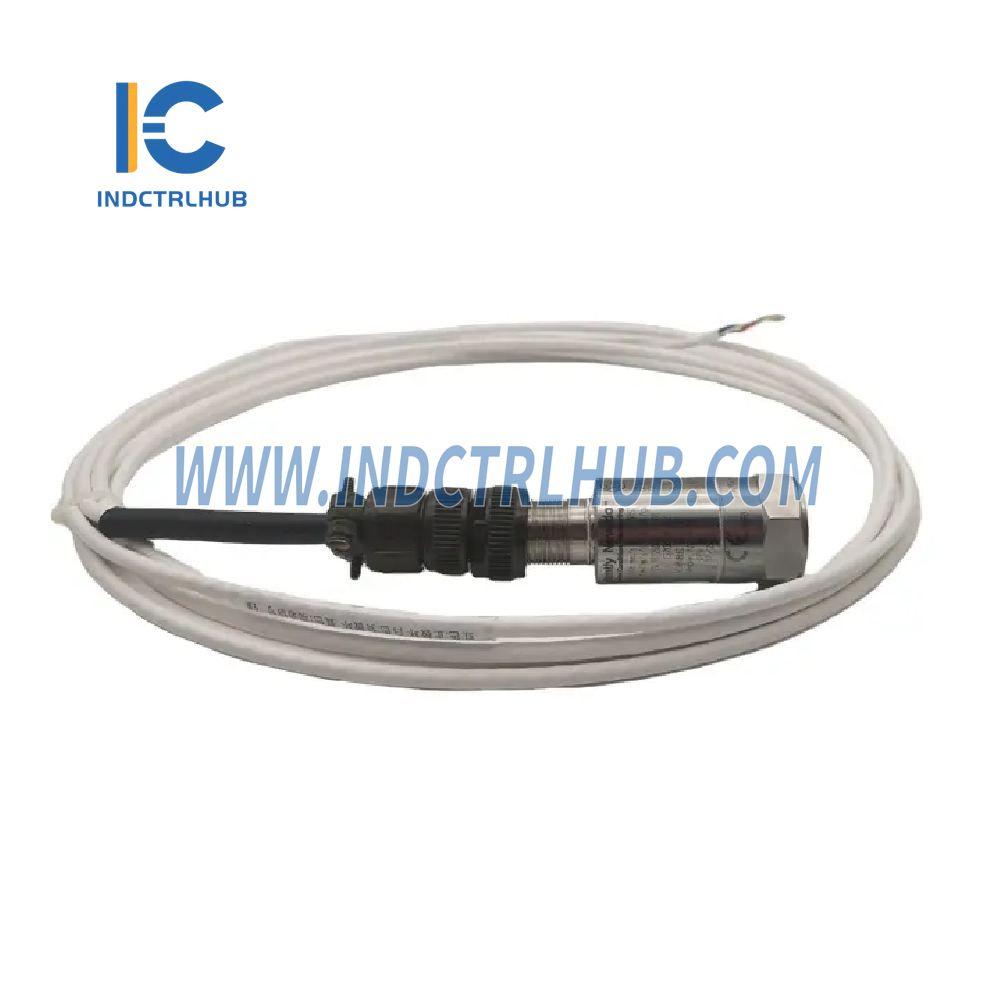

Description: Seismic Transmitter
Environmental Limits:
| Environmental Parameter | Value |
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Electrical Isolation | Greater than 10⁸ ohms |
| Isolation Breakdown Voltage | 600 Vrms with less than 1 mA leakage current |
| Shock Survivability | 9.810 m/s² (1.000 g peak), maximum drop test |
Note: This part typically mounts directly to the machine via a stud. Customers can use this device with a magnetic base, but must take care not to “snap” the unit onto the machine. This snapping action can create a very large spike signal that can damage the electronics. Rolling the magnetic base onto the machine greatly reduces the spike signal, so the unit should not have any issues.
Options:
Part Number: 177230-AA-BB-CC
| Option Category | Option Code | Description |
|---|---|---|
| A: Measurement Range | 00 | 0 – 12.7 mm/s (0 – 0.5 in/s) |
| 01 | 0 – 25.4 mm/s (0 – 1.0 in/s) | |
| 02 | 0 – 50.8 mm/s (0 – 2.0 in/s) | |
| B: Frequency | 01 | 10 Hz to 1 kHz (600 to 60 kcps) RMS (Root Mean Square) |
| 02 | 3 Hz to 1 kHz (180 to 60 kcps) peak | |
| C: Approvals | 05 | Multiple Approvals (CSA/NRTL/C, ATEX/IECEx) |
Note: Only standard or common AA-BB-CC configurations are available.
Physical Specifications:
| Physical Parameter | Value |
|---|---|
| Weight | 131 g (4.62 oz), typical |
| Diameter | 25.4 mm (1.00 in) |
| Height | 66.0 mm (2.60 in) |
| Case Material | 316L stainless steel |
| Connector | 3-pin MIL-C-5015, 316L stainless steel |
| Mounting Hole | ¼-28 UNF |
| Mounting Threads | M6 X 1 SI, M8 x 1.25 SI, ¼-28 UNF |
| Mounting Torque | 4 to 7 N-m (35.4 to 62.0 in-lbf) |
