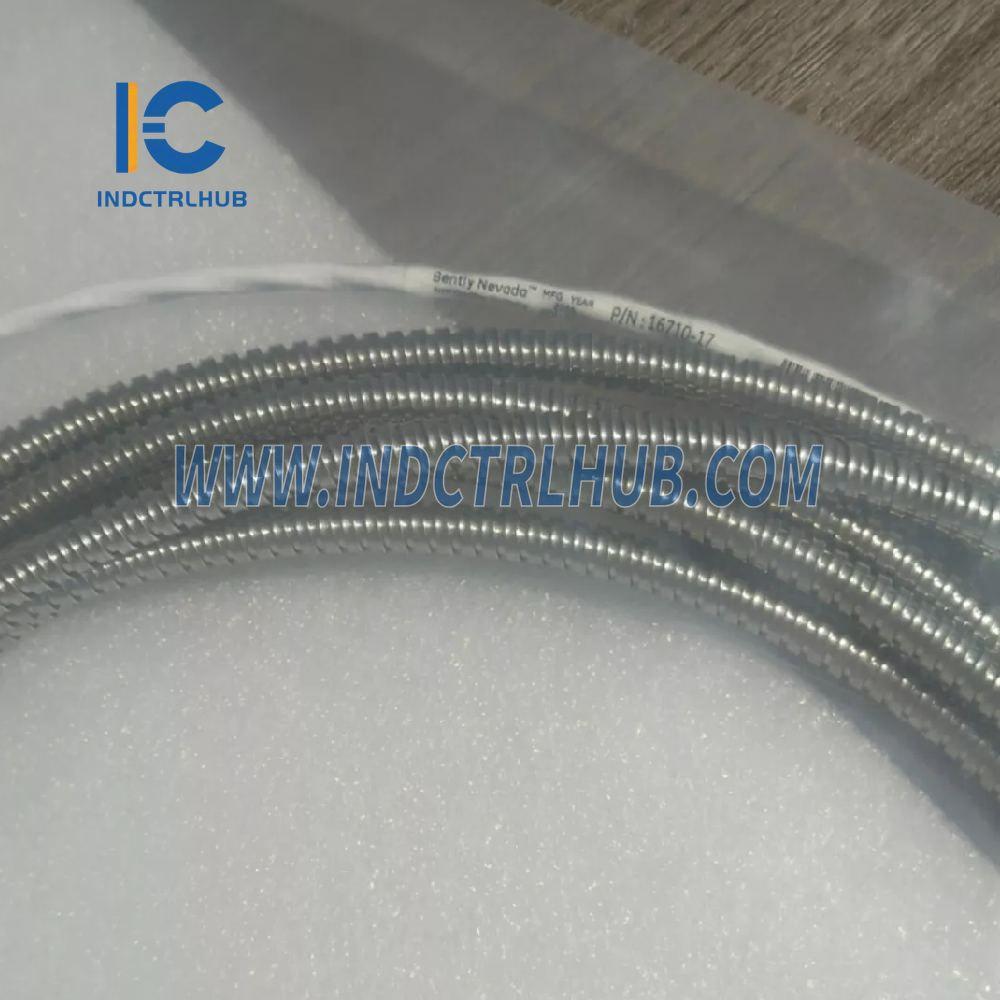

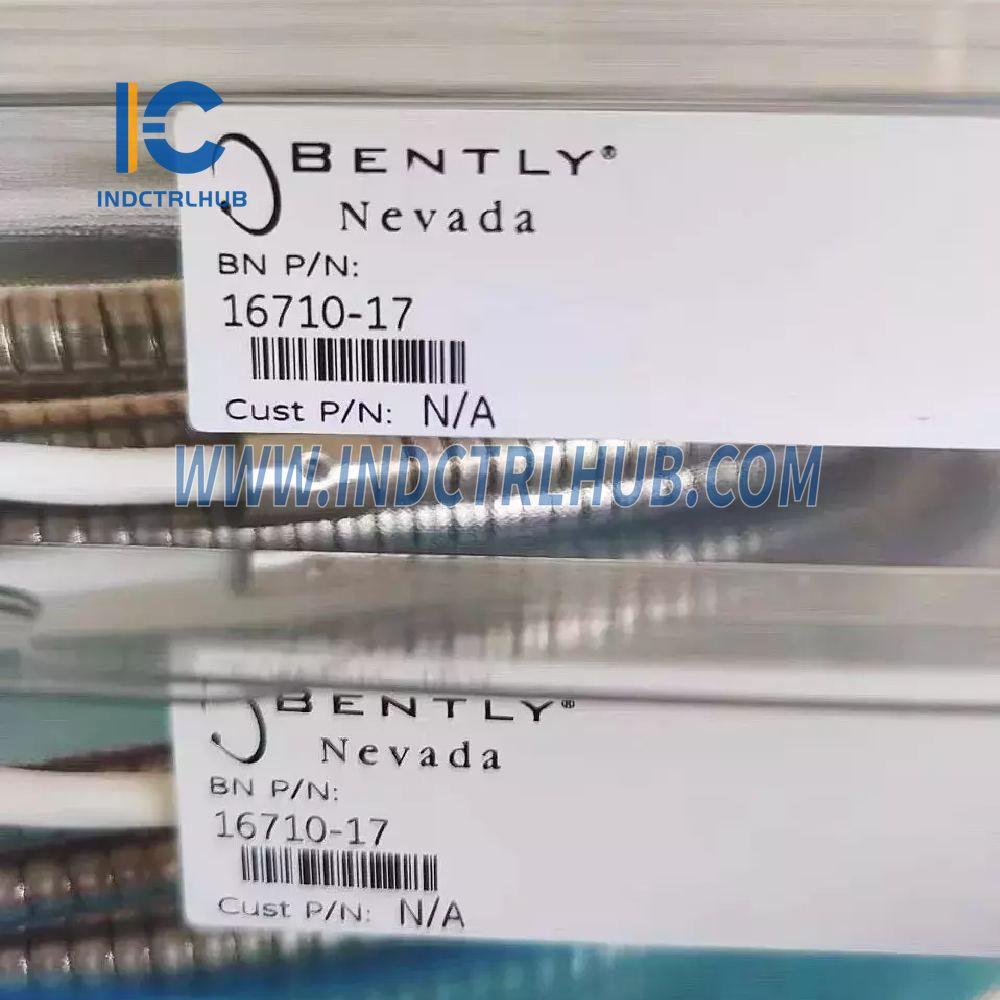

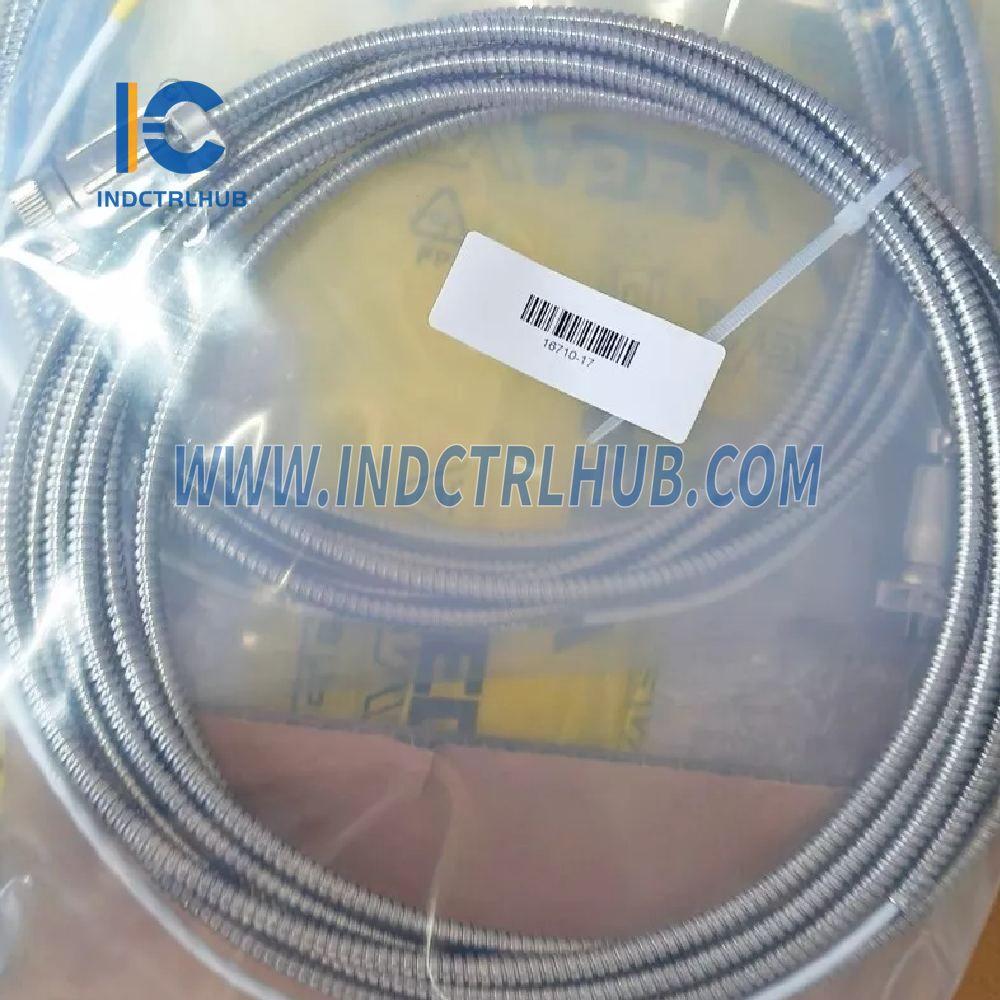

Bently Nevada 16710-17 Interconnect Cables

Bently Nevada 16710-17 Interconnect Cables

  • Manufacturer: Bently Nevada

  • Product No.: 16710-17

  • Condition:1000 in stock

  • Product Type: Interconnect Cables

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 99g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details:

Manufacturer: Bently Nevada
Model/Part Number: 16710-17
Description: Interconnect Cables

Physical Specifications:

Specification Value
Weight (no cable) 99 g (3.5 oz), typical
Diameter 23 mm (0.93 in)
Height 59 mm (2.3 in), including mounting stud


Options:

Part Number: 16710-AA

Option Description
A: Cable Length Option in feet Order in increments of 1.0 ft (305 mm). Example: 1 5 = 15 ft (4.57 m), 2 0 = 20 ft (6.10 m).
Standard Lengths 6 ft (1.8 m), 8 ft (2.4 m), 10 ft (3.0 m), 12 ft (3.6 m), 15 ft (4.5 m), 17 ft (5.0 m), 20 ft (6.0 m), 25 ft (7.6 m), 50 ft (15.2 m), 99 ft (30.0 m).
Custom Lengths Non-standard/custom lengths can also be ordered at additional cost.
Cable Part Numbers 16710: 3-conductor shielded 22 AWG (0.5 mm²) armored cable with 3-socket plug at one end, terminal lugs at the other end. Minimum length of 3.0 ft (0.9 m), maximum length of 99 ft (30 m).


Environmental Limits:

  • Operating and Storage Temperature: -55°C to +121°C (-67°F to +250°F)
  • Shock Survivability: 49,050 m/s² (5000 g) peak, maximum
  • Relative Humidity: 100% condensing, non-submerged. Case is hermetically sealed
  • Magnetic Field Susceptibility: <2.21 mm/s²/gauss (225 mg/gauss) [50 gauss, 50-60 Hz]
  • IP Rating: Equivalent to IP 68 (Dust tight and watertight). Please note that this rating applies to the sensor only and does not apply to the cable.
